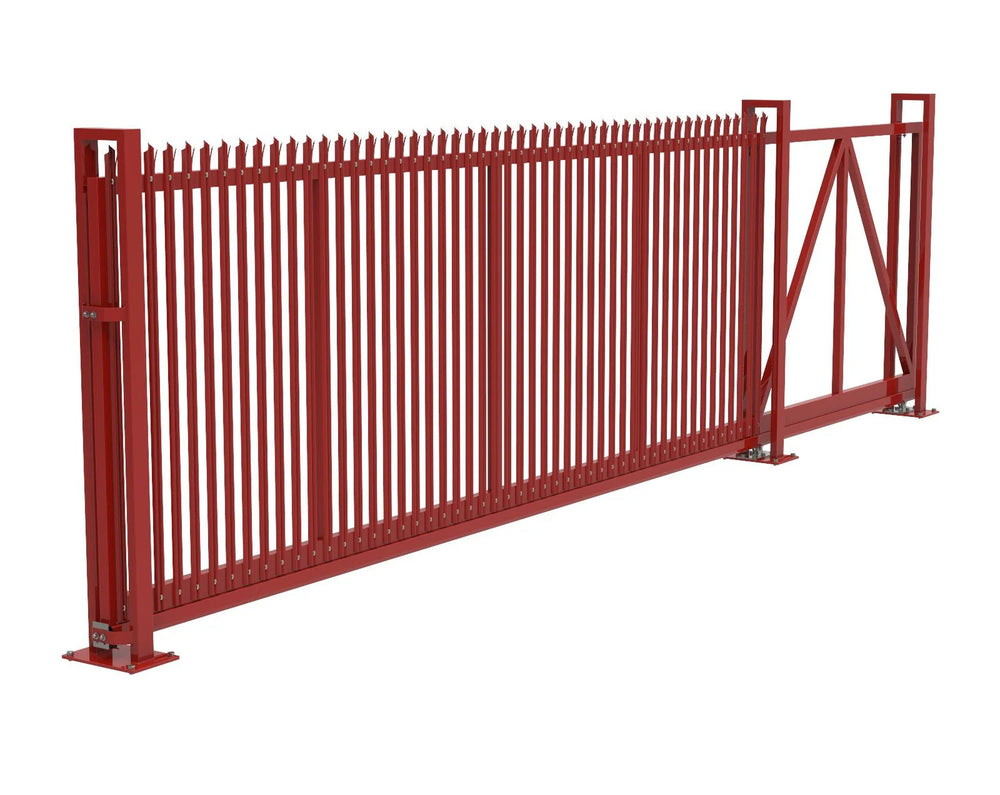

Taimco CAGP-XL6 Cantilever Gates Perimeter Systems feature mono-bloc carriage trolleys with 8 sealed ball bearing rollers, a 6″ wide galvanized steel bottom track, a side-pass upper guide system with sealed bearing rollers, and 1″ diameter stainless steel cane rods (manually operated models). The carriage trolleys are mounted to anchor bolts embedded into a reinforced concrete foundation, designed by TAIMCO per site, utilizing an innovative cast-in-place anchor template.

CAGP-XL6 Perimeter Systems are manufactured using galvanized 2″ x 4″ tubing with mitered corners and diagonal bracing, welded using silicon-bronze welding wire to inhibit rust.

Key Features:

• • Durable Construction: Made from high-grade Steel and Aluminum, ensuring strength and longevity.
  • Metal: Gate panels are made of aluminum alloy extrusions, ensuring strength, durability, and lightweight construction.
  • Infill alternatives include chain links, ornamental pickets, and custom configurations.
  • Adjustable diagonal ¼” cables provide zero to minimal sag.
  • Ornamental Design: Features an elegant design that enhances the visual appeal of any property.
  • Tested Our gate panels, operators, and access controls are meticulously engineered and rigorously tested as integrated systems to ensure flawless performance in all weather conditions.
  • Engineered The robust framework and the incorporation of additional cross-bracing enable these gates to support higher weights and withstand significant wind loads, making them some of the largest cantilever gates available in the industry.
  • Smooth Operation: Equipped with a reliable cantilever system for smooth and effortless sliding.
  • Weather-Resistant: Powder-coated finish provides excellent resistance to corrosion and harsh weather conditions.
  • Low Maintenance: Designed for minimal upkeep, saving time and effort.

Specifications:

• • Material: High-grade steel.
  • Finish: Galvanized or Powder-coated.
  • Dimensions: Customizable to fit specific requirements.
  • Operation: Cantilever sliding mechanism.
  • Colour Options: Available in multiple colours to match any aesthetic.
  • Cantilever Slide, Gates Systems complies with the latest industry safety standards (UL 325 and ASTM F2200).

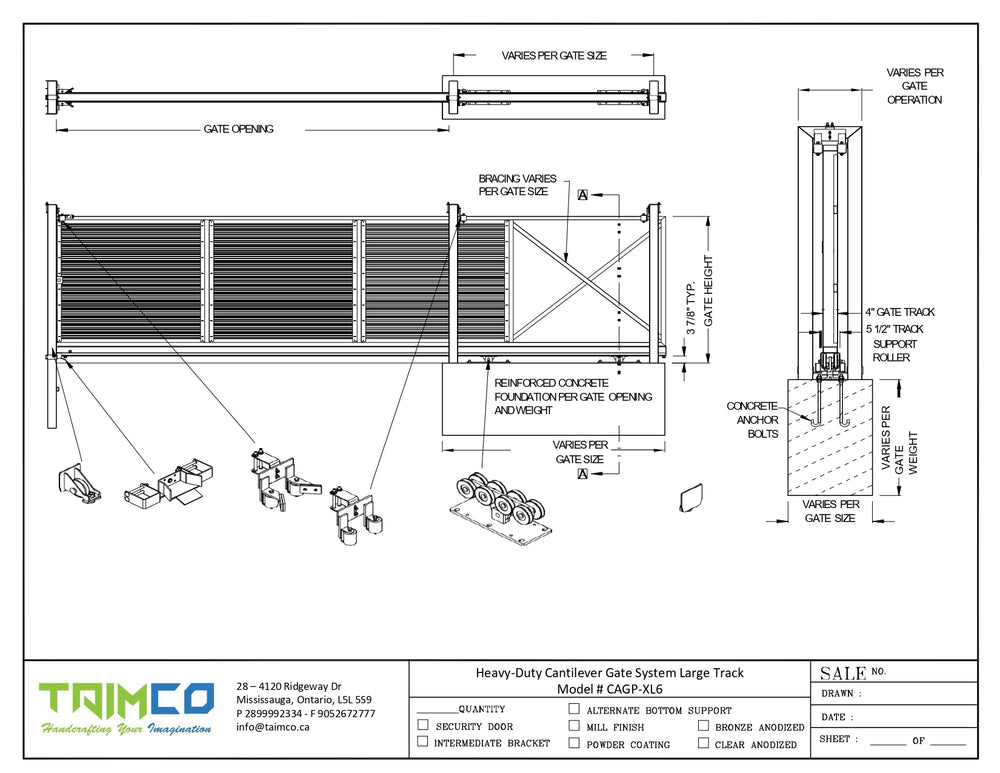

  • Download Specifications and Detailed Drawings.

TAIMCO line of durable cantilever gates is designed to close single openings up to 60 feet, it can be extended to fit any application, Features and benefits of our cantilever gate products include:

• We Custom Designed and built to order to meet all needs and applications.
• Top track Gate frame members are keyed to fully interlock with each other or welded to form the Gate.
• Stainless steel or galvanized cable cross-bracing along the entire gate length.

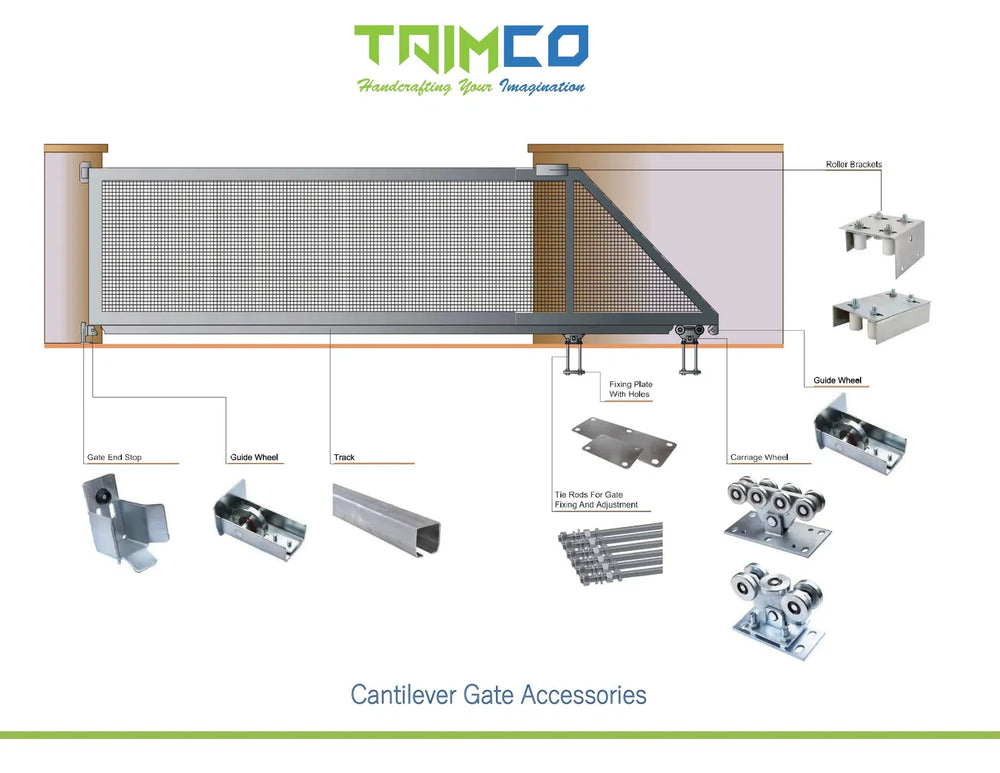

• Truck assemblies are designed for slide gate use and weather-protected for longer-life use.
• 5-year warranty.
• Self-aligning, sealed lubricant ball-bearing wheels.
• Supplied with gap protectors and guide roller covers.
