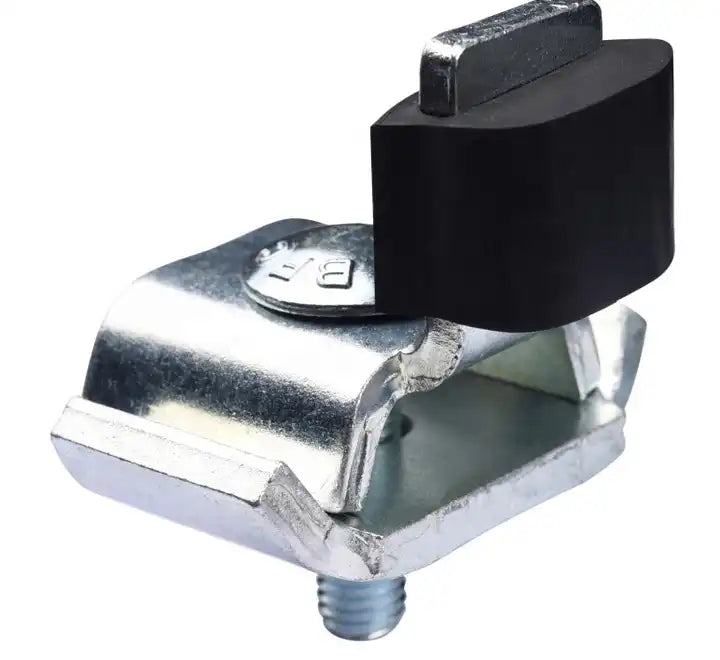

Gate Stopper for C-Rail with Rubber for Sliding Hanging Door | Model # STP139 ( Pack of 100 )
Regular price
$0.00
by
Taimco
Add to wishlist
Add to Compare
Quantity
Description
Specification
Contact
- Floor Stop For Sliding Gates.
- Length: 47 mm.
- Width: 30 mm.
- Height: 50 mm.
- Apilon 332S60-09 rubber pad with a diameter of 30 mm.
- Weight 0.1 KG.
- Locking screw class 8.8 UNI5739 M8x16 mm.
- Material: S235JRG2CC steel (A37).
- Finish: white zinc-plated.
- Minimum Order Quantity for each size : 100
- Bolt/screw on the gate frame - drill up and thru the top of the cantilevered track and bolt the frame to the track. Caution - use counter sinking bolts/screws so that nothing protrudes into the track cavity or carriage wheels will get stuck and the gate will not slide.
- Weld small steel tabs (2" x 3" or similar size) with bolt holes along both edges of the track (like alligator skin). Bolt thru these into the gate frame.
- Bolt a length of steel flat bar (or 2x steel L-angle iron) along the bottom length of the gate frame, then weld this flat bar to the top of the cantilevered track. For added bond, use epoxy along the length of the flat bar
-
- Floor Stop For Sliding Gates.
- Length: 47 mm.
- Width: 30 mm.
- Height: 50 mm.
- Apilon 332S60-09 rubber pad with a diameter of 30 mm.
- Weight 0.1 KG.
- Locking screw class 8.8 UNI5739 M8x16 mm
- Material: S235JRG2CC steel (A37).
- Finish: white zinc-plated.
- Get Specifications and Dimensions.
- Minimum Order Quantity each size : 100
You Can Download specs and dimensions Details and Specs
Installation Tips
Installation Tips; For Steel Gate Frame Installation the best is to weld the gate frame to the track, however, you can install the wood gate as well on the same track Channel, in a few different ways:
Limit Stoper White galvanized steel limit.
