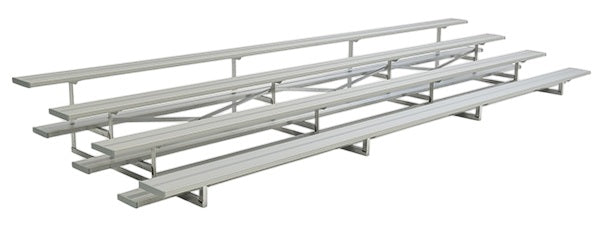

    These ‘Low Rise’ Standard Series Bleachers provide high-quality seating at an affordable price. Here are the key features:

    1. Seat Height: The first row has a seat height of less than 12 inches.
    2. Rise Per Row: Each row rises by 6 inches.
    3. Seat Dimensions: The seats are 2 inches x 12 inches, wide and anodized.
    4. Aisle-Free Design: These bleachers do not require aisles.
    5. Top Seat Height: For the 3 and 4-row systems, the top seat height is under 30 inches. No guardrail is needed to meet most building and safety codes (please verify local codes for compliance).

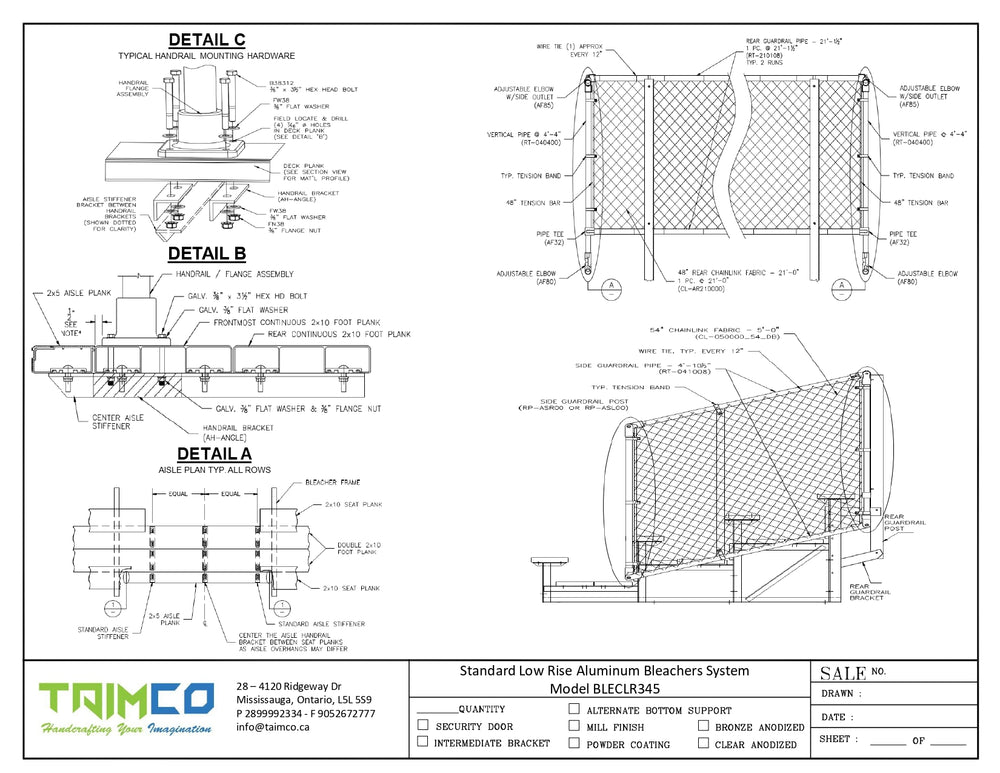

    6. 5-Row Model: The 5-row model comes with a vertical picket guardrail.



    Additional details:

    • The footboards are made of 6061-T6 aluminum alloy, which has a high strength-to-weight ratio and natural corrosion resistance.
    • The walking surface has a standard mill finish.
    • The aluminum welds are chemically cleaned.
    • The hardware is galvanized, ensuring it won’t rust like zinc-plated hardware.
    • These bleachers are a great choice for venues where quality, safety, and affordability matter.



    Key Features:



    1. Row Configuration:
      • Available in 3, 4, and 5 row units.
    2. Front Row Seat Height:
      • The front row has a seat height of 10-1/2 inches.
    3. Rise Per Row:
      • Each row rises by 6 inches.
    4. Seat Planks:
      • The nominal seat planks measure 2 inches x 12 inches.
    5. Length Options:
      • Available in lengths of 7-1/2 feet, 9 feet, 12 feet, 15 feet, 21 feet, and 24 feet.

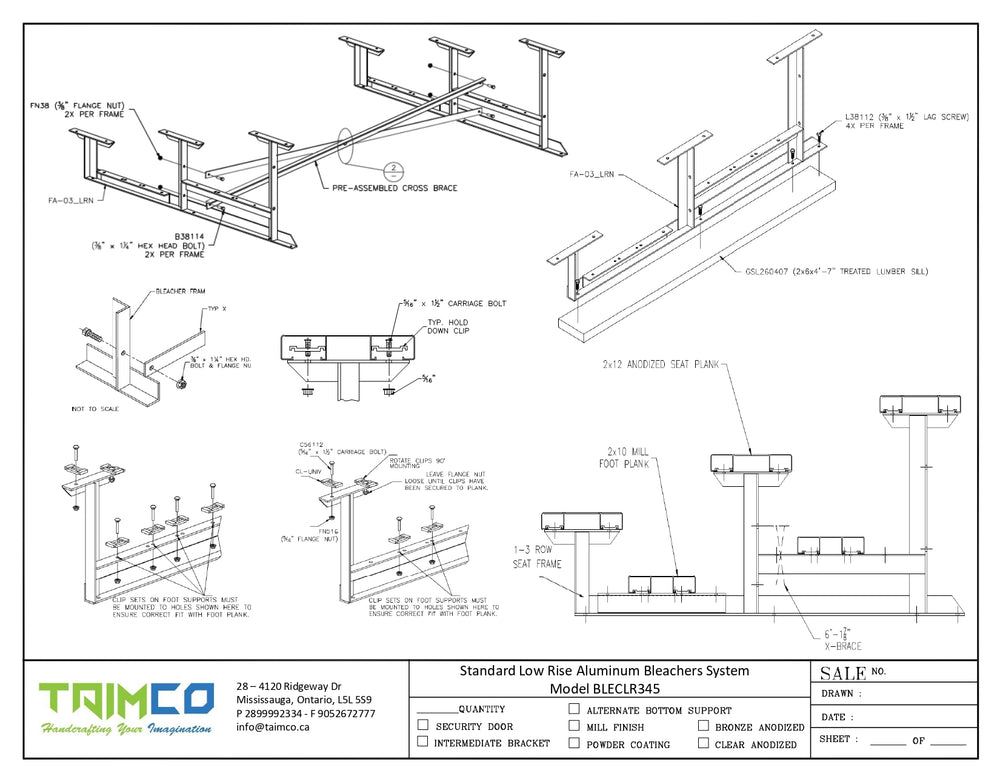

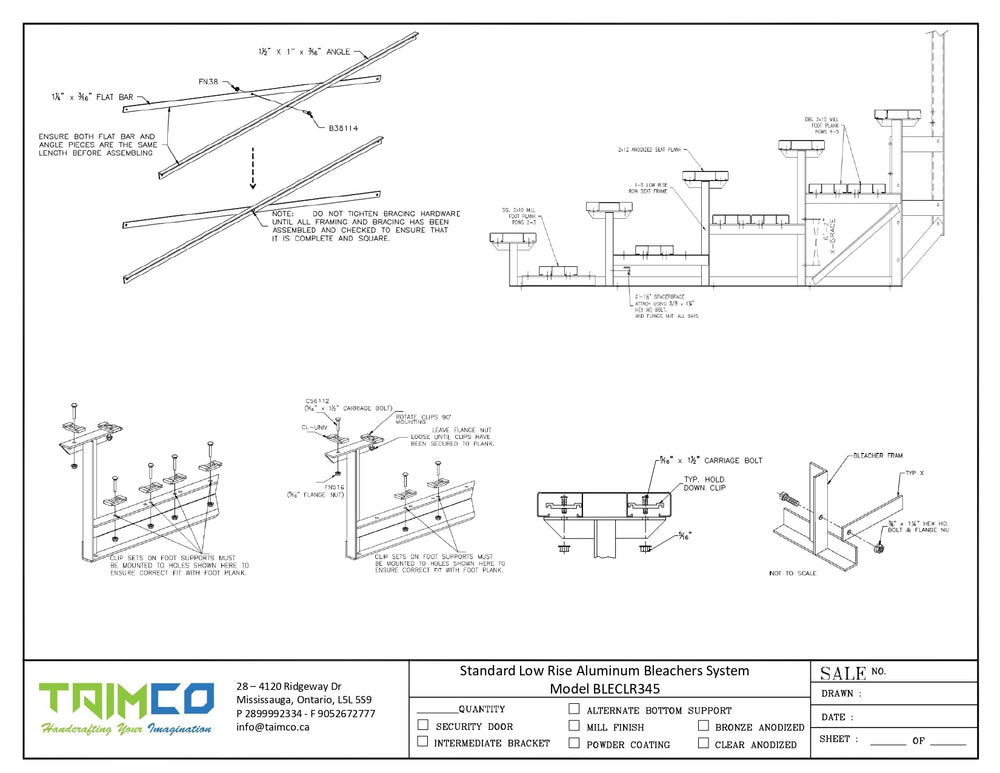

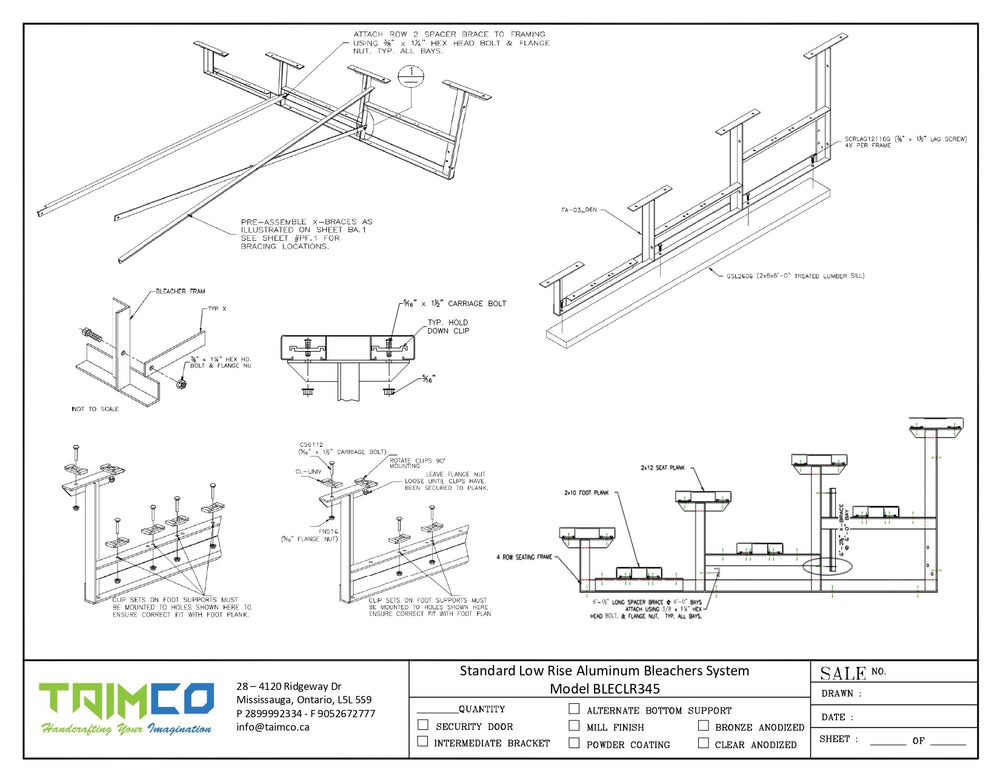

    6. Understructure:
      • Constructed with an aluminum angle frame.
    7. Footboards:
      • The single footboards are 10 inches wide.
      • These specifications ensure a sturdy and functional seating solution for various venues.



    Specifications:

    1. Load Capacity:
      • All seat and foot planks can accommodate 120 pounds per linear foot (plf) across a 6-foot span with a maximum deflection of 9/16 inches.
    2. Live Load Support:
      • Designed to support, in addition to their weight, a uniformly distributed live load of not less than 100 pounds per square foot (psf) of gross horizontal projection of the bleachers.
    3. Wind Load Resistance:
      • Designed to resist, with or without a live load, a horizontal wind load of 30 psf of gross vertical projection.
    4. Sway Force Resistance:
      • In addition to the live load, designed to resist sway forces of 24 plf of seat plank in a direction parallel to the length of the seat, and 10 plf of seat plank in a direction perpendicular to the length of the seat.
      • These specifications ensure the structural integrity and safety of the bleachers under various conditions.



    Not Included:

    • Shop drawings (sold separately).
    • Anchor kits (sold separately).
