Standard Tip and Roll Aluminum Bleachers System - Model BLECTNR23

Standard Tip and Roll Aluminum Bleachers System - Model BLECTNR23

Regular price $850.00
by Taimco
Add to wishlist Add to Compare
Quantity
Quantity
Description Specification Contact

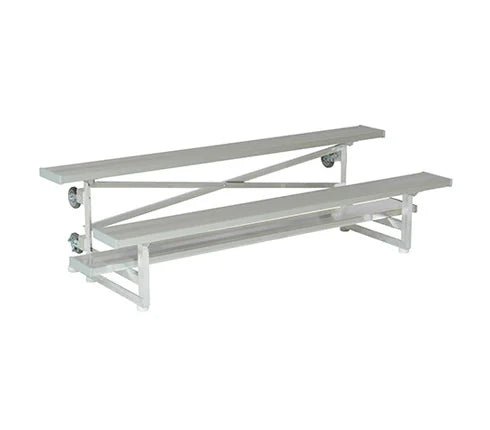

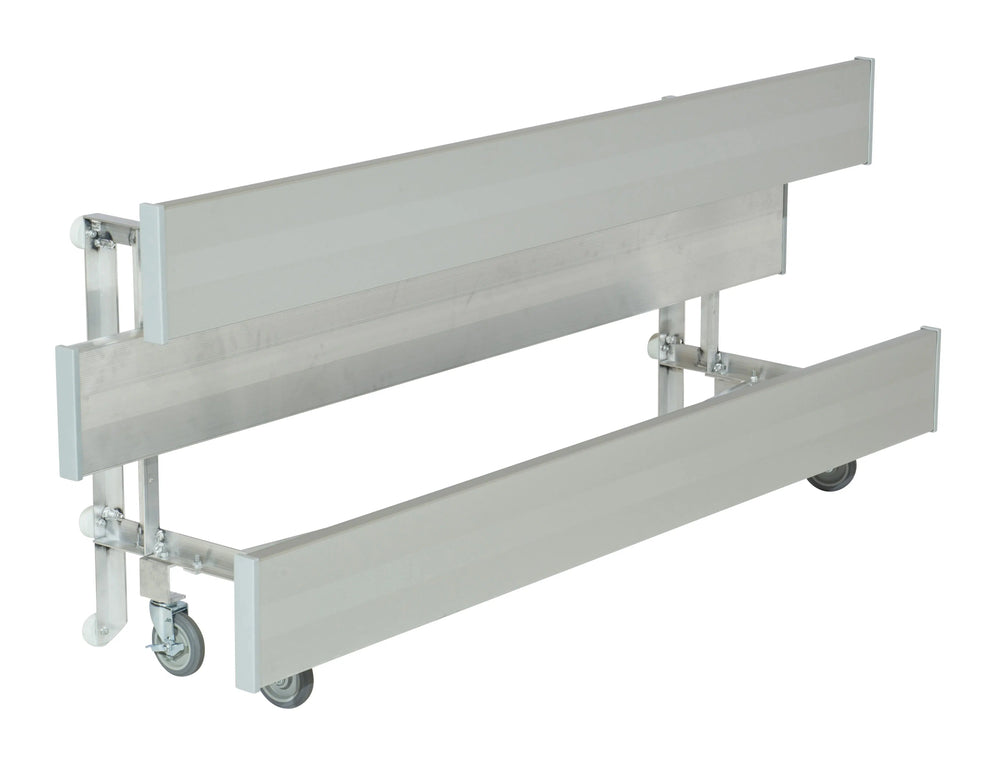

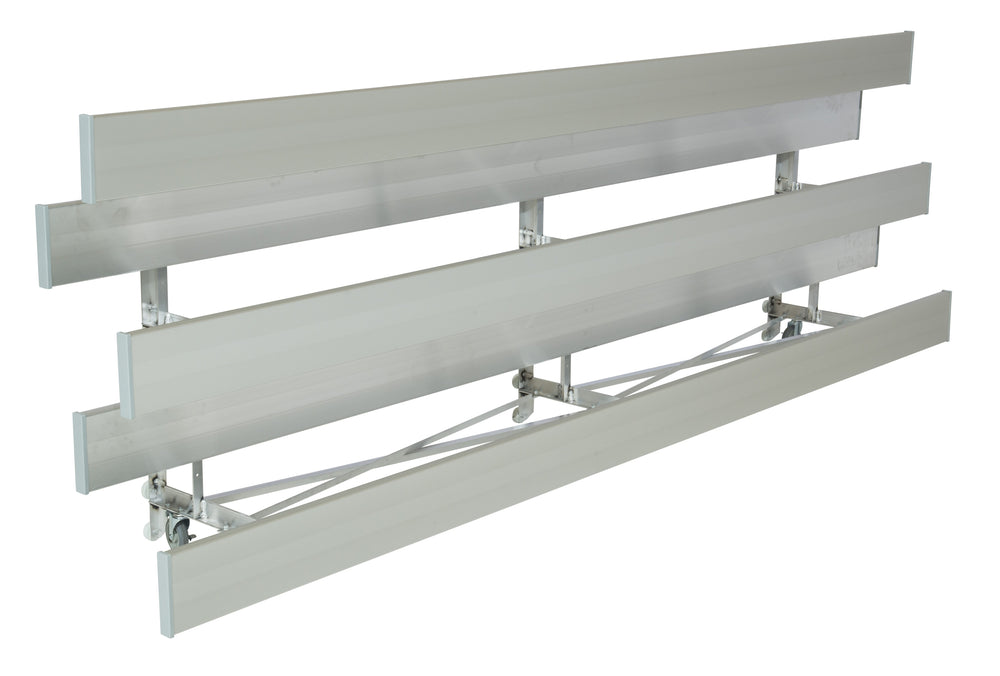

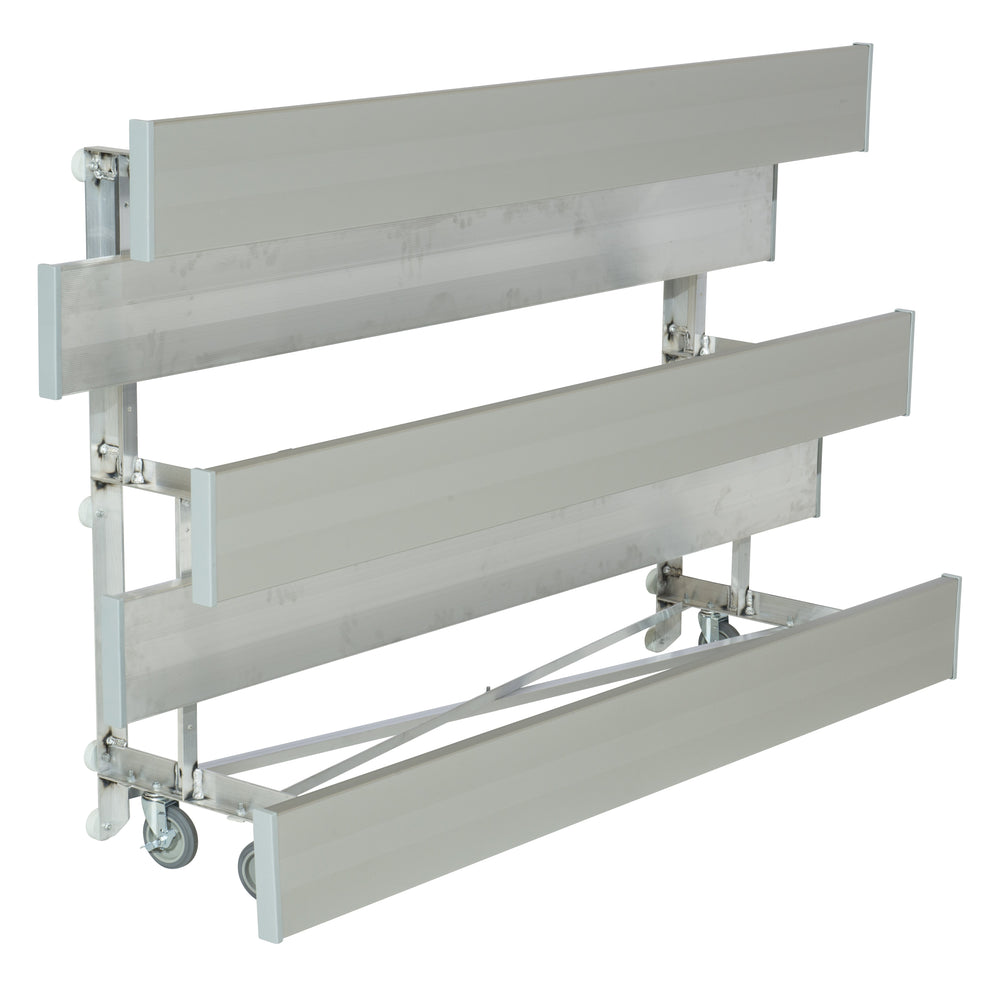

    The Tip and Roll kits facilitate effortless tipping of the bleachers into an upright position. By utilizing the 5-inch non-marring swivel casters, users can simply roll the unit to its designated storage location, providing a secure and cost-effective solution.



      Key Features:

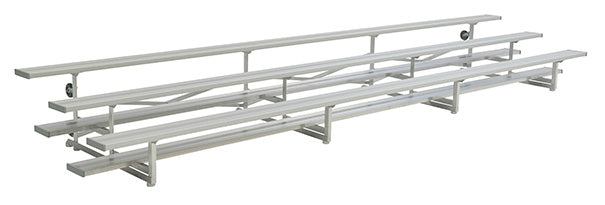

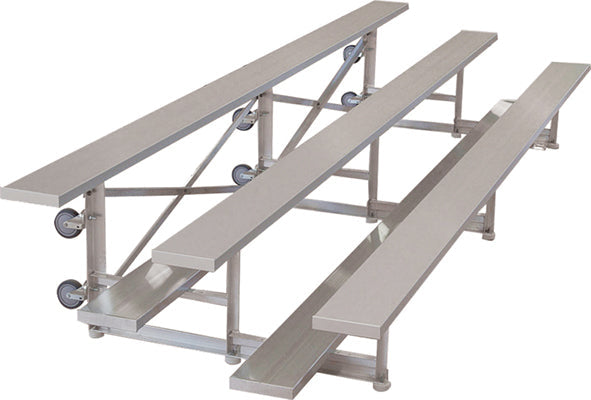

      • Seating Options: Available in both 2-row and 3-row configurations.
      • Front Row Elevation: The front row seats are positioned at a comfortable height of 17 inches.
      • Seat Planks: Crafted from 2-inch by 10-inch nominal planks.
      • Various Lengths: Choose from lengths of 7.5 feet, 9 feet, 12 feet, 15 feet, 21 feet, or 24 feet.
      • Sturdy Construction: Built with an aluminum angle frame understructure.
      • Spacious Footboards: Each unit features a 10-inch wide single footboard.
      • Floor Protection: Equipped with non-marring rubber foot pads for surface protection.



      Specifications:

        1. Seating Elements: Both the seat and foot planks are designed to accommodate a uniformly distributed dynamic load of 120 pounds per linear foot (plf) across a 6-foot span. The maximum allowable deflection is 9/16 inch.
        2. Weight Support: These bleachers are engineered to bear their own weight as well as a uniformly distributed live load of not less than 100 pounds per square foot (psf), based on the gross horizontal projection of the seating structure.
        3. Wind Resistance: Regardless of the presence of a live load, they are constructed to withstand a horizontal wind load of 30 psf, considering the gross vertical projection of the bleachers.
        4. Lateral Stability: In addition to the live load, the design accounts for lateral forces. Specifically, the bleachers are engineered to resist 24 plf of sway forces acting parallel to the length of the seat plank, and 10 plf of sway forces acting perpendicular to the seat plank’s length.



      Not Included:

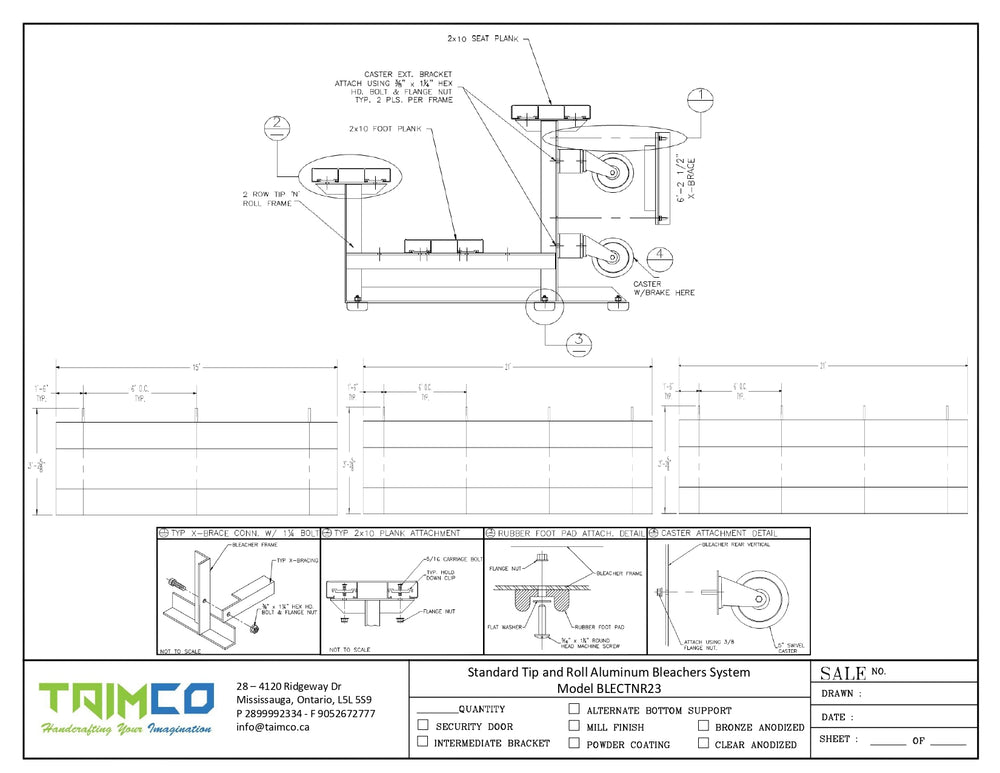

      • Shop drawings (sold separately).
      • Anchor kits (sold separately).
