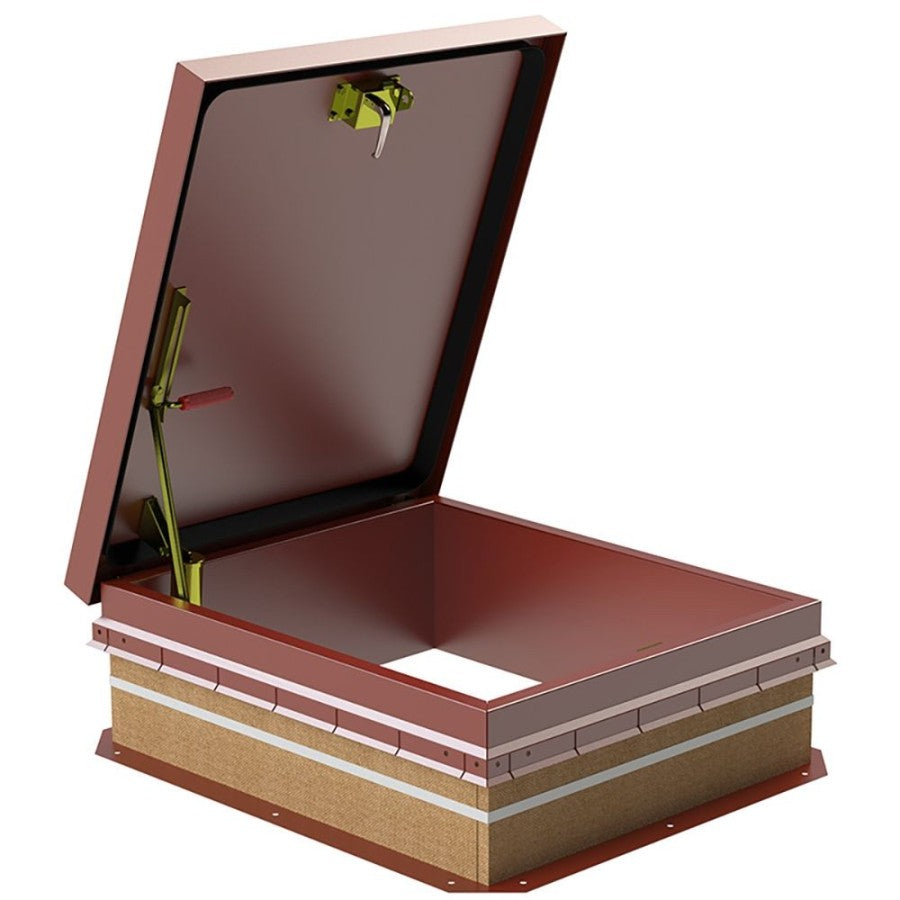

TAIMCO RAHGSS36X30 Steel Roof Hatch Secure and Efficient Roof Access Solutions

The TAIMCO RAHGSS36X30 Steel Roof Hatch is designed for access onto a roof using a fixed, internal ladder. The cover is counter-balanced for easy one-hand operation, allowing you to open or close the cover while keeping one hand firmly on the ladder. Fully gasket and insulated, the RAHGSS36X30 is also Miami-Dade approved and has the Florida Product Approval for high winds and missile impact.

Key Features:

• • Miami-Dade County and Florida Building Commission Approval: Approved for use in high-velocity hurricane zones with large and small missile impacts.

  • Smooth Operation: Engineered with compression spring operators to provide smooth, easy, one-hand operation.

  • Safety Mechanism: Automatic hold-open arm locks the cover in the 70-degree open position to ensure safe ladder access.

  • Weather-Tight Design: Overlapping cover design, fully welded corners on cover and curb, EPDM rubber gasket, and fully insulated cover and curb ensure weather-tightness and energy efficiency.

  • Durable Construction: Constructed with corrosion-resistant materials to provide many years of trouble-free, dependable service.

  • Security: Heavy gauge construction and positive latching mechanism maintain building security.

  • Innovative Flashing System: Curb features an innovative method to quickly and easily secure single-ply roofing material to TAIMCO roof products.

Specifications:

• • Inside Curb to Curb Measurement: 36″ x 30″

  • Material: Cover and frame are 14 gauge (2 mm) G-90 paint bond galvanized steel.

  • Cover: Brake-formed, hollow-metal design with 1″ (25 mm) concealed fibreglass insulation, 3″ (76 mm) beaded, overlapping flange, fully welded at corners, and internally reinforced for 40 psf (195 kg/m²) live load.

  • Curb: 12″ (305 mm) in height with integral cap flashing, 1″ (25 mm) fiberboard insulation, fully welded at corners, and 3-1/2″ (89 mm) mounting flange with 7/16″ holes (11 mm) provided for securing frame to the roof deck.

  • Gasket: Extruded EPDM rubber gasket permanently adhered to cover.

  • Hinges: Heavy-duty pintle hinges with 3/8″ (9 mm) Type 316 stainless steel hinge pins.

  • Latch: Enclosed two-point slam latch with interior and exterior turn handles and padlock hasps.

  • Lift Assistance: Compression spring operators enclosed in telescopic tubes. Automatic hold-open arm with grip handle release.

  • Finish: Alkyd base red oxide primer.

  • Hardware: Engineered composite compression spring tubes and steel compression springs packed in grease. All other hardware is zinc-plated/chromate sealed.

Specification

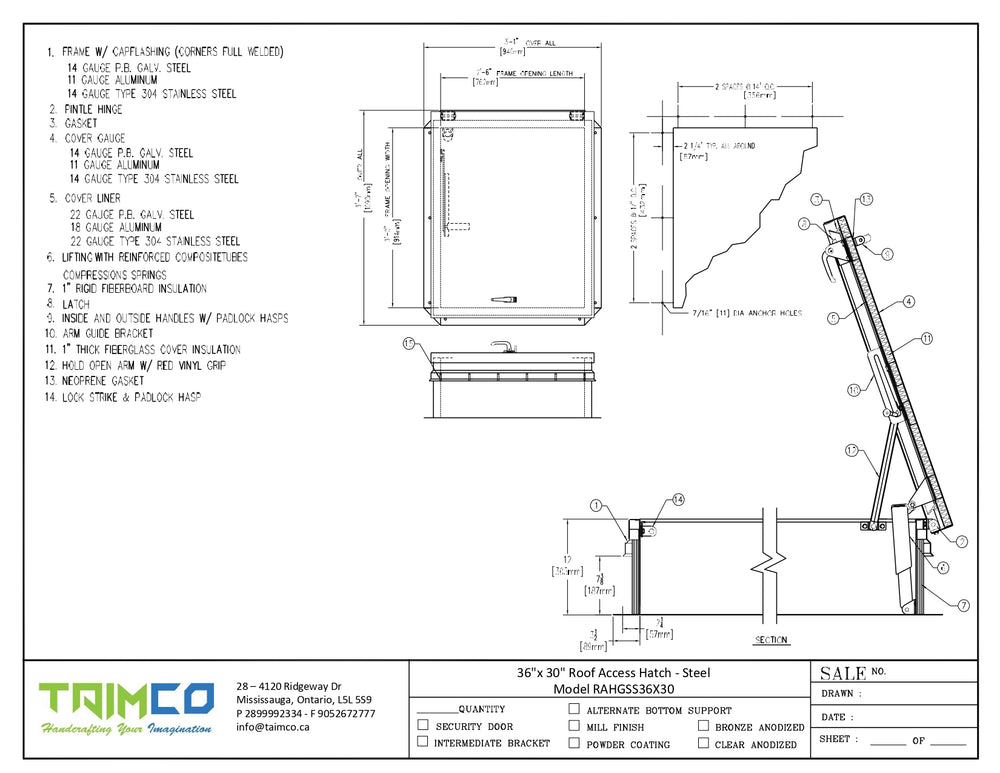

• • Download Shop Drawing and Specification.

Information

• • Lead time is 4-6 Weeks.

  • MOQ 5 Combined Hatch Sizes.

  • We Make to order; a Custom order is not returnable.

  • Stainless steel hardware kit available (includes outside components such as hinge, latch/lock hasp, and certain inside items).
