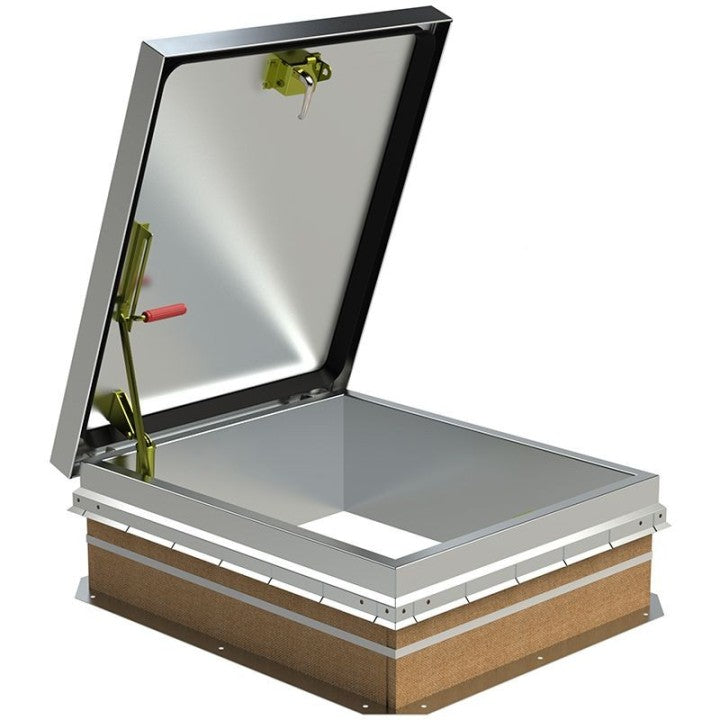

TAIMCO RAHGSA36X30 Aluminum Roof Hatch Secure and Efficient Roof Access Solutions

The TAIMCO RAHGSA36X30 Aluminum Roof Hatch is designed for access onto a roof using a fixed, internal ladder. The cover is counter-balanced for easy one-hand operation, allowing you to open or close the cover while keeping one hand firmly on the ladder. Fully gasket and insulated, the RAHGSA36X30 is also Miami-Dade approved and has the Florida Product Approval for high winds and missile impact.

Key Features:

• • Miami-Dade County and Florida Building Commission Approval: Approved for use in high-velocity hurricane zones with large and small missile impacts.

  • Smooth Operation: Engineered with compression spring operators to provide smooth, easy, one-hand operation.

  • Safety Mechanism: Automatic hold-open arm locks the cover in the 70-degree open position to ensure safe ladder access.

  • Weather-Tight Design: Overlapping cover design, fully welded corners on cover and curb, EPDM rubber gasket, and fully insulated cover and curb ensure weather-tightness and energy efficiency.

  • Durable Construction: Constructed with corrosion-resistant materials to provide many years of trouble-free, dependable service.

  • Security: Heavy gauge construction and positive latching mechanism maintain building security.

  • Innovative Flashing System: Curb features an innovative method to quickly and easily secure single-ply roofing material to TAIMCO roof products.

Specifications:

• • Inside Curb to Curb Measurement: 36″ x 30″

  • Material:

    • Cover and Frame: 11 gauge (2.3 mm) aluminum

  • Cover:

    • Brake-formed, hollow-metal design with 1″ (25 mm) concealed fiberglass insulation

    • 3″ (76 mm) beaded, overlapping flange

    • Fully welded at corners

    • Internally reinforced for 40 psf (195 kg/m²) live load

  • Curb:

    • 12″ (305 mm) in height with integral cap flashing

    • 1″ (25 mm) fiberboard insulation

    • Fully welded at corners

    • 3-1/2″ (89 mm) mounting flange with 7/16″ (11 mm) holes for securing frame to the roof deck

  • Gasket:

    • Extruded EPDM rubber gasket permanently adhered to cover

  • Hinges:

    • Heavy-duty pintle hinges with 3/8″ (9 mm) Type 316 stainless steel hinge pins

  • Latch:

    • Enclosed two-point slam latch with interior and exterior turn handles and padlock hasps

  • Lift Assistance:

    • Compression spring operators enclosed in telescopic tubes

    • Automatic hold-open arm with grip handle release

  • Finish:

    • Aluminum Mill Finish

  • Hardware:

    • Engineered composite compression spring tubes and steel compression springs packed in grease

    • Type 316 stainless steel hinges

    • All other hardware is zinc-plated/chromate sealed

Specification

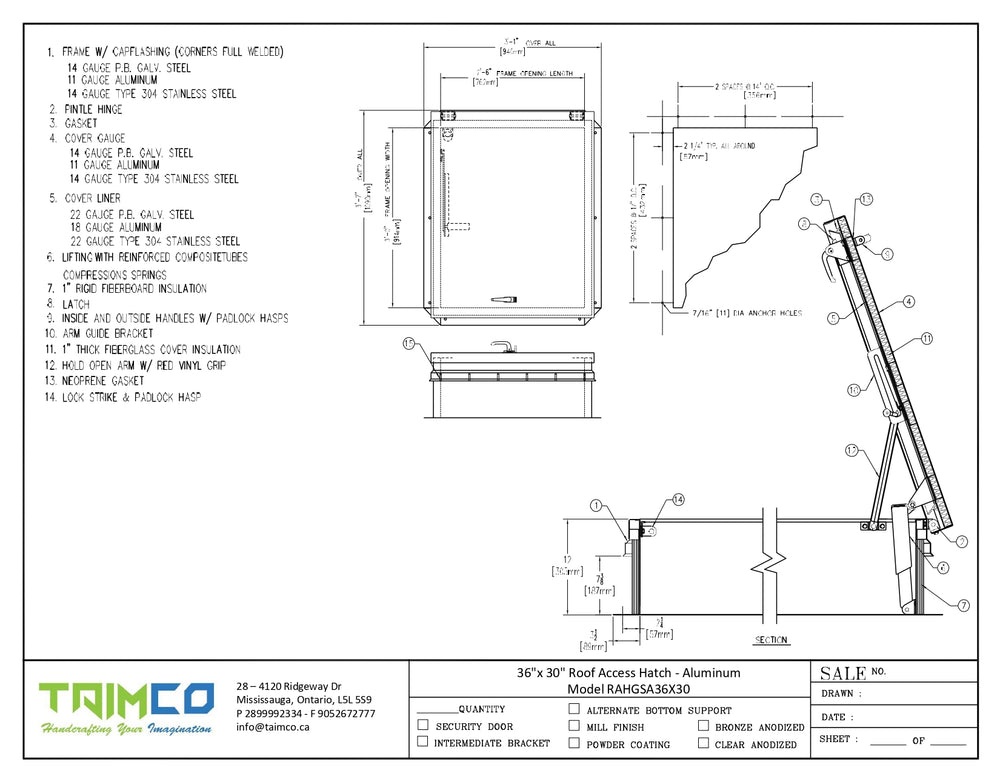

• • Download Shop Drawing and Specification.

Information

• • Lead time is 4-6 Weeks.

  • MOQ 5 Combined Hatch Sizes.

  • We Make to order; a Custom order is not returnable.

  • Stainless steel hardware kit available (includes outside components such as hinge, latch/lock hasp, and certain inside items).
