Adjustable Barrel J-Bolt Steel Hinge | Model # JBH ( Pack of 50 )

Adjustable Barrel J-Bolt Steel Hinge | Model # JBH ( Pack of 50 )

Regular price $699.00
by Taimco
Add to wishlist Add to Compare
Quantity
Quantity
Description Specification Contact
      • The gate hinge is made of high-quality steel so that each pair of hinges can hold up to 600 lbs driveways and security gates.
      • RUST RESISTANT - The black powder coating makes the hinge have a superior rust resistance performance.
      • EASY TO INSTALL - Weld the flat backing plate to the mounting post. If not already available, drill a hole through the gate frame big enough for the threaded bolt. Pass the bolt through, and secure it with nuts.
      • Hinges must be mounted with the thread arm at the top. If mounted upside down, the gate will fall.
      • The minimum distance between the post and the gate should be 2", to accommodate for the welding plate and barrel. The threaded arm allows you to easily adjust the distance between the gate and the post!
      • LONG LIFE TIME - Hinge pivots on a steel ball bearing and includes a grease fitting to keep the bearing lubricated. It'll last a long lifetime in good maintenance!
      • EXCELLENT SERVICE - Backed by a 12-month Warranty

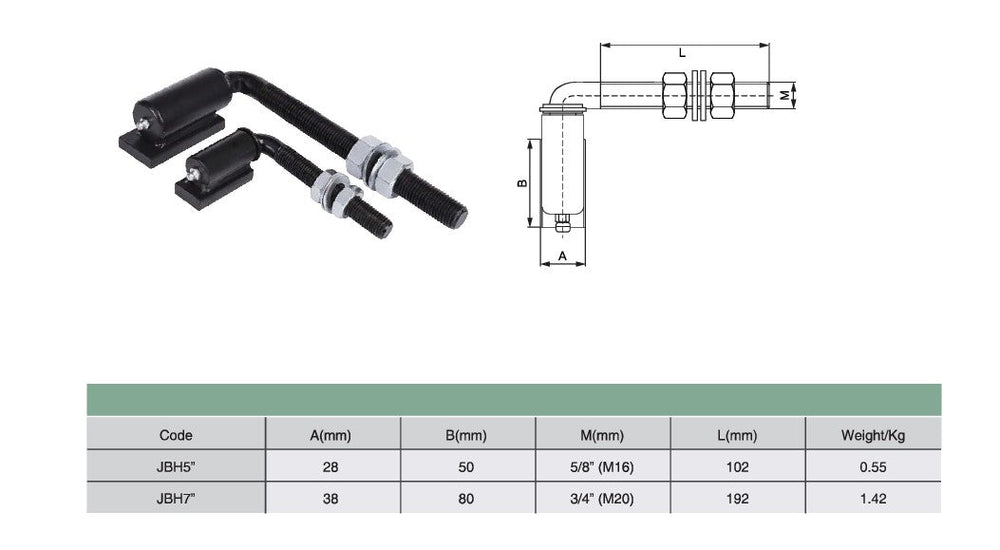

      • Get All Specifications and Dimensions.
      • Minimum Order Quantity for each size: 50

    Documents
    Installation Recommandations,
      • During the welding process pay great attention to not deforming or damaging both the product and the support profile avoiding overheating.
      • Check the strength of the welding before installing the assembly.
      • You Can Download specs and dimensions, Details, and Specs.

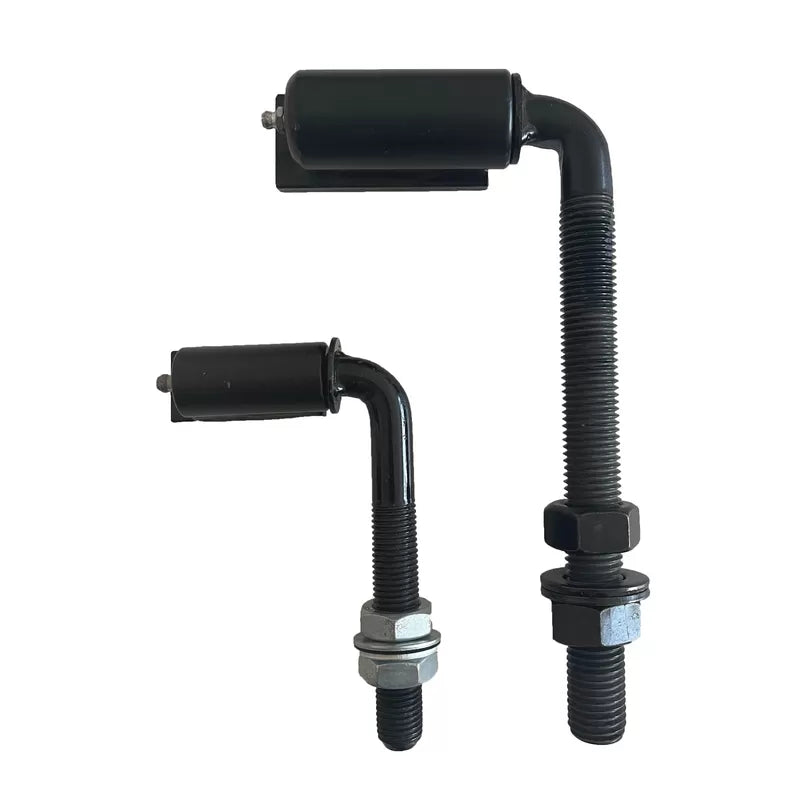

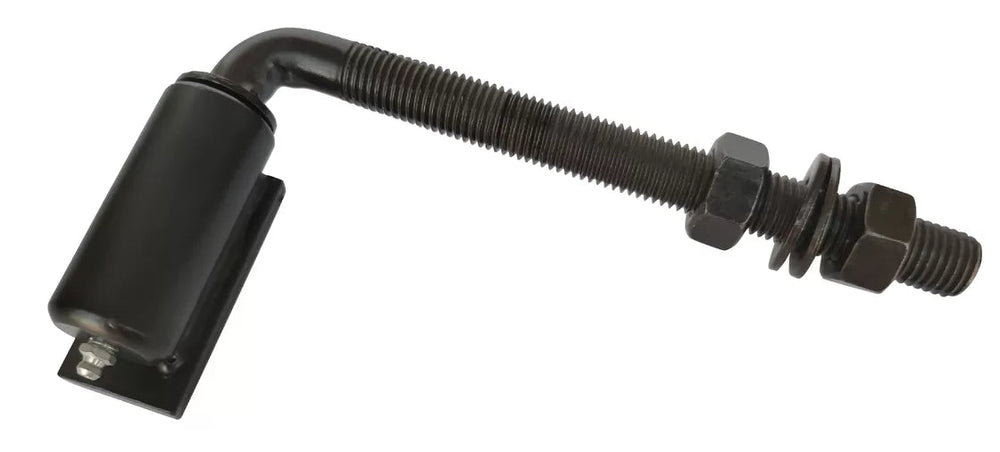

    Steel J-Bolt Adjustable Barrel hinges are for weld-on applications for heavy-duty gates and doors. The Barrel hinge provides a full range of swings with a high degree of adjustability for the perfect margin or show between gates. Made of high-quality steel with a black powder coat finish. Installation requires welding hinges to posts and are capable of holding up to 600 lb. Doors and Gates are ideal for driveways and security gates.

    Key Features:

      • Adjustable steel barrel hinge.
      • Suitable for welding.
      • Two-part hinge with ball bearing.
      • Grease fitting prevents friction and corrosion.
      • The hinge barrel is painted black.
      • Supplied with two nuts.
      • Get All Specifications and Dimensions.
      • Minimum Order Quantity for each size: 50
