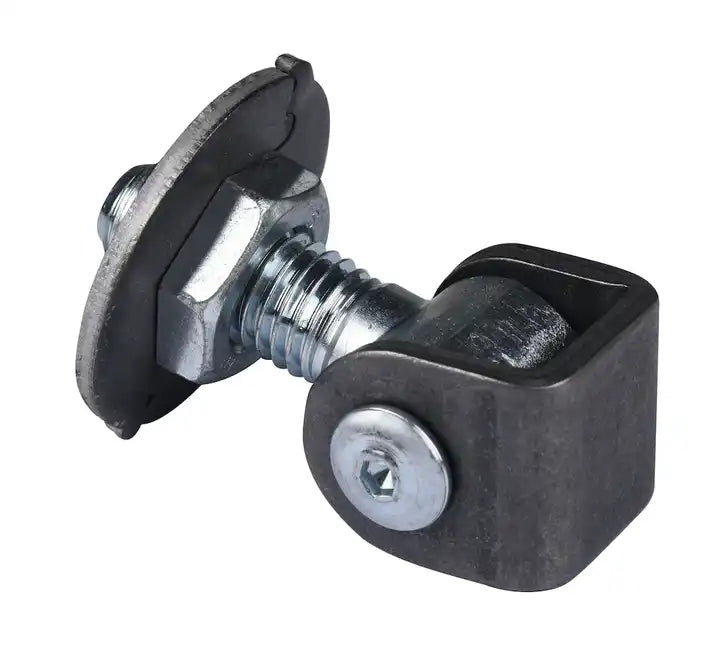

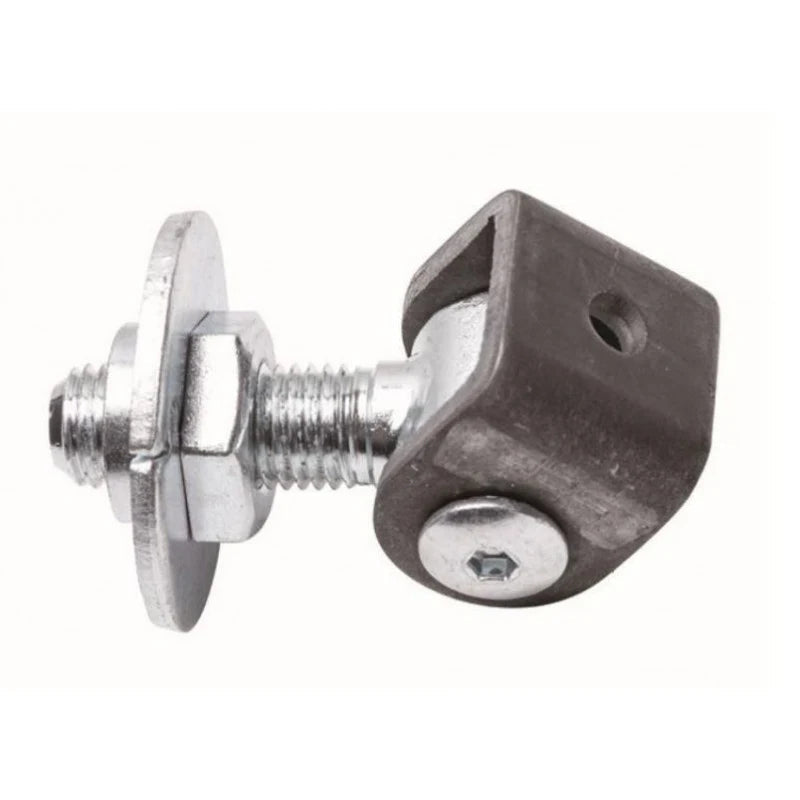

Adjustable Swing Gate Hinge With Nut | Model # EHR ( Pack of 100 )

Adjustable Swing Gate Hinge With Nut | Model # EHR ( Pack of 100 )

Regular price $822.00
by Taimco
Add to wishlist Add to Compare
Quantity
Quantity
Description Specification Contact
      • Gond For industrial swing gates.
      • Fixing: weld-on.
      • Adjustment between 30 and 38 mm.
      • Thread diameter of 16 mm to 24 mm.
      • Open to 90 Degrees.
      • Material: S235JRG2C steel (A37).
      • Finish: 13.2μm dichlone.
      • Tested to 1.5 million cycles.
      • Check operating clearances every 6 months.
      • Get All Specifications And Dimensions.
      • Minimum Order Quantity for each size: 100

    Documents

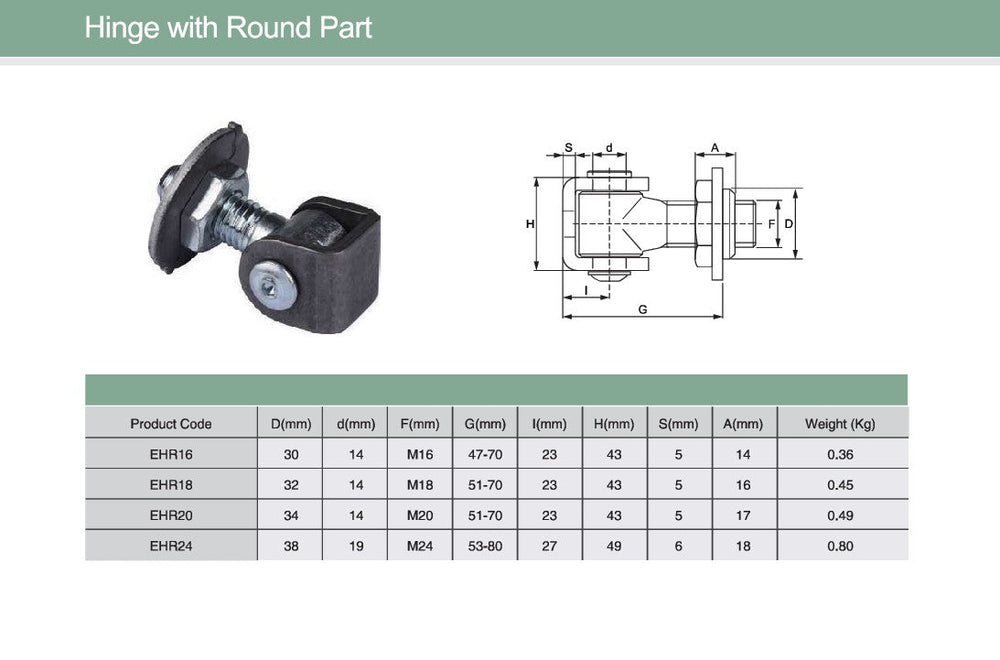

    You Can Download specs and dimensions Details and Specs

    Adjustable Weld-on hinge, made of steel, industrial type for swing gates with an adjustment possibility between 30 and 38 mm and a load-bearing capacity of 210 kg per hinge. M16,18, 20, 24 mm threaded bar. This hinge allows the gate to be opened at 90°.
      • Gond For industrial swing gates.
      • Fixing: weld-on.
      • Adjustment between 30 and 38 mm.
      • Thread diameter of 16 mm to 24 mm.
      • Open to 90 Degrees.
      • Material: S235JRG2C steel (A37).
      • Finish: 13.2μm dichlone.
      • Tested to 1.5 million cycles.
      • Check operating clearances every 6 months.
      • Get All Specifications And Dimensions.
      • Minimum Order Quantity each size : 100
