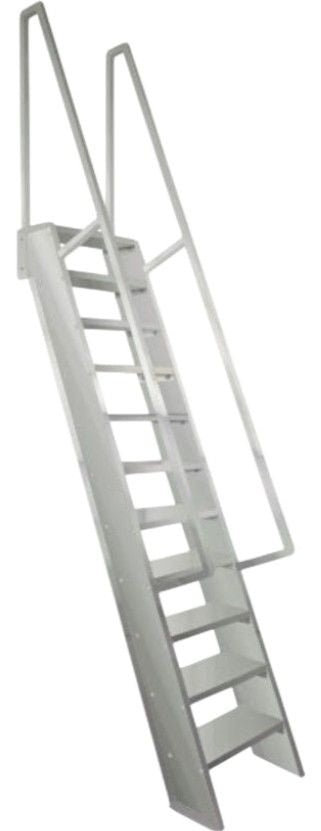

Taimco AL1537 Welded Aluminum Flush Top Tread Ships Ladder - 60° Steep Incline with Walk-Thru Handrail

The Taimco AL1537 Welded Aluminum Flush Top Tread Ships Ladder is a durable and space-efficient access solution, expertly designed to meet the demanding requirements of industrial and commercial settings. Featuring a steep 60° incline, this ladder is ideal for maintenance and storage access in compact spaces. Its heavy-duty aluminum construction, flush top tread design, and walk-thru handrail provide superior safety, convenience, and weather resistance. Engineered for tough environments, it’s built to last with fireproof materials and a customizable configuration tailored to your specific height and width requirements. Please note, this ladder is not suitable for public access, office use, or residential applications.

Key Features:

• • • Flush Top Tread Design: Ensures maximum stability and safety when in use.
    • Steep Incline: Nominal 68° angle, providing efficient access in tight spaces.
    • Walk-Thru Handrail: Factory-welded 1 1/2" x .125 aluminum (6063-T52) square tubing for reliable support and enhanced safety.
    • Heavy-Duty Materials:
      • Tread: 6" I-bar aluminum grating designed to resist sagging or dishing.
      • Stringers: 10" x 2.6" aluminum (6061-T6511) structural channel for robust support.
    • Corrosion and Fire Resistance: Constructed with mill finish aluminum and fireproof materials for extended durability in harsh environments.
    • Customizable Dimensions: Custom heights, widths, and configurations are available to meet project-specific needs.
    • Easy Assembly: Includes stainless steel assembly hardware for secure and straightforward installation.


Applications:

• • • Industrial Facilities
    • Commercial Buildings
    • Maintenance Access
    • Storage Access
    • Industrial steel stairways.
    • Custom-engineered stairways.
    • Heavy-duty bar grating treads Compliance with OSHA stairways.
    • Fireproof industrial stairs.
    • Prefab industrial stairs.
    • Durable handrails for stairs.

Specification :

• • • Angle of Incline: 60° steep slope for compact spaces.
    • Width Options:
      • Tread Width: Standard 24".
      • Overall Width: 29 1/4". (Custom widths available upon request.)
    • Finish: Standard gray polyester powder mill finish.
    • Assembly Components: Shipped as two welded side frames with treads bundled for bolted assembly.
    • Material Grades:
      • Handrails: Aluminum (6063-T52).
      • Stringers: Aluminum (6061-T6511).
    • Safety Compliance: Designed for industrial and commercial use with user-facing climbing requirements.

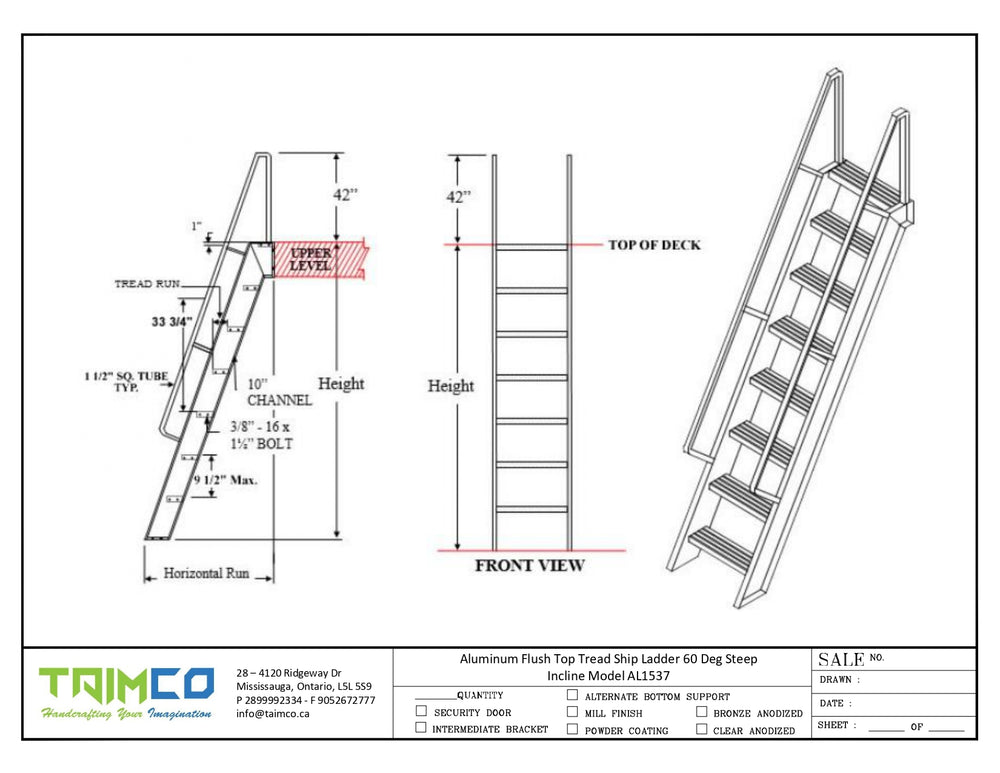

    • Download Specification.
