The Taimco AL1538 Heavy Duty Aluminum Crossover Bridge is a durable and efficient solution for industrial and commercial maintenance and storage access. Designed with strength, weather resistance, and safety in mind, this crossover bridge offers a reliable way to navigate over obstacles such as conveyors, pipes, or equipment. With a capacity of 1,000 lbs., it is engineered to meet specific height requirements and comply with OSHA standards, making it ideal for demanding environments.

Key Features:

• • • High Load Capacity: Handles up to 1,000 lbs., ensuring durability for heavy-duty use.
    • Weather-Resistant Construction: Made from mill finish aluminum for corrosion resistance.
    • Customizable Dimensions: Choose from multiple tread widths (36" or 48"), with custom sizes available upon request.

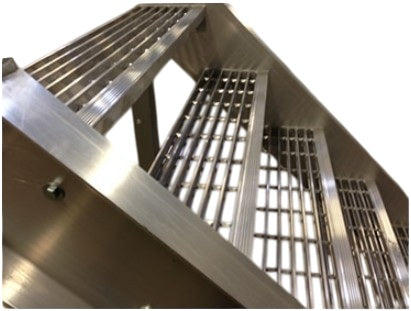

    • Heavy-Duty Treads: I-bar grating treads resist sagging and provide secure footing.
    • Factory-Welded Handrails: Includes 1 1/2" x .125 square tubing handrails with a 2-rail system and standard toeguard for added safety.
    • Robust Frame: 10" x 2.6" structural channel stringers, built from high-grade aluminum (6061-T6511).

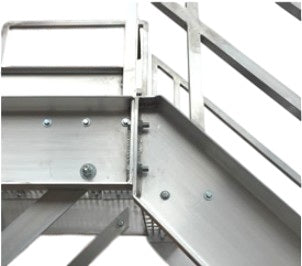

    • Secure Connections: Structural connections include 5/8" diameter bolts and 3/8" butt plates for enhanced stability.
    • Fireproof Design: Constructed with non-flammable materials for high-risk industrial environments.
    • Compliance Ready: Meets OSHA requirements, including OSHA Standard 1910.25 for Fixed Industrial Stairs.

Specifications:

• • • Tread Widths: Standard options of 36" and 48" (overall width is tread width + 5.25").
    • Capacity: 1,000 lbs., suitable for industrial-grade applications.
    • Material: Mill finish aluminum for weather resistance and durability.
    • Assembly: Stainless steel hardware included for quick and secure installation.
    • Applications: Provides safe and efficient walkways over pipes, conveyors, and other obstacles.
    • Customization: Tailored configurations and sizes available with same-day quotes.
    • Download Specification
    • UC = Under Clearanc
    • SP = Spam
    • TW = Tread Width
    • HR = HR

Advantages:

• • • Safety: Designed to meet stringent safety standards, reducing the risk of accidents.
    • Durability: Built to last with robust materials and a protective finish.
    • Versatility: Suitable for a wide range of industrial and institutional applications.
    • Ease of Installation: Engineered for straightforward installation, minimizing downtime.
