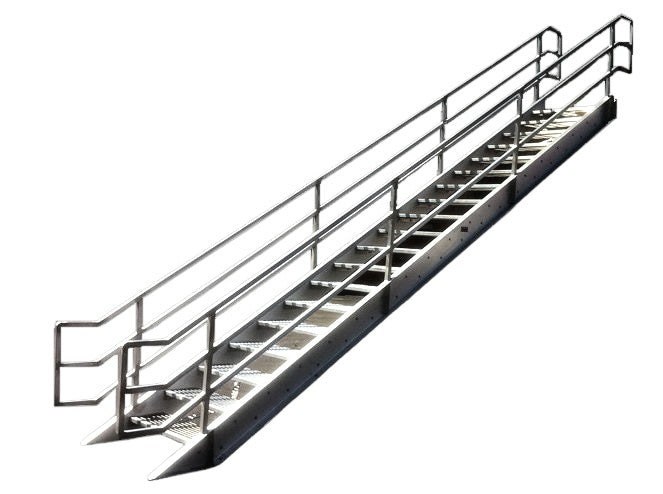

TAIMCO AL1529 Welded Aluminum Prefab Stairways

36" High Combination Guard & Handrail

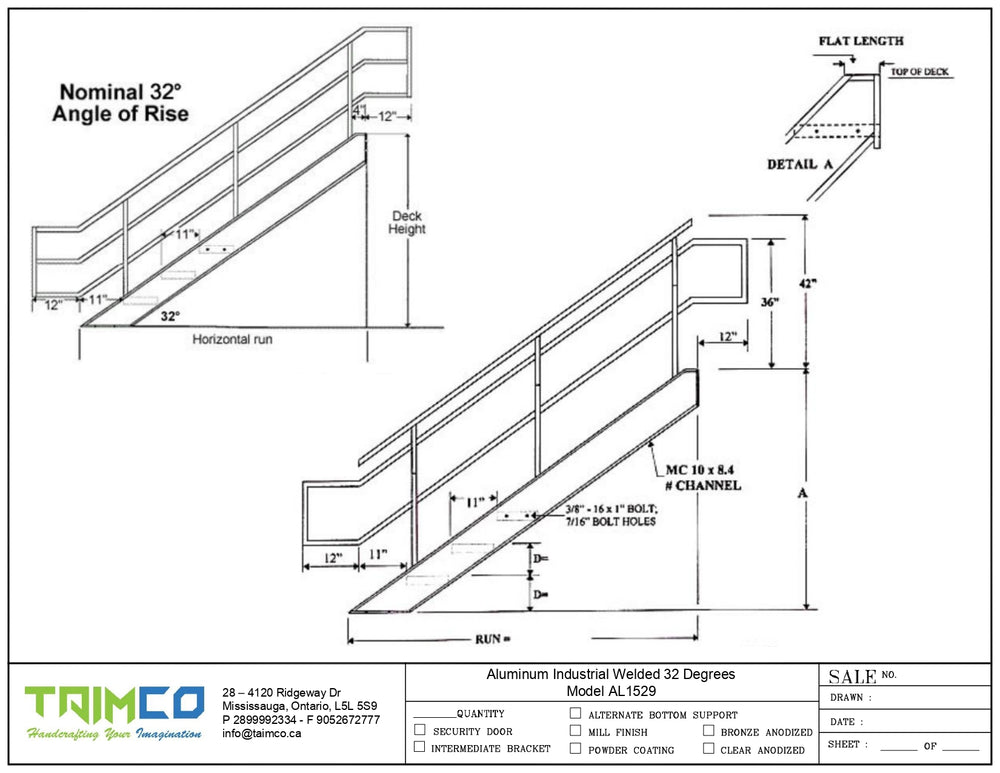

• • Comfortable Incline: Designed with a nominal 32-degree angle (7/11-rise/run) for safe and accessible use.

Strong, Attractive, Weather-Resistant Construction

• • Suitable for heights up to 48" for all industrial/commercial uses.
  • Ideal for non-routine or occasional travel between levels up to 144" for maintenance or storage access.
  • Note: Not intended for public access, adhering to OSHA Regulation 1910.25 (b)(7).

Key Features:

• • • Corrosion-resistant, heavy-duty aluminum for longevity.
    • Skid-resistant treads designed for safety and comfort.
    • Custom configurations available for specific height and angle requirements.
    • Complies with OSHA standards for industrial use.

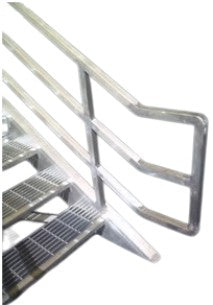

    • Includes handrail returns at the top and bottom of the staircase for added safety.

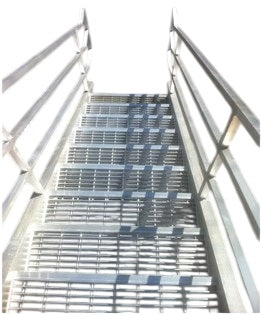

    • Heavy-duty aluminum I-bar grating stair treads that resist sagging and dishing.
    • Tread depths: 11" for open riser treads; 12" for closed riser diamond plate treads.
    • Factory-welded handrails made of 1 1/2" x .125 aluminum (6063-T52) square tubing.
    • Includes stainless steel assembly hardware.
    • Structural channel stringers crafted from 10" x 2.6" aluminum (6061-T6511) for superior strength.
    • Precision-crafted to meet your specific height requirements.
    • Fireproof construction for safety in industrial environments.
    • Available with standard 36" or 48" wide treads and overall stair widths of 41 1/4" or 53 1/4"; custom widths available upon request.


Specifications:

• • • Stair Angle: 32 degrees
    • Standard Widths: 36" or 48" treads with overall stair widths of 41 1/4" or 53 1/4". Custom widths are available upon request.
    • Tread Depths: 11" for open riser treads; 12" for closed riser diamond plate treads.
    • Construction Material: Heavy-duty aluminum (6061-T6511 structural channels) with I-bar grating treads.
    • Handrails: Welded 1 1/2" x .125 aluminum (6063-T52) square tubing.
    • Assembly Hardware: Made of stainless steel.
    • Fireproof Design: Ensures durability and safety in industrial settings.
    • Shipping Components: Shipped as two side frames and one bundle of treads for easy assembly.

    • Download Specification

Advantages:

• • Safety: Designed to meet stringent safety standards, reducing the risk of accidents.
  • Durability: Built to last with robust materials and a protective finish.
  • Versatility: Suitable for a wide range of industrial and institutional applications.
  • Ease of Installation: Engineered for straightforward installation, minimizing downtime.
