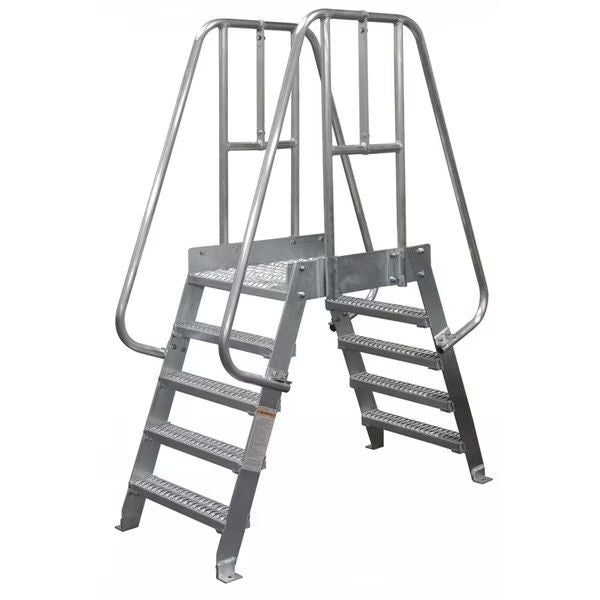

The Taimco AL1541 Space-Saver Crossover Bridge provides a reliable and efficient solution for navigating obstacles in areas with limited space. Engineered with a steep 70° climb angle and compact design, this crossover bridge ensures safe and secure access over conveyors, machines, pipes, and other industrial obstacles. Constructed from durable, weather-resistant aluminum and built to meet Cal-OSHA standards, the AL1541 offers exceptional safety, functionality, and adaptability for demanding environments.

Key Features:

• • • High Load Capacity: Supports up to 500 lbs., making it suitable for industrial-grade applications.
    • Space-Saving Design: Compact 70° climb angle and 8" step rise for efficient access in tight spaces.
    • Premium Handrails: Constructed from 1 1/2" diameter round tubing for secure and ergonomic support.
    • Durable Steps: Stair sections feature 24 1/8" wide x 4 7/8" deep steps, available in serrated or diamond plate finishes for enhanced grip and safety.
    • Safety Toe Board: Includes 4" high toe board on the top platform for added safety and stability.
    • Secure Floor Mounting: Equipped with legs that feature floor mounting plates with 5/8" diameter holes for robust installation.
    • Weather-Resistant Finish:
      • Aluminum: Brightened uniform finish for corrosion resistance.
      • Steel: Gray powder coat finish for durability in tough environments.
    • Customizable Options: Tailored step and platform dimensions available upon request to meet specific project needs.
    • Compliance Ready: Designed to meet applicable OSHA and ANSI standards, ensuring workplace safety.


Specifications:

• • • Climb Angle: 70° steep incline with 8" step rise.
    • Step Dimensions: 24 1/8" wide x 4 7/8" deep steps.
    • Platform Features: Includes a 4" high toe board for enhanced safety.
    • Material Options:
      • Aluminum with brightened uniform finish.
      • Steel with gray powder coat finish.
    • Assembly: Ships unassembled with stainless steel assembly hardware included.
    • Applications: Perfect for industrial and commercial environments with space constraints.

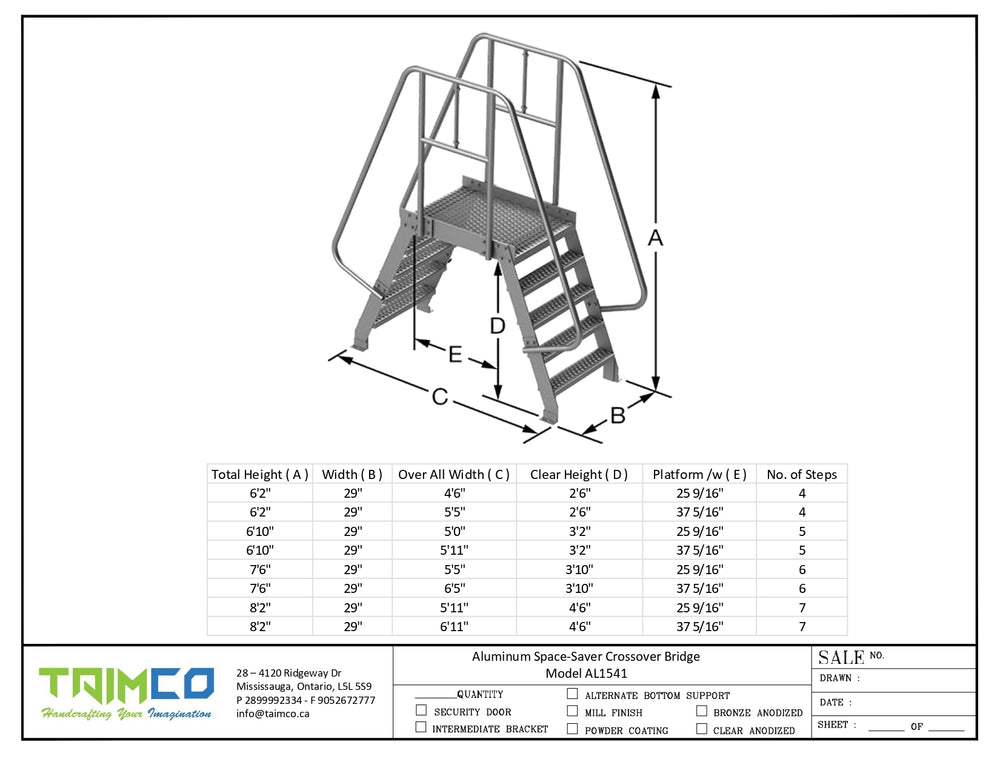

    • Download Specification.

Applications:

• • • Conveyor Bridges: Provide safe passage over conveyor systems in manufacturing and distribution facilities
    • Maintenance Access: Allow maintenance personnel to access equipment and machinery safely
    • Equipment Access: Facilitate movement over and around large equipment and machinery
    • Rooftop Access: Enable safe navigation across rooftops, especially in industrial and commercial buildings
    • Warehouse Use: Improve workflow by providing safe walkways over obstacles in warehouses
    • Construction Sites: Ensure safe passage over construction areas and hazardous zones
    • Loading Docks: Bridge gaps between docks and railcars for safe loading and unloading of shipments


Optimize your workspace with the Taimco AL1541 Space-Saver Crossover Bridge, engineered for safe and efficient access over obstacles in compact areas. Featuring a 70° climb angle, durable aluminum construction, and serrated or diamond plate steps, this crossover bridge combines safety, reliability, and compliance with OSHA and ANSI standards. Ideal for industrial and commercial environments, the AL1541 offers customizable solutions to meet your unique needs.
