Cantilever Gate Guide Wheel | Model # GW5 ( Pack of 25 )

Cantilever Gate Guide Wheel | Model # GW5 ( Pack of 25 )

Regular price $2,180.00
by Taimco
Add to wishlist Add to Compare
Quantity
Quantity
Description Specification Contact

    The cantilever slide gate is the right choice for your project, application, or environment? The cantilever gate design is counter-balanced to allow the gate to smoothly slide out in a linear motion, closing an opening beyond its vertical support. It’s the perfect solution in environments where a large opening is necessary. Industrial grade cantilever slide gate systems are ideal for locations ranging Like Military bases, Railroads, Public service buildings, Factories, or industrial plants, the Benefits are:

      1. Safer operation with less chance of the gate interfering or making contact with vehicles or objects.
      2. Lower overall costs with an automated gate design that eliminates the need for additional operators.
      3. Reduced maintenance and upkeep as a sliding gate path is easier to keep clean of debris and clear in the snow.
      4. Minimum Order Quantity for each size: 25

    Documents

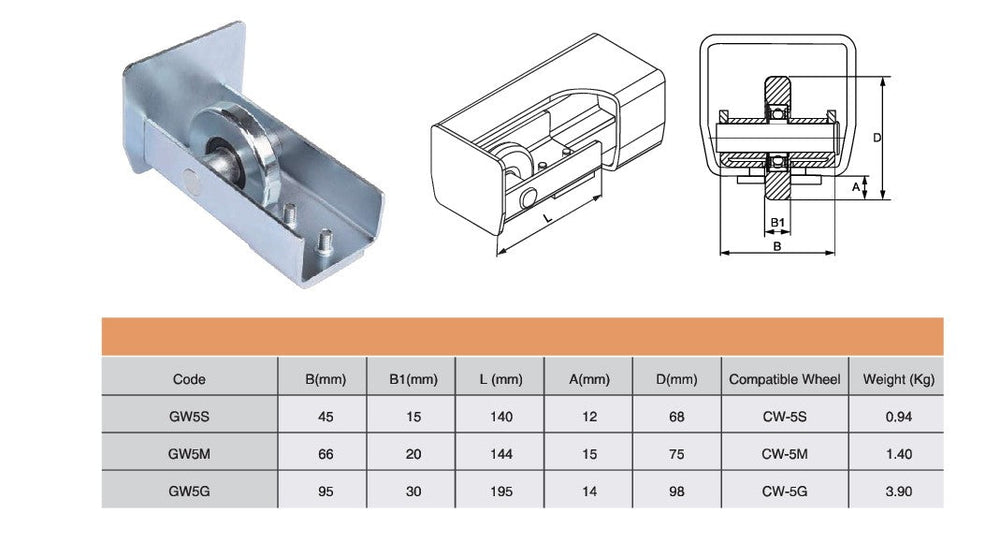

    You Can Download specs and dimensions for the different channels

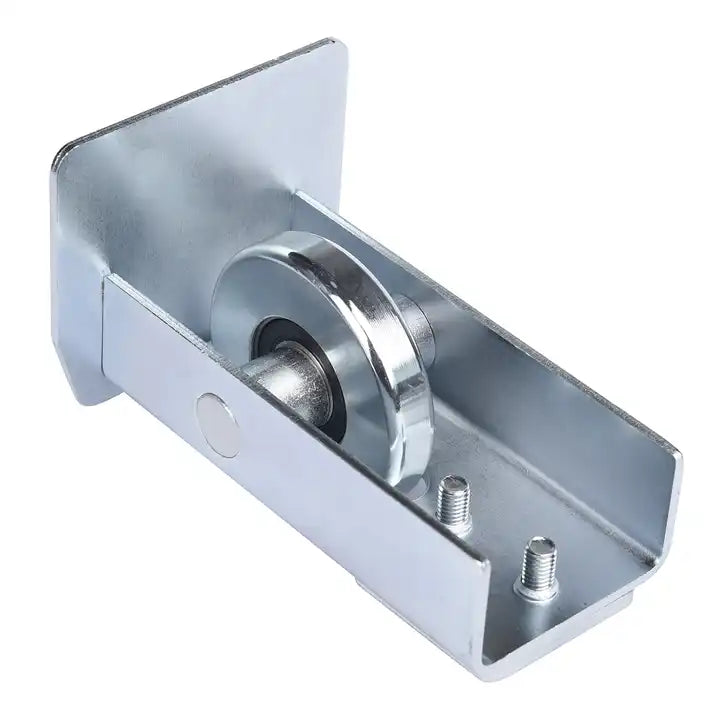

    TAIMCO line of durable cantilever gate accessories and hardware, Cantilever Gate Guide Wheel roller for Heavy Cantilever gates,


      • It's made of Q235 steel. The surface is zinc-plated.
      • It's an accessory for cantilever gates.
      • We also supply carriage wheels, like 3 rollers, 5 rollers in 60mm, 5 rollers in 68mm, 5 rolls in 50mm, 8 rollers, etc.
      • Normally works with Track / Channel, Guide Wheel, End Stop, and Channel End Cap.
      • Get All specifications and Dimensions.
      • Minimum Order Quantity for each size: 25
