Cantilever Wheel Kit System | 8 Wheels | Carriage Wheel Heavy Duty - Model # CW-8

Cantilever Wheel Kit System | 8 Wheels | Carriage Wheel Heavy Duty - Model # CW-8

Regular price $825.00
by Taimco
Add to wishlist Add to Compare
Quantity
Quantity
Description Specification Contact

    The cantilever slide gate is the right choice for your project, application, or environment? The cantilever gate design is counter-balanced to allow the gate to smoothly slide out in a linear motion, closing an opening beyond its vertical support. It’s the perfect solution in environments where a large opening is necessary. Industrial grade cantilever slide gate systems are ideal for locations ranging Like Military bases, Railroads, Public service buildings, Factories or industrial plants, the Benefits are:


      1. Safer operation with less chance of the gate interfering or making contact with vehicles or objects.
      2. Lower overall costs with an automated gate design that eliminates the need for additional operators.
      3. Reduced maintenance and upkeep as a sliding gate path is easier to keep clean of debris and clear in the snow.
      4. Minimum Order Quantity for each size: 5

    Specification

    TAIMCO line of durable cantilever gates accessories and hardware, These heavy duty 8 wheel carriages with sealed bearings. Large pivot allows for increased weight capacity, smooth sliding, and stability. Larger wheel dimensions increase the weight capability and reduce wear and tear between wheels and tracks.

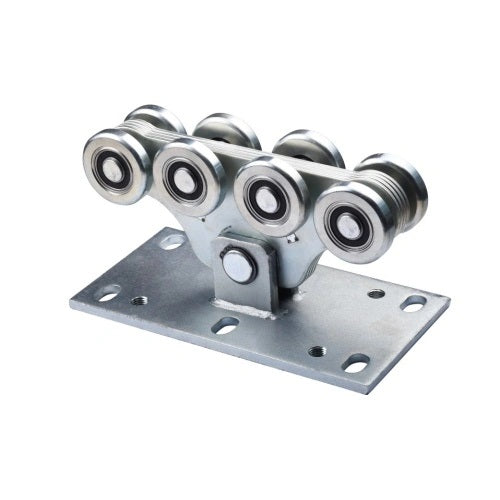

    • Cantilever Gate 8 Wheel Kit System.
    • Used for Cantilever Gates, finished with zinc plated.
    • Normally works with Track / Channel, Guide Wheel, End Stop, and Channel End Cap.
    • We have small, medium, and large sizes, With a Capacity / Load Range of 400 - 1200 Lb.
    • Martial is Steel with zinc plated finish

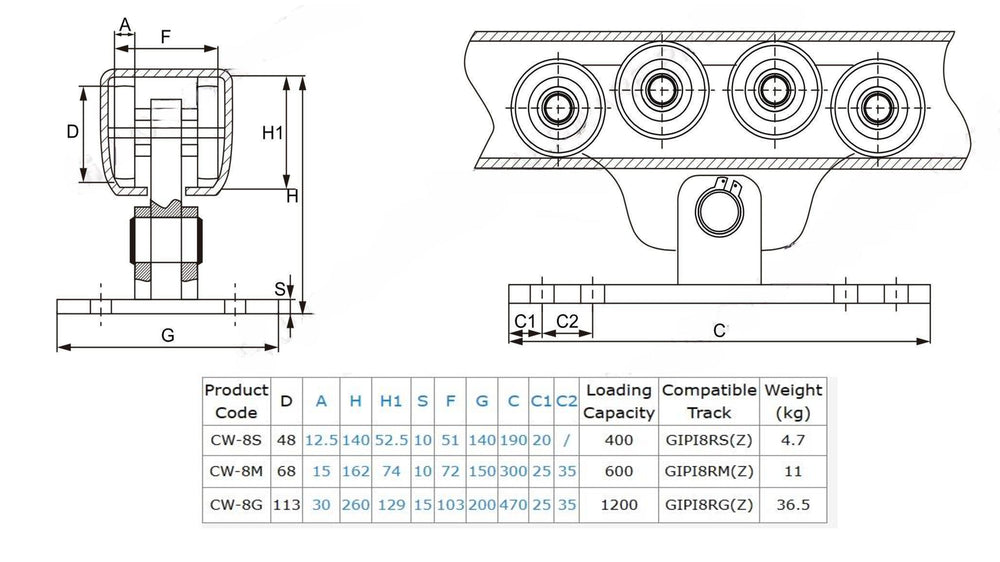

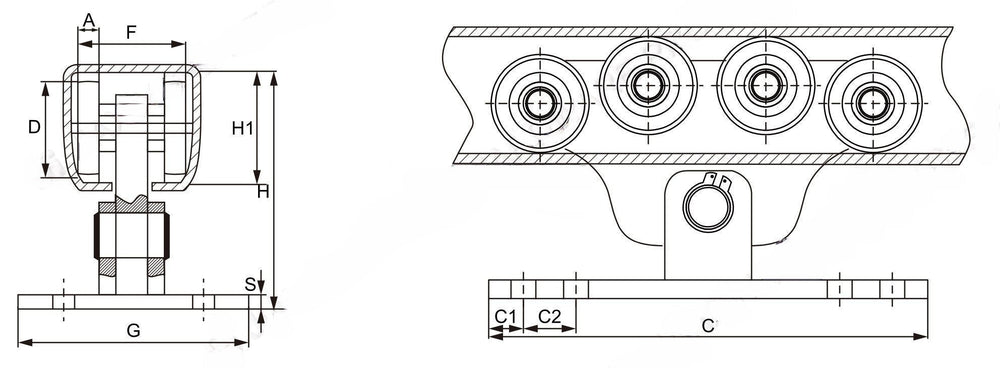

    • Get All Specifications And Dimensions.
    • Minimum Order Quantity for each size : 5
