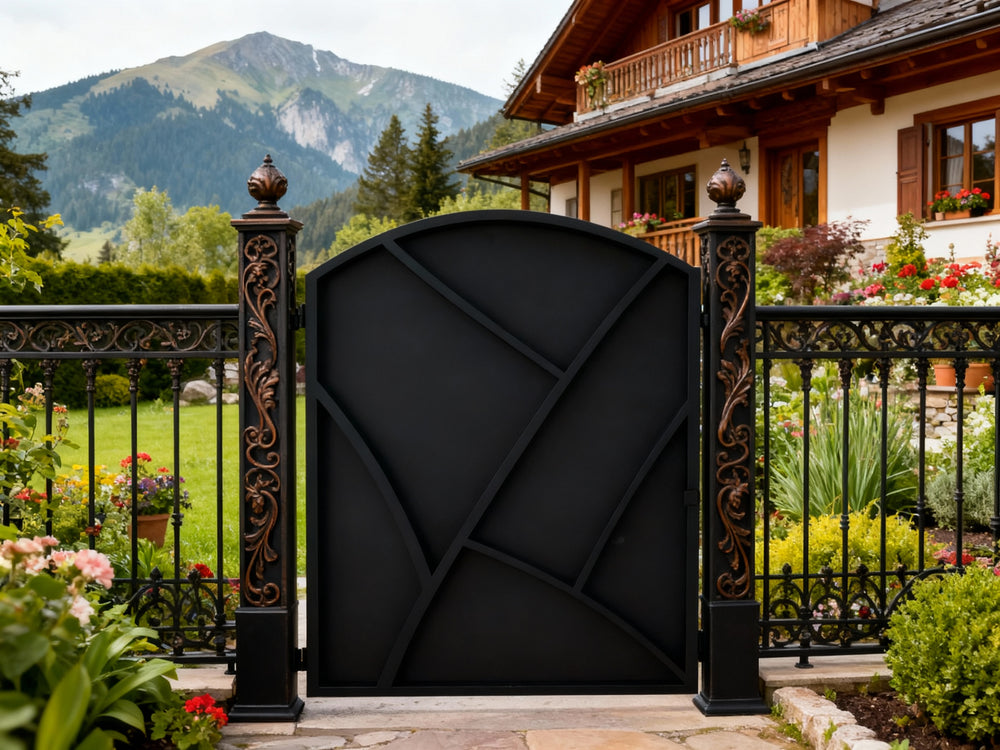

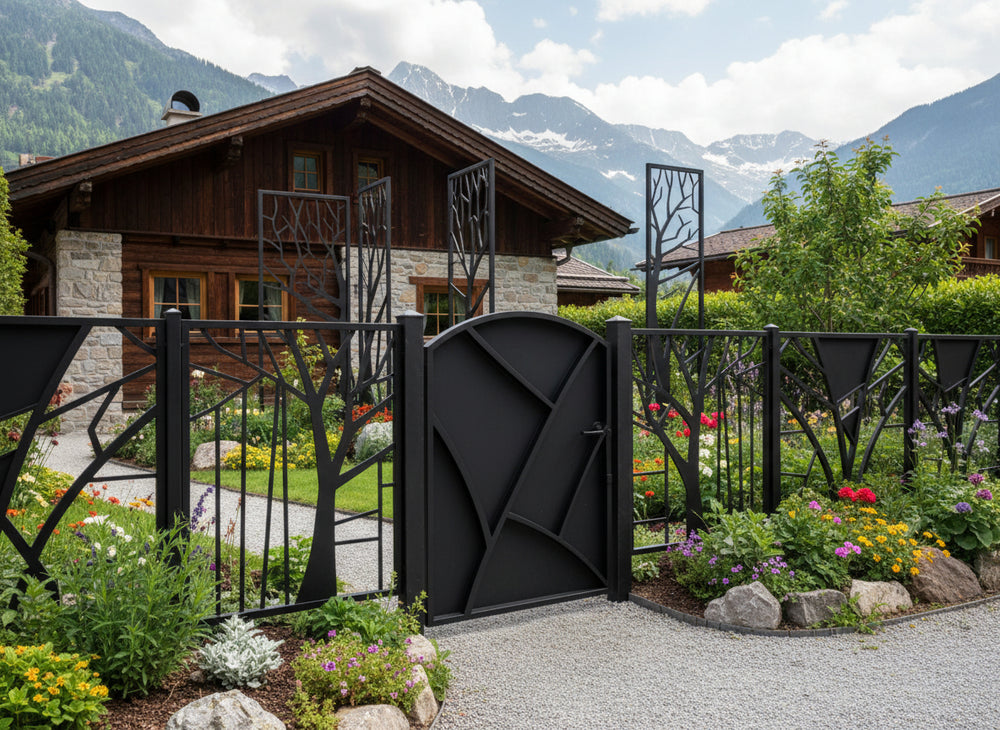

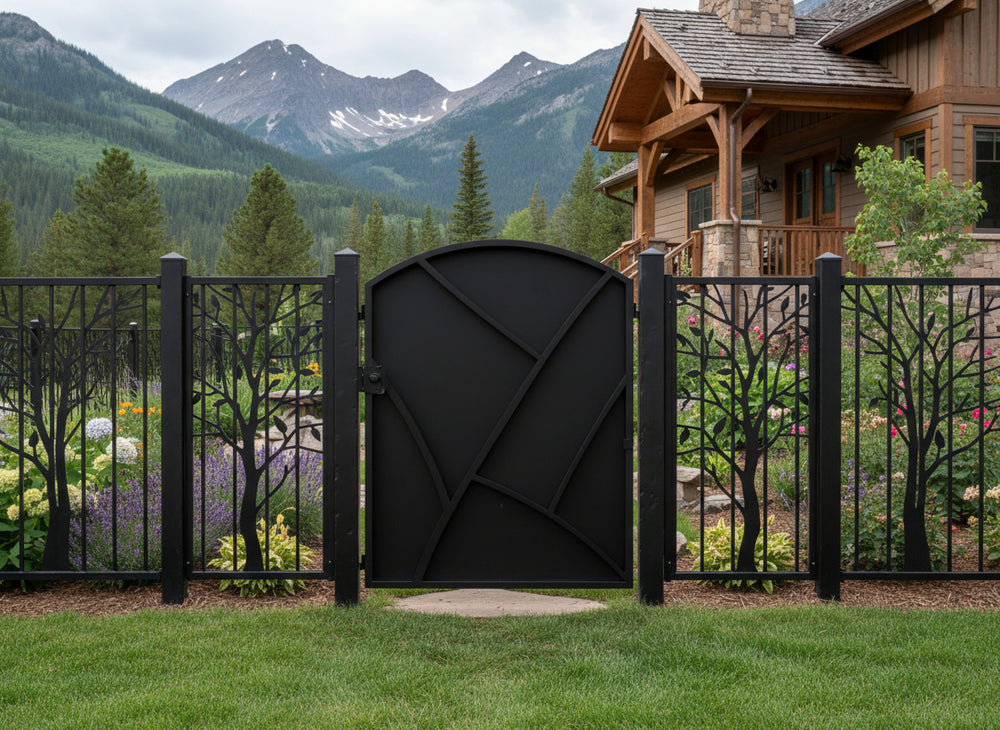

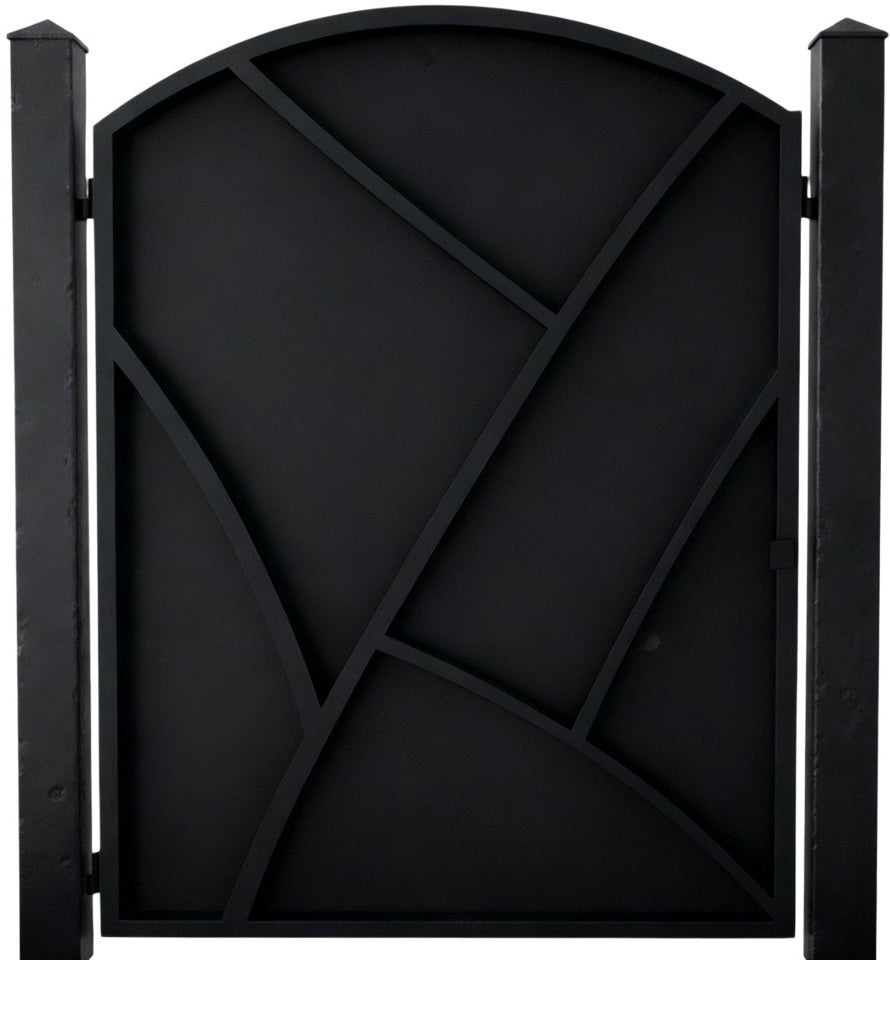

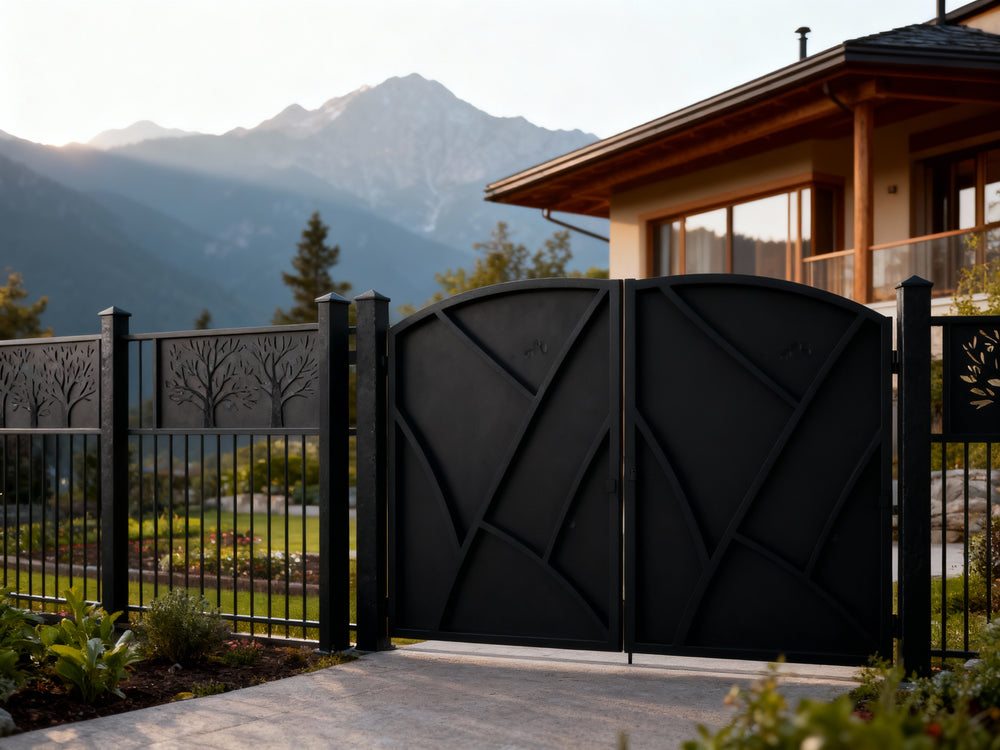

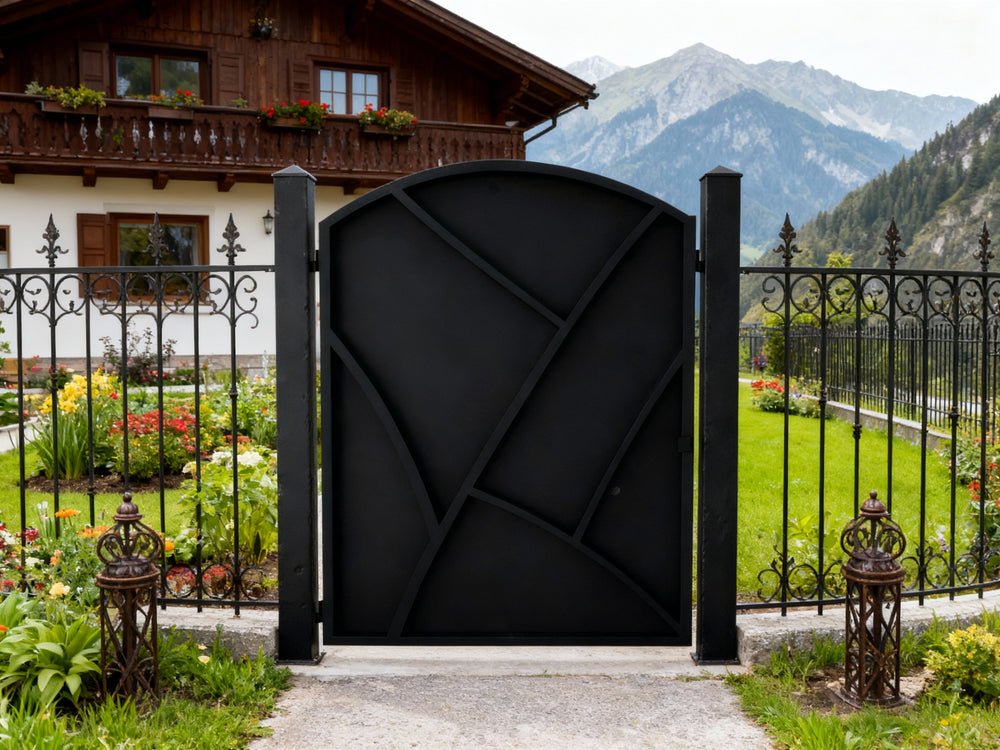

A door that bends the rules of geometry. Curvegrid Passage features a rectangular frame with a rounded top, filled with intersecting diagonal and curved lines that form a striking abstract composition. The design evokes motion and modernity—ideal for architectural entries, garden transitions, or commercial boundaries that demand visual intrigue and secure structure.

Signature Features

• Abstract linework: Diagonal and curved intersections for dynamic visual rhythm

• Rounded top silhouette: Softens the structure with architectural elegance

• Symmetrical framing: Balanced layout with vertical support posts

• Matte black finish: Powder-coated for durability and contrast

• Manual operation: Smooth swing with handle and lock—no automation required

• Made in Canada: Precision-crafted by Taimco using premium steel and finishes

Door Frame

• Material options: Steel (A36 hot-dip galvanized) or Aluminum (6061-T6)

• Dimensions: 2" x 2" square tubing or cylindrical post upgrade

• Wall thickness: Steel 11-gauge (approx. 3 mm); Aluminum 0.125" (approx. 3.2 mm)

• Finish: Powder-coated matte black; optional graphite, bronze, or custom RAL shades

Panel Design

• Material: 10-gauge steel or aluminum sheet

• Cutting technology: CNC laser cutting for ultra-precise detailing

• Design: Intersecting diagonal and curved lines within a rounded-top frame

• Customization: Line density, curvature styling, crest integration, or monogram engraving

Posts & Mounting

• Material: Steel posts with welded base plates or stone-clad columns

• Mounting style: Surface mount with anchor bolts; In-ground embedment for concrete foundations

• Note: Posts sold separately ($199)

Optional Add-Ons

• Latch options: Thumb latch, deadbolt, or padlock-ready handle

• Lighting integration: Wall-mounted or recessed fixtures near entry

• Matching fence panels: Available for perimeter continuity

• Custom branding: Optional estate name, crest, or logo engraving

rounded-top abstract man door, curved line metal gate, modern geometric garden entry, Canadian custom gate, Taimco architectural passage door, manual operation estate gate

Note:

• The following parts are not included in the price
  • Posts can be added for $199.
  • Different colours than black are available for an extra  $249.
  • The lock and unlock box can be added for $199.
• This product is recommended to be installed by a professional team.
• Custom orders cannot be cancelled, returned, or refunded after purchase.
• All the custom metal product orders are final sales.
• Gates may need minor touch-up paint due to the nature of shipping.
• For more information please email us at info@taimco.ca
