Dodecagon One Tier Steel Structure Park Gazebo 40' | Model # GAZD

Dodecagon One Tier Steel Structure Park Gazebo | Model # GAZD1T

Regular price $67,600.00
by Taimco
Add to wishlist Add to Compare
Quantity
Quantity
Description Specification Contact
    The Dodecagon One Tier Steel Frame Shelter features a classic design that complements any outdoor environment.

        • Our standard shelter sizes are  40, 50, 60, 70, and 80 feet long.
        • The steel pavilions are available with a choice of all steel deck or with tongue-and-groove deck. Engineered drawings are included.
        • Site Specifics provides durable and attractive park shelters that protect against the elements and help to establish a community’s image.
        • we will help you determine the right type of shelter based on your needs and budget - from sun shelters and gazebos to band shelters and pergolas.
        • Taimco provides quality prefabricated structures to customers.
        • Since 2002 we produced quality structures from a variety of materials.


    Frame Specifications :

      • Includes powder coat frame finish 8' eave height.
      • HSS 6" X 6", 1/4" Thickness Main Posts, HSS 4" x 2", 1/8" Thickness for the Main top Frame, 2" x 2" x 1/8" Thickness for the Supporting Crossover Bars.
      • Sonotube Footer Concrete 35 MPa Strength, 4' Depth Pier R/W (5) 15 mm Vertical & 10 mm Stirrups at 12" On Center.

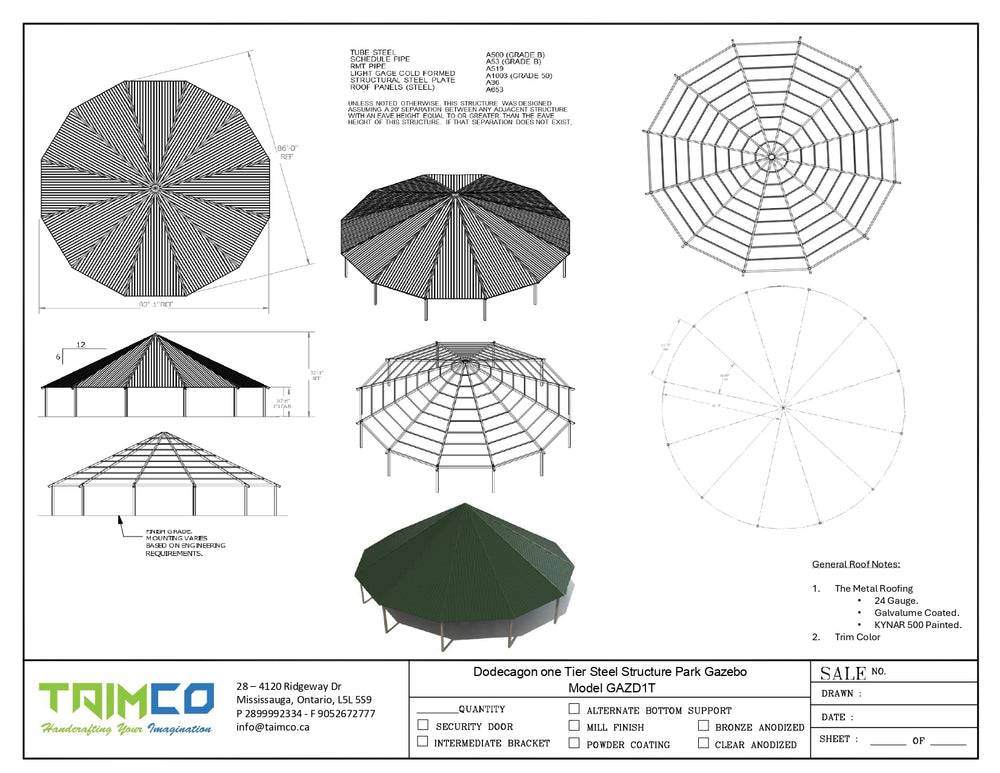

      • Download Drawings and Design.



    Roofing options:
      • 24 Gauge R-Panel Roofing
      • 24 Gauge Medallion Lok S.S.
      • 25 Gauge Medallion Lok S.S.
      • 29 Gauge Max-Rib Metal Roofing.
      • Fiberglass Shingles.
      • Cedar Shingles.
      • Requires Tongue and Groove sub decking.



    Options and Accessories:
      • Ornamental Lattice and Handrails.
      • Ornamental Corner Bracing.
      • Column Upgrades.
      • Cupolas.
      • Weathervanes.
      • Base Shoe Covers.
      • Roof and Frame Colors.

    The Dodecagon One Tier has a sleek and modern design with a recessed roof that fits well with many architectural styles.

      • The columns are located at the outside corners of the structure to provide more interior space.
      • Sleek and modern design.
      • Includes powder coat frame finish 8' eave height.
      • HSS 6" X 6", 1/4" Thickness Main Posts, HSS 4" x 2", 1/8" Thickness for the Main top Frame, 2" x 2" x 1/8" Thickness for the Supporting Crossover Bars.
      • Sonotube Footer Concrete 35 MPa Strength, 4' Depth Pier R/W (5) 15 mm Vertical & 10 mm Stirrups at 12" On Center.
      • Square or rectangle shape.
      • The recessed roof is within the heavy-duty frame.
      • Measured from outside to outside of the frame (slight variation along eave).
      • Available in standard and custom sizes.
      • All Custom Sizes of Biltmore model shade structures with a Hemlock Green HR-36 steel roof can be made, please contact us for your custom size needs.
