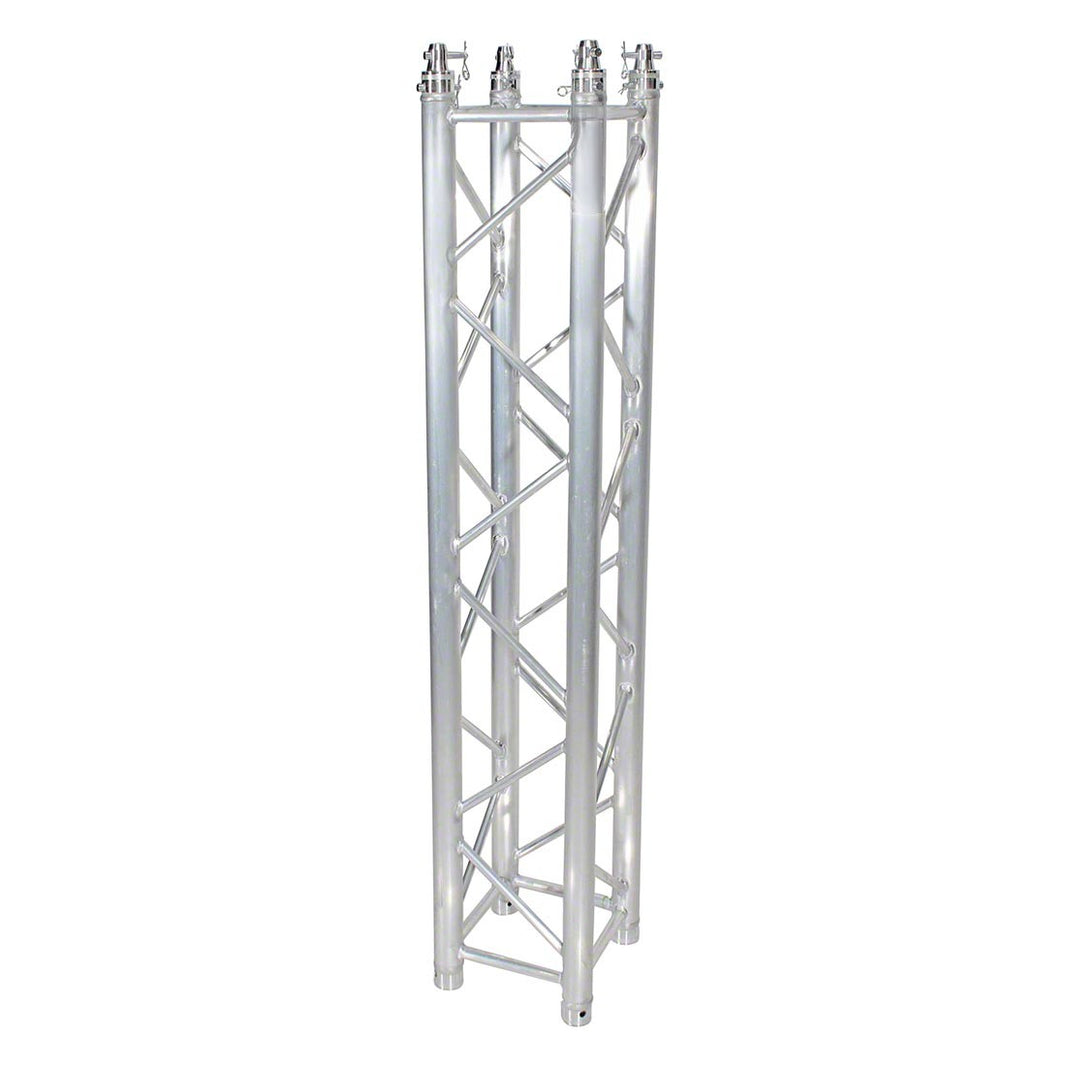

TAIMCO Economy K Square Shape Truss Straight 1 Meter

Non-Structural Light-Duty Truss for Smaller Lighting, Displays & Signage

This economical trussing system is designed for light-duty applications such as trade show booths, DJ booths, DJ totems, and architectural non-loadbearing designs. Ideal for trade shows and light-duty display systems, it serves as a support system for lighter lighting fixtures. Its design and cost-effectiveness make it a great alternative for reduced load capacity needs while maintaining a standard truss appearance.

This Truss is a 40", 60", 79", 98", and 118" , 290mm (11.4-inch) square straight truss piece that can be connected to other K-Truss pieces to create custom trussing configurations. Made from high-grade aluminum, the TAIMCO K-Truss Economy Truss features 50x1.5mm main tubes and 16x1.5mm braces. The load capacity of the K-Truss is 75% of the standard 2mm square truss load capacity.

Features :

• • Non-Structural Economy Truss : Primarily designed for display structures.
  • Standard Appearance : It looks similar to most major brands of square trusses.
  • High-Quality Construction: Made from display-grade quality EN-AW T6-6061 aluminum.
  • Load Capacity: 75% of the standard 2mm truss load capacity.
  • Specific Use: Not intended as a replacement or substitute for any standard or heavy-duty load-bearing truss segments.
  • Certified Quality: Constructed to the highest standards by certified welders.
  • Precision Fit: Tolerance-free standard conical connector.
  • MQO 10
  • Lead Time 6-8 Weeks.

Package Contents

• • Qty 1 - K-Truss Economy Square Truss Straight Segment Refer to the size.
  • Qty 4 - Conical Connector.
  • Qty 8 - Security Pin.
  • Qty 8 - Security Clip.

Dimensions:

• • Total Width: 290mm (11.41 inches).
  • Total Depth: 290mm (11.41 inches).
  • Total Length: 1, 1.5, 2, 2.5 and 3 M.
  • Main Tubes: 50mm (2") diameter, 1.5mm thickness.
  • Braces: 16mm (3/4") diameter, 1.5mm thickness.
  • Weight: 13 lbs.
  • Material: Aluminium EN-AW T6-6061.
  • 1-Year Limited Warranty.
