Elevated Deluxe Bleachers 10 Row System - Model BLECED10

Elevated Deluxe Bleachers 10 Row System - Model BLECED10

Regular price $35,260.00
by Taimco
Add to wishlist Add to Compare
Quantity
Quantity
Description Specification Contact
    1. Design and Compliance:

      • These bleachers are meticulously designed to meet compliance standards. They feature a 4-foot wide center aisle equipped with mid-aisle handrails.
      • The aluminum alloy angle frame understructure is versatile and suitable for various scenarios:
        • Level Sites: Perfect for installation on flat surfaces.
        • Concrete Foundation: Can be securely attached to a concrete base.
        • Earth Anchors: Alternatively, they can be installed using earth anchors.
      • Access to the bleacher seats and the front crosswalk deck is facilitated via a set of stairs.
    2. Seat Construction:

      • Seat Planks: These are crafted from extruded 6063-T6 aluminum alloy with a clear anodized finish. The dimensions are 2 inches by 10 inches.
      • Tread Planks: These are also made of extruded 6063-T6 aluminum alloy, but with a mill finish. Two planks, each measuring 2 inches by 10 inches, form the tread.
      • End Caps: The end caps are securely attached using tek screws.
      • Riser Planks: Positioned beneath each row, the riser planks are constructed from 1-inch by 6-inch extruded aluminum alloy with a clear anodized finish.
    3. Additional Features:

      • Aluminum Angle Frame Understructure: This robust framework provides stability and support.
      • Double Footboards: Enhance safety and ease of movement.
      • Chain Link Guardrail: The guardrail system protects all three sides of the bleacher. It consists of 1-5/8-inch anodized aluminum tubing with end caps at straight runs and elbows at corners.
      • Front Row Seat Height: The front row is elevated 17 inches above ground level.
      • Available Sizes:
        • 5-row units: Lengths of 15 feet, 21 feet, 27 feet, and 33 feet.
        • 8-row units: Lengths of 15 feet, 21 feet, 27 feet, and 33 feet.
        • 10-row units: Lengths of 21 feet, 27 feet, and 33 feet.
        • 15-row units: Length of 21 feet 27 feet.


    Key Features:



    1. Row Units:

      • Available in 5, 8,10 and 15-row configurations.
      • Each row provides comfortable seating for spectators.
    2. Front Row Seat Height:

      • The front row is elevated 17 inches above ground level.
      • This ensures an unobstructed view for spectators in the first row.
    3. Seat Planks:

      • The seat planks are constructed from extruded aluminum alloy.
      • Dimensions: 2 inches by 10 inches (nominal).
      • These planks provide sturdy and reliable seating.
    4. Length Options:

      • Choose from various lengths to suit your space:
        • 15 feet
        • 21 feet
        • 27 feet
        • 33 feet
    5. Elevation Above Grade:

      • The entire bleacher structure is raised 30 inches above the ground.
      • This elevation enhances visibility and allows for better sightlines.
    6. Access:

      • Spectators can access the bleacher seats via a set of stairs.
      • The design ensures safe and convenient movement.
    7. Aluminum Angle Frame Understructure:

      • The understructure provides stability and support.
      • Ideal for both level sites and installations with concrete foundations or earth anchors.
    8. Double Footboards:

      • Enhance safety and comfort for spectators.
      • The double footboards offer stability during ingress and egress.

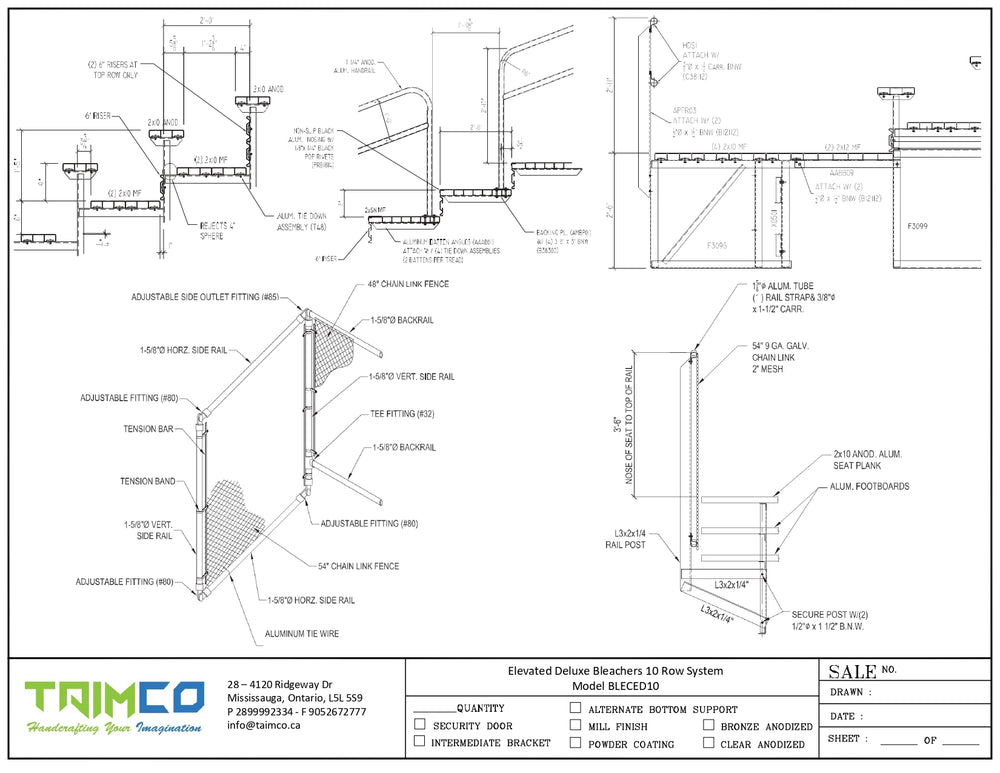

    9. Chain Link Guardrail:

      • The guardrail system surrounds all three sides of the bleacher.
      • It consists of 1-5/8-inch anodized aluminum tubing.
      • End caps secure the railing at the ends of straight runs, while elbows provide corner protection.

    These engineering features ensure a durable, compliant, and spectator-friendly bleacher experience.



    Length Options: We manufacture 10-row bleachers in the following lengths:


    Length     Seating Capacity      Weight       Dimensions

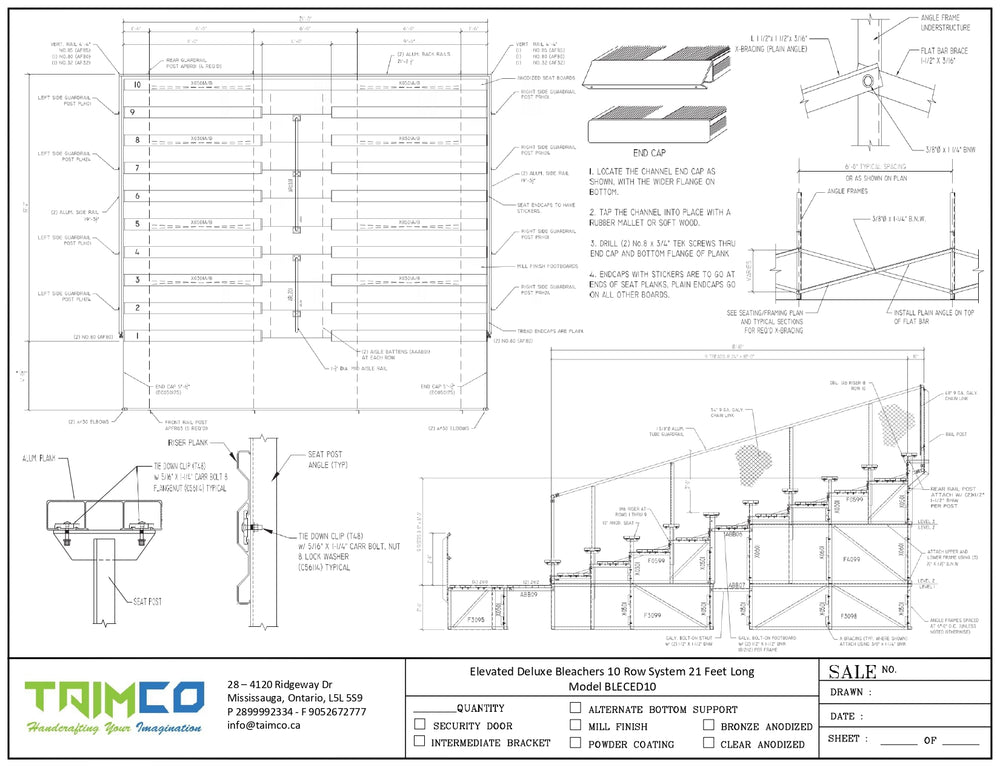

    21'L 113 2920 LB 21’L x 24'6" D
    27’L 153 5040 LB 27’L x 24'6" D

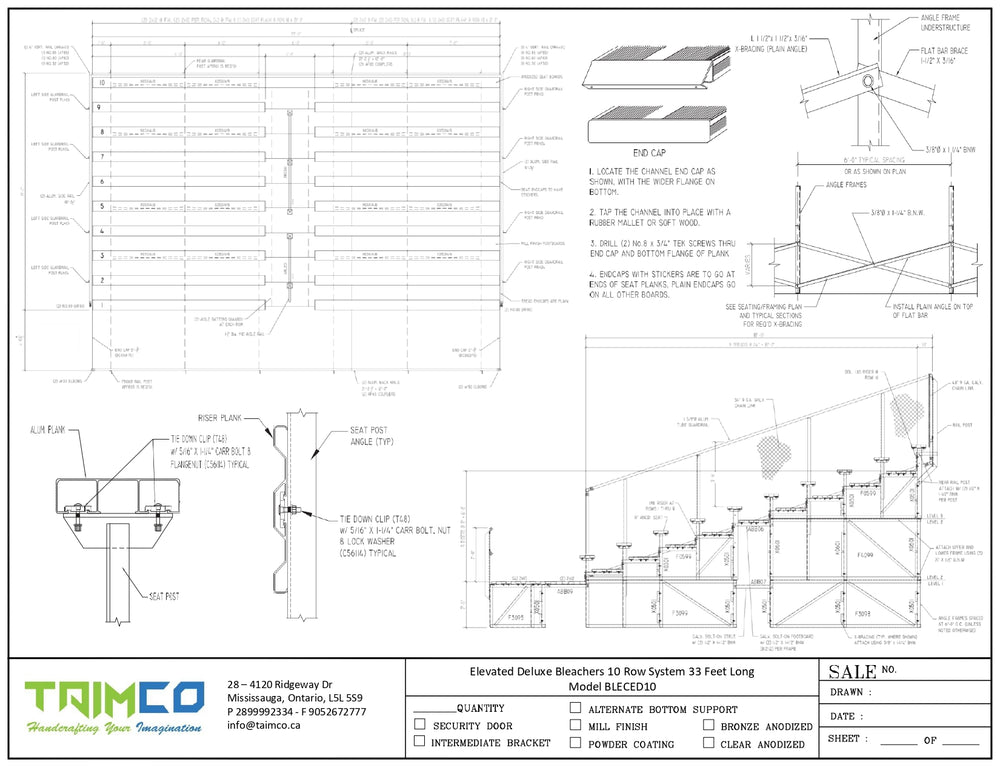

    33'L 193 6160 LB 33’L x 24'6" D




    Not Included:

    • Shop drawings (sold separately).
    • Anchor kits (sold separately).
