Elevated Deluxe Bleachers 5 Row System - Model BLECED5

Regular price $19,560.00
Quantity
Quantity
SKU: BLECED5
Category:Bleachers

Free Delivery

US & Canada

*Additional handling charges may apply*

Description Shipping & Handling Contact
    1. Design and Compliance:

        • These bleachers are meticulously designed to meet compliance standards. They feature a 4-foot wide center aisle equipped with mid-aisle handrails.
        • The aluminum alloy angle frame understructure is versatile and suitable for various scenarios:
          • Level Sites: Perfect for installation on flat surfaces.
          • Concrete Foundation: Can be securely attached to a concrete base.
          • Earth Anchors: Alternatively, they can be installed using earth anchors.
        • Access to the bleacher seats and the front crosswalk deck is facilitated via a set of stairs.

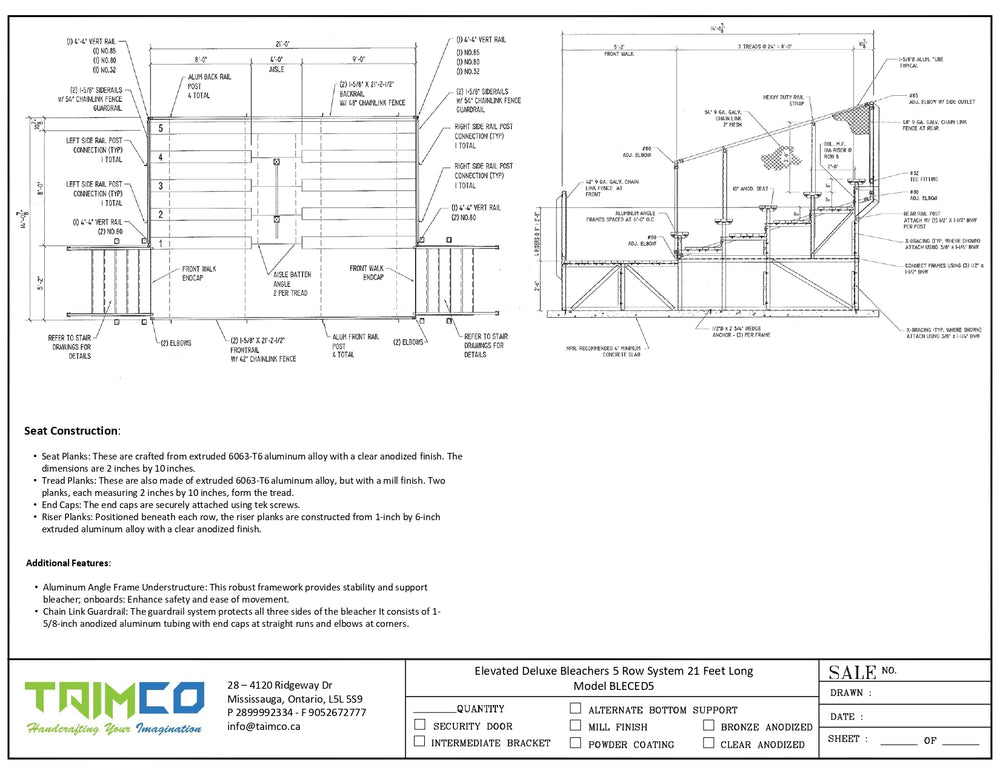

    2. Seat Construction:

        • Seat Planks: These are crafted from extruded 6063-T6 aluminum alloy with a clear anodized finish. The dimensions are 2 inches by 10 inches.
        • Tread Planks: These are also made of extruded 6063-T6 aluminum alloy, but with a mill finish. Two planks, each measuring 2 inches by 10 inches, form the tread.
        • End Caps: The end caps are securely attached using tek screws.
        • Riser Planks: Positioned beneath each row, the riser planks are constructed from 1-inch by 6-inch extruded aluminum alloy with a clear anodized finish.
    3. Additional Features:

        • Aluminum Angle Frame Understructure: This robust framework provides stability and support.
        • Double Footboards: Enhance safety and ease of movement.
        • Chain Link Guardrail: The guardrail system protects all three sides of the bleacher. It consists of 1-5/8-inch anodized aluminum tubing with end caps at straight runs and elbows at corners.
        • Front Row Seat Height: The front row is elevated 17 inches above ground level.
        • Available Sizes:
          • 5-row units: Lengths of 15 feet, 21 feet, 27 feet, and 33 feet.
          • 8-row units: Lengths of 15 feet, 21 feet, 27 feet, and 33 feet.
          • 10-row units: Lengths of 21 feet, 27 feet, and 33 feet.
          • 15-row units: Length of 21 feet 27 feet.


    Key Features:



      1. Row Units:

        • Available in 5, 8,10 and 15-row configurations.
        • Each row provides comfortable seating for spectators.
      2. Front Row Seat Height:

        • The front row is elevated 17 inches above ground level.
        • This ensures an unobstructed view for spectators in the first row.
      3. Seat Planks:

        • The seat planks are constructed from extruded aluminum alloy.
        • Dimensions: 2 inches by 10 inches (nominal).
        • These planks provide sturdy and reliable seating.
      4. Length Options:

        • Choose from various lengths to suit your space:
          • 15 feet
          • 21 feet
          • 27 feet
          • 33 feet
      5. Elevation Above Grade:

        • The entire bleacher structure is raised 30 inches above the ground.
        • This elevation enhances visibility and allows for better sightlines.
      6. Access:

        • Spectators can access the bleacher seats via a set of stairs.
        • The design ensures safe and convenient movement.
      7. Aluminum Angle Frame Understructure:

        • The understructure provides stability and support.
        • Ideal for both level sites and installations with concrete foundations or earth anchors.
      8. Double Footboards:

        • Enhance safety and comfort for spectators.
        • The double footboards offer stability during ingress and egress.
      9. Chain Link Guardrail:

        • The guardrail system surrounds all three sides of the bleacher.
        • It consists of 1-5/8-inch anodized aluminum tubing.
        • End caps secure the railing at the ends of straight runs, while elbows provide corner protection.
      10. Lead time 6-8 Weeks.



    These engineering features ensure a durable, compliant, and spectator-friendly bleacher experience.



    Length Options: We manufacture 5-row bleachers in the following lengths:


    Length     Seating Capacity      Weight       Dimensions
    15’L 38 1500 LB 21’L x 14'6" D
    21'L 58 2000 LB 24’L x 14'6" D
    27’L 78 2600 LB 27’L x 14'6" D
    33'L 98 3150 LB 33’L x 14'6" D




    Not Included:

      • Shop drawings (sold separately).
      • Anchor kits (sold separately).
