Fixed Aluminum Heavy Duty Wall Ladder with Rail Over Roof

TAIMCO Model SL1475 fixed wall ladders provide permanent exterior roof access. They are ideal for chimneys, towers, vats, antennas, tanks, water treatment plants, refineries, and other industrial or marine applications. For ladders exceeding 20' (6.1m), cages and rest platforms are available. Security doors are offered.

Construction & Material :

TAIMCO aluminum ladders and their components are fabricated from 6061-T6 aluminum alloy for added safety, strength, and long-lasting durability, with no painting required. Model SL1475 fixed wall ladders include side rails with 1-1/8" (29 mm) round rungs that are serrated and secured with cast aluminum connectors, 4 solid rivets, and 3/8" (9.5 mm) thick brackets mounted to the walls.

Key Feature

• • Heavy-duty fixed ladders are an upgraded solution to your vertical access needs.
  • It’s the same great ladder you’ve expected but built for high-traffic use, difficult environmental conditions, and other factors affecting a lower-quality fixed ladder.
  • We only make the best quality materials and workmanship when it comes to the creation of your next heavy-duty ladder.
  • More importantly, every heavy-duty fixed ladder we make and customize for you is manufactured in such a way that it will be built to last.
  • It’s easy to begin creating the fixed ladder that will meet your heavy-duty needs.
  • select the various options that you need to have for your new equipment.
  • We offer options in the number of step rungs if you want a cage included, and if you prefer to have walk-thru handrails on your heavy-duty ladder.
  • There are times when only the best will do. In difficult environments when you must have vertical access for your personnel, only a heavy-duty fixed ladder is going to provide you with the asset you require.

Accessories :

• • Cages: These cages consist of 1/4" x 2" (6.4 x 51 mm) hoops and seven 3/16" x 1-1/2" (4.8 x 38 mm) vertical bars, with solid riveted connections.
  • Rest Platform: These platforms consist of GripStrut® floors, 4" (102 mm) high toe boards, 1-1/4" (32 mm) round serrated tube guard railings, and cast aluminum railing fittings.
  • Security Doors: These doors are fabricated from 0.188" (4.8 mm) thick aluminum sheets, with securing piano hinges and hasps.

Note: Cages are required for wall ladders when installations exceed 20' (6.1 m) in height. Platforms are required for ladders over 30' (9.2 m).

SIZES:

• • Height: Exceeding 20' (6.1 m) installed with cage; over 30' (9.2 m) installed with cages and rest platforms.
  • Width: 20-1/4" (514 mm).

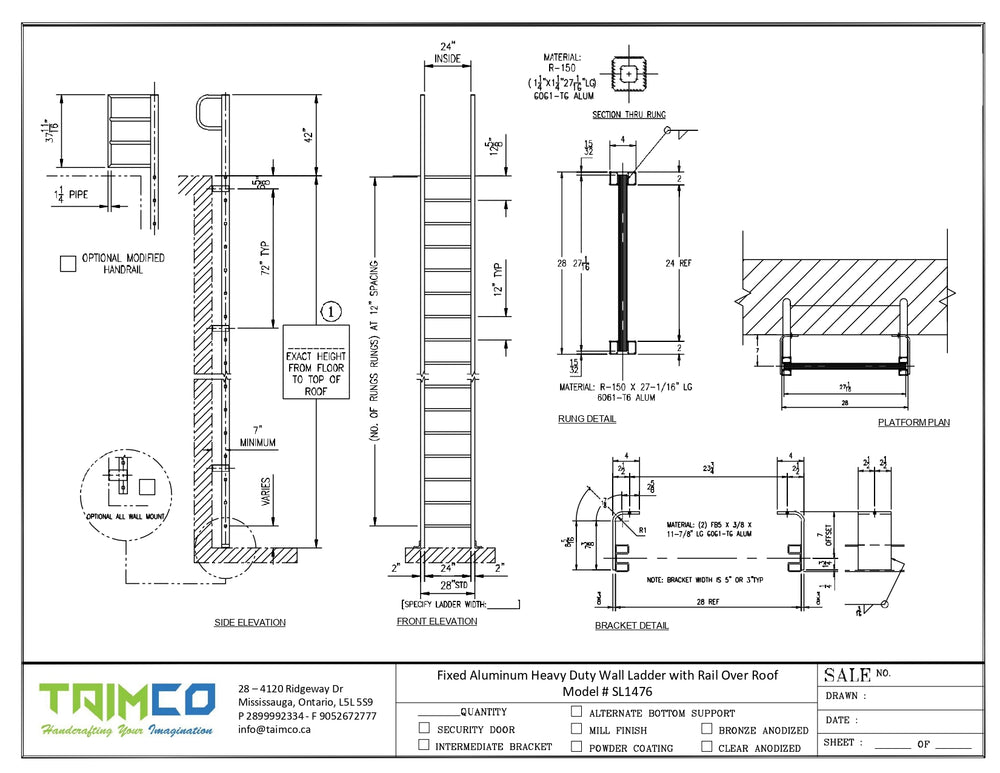

  • Download Specs & Detailes.

FINISHES & COATINGS: Mill finish is standard on aluminum ladders. Factory-applied paint coatings and chem-film treatment for field-applied primers are available upon request.
