Galvanized Adjustable Gate hinge With Wrap Round | Model # OHR ( Pack of 100 )

Galvanized Adjustable Gate hinge With Wrap Round | Model # OHR ( Pack of 100 )

Regular price $456.00
by Taimco
Add to wishlist Add to Compare
Quantity
Quantity
Description Specification Contact
      • Gond For industrial swing gates.
      • Fixing: weld-on.
      • Adjustment between 50 and 110 mm.
      • Thread diameter of 30 mm to 40 mm.
      • Open to 90 Degrees.
      • Material: S235JRG2C steel (A37).
      • Finish: 13.2μm dichlone.
      • Tested to 1.5 million cycles.
      • Check operating clearances every 6 months.
      • Get All Specifications And Dimensions.
      • Minimum Order Quantity for each size: 100

    Documents

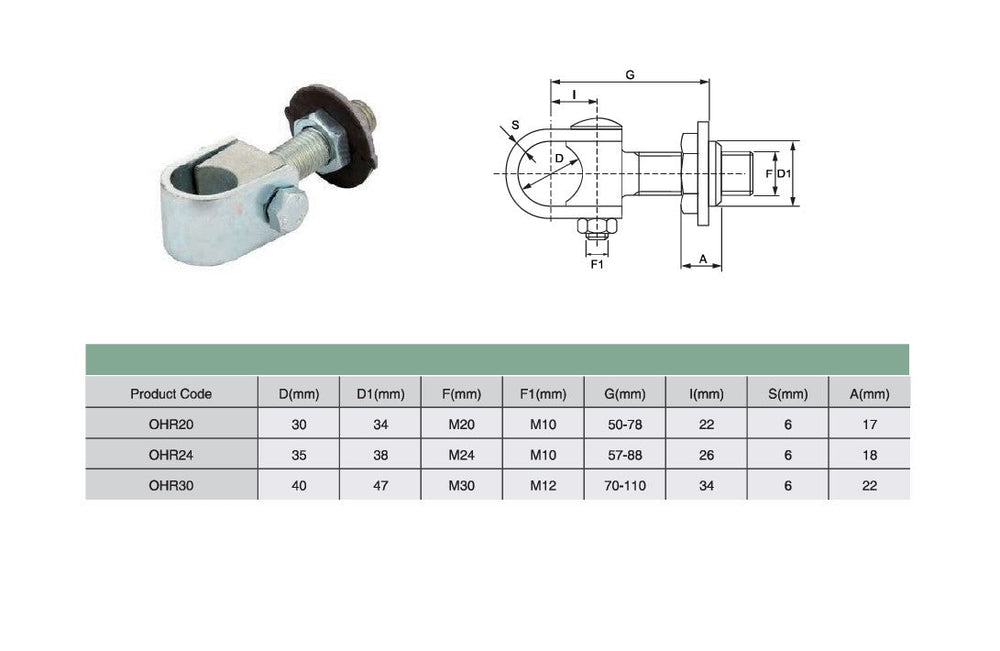

    You Can Download specs and dimensions

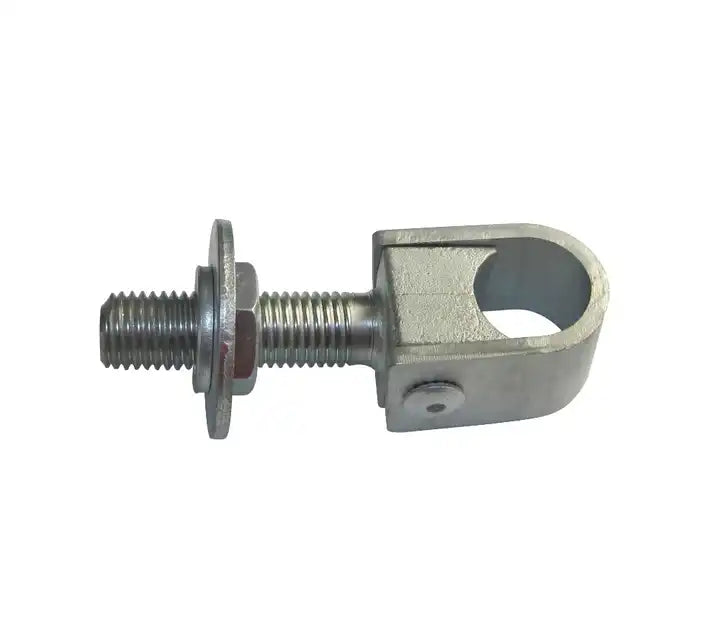

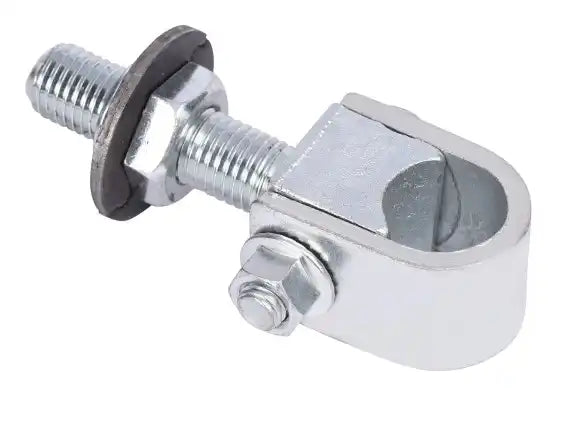

    Weld-on hinge, made of steel, with clamp for wrought iron type swing gate with an adjustment possibility between 50 and 110 mm and a recovery capacity of 210 kg per hinge. M20, 24, 30 threaded bar. This hinge allows the gate to be opened at 90°.



    • Gond For industrial swing gates.
    • Fixing: weld-on.
    • Adjustment between 50 and 110 mm.
    • Thread diameter of 30 mm to 40 mm.
    • Open to 90 Degrees.
    • Material: S235JRG2C steel (A37).
    • Finish: 13.2μm dichlone.
    • Tested to 1.5 million cycles.
    • Check operating clearances every 6 months.
    • Get All Specifications And Dimensions.
    • Minimum Order Quantity for each size: 100
