Grizzly Rock Screen 10 Feet Long Model GRS10

Grizzly Rock Screen 10 Feet Long Model GRS10

Sale price $6,800.00 Regular price $7,700.00
Quantity
Quantity
SKU: GRS10

Free Delivery

US & Canada

*Additional handling charges may apply*

Description Shipping & Handling Contact

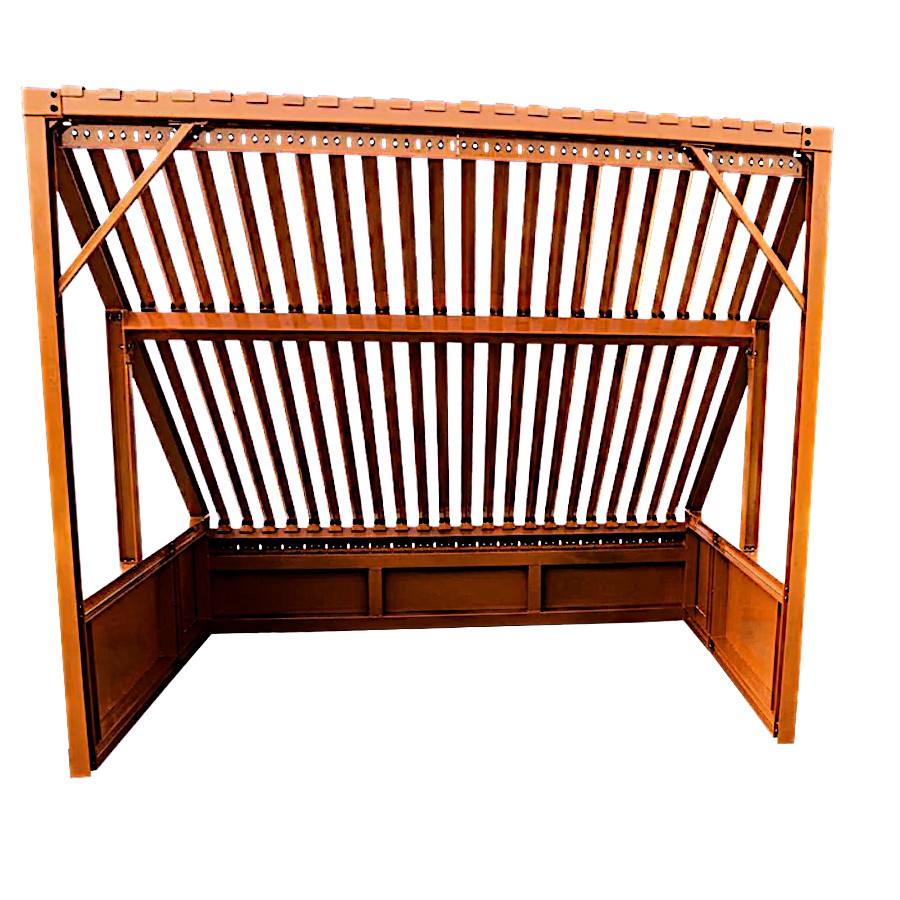

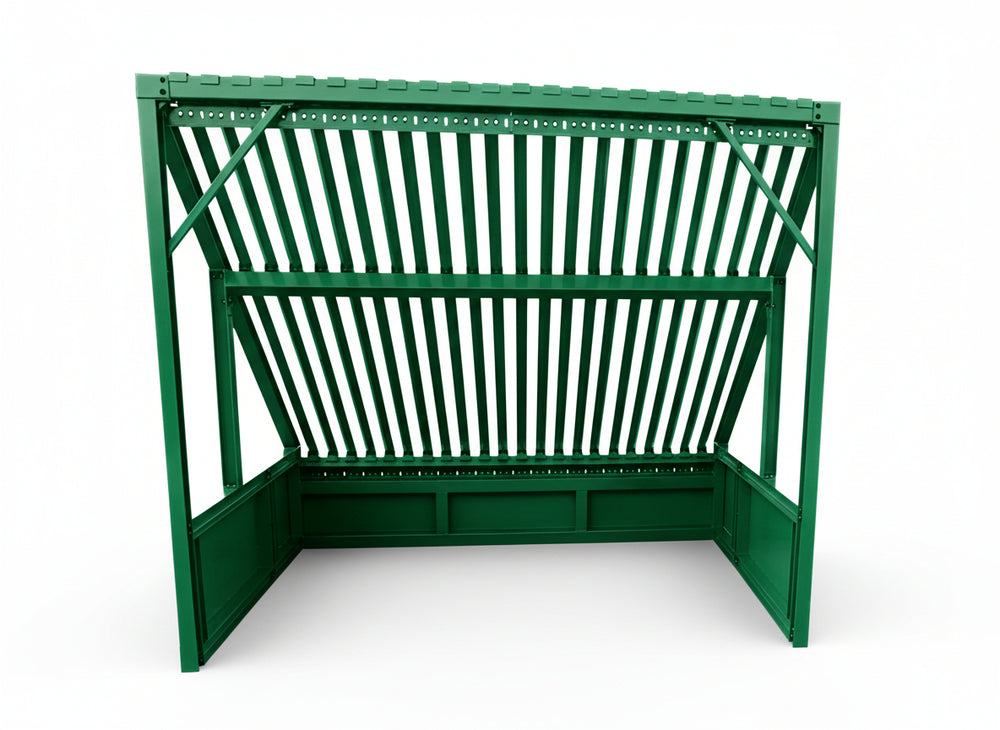

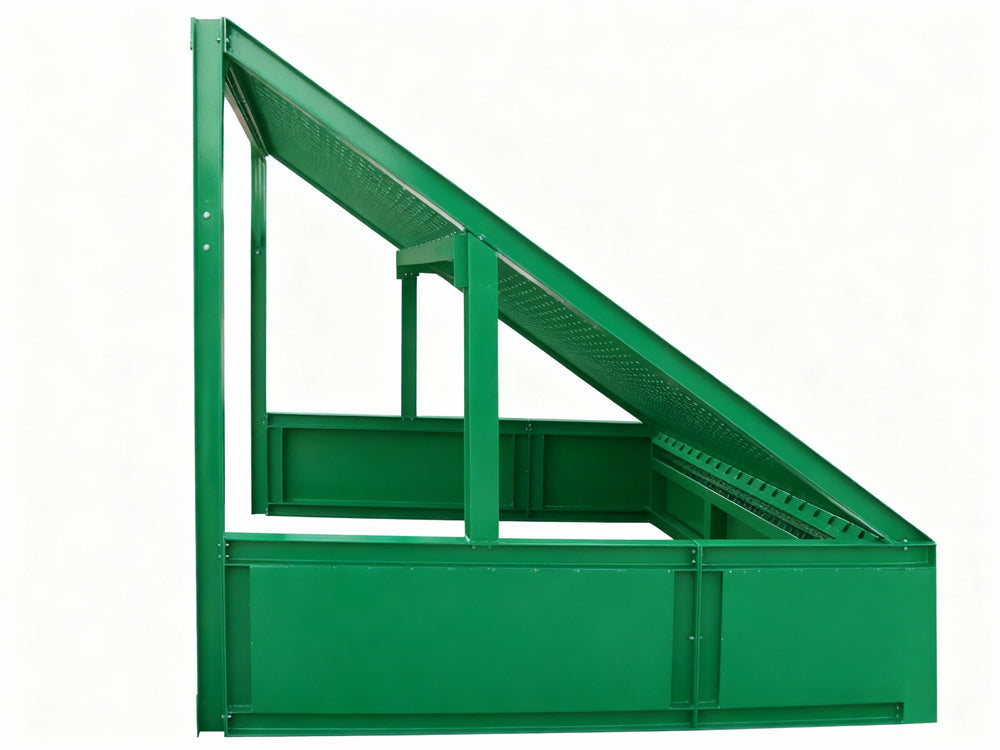

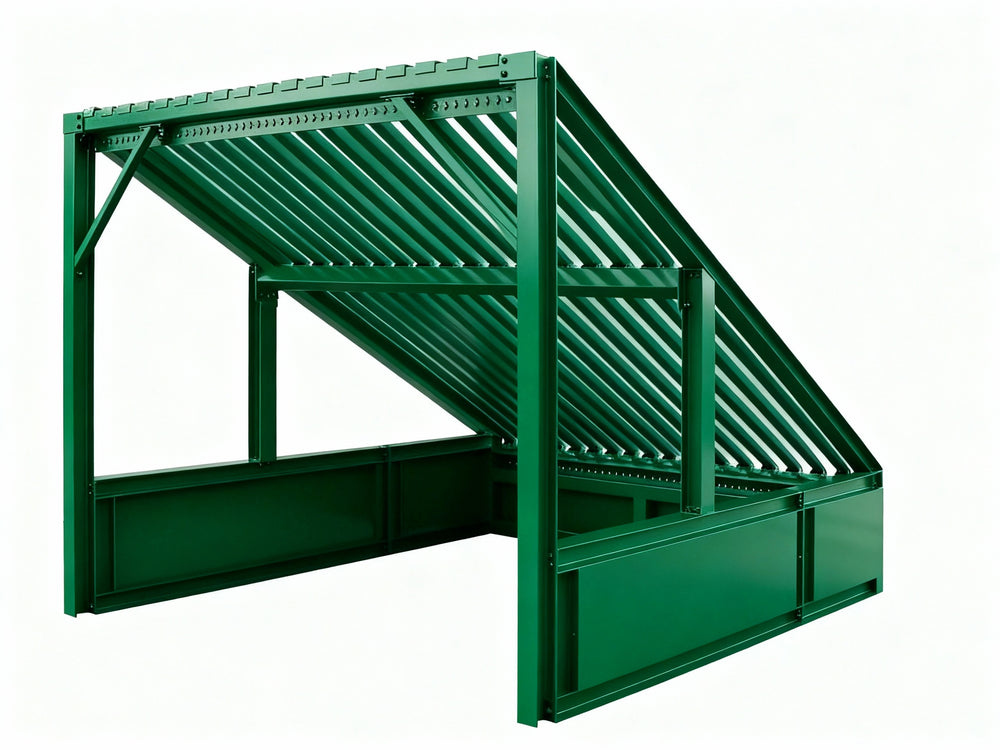

    Premium Grizzly Rock Screen with Customizable Bolt-On Deck Bars and Sturdy 4” x 4” I-Beams.

    Elevate your material screening process with our Premium Grizzly Rock Screen. Engineered for durability and efficiency, this rock screen features customizable bolt-on deck bars and robust 4” x 4” I-Beams, ensuring it can easily handle the toughest jobs.



    Key Features:

      • Adjustable Deck Bars: Customize the deck bars to suit your specific material screening needs.
      • Heavy-Duty Construction: Built with sturdy 4” x 4” I-Beams for maximum strength and longevity.
      • Versatile Applications: Ideal for construction, mining, and landscaping projects.
      • Versatile Applications: Our Grizzly Rock Screen is a favourite in open-pit mining, demolition, and landscaping industries. Customers rave about its performance in topsoil screening and more.

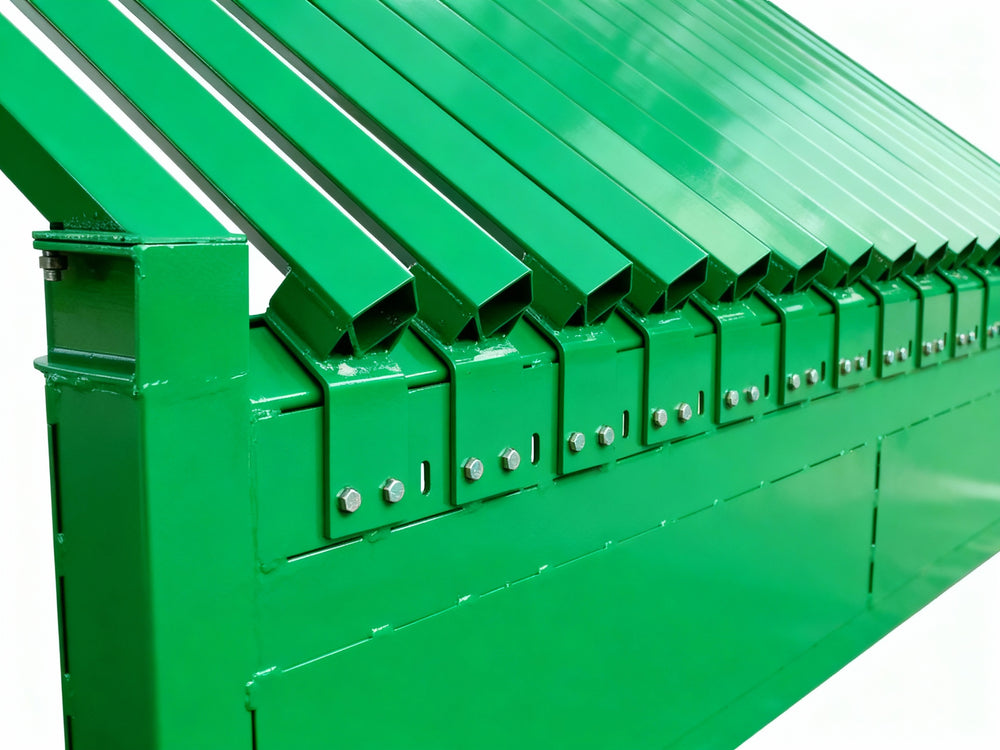

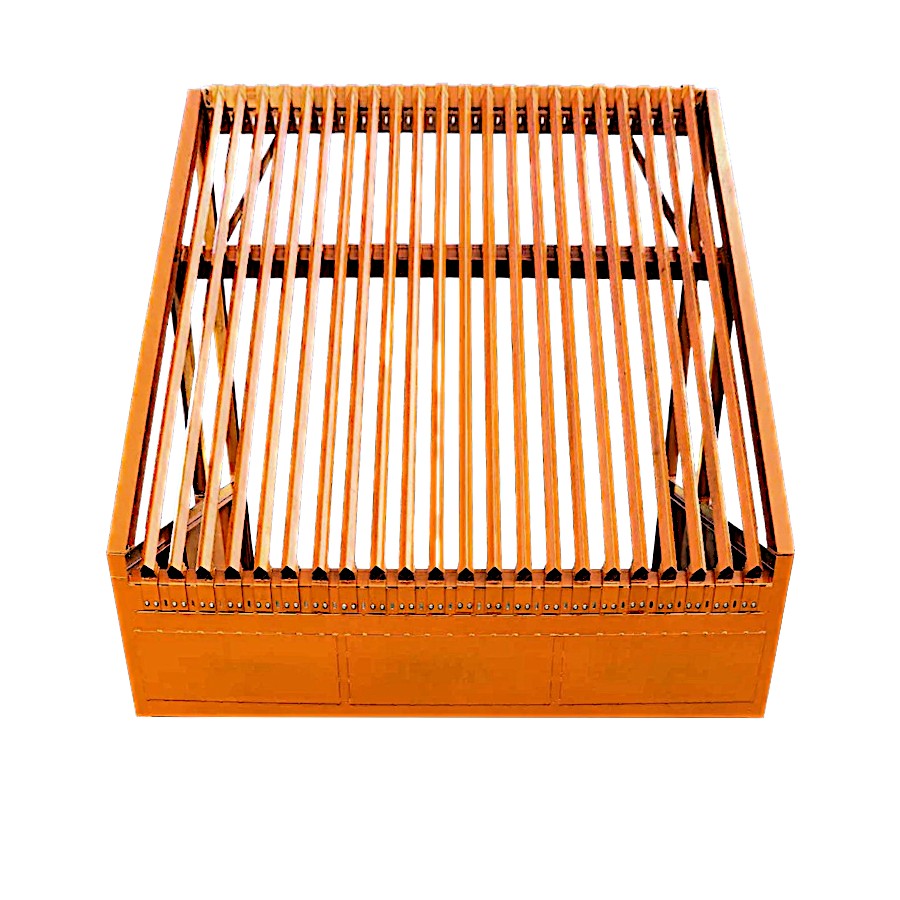

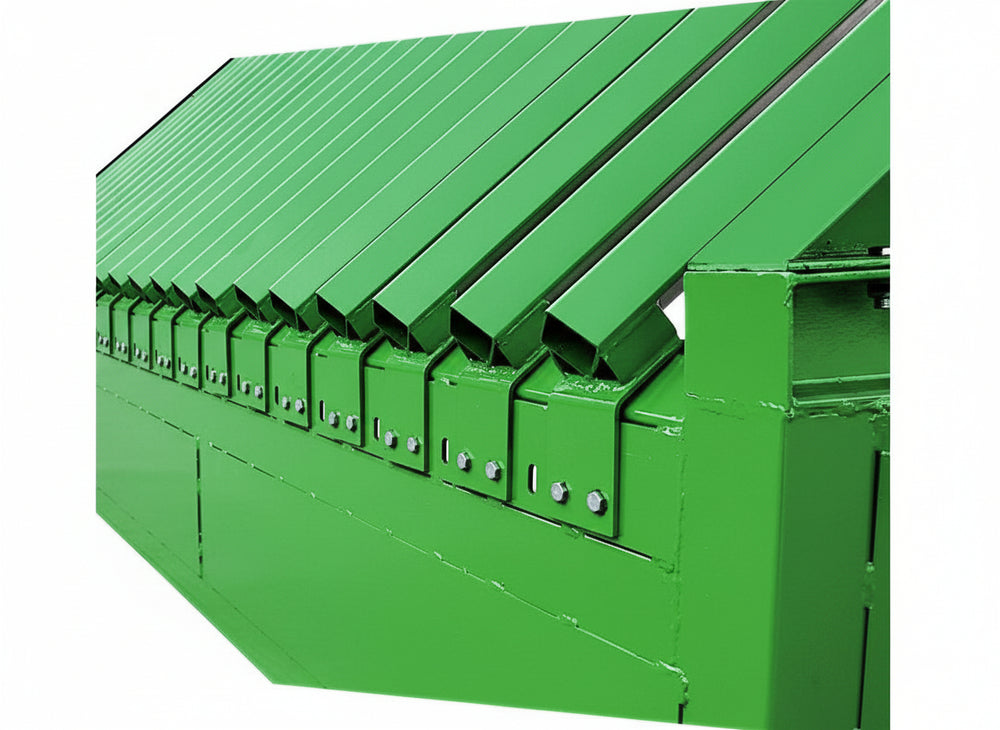

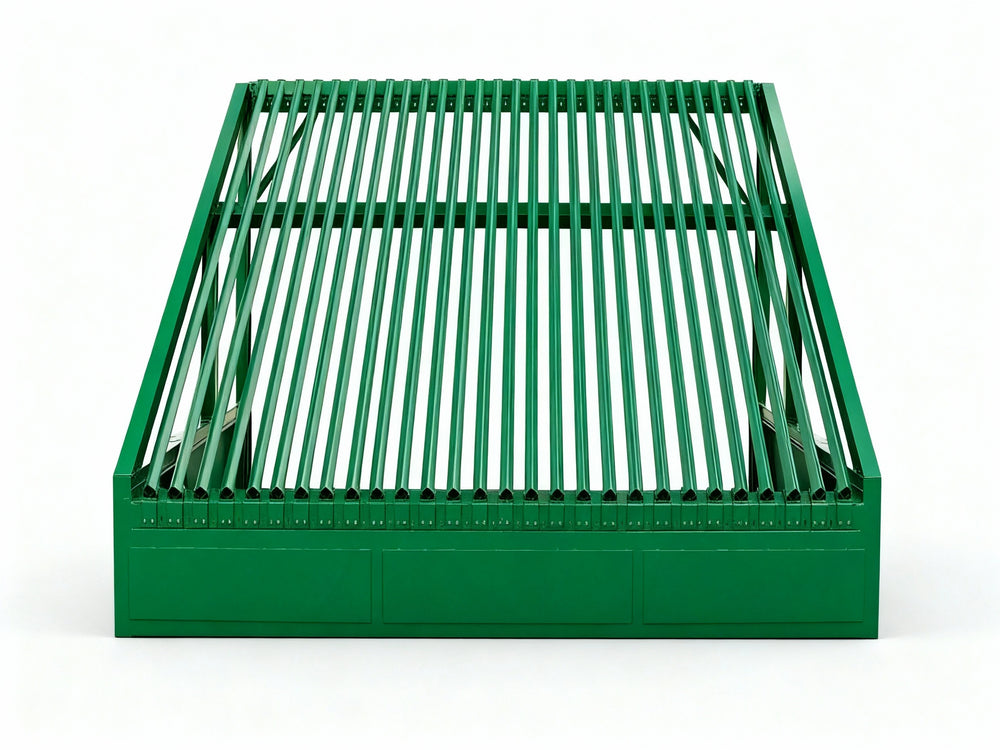

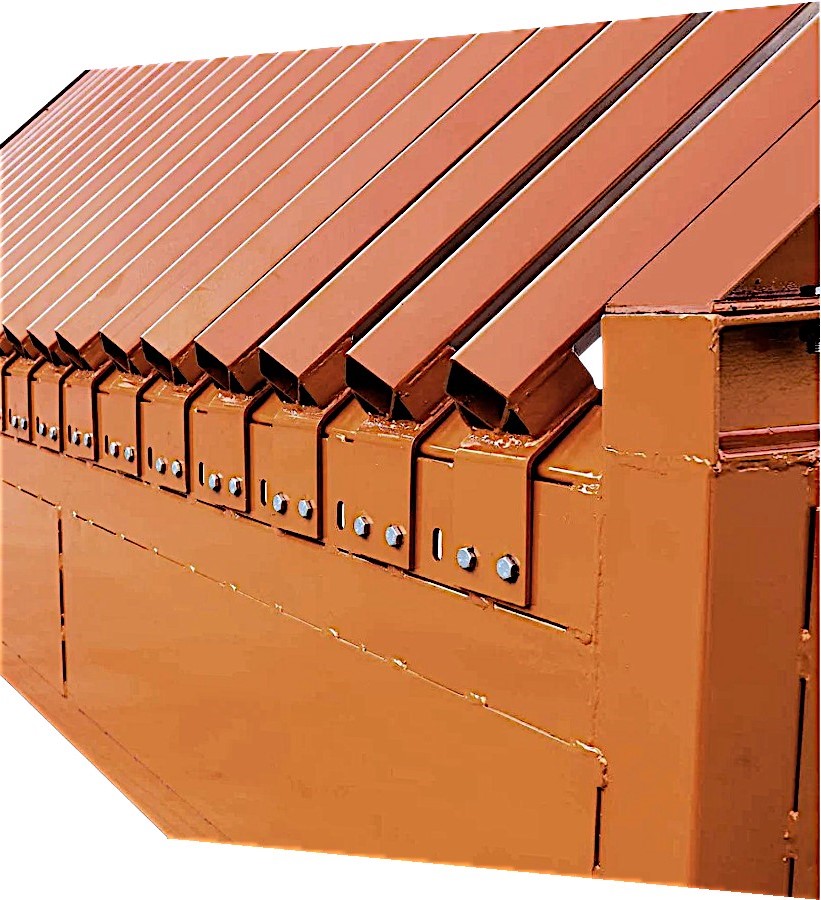

      • Customizable Deck Bars: The adjustable bolt-on deck bars can be tailored for spacing down to 1” apart (the standard is 3”), providing flexibility for various screening needs. “The ability to customize the deck bars has been a game-changer for our projects.

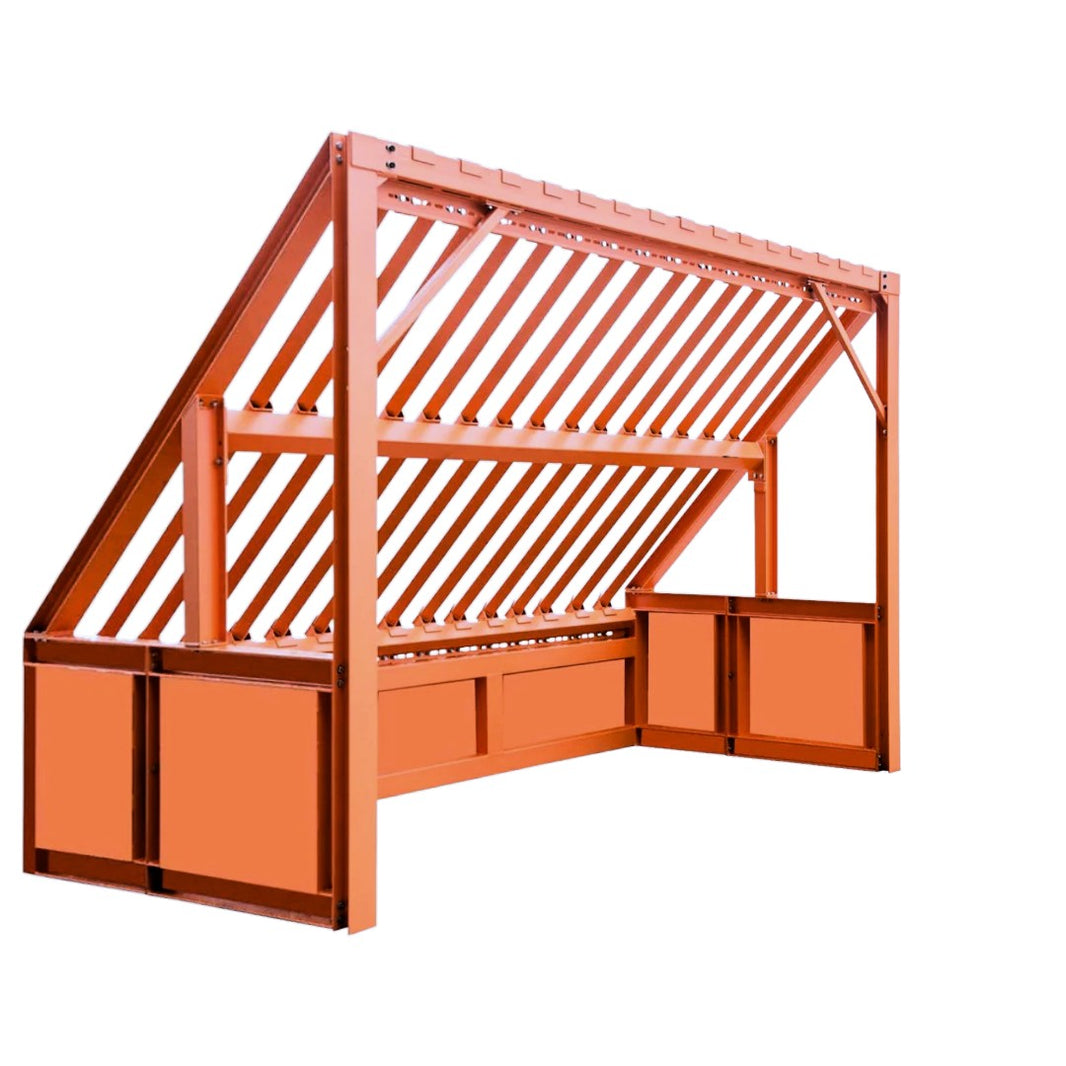

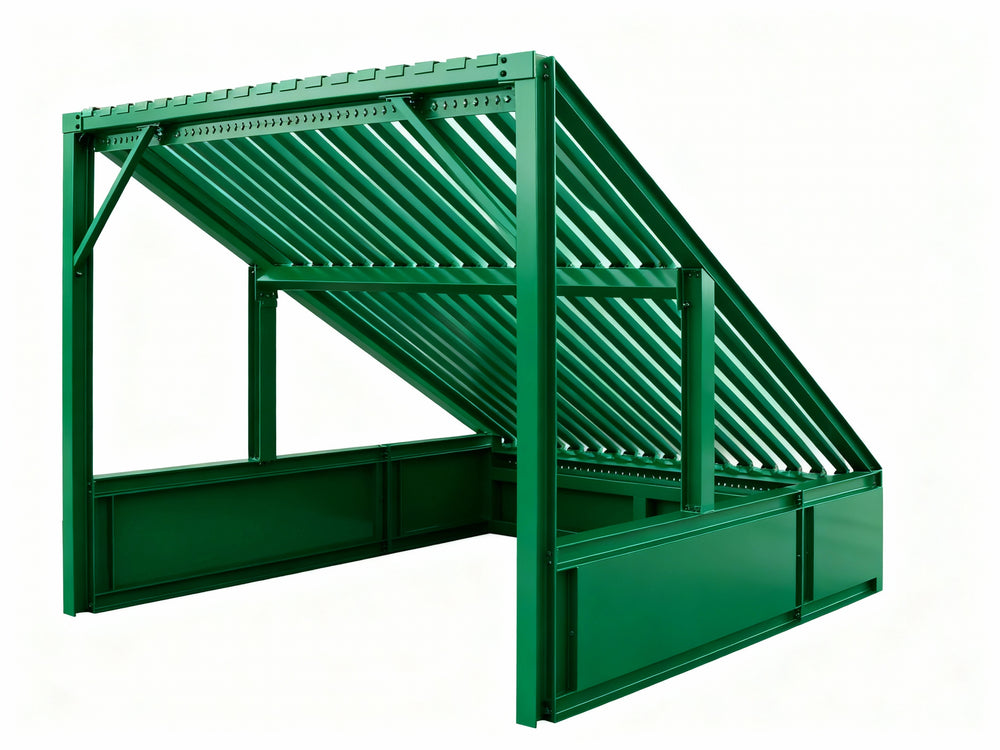

      • Optimal Slope Design: With a 37° slope, rocks and debris effortlessly fall away from the work area, enhancing efficiency and safety. “The slope design is perfect; it keeps our work area clean and safe.

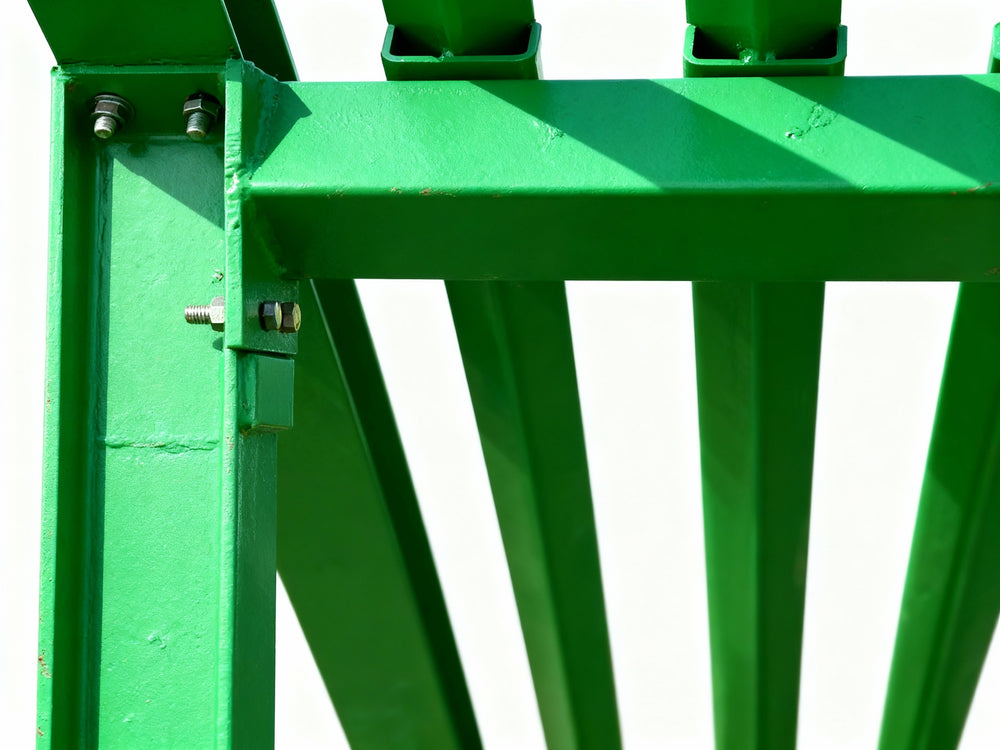

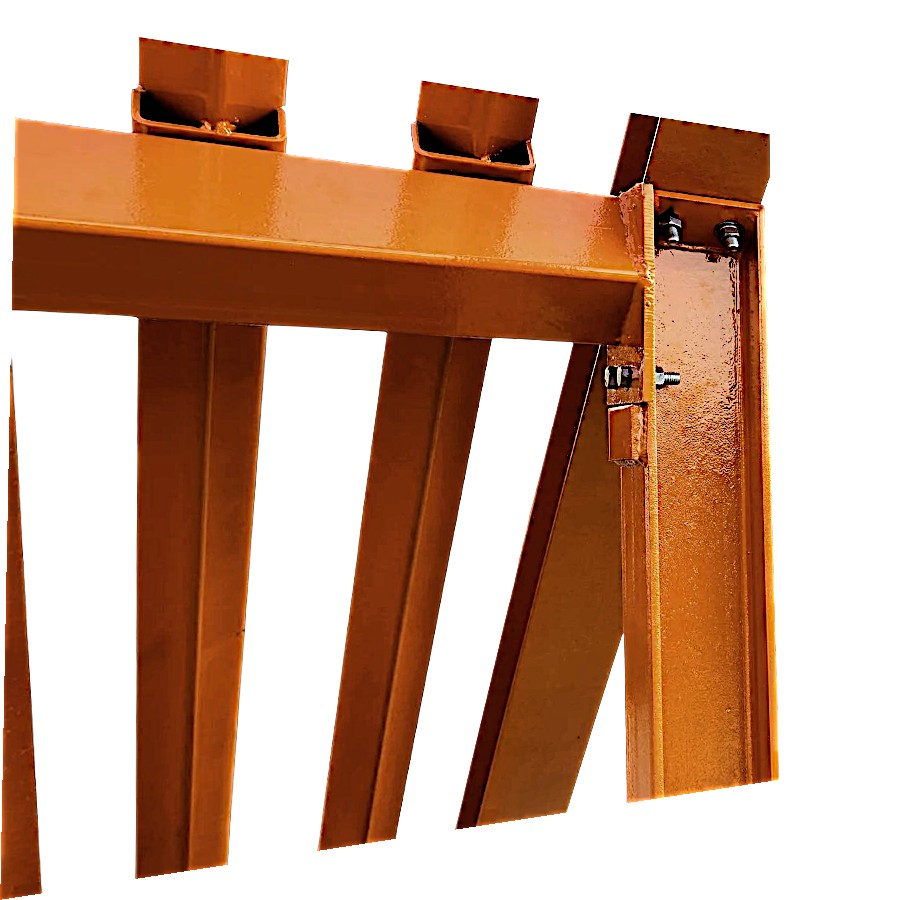

      • Robust Construction: Built with 4” x 4” I-beams and square tubing, the main frame is designed for durability and longevity. “This rock screen's sturdy construction is unmatched. It handles the toughest jobs with ease.

      • Efficient Sifting Area: The 10’ x 9’ sift-accepting area effectively isolates the final product from waste, ensuring high-quality output. “The large sifting area is fantastic. It significantly improves our productivity.



    Specifications:

      • Structure Dimensions: 10’ (L) x 9’ (W) x 8.9’ (H)
      • Load Capacity: 4200 lbs

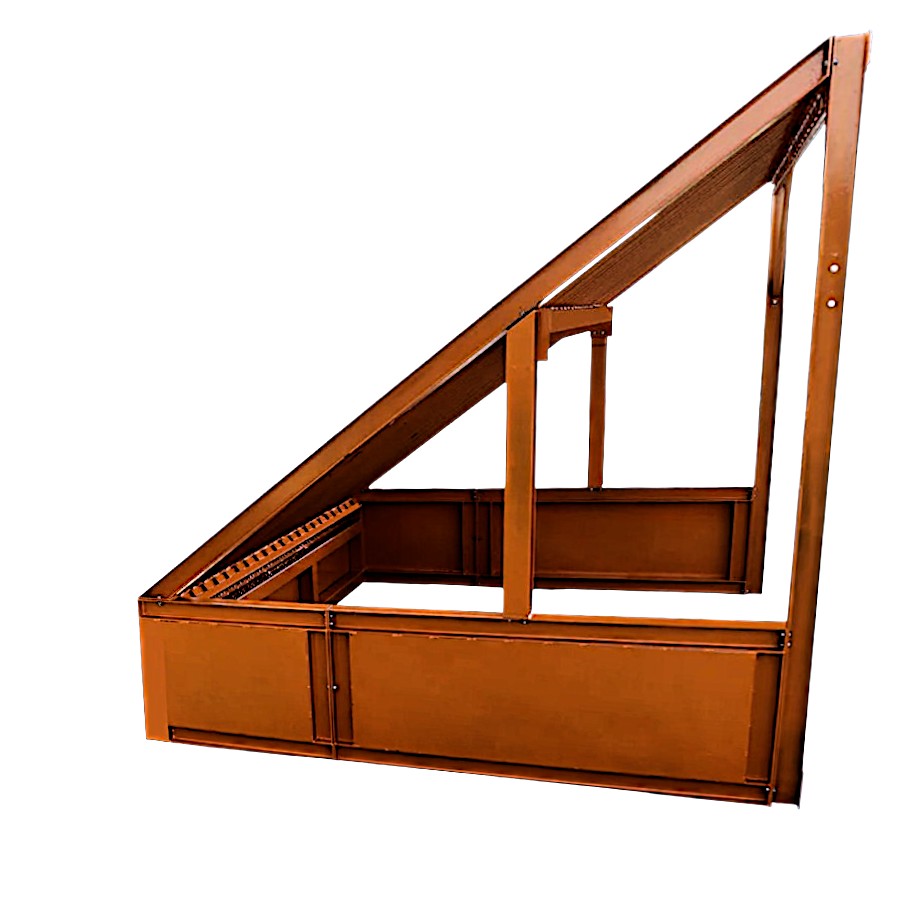

    Primary Frame:

      • Posts: 4” x 4” I-beams
      • Cross Tubing: 4” x 4” square tubing
      • Sidewall & Front Wall: 10-gauge steel plate



    Deck Bars:

      • Material: 1.6" x 1.6" square tubing, 8-gauge
      • Length: 9 feet
      • Standard Spacing: 3” (22 bars)
      • Minimum Spacing: 1” (requires extra deck bars)
      • Maximum Spacing: 5”
      • Maximum Quantity: 27 bars (1” spacing)
      • First & Last Bar Opening: 2.75”
      • Shipping weight: 2560 lb



    Additional Features:

      • Slope Angle: 37° for efficient debris removal
      • Spare Deck Bars: Available for purchase separately

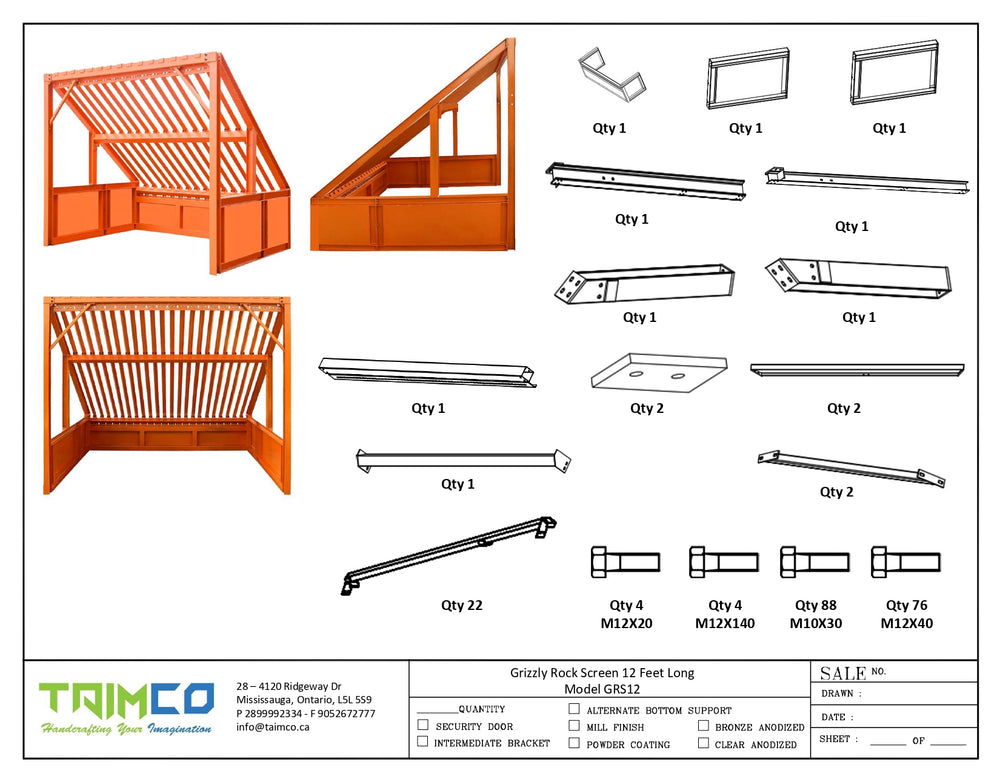

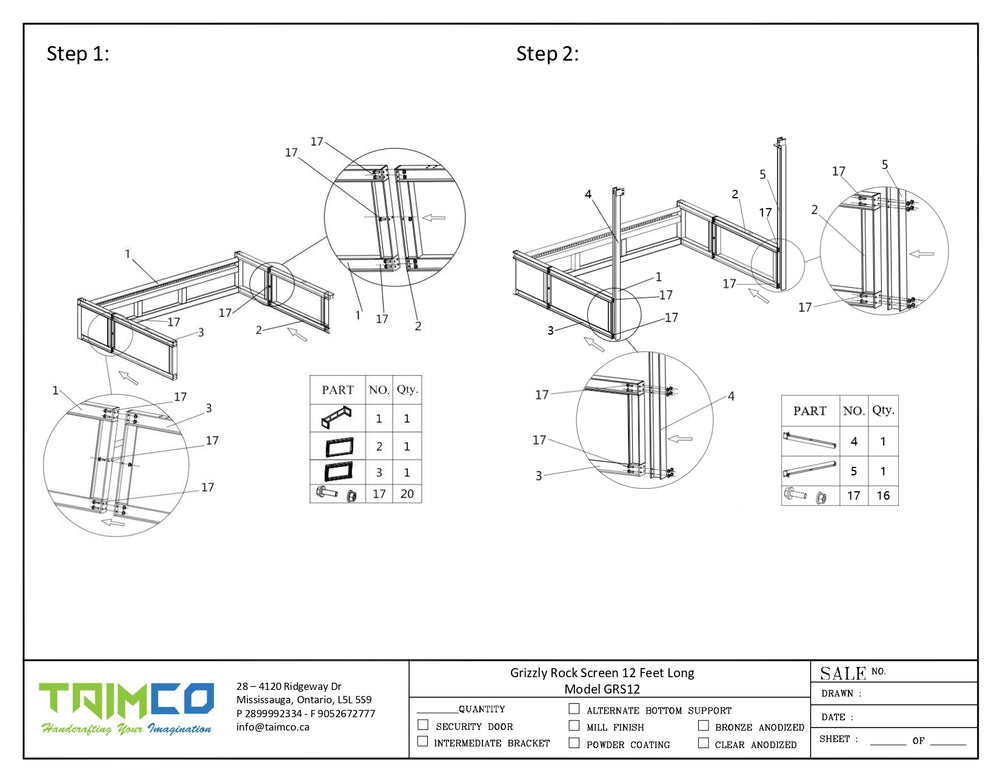

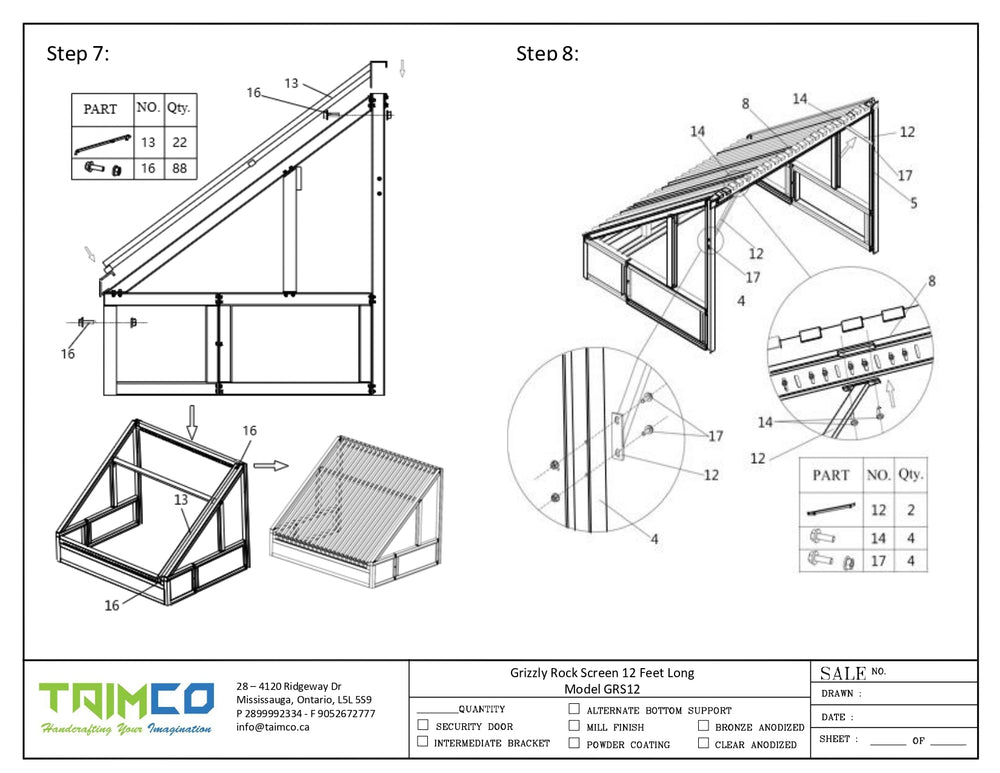

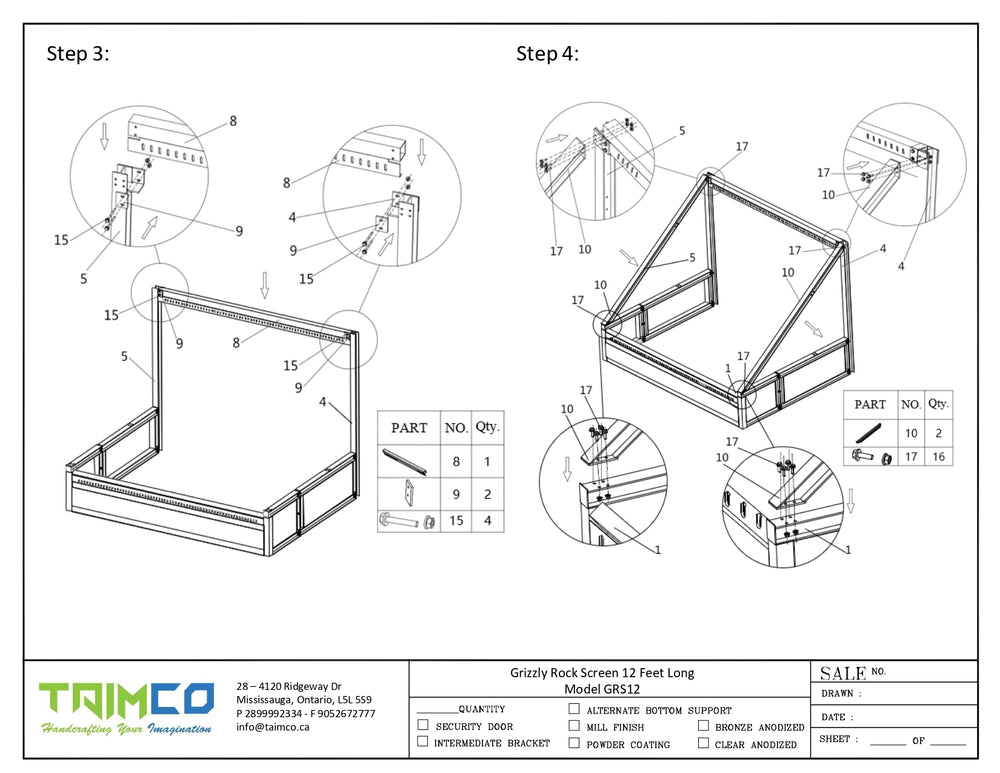

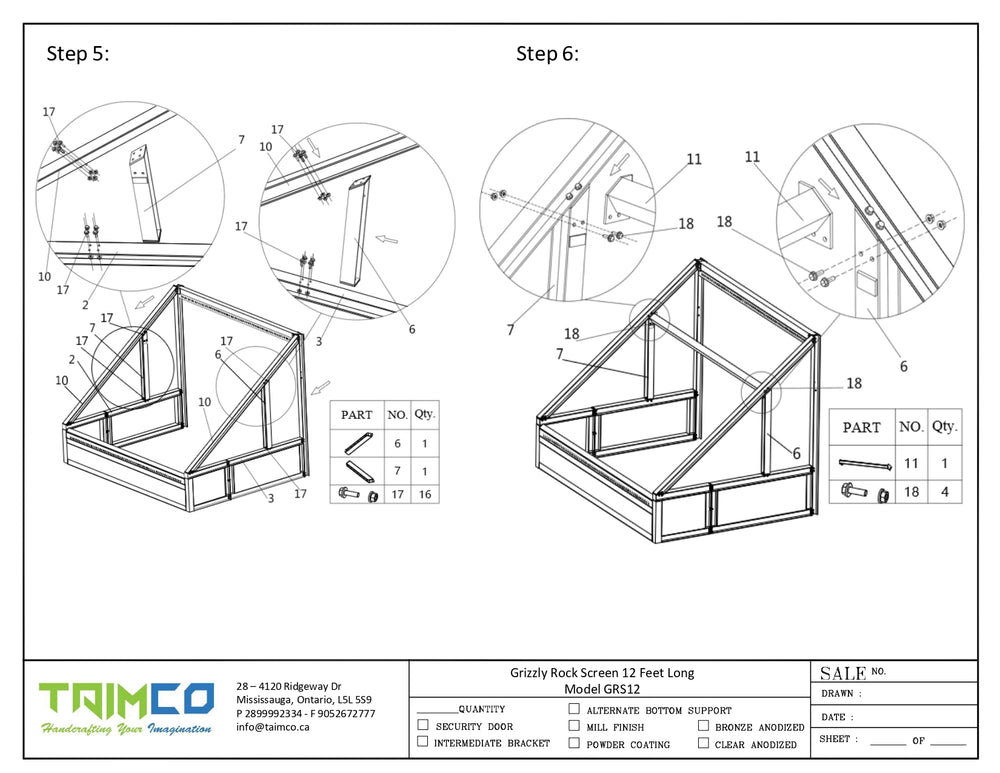

      • Assembly: Required (2-3 hours for two handymen)



    Grizzly Rock Screen, Adjustable Rock Screen, Bolt-On Deck Bars, Heavy-Duty Rock Screen, 4” x 4” I-Beams, Customizable Deck Bars, Material Screening Equipment, Mining Screen, Demolition Screen, Landscaping Screen, Topsoil Screening, Industrial Rock Screen, Construction Screening Equipment, Durable Rock Screen, Efficient Material Handling.
