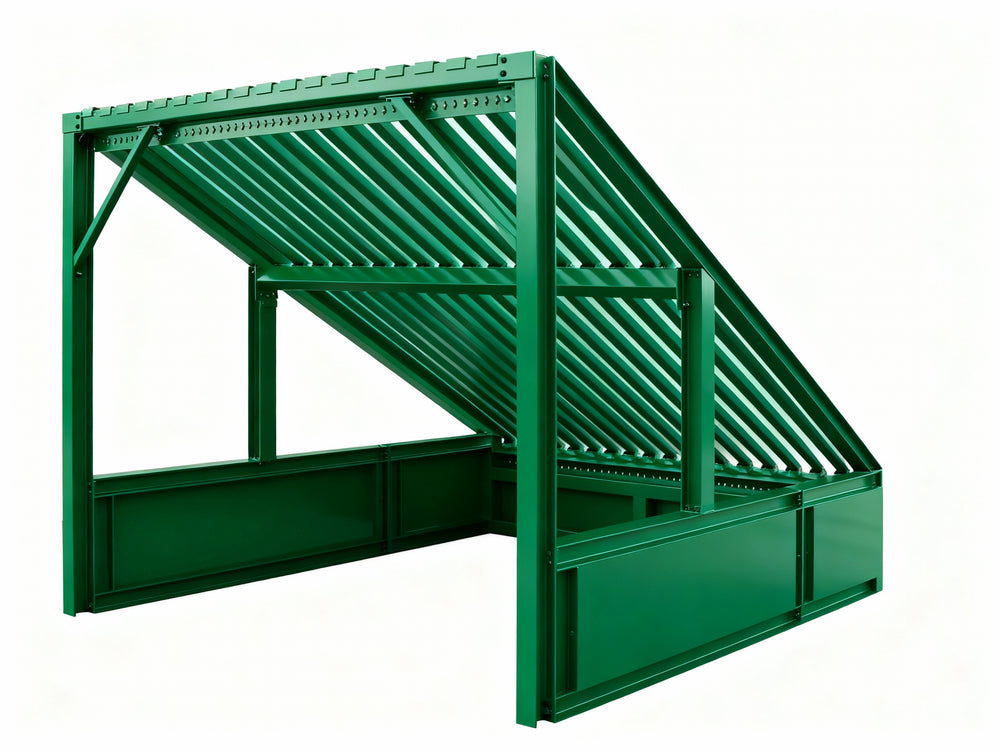

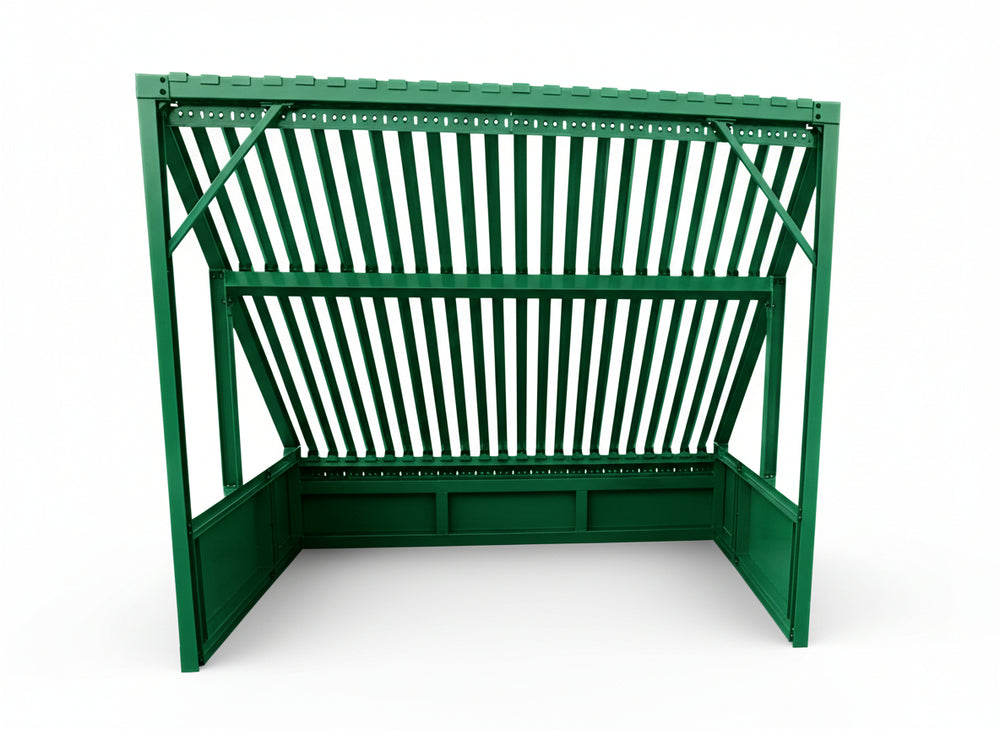

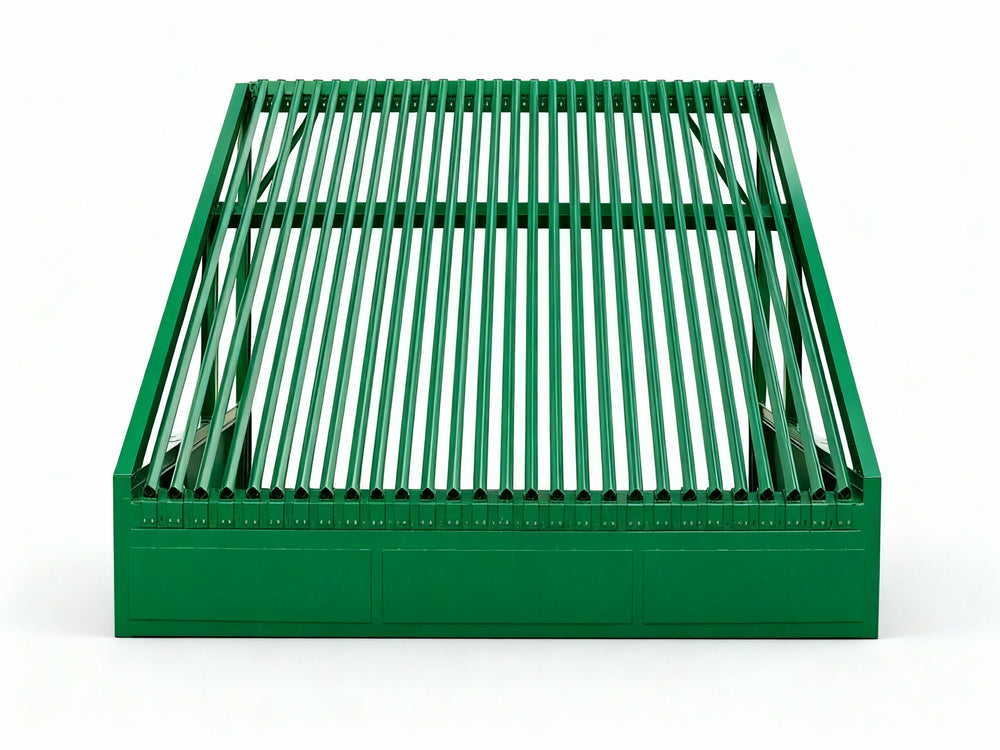

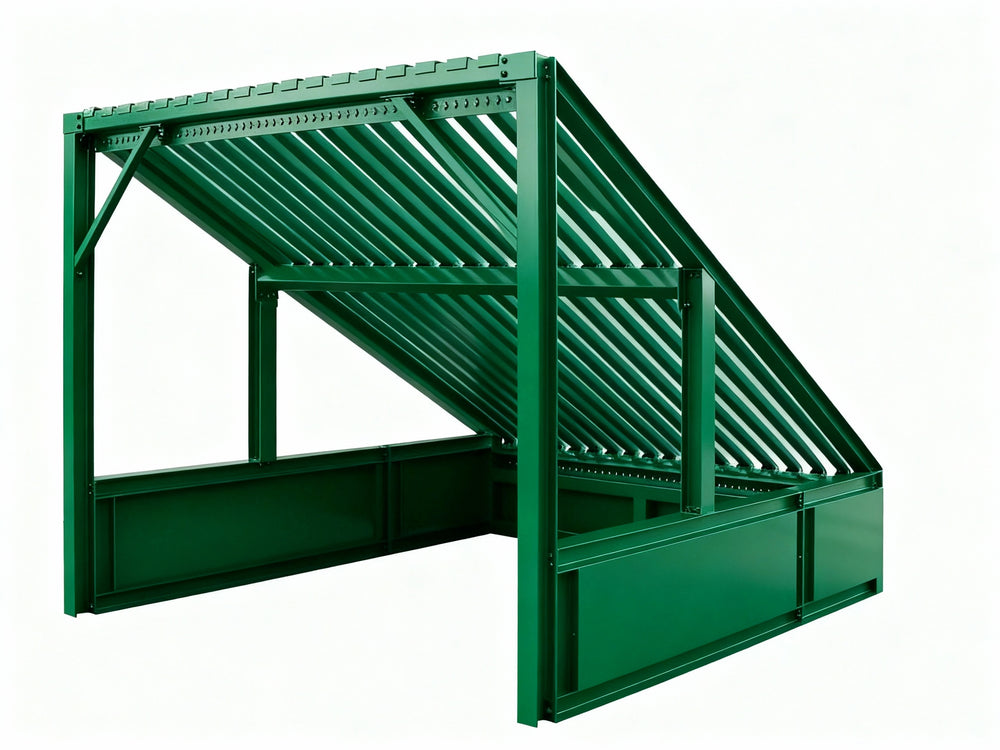

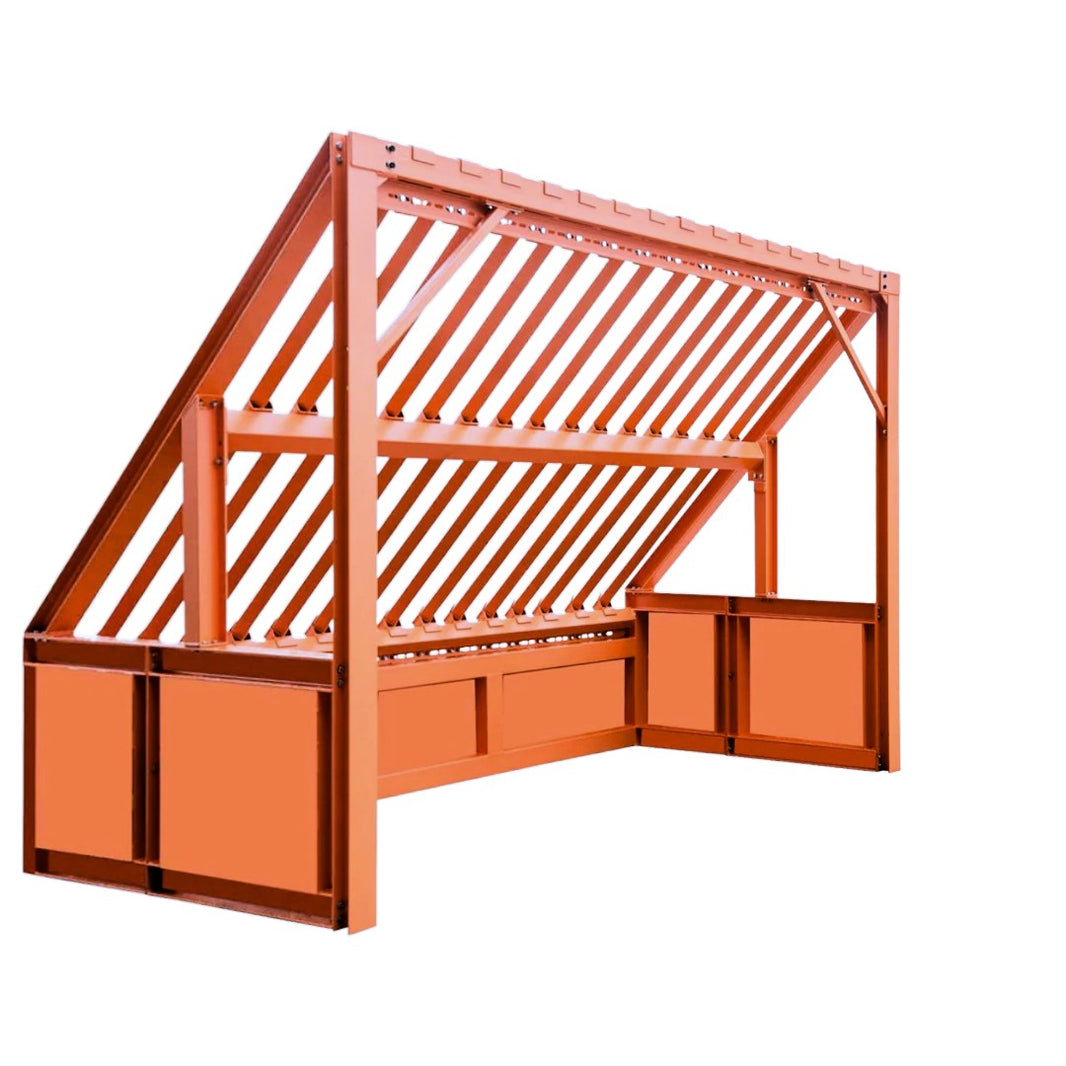

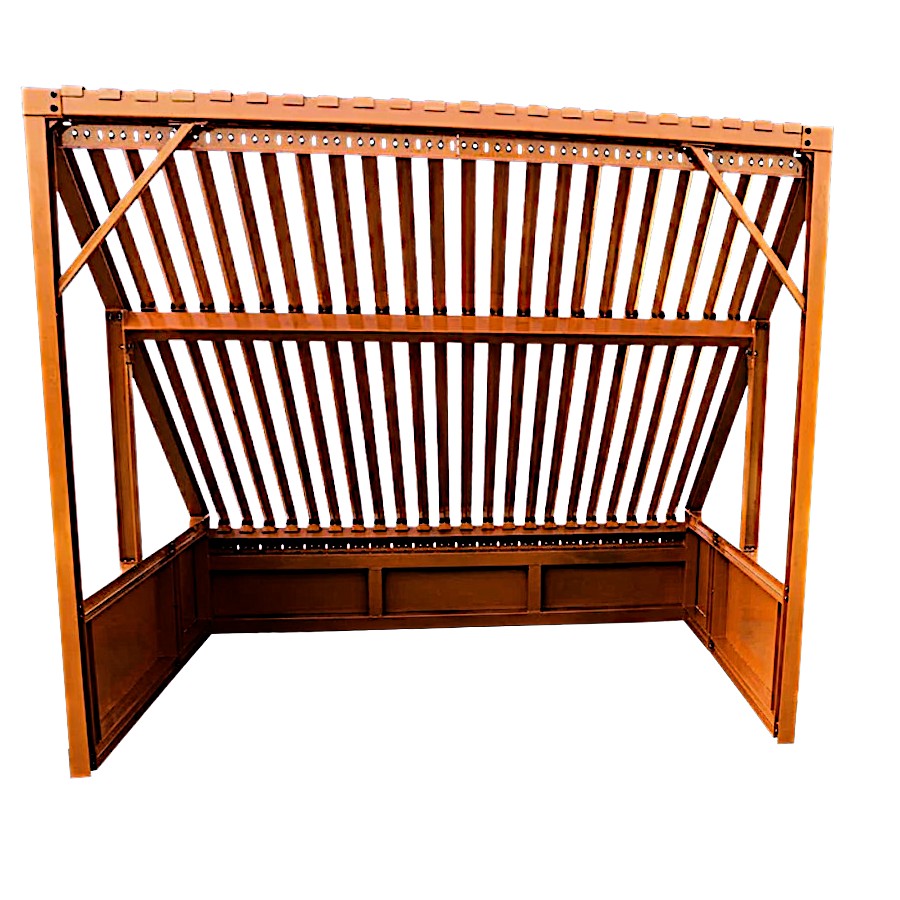

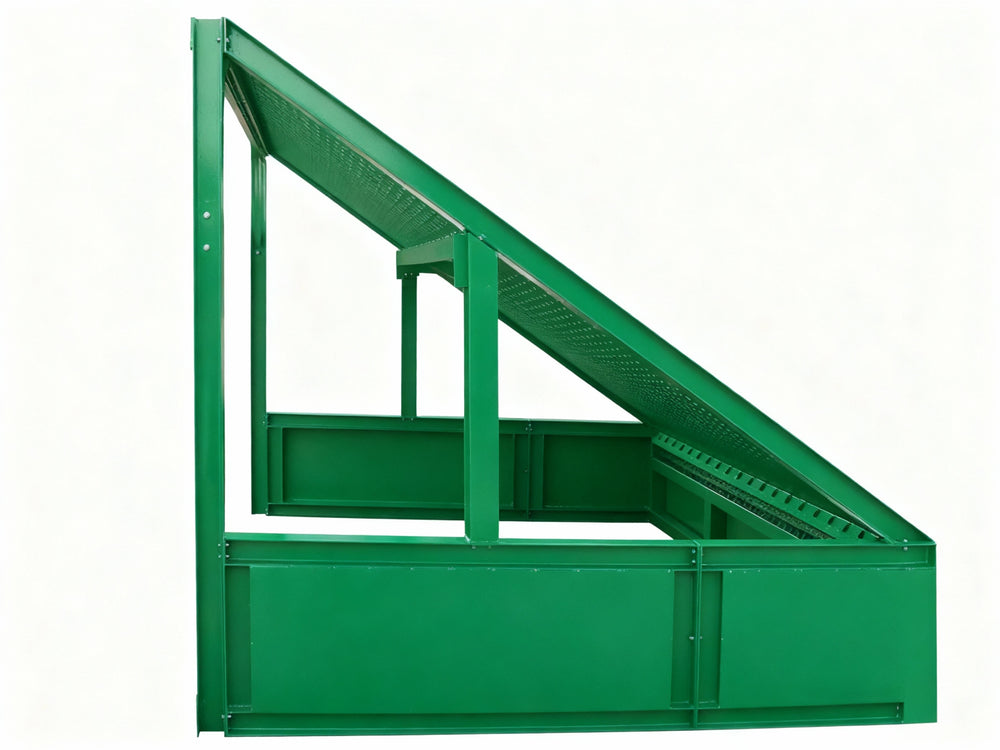

Premium Grizzly Rock Screen with Customizable Bolt-On Deck Bars and Sturdy 4” x 4” I-Beams.

Elevate your material screening process with our Premium Grizzly Rock Screen. Engineered for durability and efficiency, this rock screen features customizable bolt-on deck bars and robust 4” x 4” I-Beams, ensuring it can easily handle the toughest jobs.

Key Features:

• • Adjustable Deck Bars: Customize the deck bars to suit your specific material screening needs.
  • Heavy-Duty Construction: Built with sturdy 4” x 4” I-Beams for maximum strength and longevity.
  • Versatile Applications: Ideal for construction, mining, and landscaping projects.

  • Versatile Applications: Our Grizzly Rock Screen is a favourite in industries such as open-pit mining, demolition, and landscaping. Customers rave about its performance in topsoil screening and more.

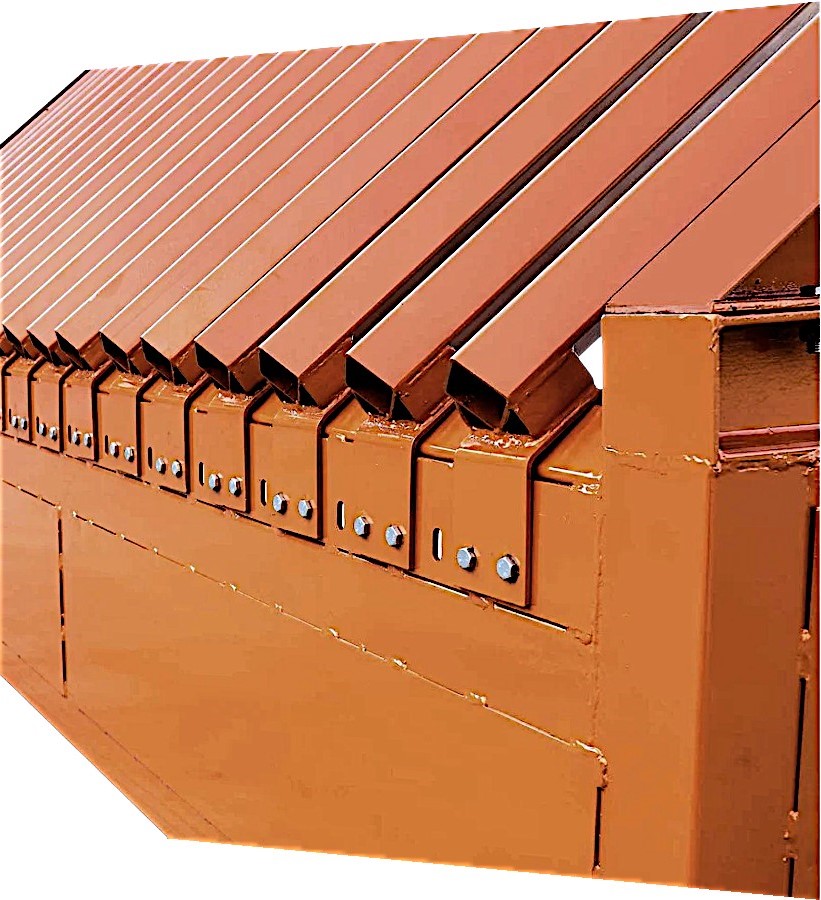

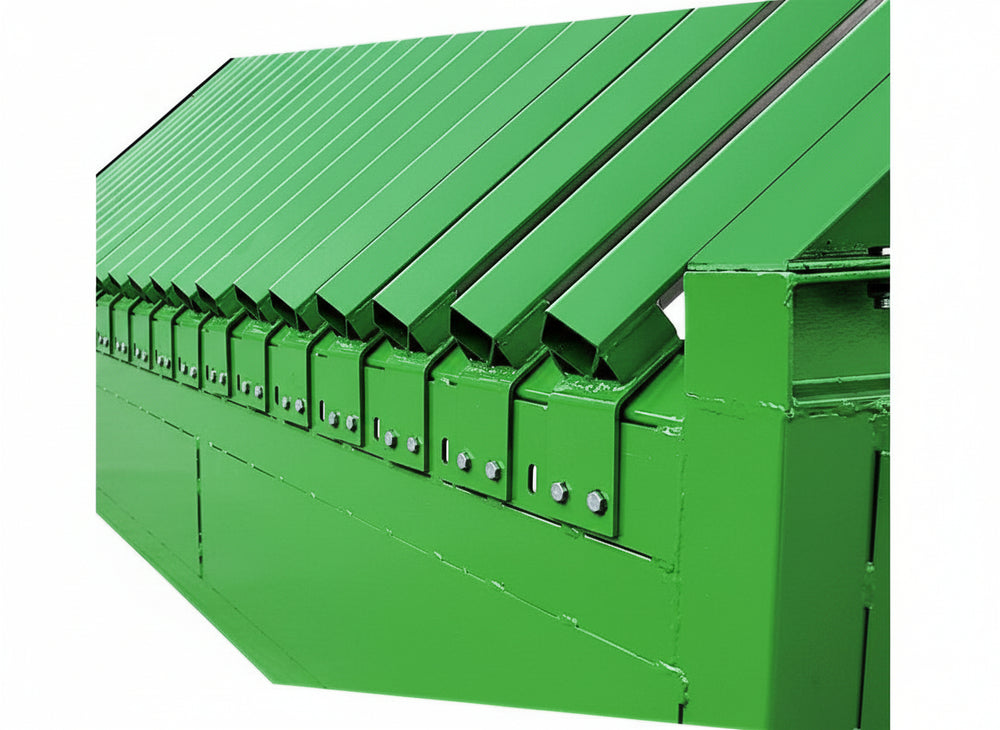

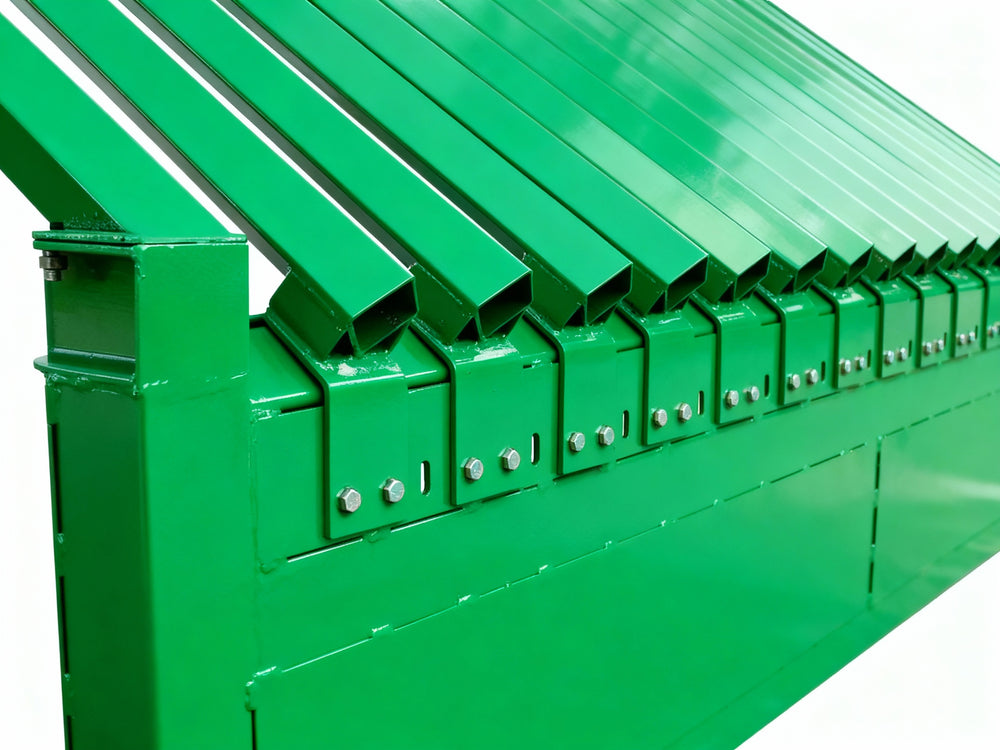

  • Customizable Deck Bars: The adjustable bolt-on deck bars can be tailored for spacing down to 1” apart (the standard is 3”), providing flexibility for various screening needs. “The ability to customize the deck bars has been a game-changer for our projects.

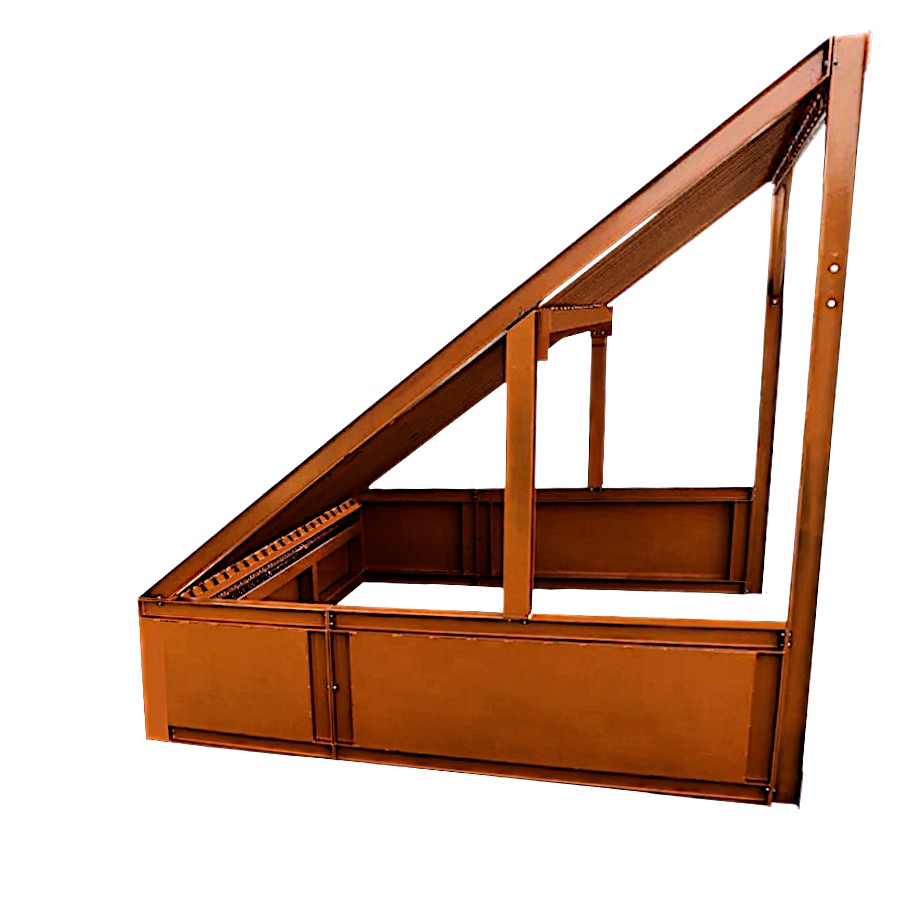

  • Optimal Slope Design: With a 37° slope, rocks and debris effortlessly fall from the work area, enhancing efficiency and safety. “The slope design is perfect; it keeps our work area clean and safe.

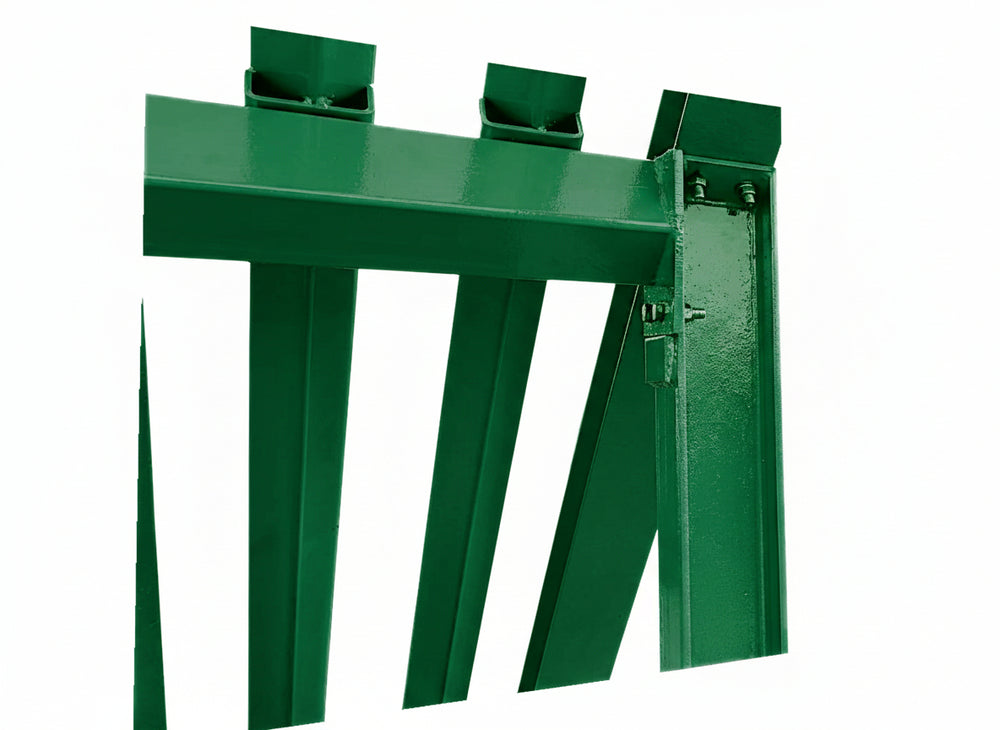

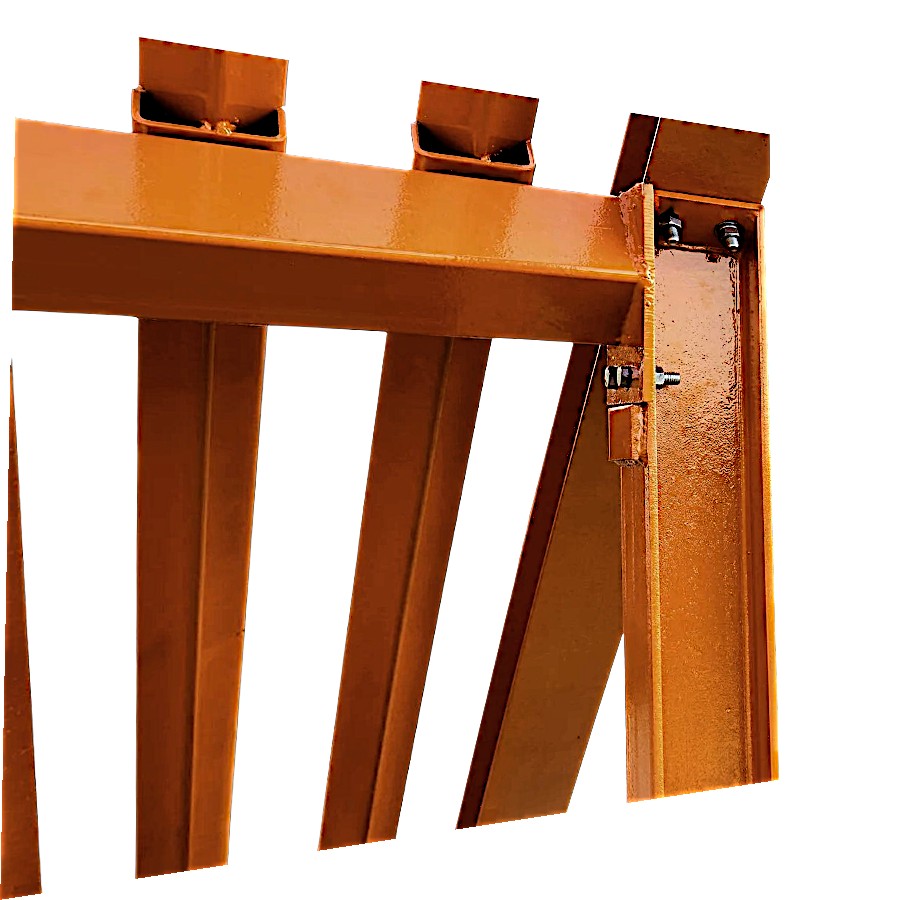

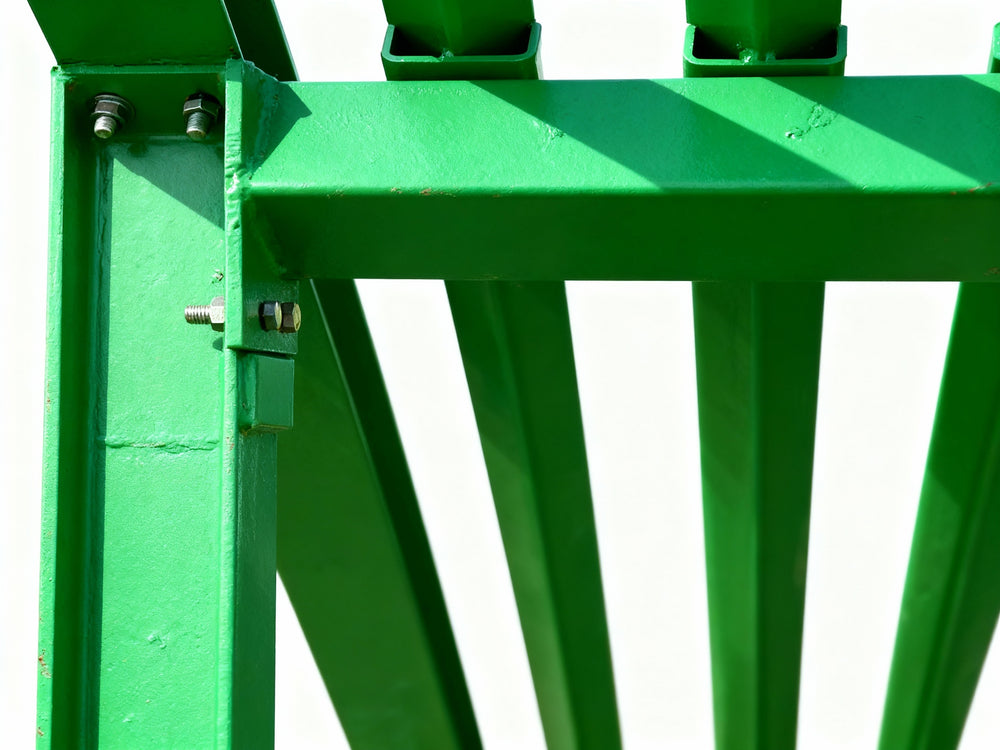

  • Robust Construction: Built with 4” x 4” I-beams and square tubing, the main frame is designed for durability and longevity. “This rock screen's sturdy construction is unmatched. It handles the toughest jobs with ease.

  • Efficient Sifting Area: The 15’ x 9’ sift-accepting area effectively isolates the final product from waste, ensuring high-quality output. “The large sifting area is fantastic. It significantly improves our productivity.

Specifications:

• • Structure Dimensions: 15’ (L) x 9’ (W) x 8.9’ (H)
  • Load Capacity: 6300 lbs

Primary Frame:

• • Posts: 4” x 4” I-beams
  • Cross Tubing: 4” x 4” square tubing
  • Sidewall & Front Wall: 10-gauge steel plate

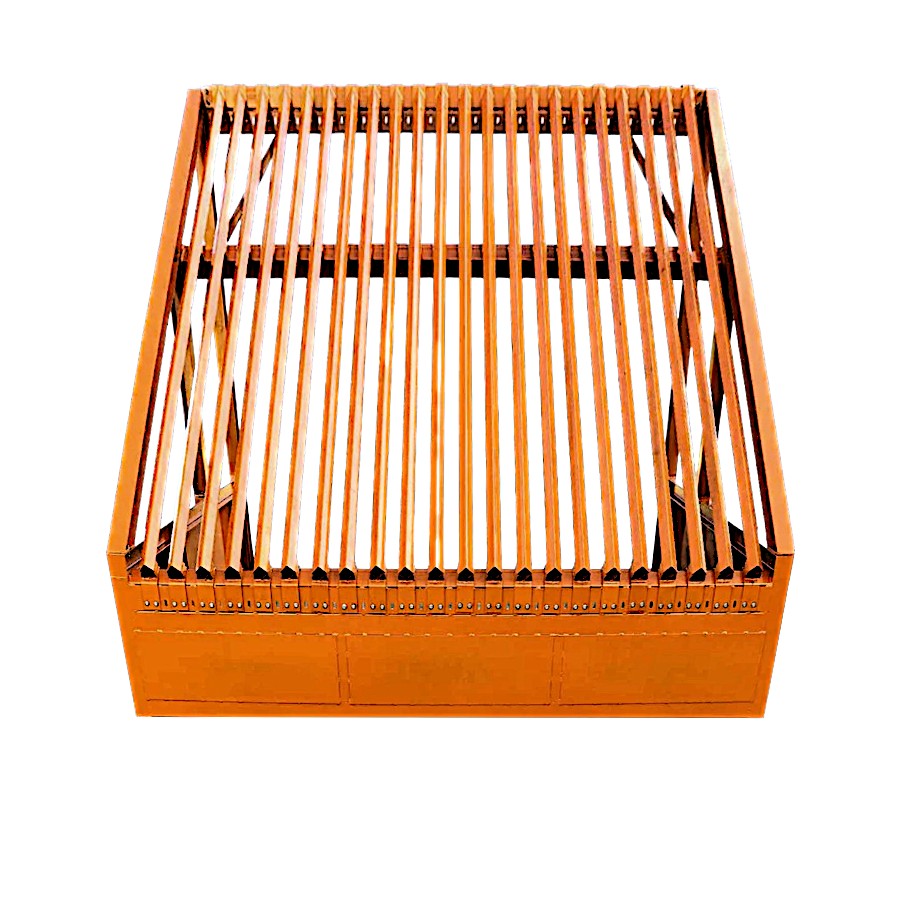

Deck Bars:

• • Material: 1.6" x 1.6" square tubing, 8-gauge
  • Length: 14 feet
  • Standard Spacing: 3” (22 bars)
  • Minimum Spacing: 1” (requires extra deck bars)
  • Maximum Spacing: 5”
  • Maximum Quantity: 40 bars (1” spacing)
  • First & Last Bar Opening: 2.75”
  • Shipping weight: 3845 lb

Additional Features:

• • Slope Angle: 37° for efficient debris removal
  • Spare Deck Bars: Available for purchase separately
  • Assembly: Required ( 2-3 } hours for two handymen)

Grizzly Rock Screen, Adjustable Rock Screen, Bolt-On Deck Bars, Heavy-Duty Rock Screen, 4” x 4” I-Beams, Customizable Deck Bars, Material Screening Equipment, Mining Screen, Demolition Screen, Landscaping Screen, Topsoil Screening, Industrial Rock Screen, Construction Screening Equipment, Durable Rock Screen, Efficient Material Handling.

• • Contact us for your custom Grizzly Screen size and specs for your project.

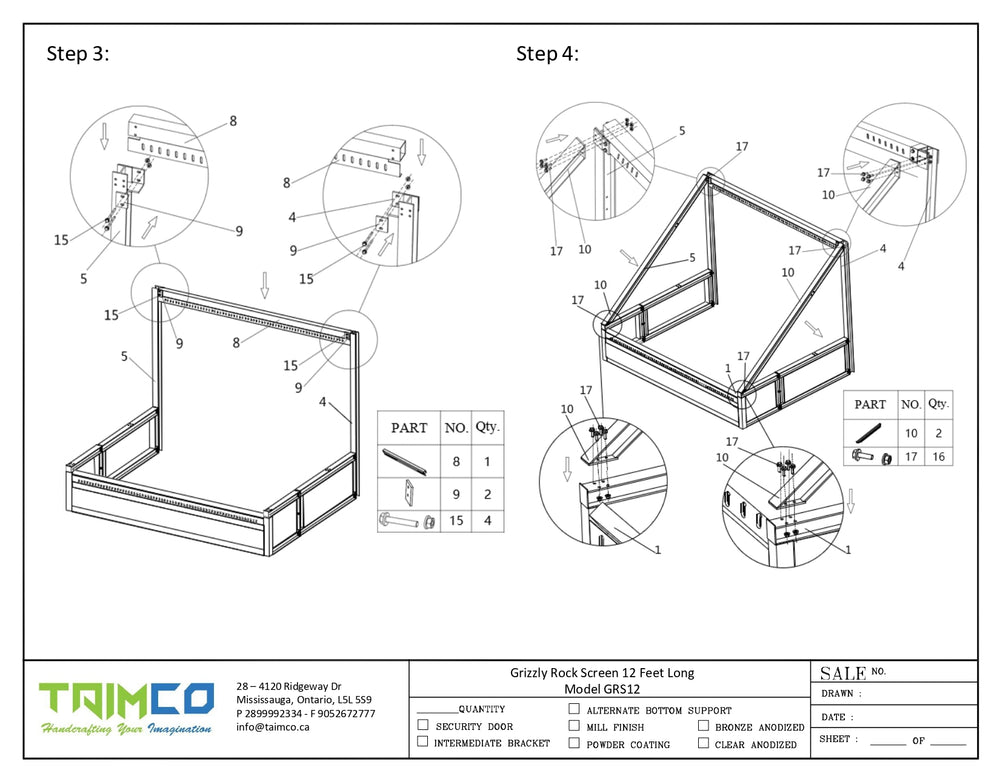

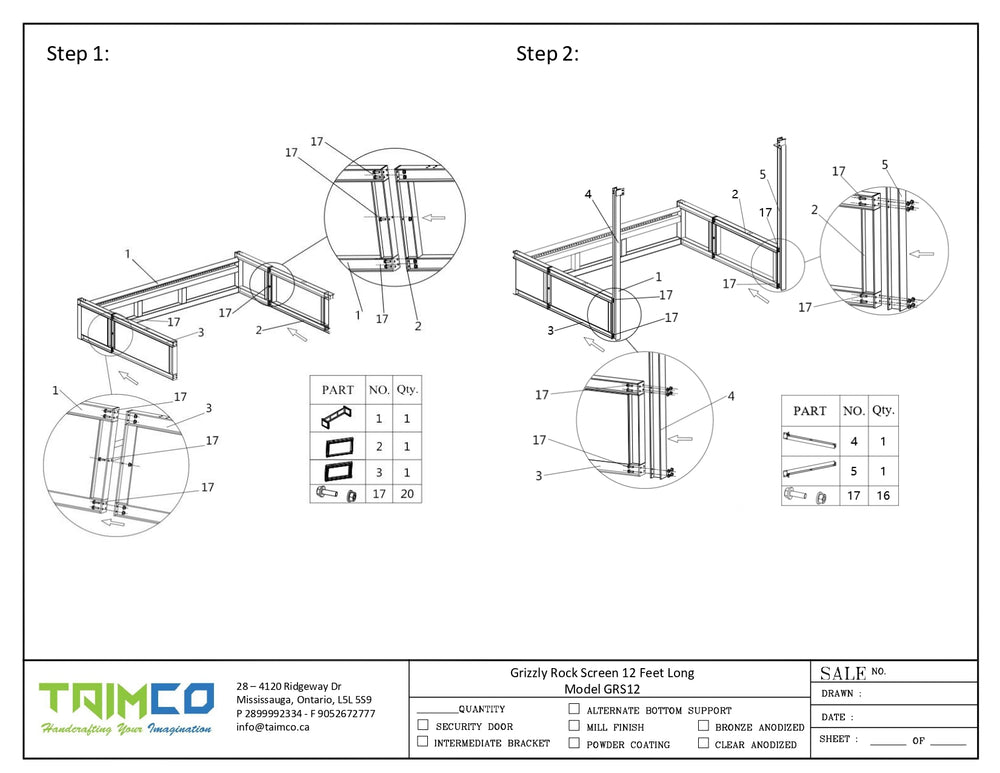

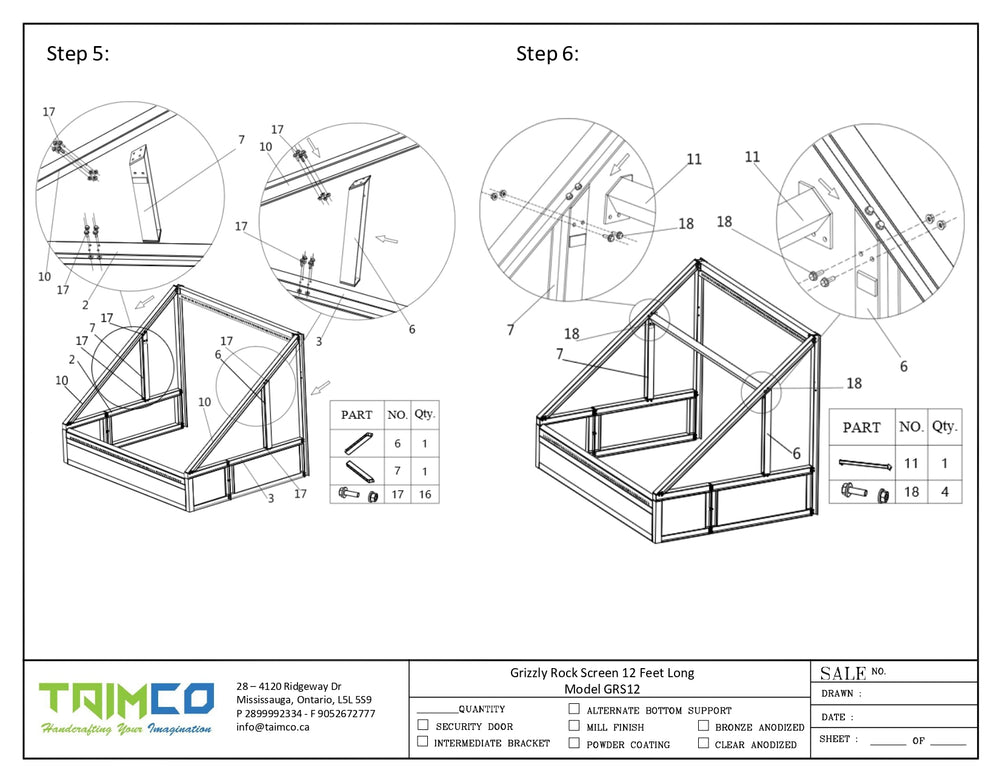

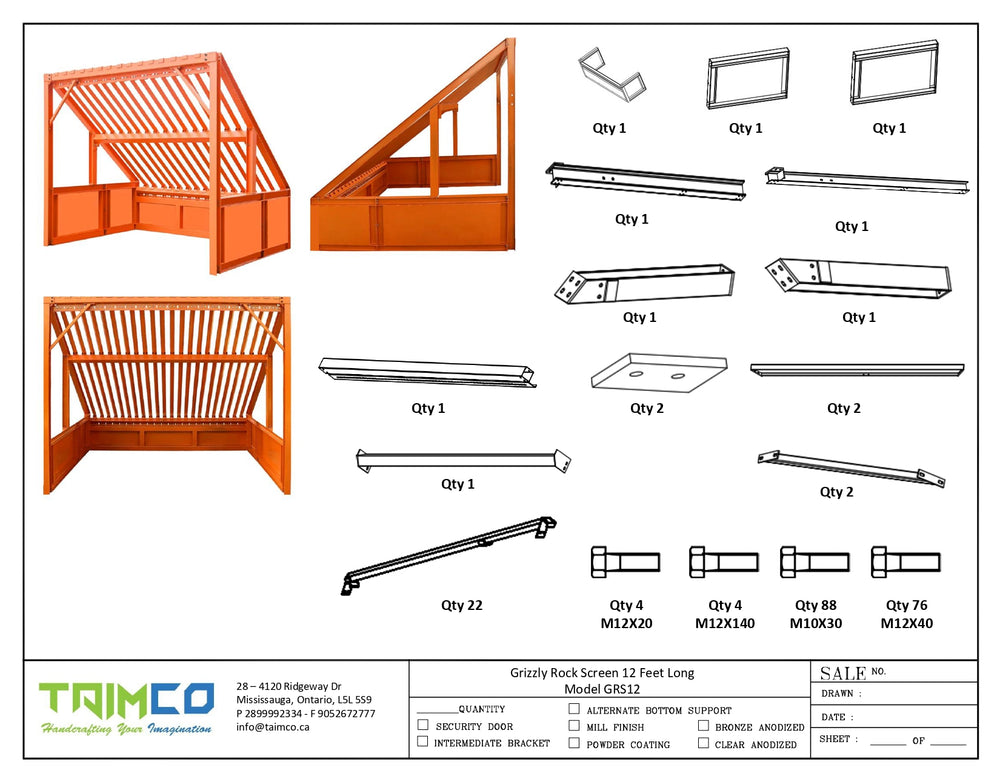

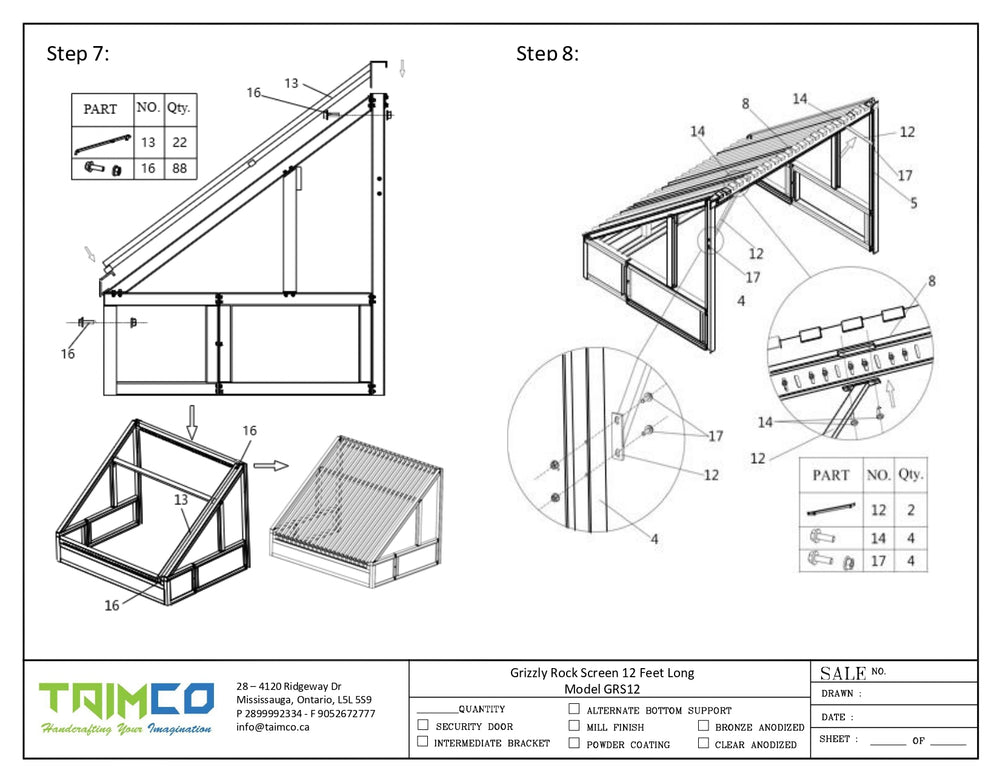

  • Assembly Manual.
