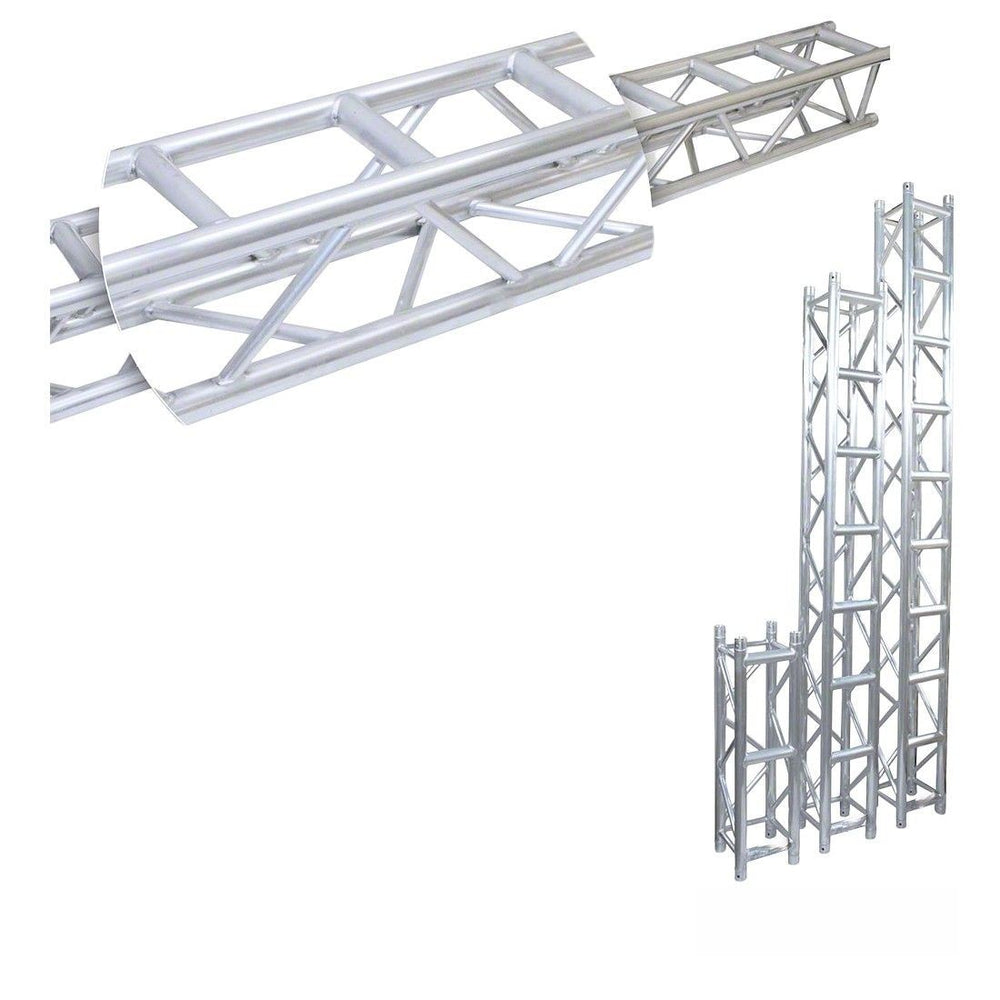

TAIMCO Pro Square Truss Ladder Straight Segment

Rugged & Durable Truss for Live Events, Exhibitions & Retail

The Trussing is engineered for high-frequency usage and installations that demand higher loading capacities. This rugged and durable trussing solution is perfect for live outdoor or indoor productions, exhibitions, retail displays, nightclubs, and other permanent installations. It is ideal for rental, touring, and exhibition companies.

The Square Box Professional Truss Ladder 40", 98" and 118",  290mm (11.4-inch) square straight truss piece that is compatible in design with standard Trussing but features a ladder brace on one side for safe climbing and thicker-tube 3mm walls to enhance vertical load capacity. It can be connected to other truss pieces to build a custom trussing configuration. Constructed of pro-grade aluminum, the Professional Square Box Truss consists of 50 x 3mm main tubes and 20 x 3mm braces.

The easy-to-climb, Professional Ladder Truss is a square truss with one side designed as a ladder with 2" tubes, 250mm (9.84-inch) spacing, and utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style.

Features:

• • Perfect for live outdoor or indoor productions, exhibitions, retail displays, and nightclubs
  • Ideal truss system for rental, touring, and exhibition companies
  • Constructed from high-grade aluminum with 50mm (2") diameter outer tubes and 20mm (3/4") diameter braces for superior strength
  • Includes connecting hardware

  • TÜV-certified aluminum welding.
  • MOQ 10 Per Size.
  • Lead Time 6-8 weeks.

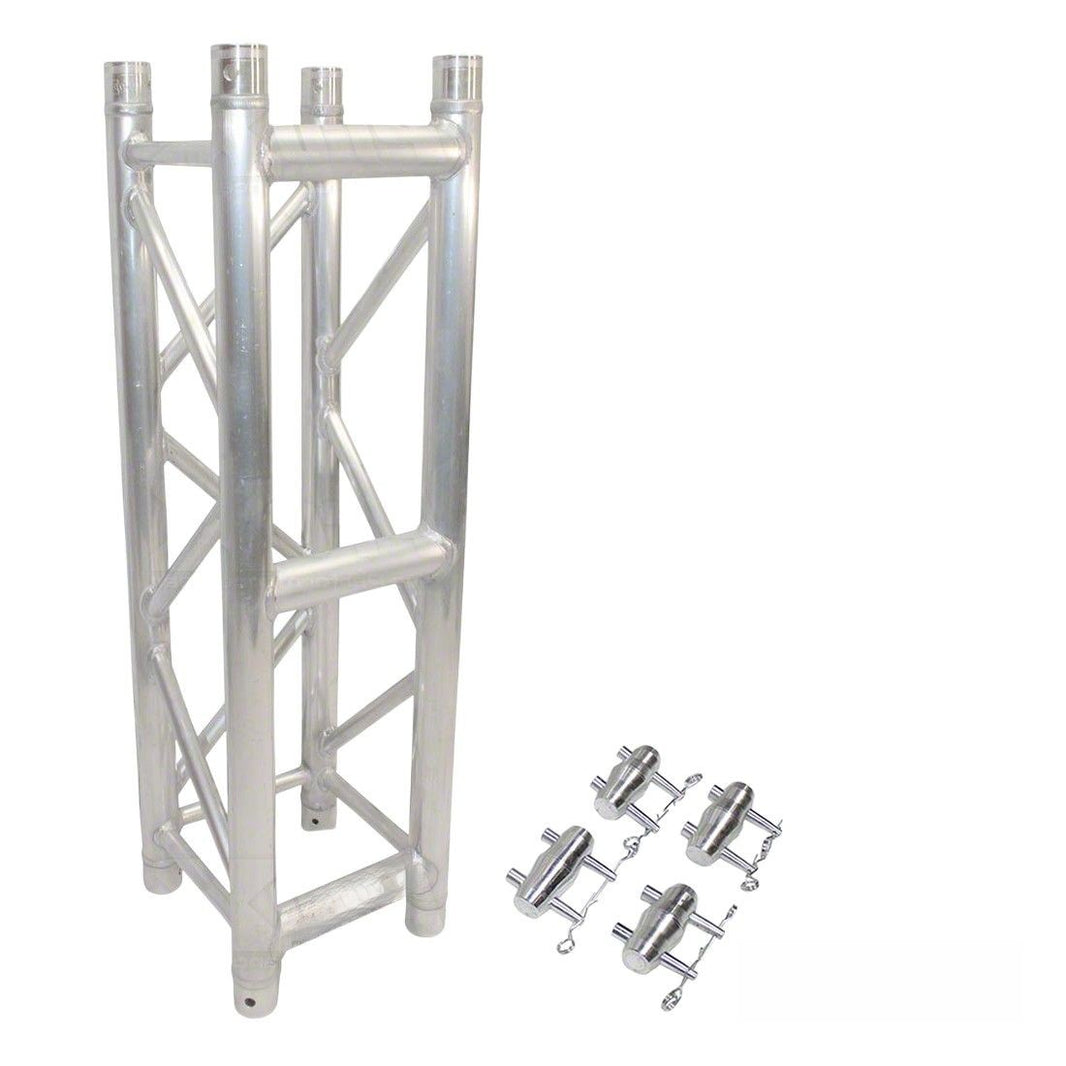

Package Contents:

• • Qty 1 - Square Box Truss Straight Segment.
  • Qty 4 - Conical Connector.
  • Qty 8 - Security Pin.
  • Qty 8 - Security Clip.

Dimensions:

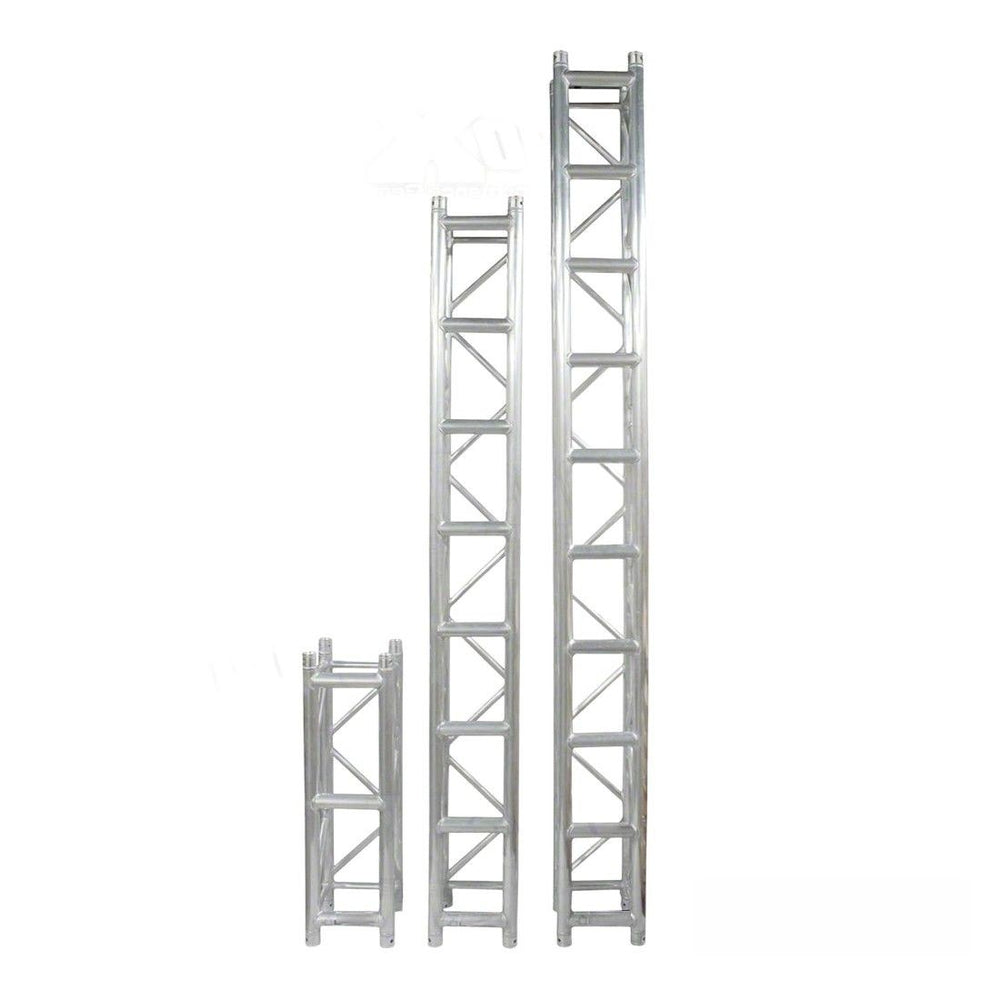

• • Multi Length  40", 98" and 118".
  • Width: 290mm (11.41 inches).
  • Depth: 290mm (11.41 inches).
  • Main Tubes: 50mm (2") diameter, 2mm thickness.

  • Braces: 20mm (3/4") diameter, 2mm thickness.
  • Ladder Steps 50mm (2").
  • Ladder Step Spacing: 250mm (9.84 inches).
  • Weight: 23 lbs to 60 lbs refers to the length option.
  • Material: Aluminium EN-AWT6 6082.

  • 1-Year Limited Warranty.
