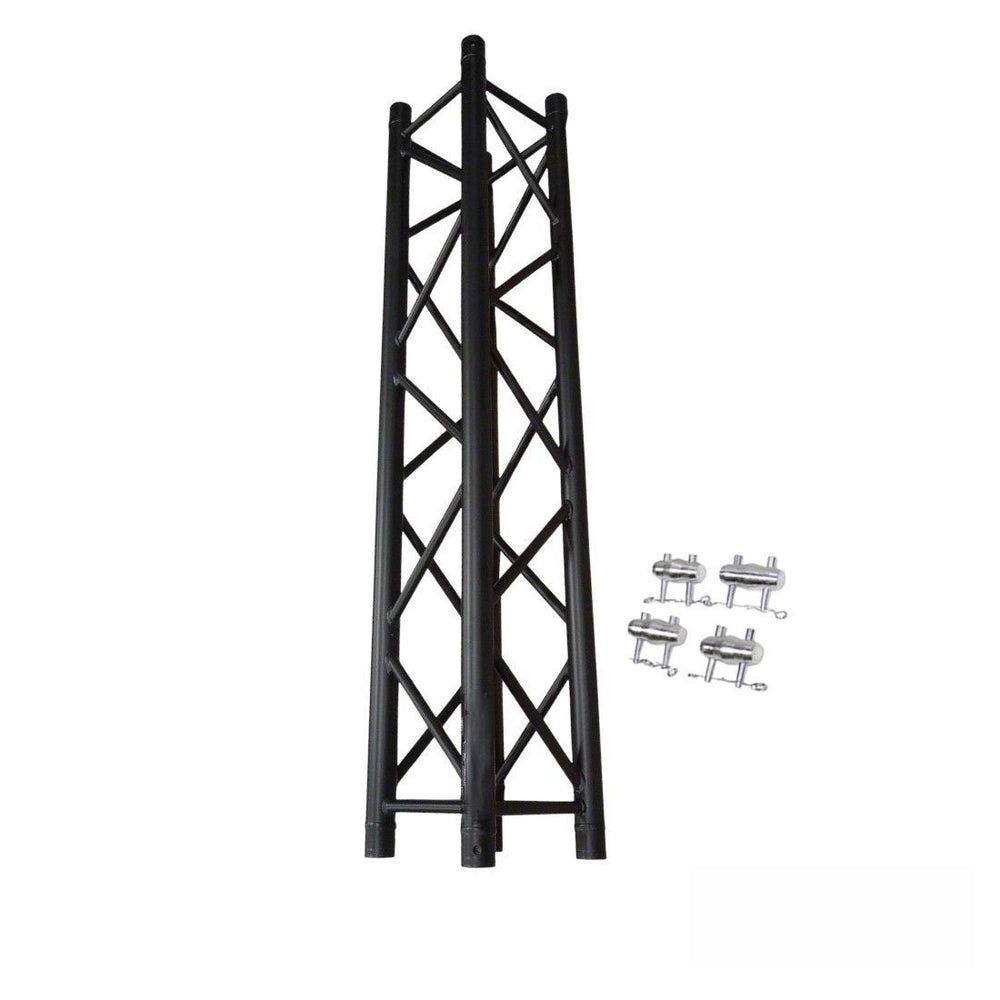

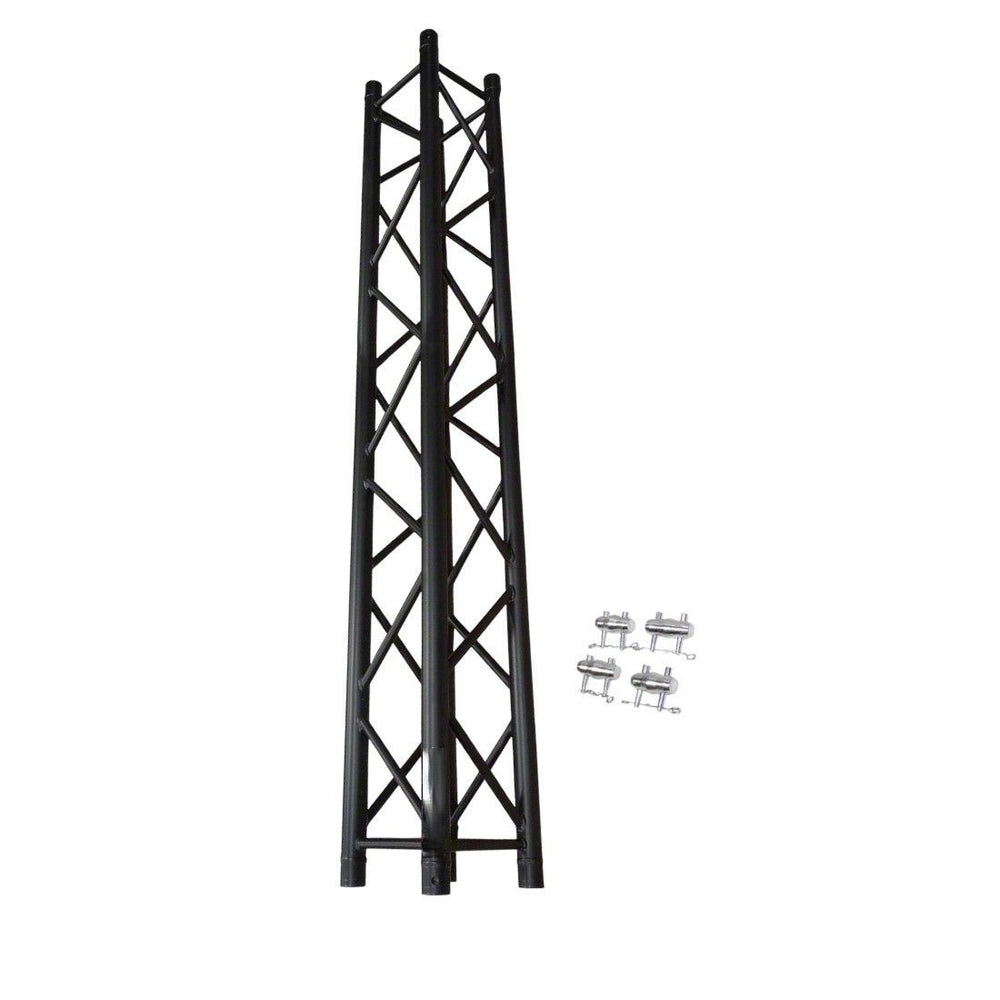

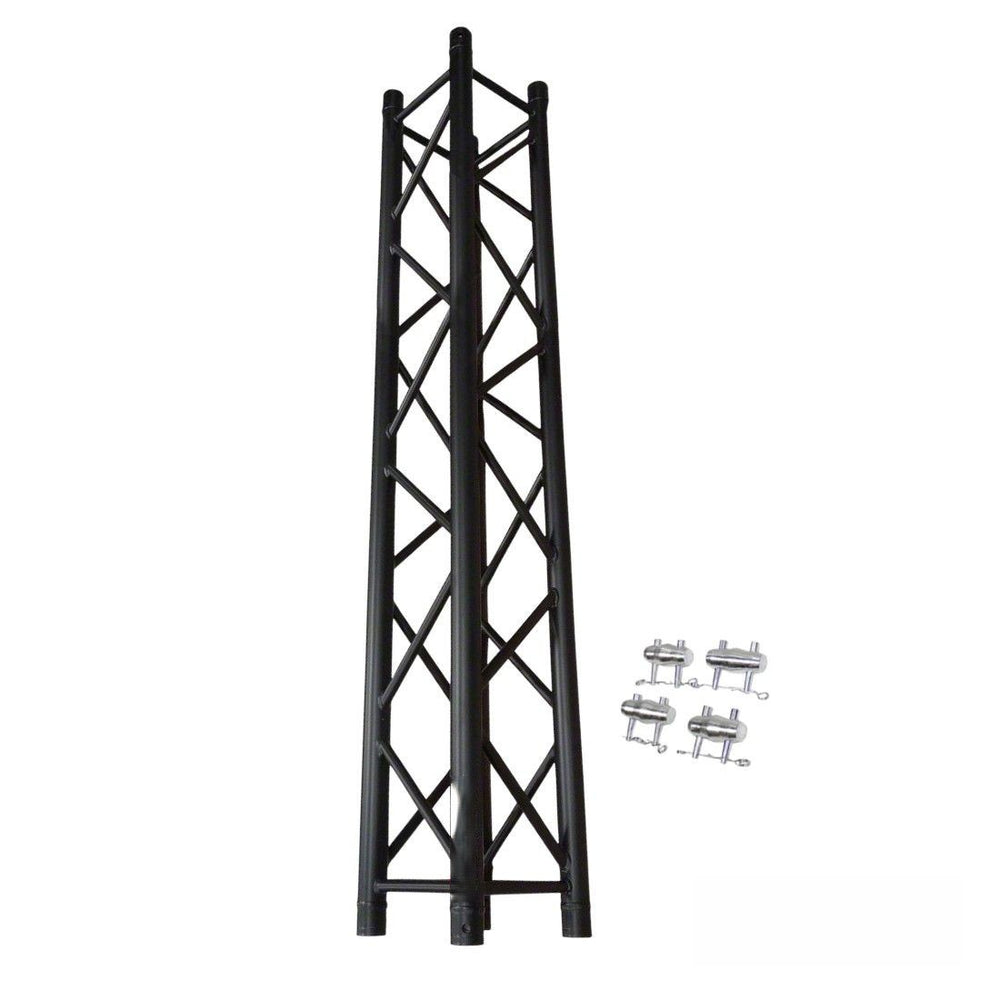

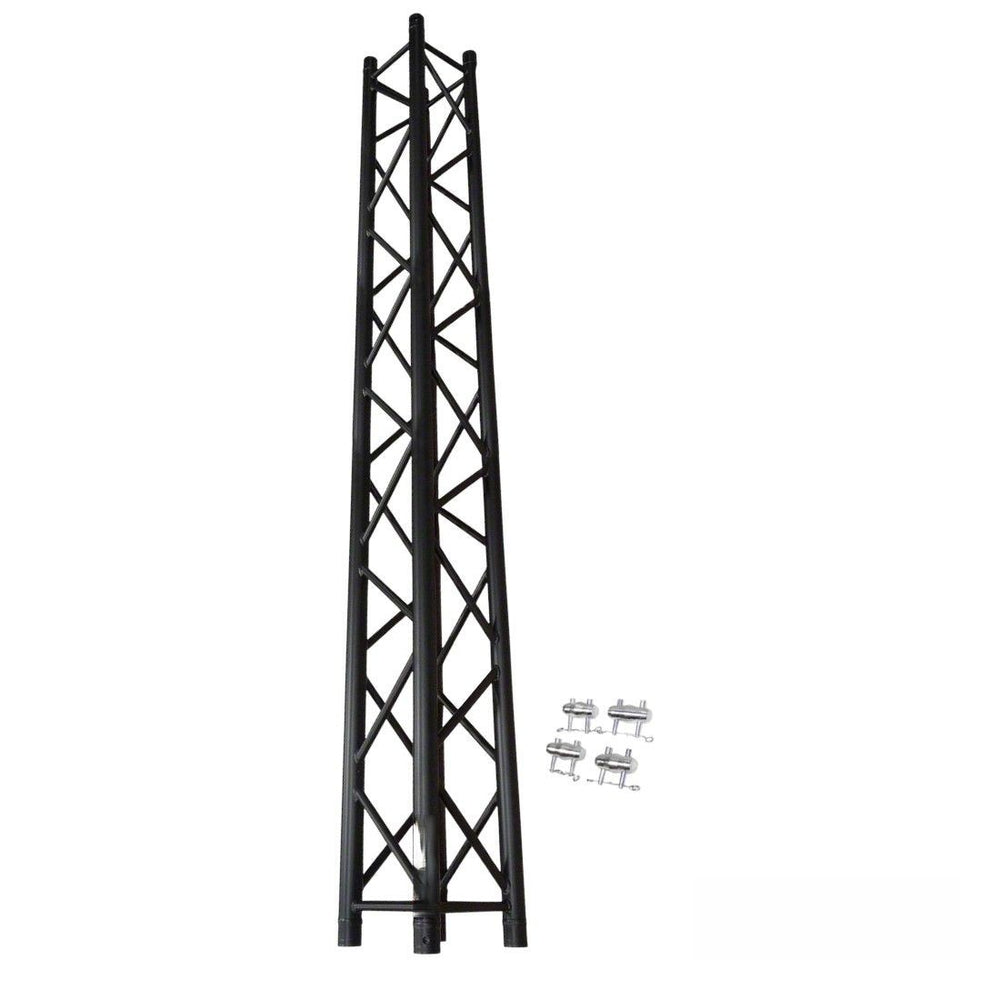

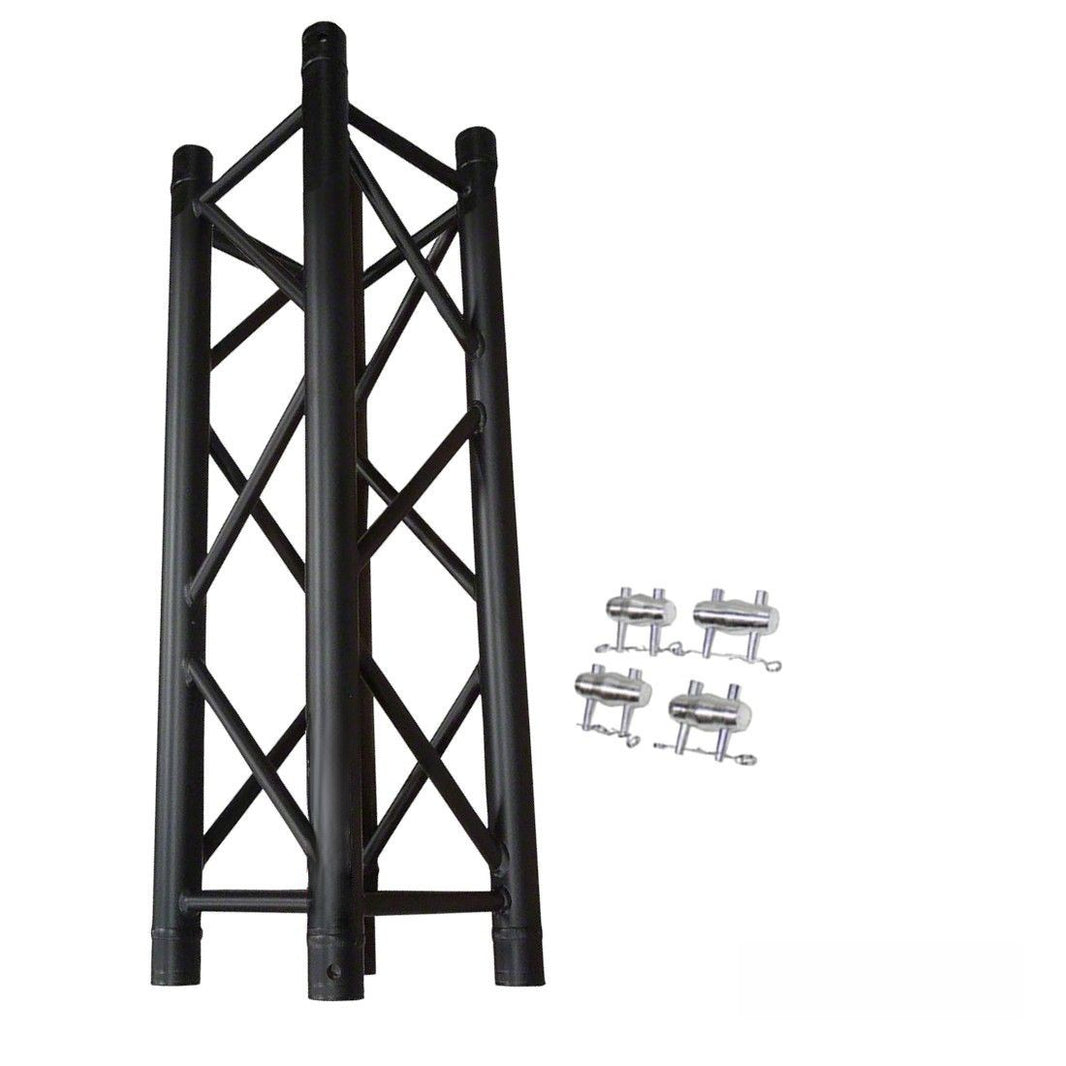

TAIMCO Square Box Truss Straight Segment Multi Heights:

Rugged & Durable Truss for Live Events, Exhibitions & Retail.

This Trussing is engineered for high-frequency usage and installations that demand higher loading capacities. This rugged and durable trussing solution is perfect for live outdoor or indoor productions, exhibitions, retail displays, nightclubs, and other permanent installations. It is ideal for rental, touring, and exhibition companies.

This Square Box Truss comes in a multi-height  40", 60", 79", 98", and 118", 290mm (11.4-inch) square straight truss piece that can be connected to other truss pieces to build a custom trussing configuration. Constructed of high-grade aluminum, this Square Box Truss features 50 x 2 mm main tubes and 20 x 2 mm braces, ensuring strength and reliability for all your structural needs.

Features:

• • Perfect for live outdoor or indoor productions, exhibitions, retail displays, and nightclubs
  • Ideal truss system for rental, touring, and exhibition companies
  • Constructed from high-grade aluminum with 50mm (2") diameter outer tubes and 20mm (3/4") diameter braces for superior strength
  • Includes connecting hardware

  • TÜV-certified aluminum welding.
  • MOQ 10 Per Size.
  • Lead Time 6-8 weeks.

Package Contents:

• • Qty 1 - Square Box Truss Straight Segment.
  • Qty 4 - Conical Connector.
  • Qty 8 - Security Pin.
  • Qty 8 - Security Clip.

Dimensions:

• • Multi Length  40", 60", 79", 98" and 118".
  • Width: 290mm (11.41 inches).
  • Depth: 290mm (11.41 inches).
  • Main Tubes: 50mm (2") diameter, 2mm thickness.

  • Braces: 20mm (3/4") diameter, 2mm thickness.
  • Weight: 7 lbs to 42 lbs refers to the length option.
  • Material: Aluminium EN-AWT6 6082.

  • 1-Year Limited Warranty.
