Regular price $1,025.00
by Taimco
Add to wishlist Add to Compare
Quantity
Quantity
SKU: STAB
Category:Gates & Doors, Hanging Doors Accessories

Free Delivery

US & Canada

Description Specification Contact

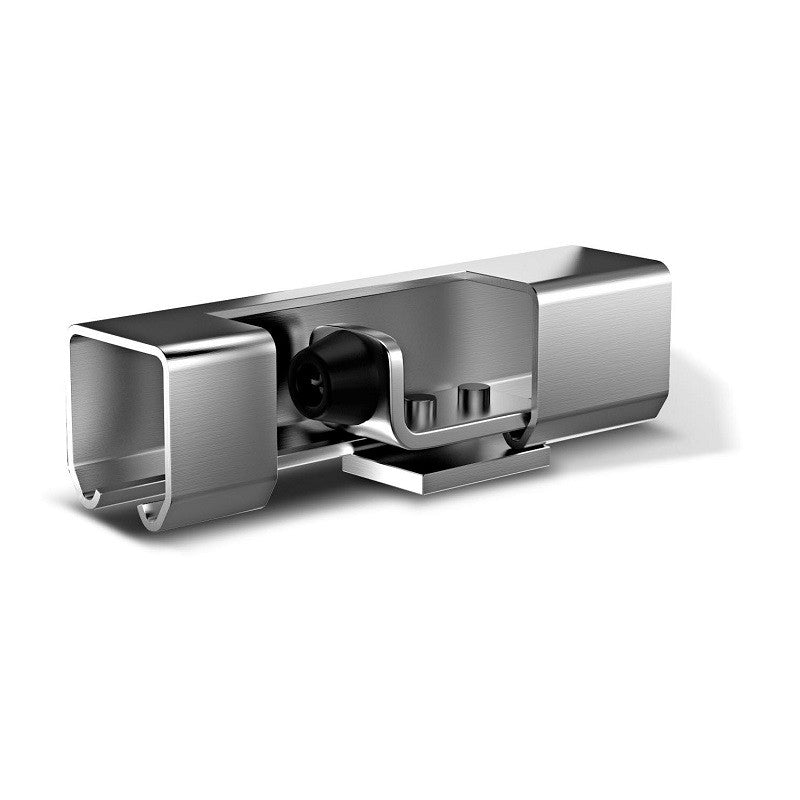

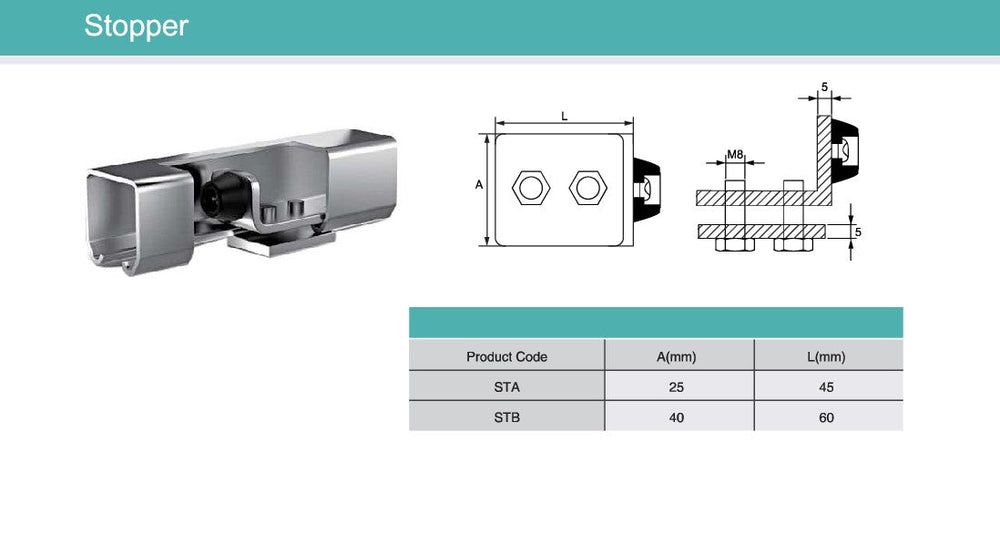

    Limit Stoper White galvanized steel limit bearing, size 72x46 mm, height 55 mm, for 56x71 mm monorail (Ref. 82Z).
      • Floor stops For sliding gates.
      • Length: 45 mm to 60 mm
      • Width: 25 mm to 40 mm
      • Height: 55 mm.
      • Apilon 332S60-09 rubber pad with a diameter of 30 mm.
      • Force: F=7 nm and Q=100 kg.
      • Locking screw class 8.8 UNI5739 M8x16 mm
      • Material: S235JRG2CC steel (A37).
      • Finish: white zinc-plated.
      • Compatibility: 56x71 mm monorail (Ref. 82Z)
      • Minimum Order Quantity for each size: 50

    You Can Download specs and dimensions Details and Specs



    Installation Tips

    Installation Tips; For Steel Gate Frame Installation the best is to weld the gate frame to the track, however, you can install the wood gate as well on the same track Channel, in a few different ways:
      1. Bolt/screw on the gate frame - drill up and thru the top of the cantilevered track and bolt the frame to the track. Caution - use counter sinking bolts/screws so that nothing protrudes into the track cavity or carriage wheels will get stuck and the gate will not slide.
      2. Weld small steel tabs (2" x 3" or similar size) with bolt holes along both edges of the track (like alligator skin). Bolt thru these into the gate frame.
      3. Bolt a length of steel flat bar (or 2x steel L-angle iron) along the bottom length of the gate frame, then weld this flat bar to the top of the cantilevered track. For added bond, use epoxy along the length of the flat bar.

    Limit Stoper White galvanized steel limit bearing, size 72x46 mm, height 55 mm, for 56x71 mm monorail (Ref. 82Z).

    • Floor stops For sliding gates.
    • Length: 45 mm to 60 mm
    • Width: 25 mm to 40 mm
    • Height: 55 mm.
    • Apilon 332S60-09 rubber pad with a diameter of 30 mm.
    • Force: F=7 nm and Q=100 kg.
    • Locking screw class 8.8 UNI5739 M8x16 mm
    • Material: S235JRG2CC steel (A37).
    • Finish: white zinc-plated.
    • Compatibility: 56x71 mm monorail (Ref. 82Z).
    • Minimum Order Quantity for each size: 50
