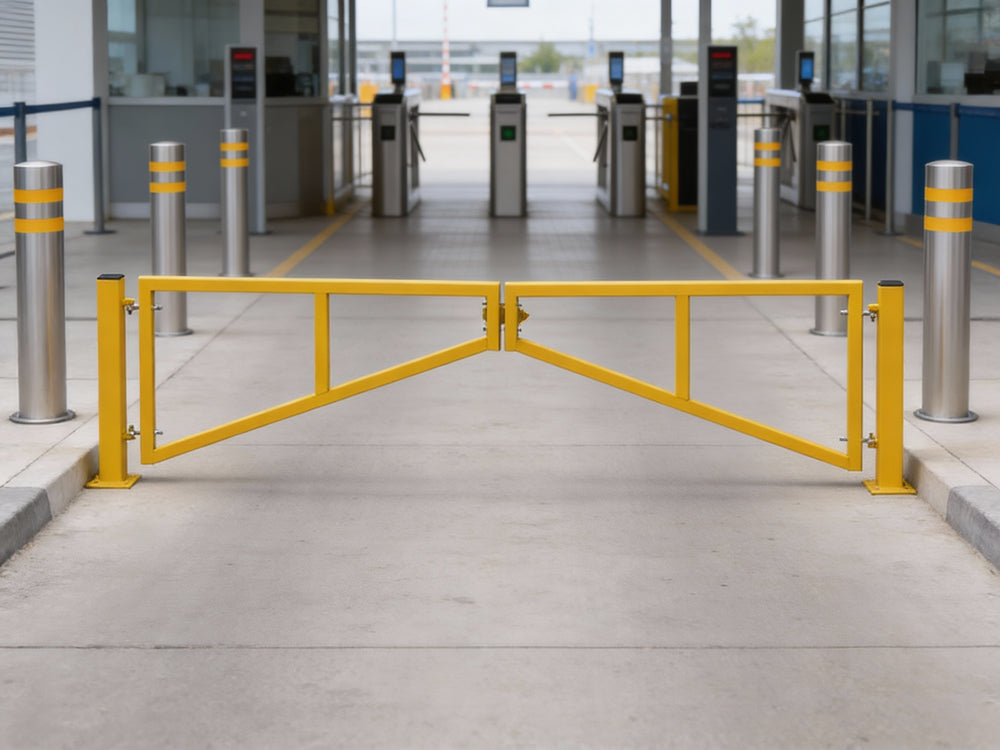

S-Series Tubular Galvanized Barrier Gates Feature:

This manually operated barrier is constructed from high-quality galvanized steel by the Taimco fabrication team.

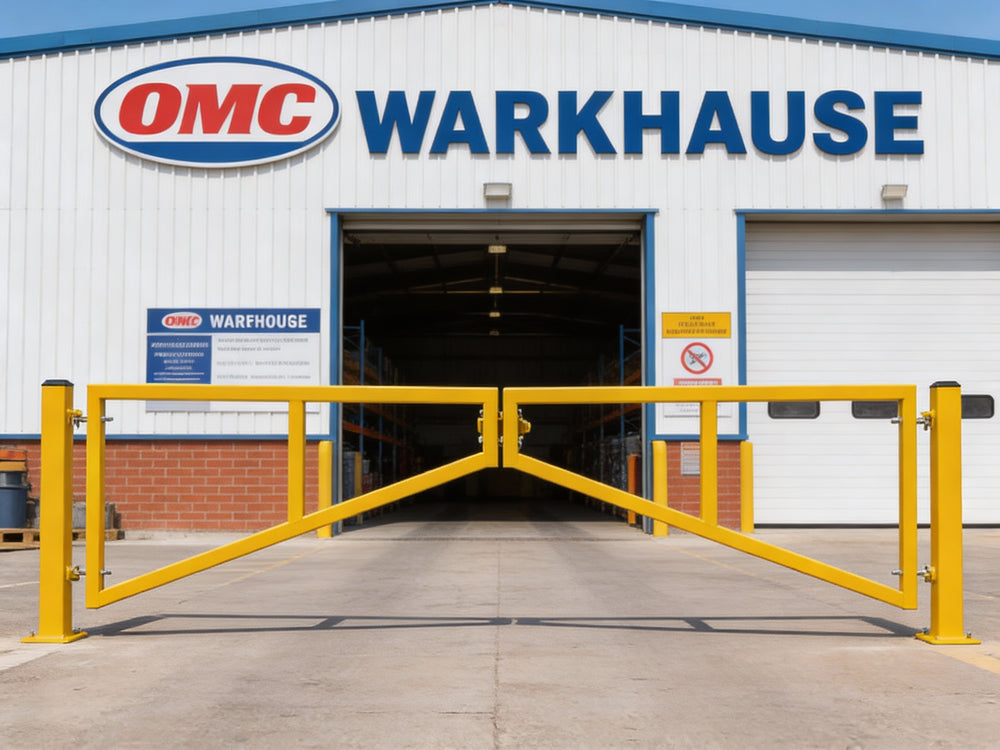

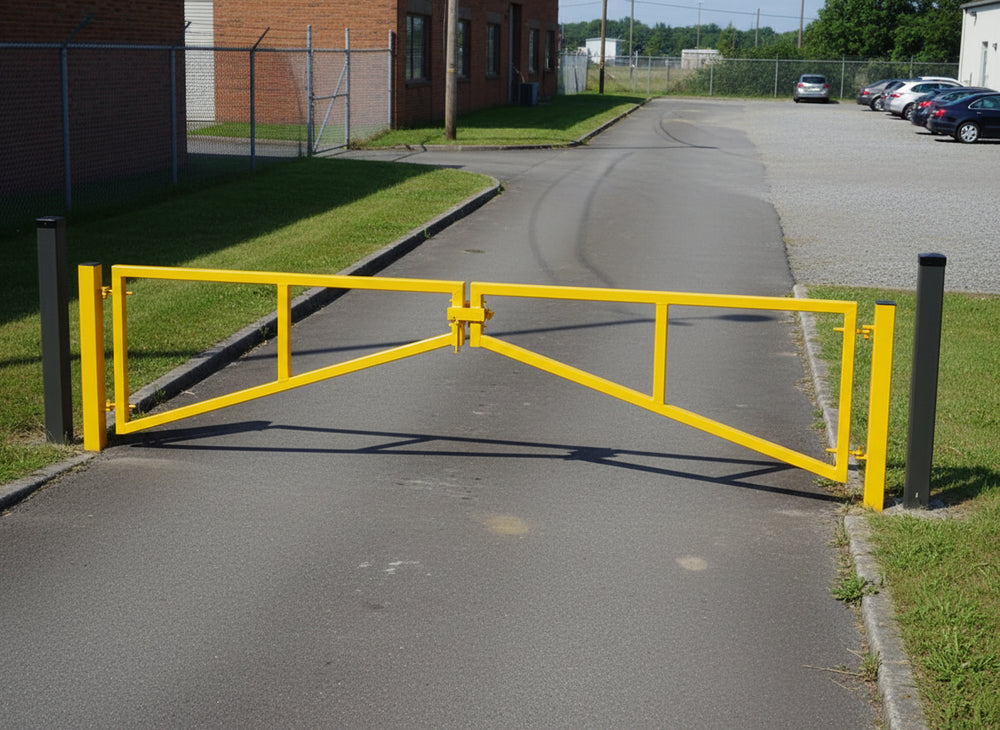

• • The perfect solution for restricting access to your site or office car park, allowing only authorized personnel in and out, and completely denying access when locked up for the night. When open, traffic can flow in both directions.

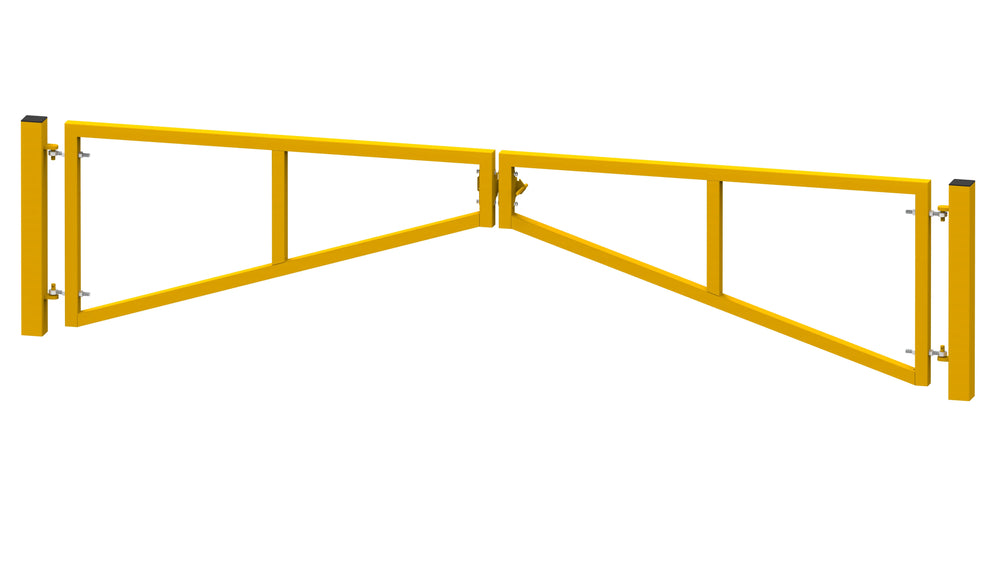

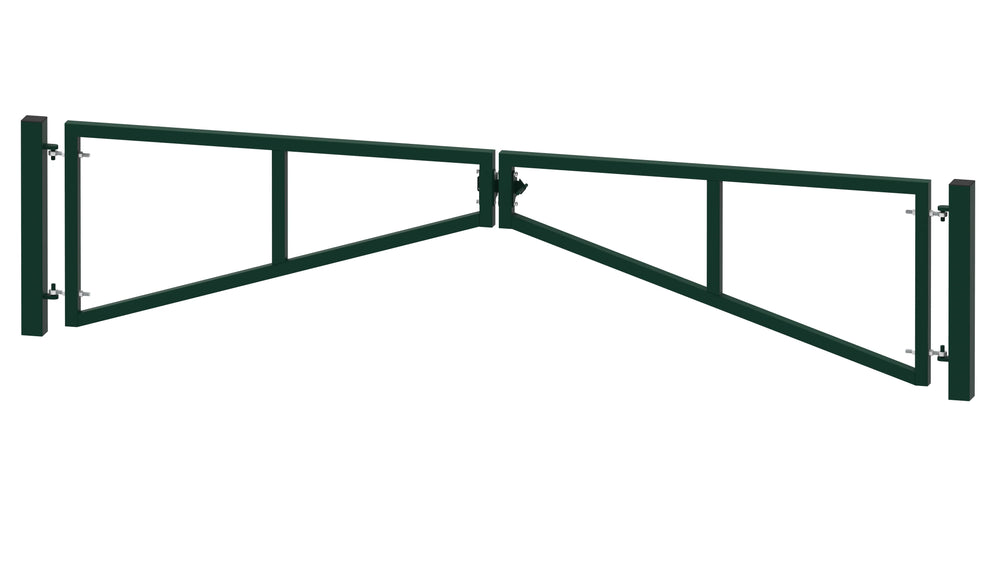

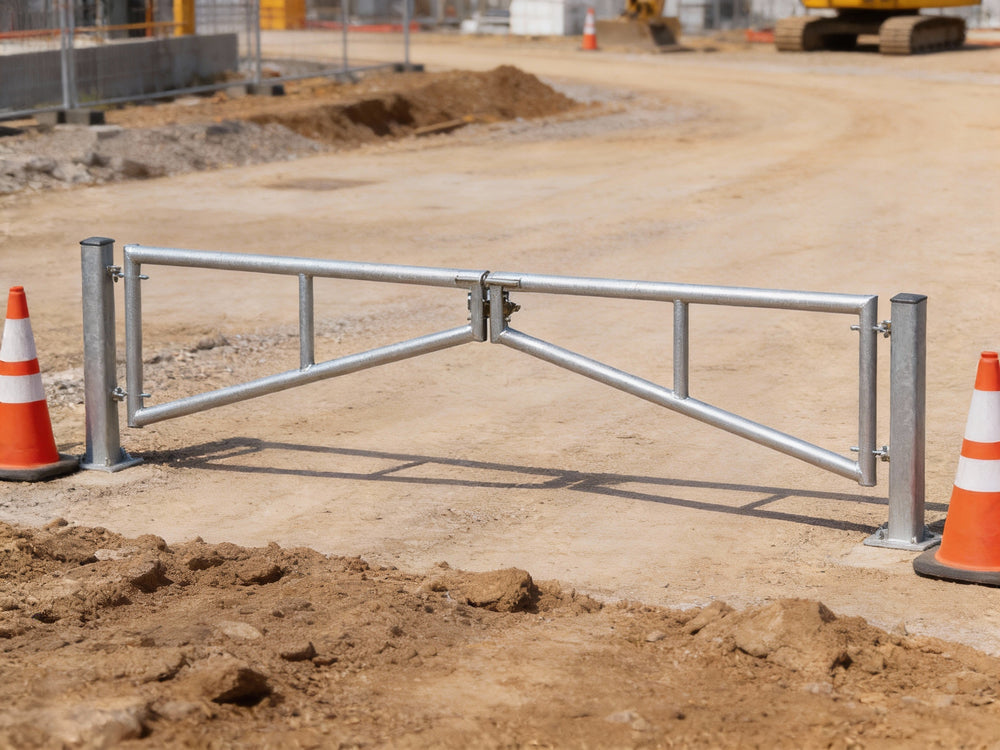

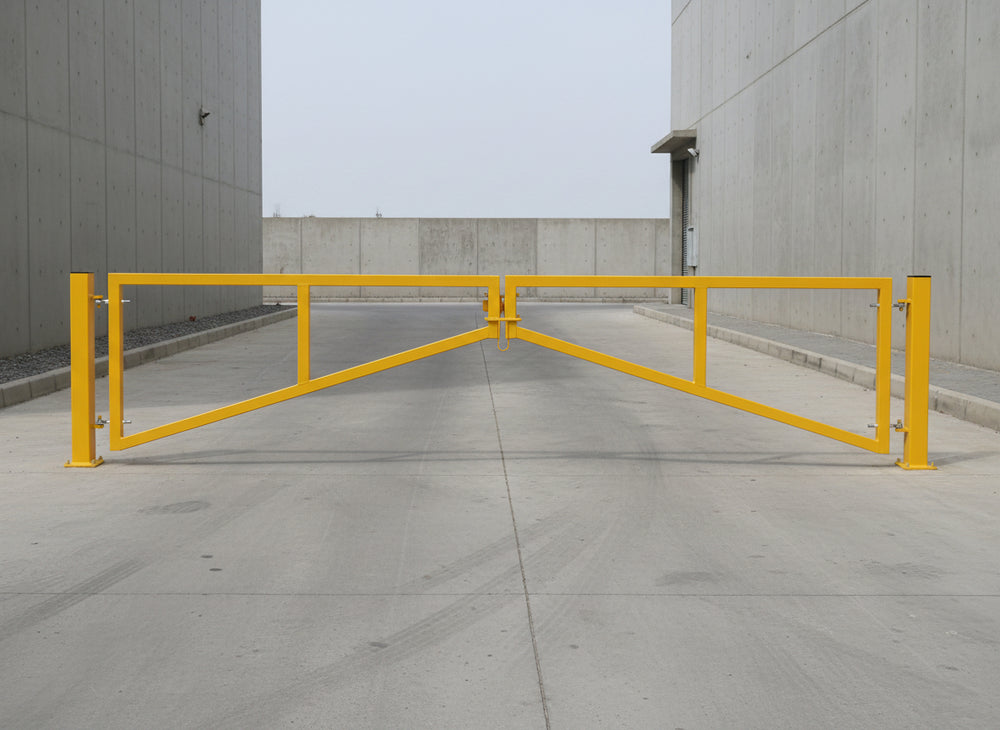

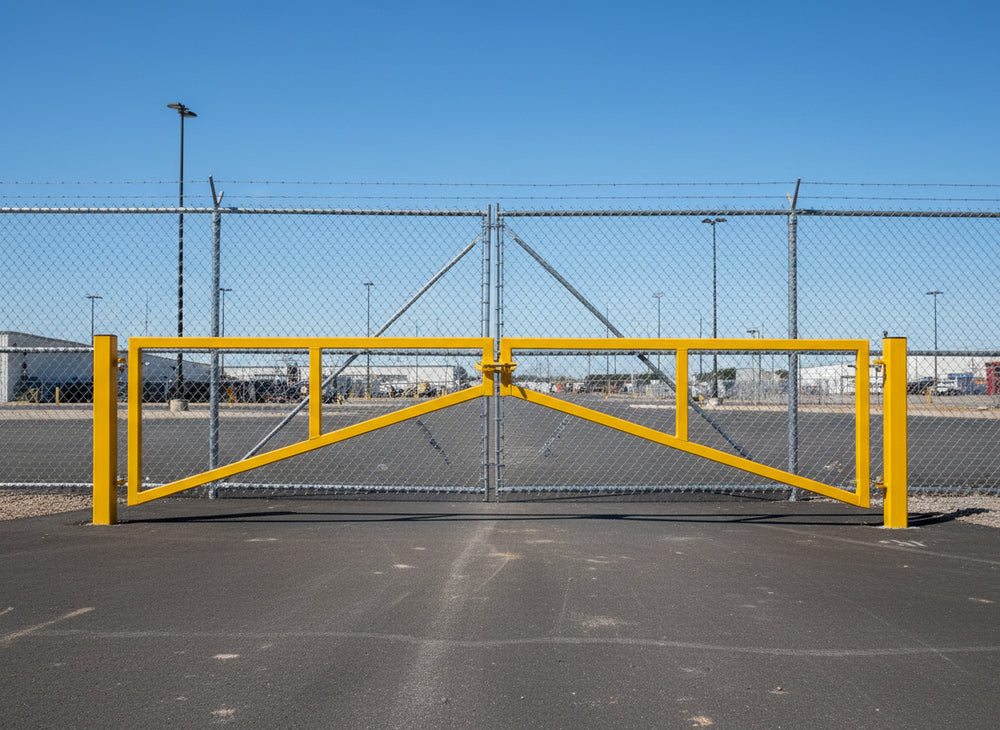

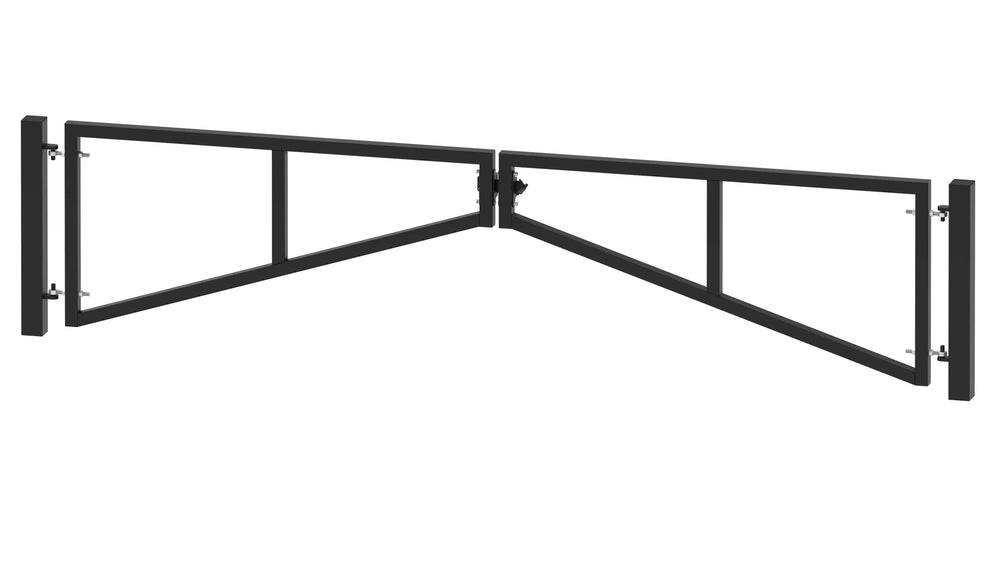

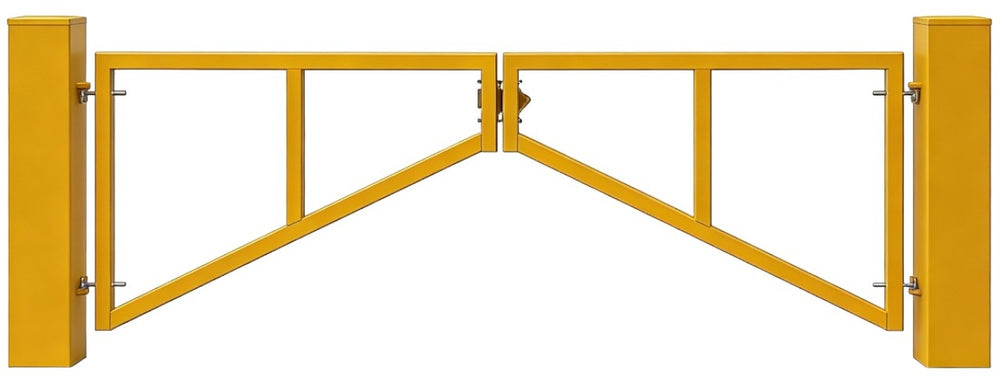

  • This double-leaf car park barrier is 1000 mm in height and 4000 mm in width. The galvanized steel construction ensures a very sturdy entrance barrier, and the zinc coating provides an additional layer of protection against corrosion, damage, and weathering, ensuring a long, functional life.

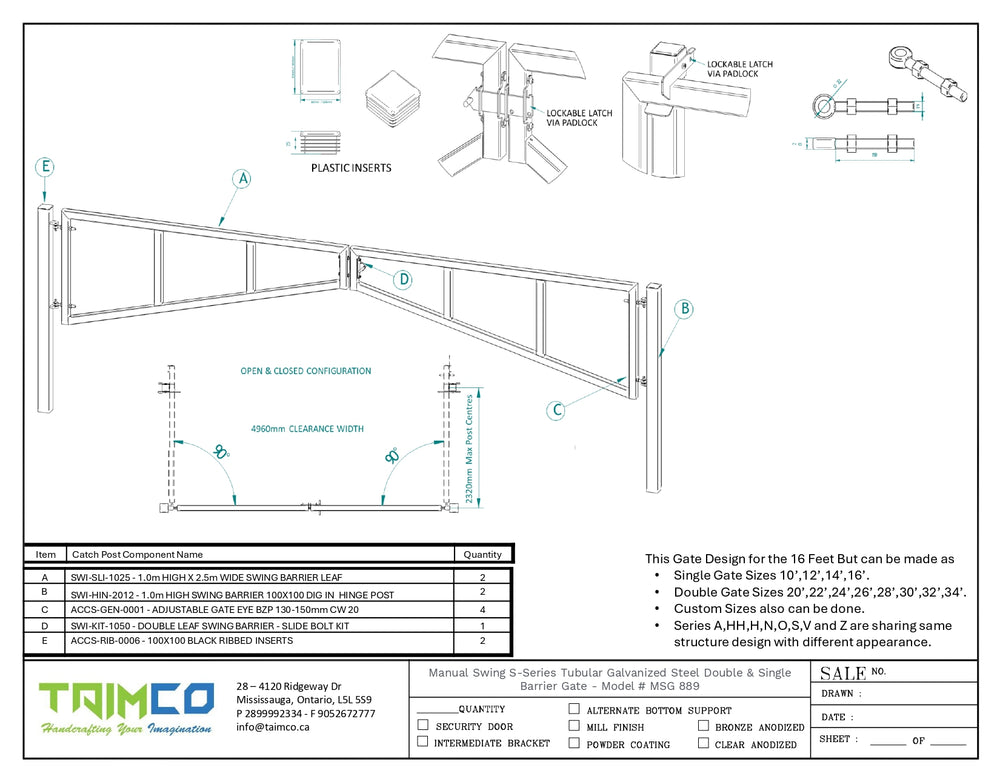

  • A bolt-on slider is provided with the gate, which can be easily bolted onto either side of the gate depending on your preference. Please refer to the installation guide for guidance.

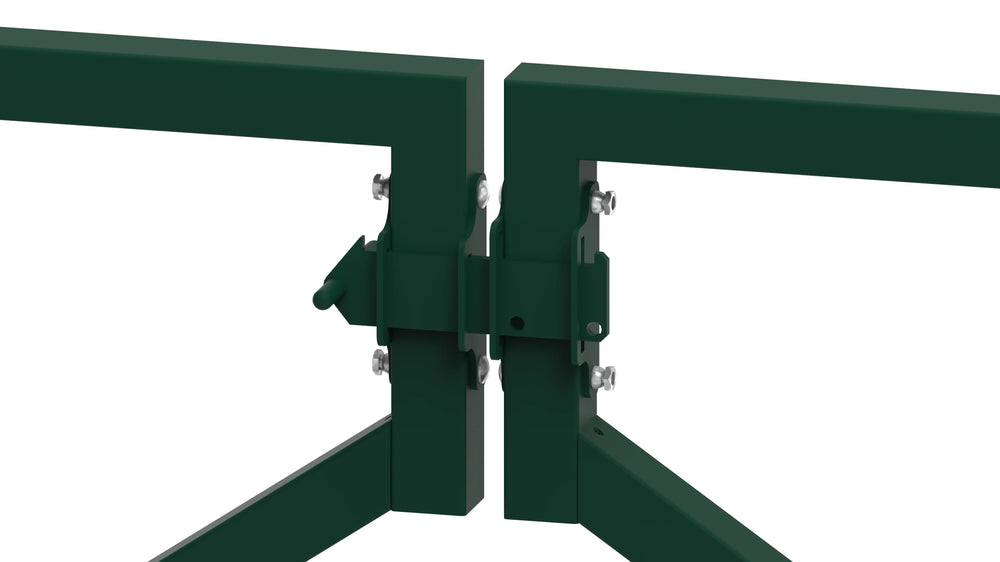

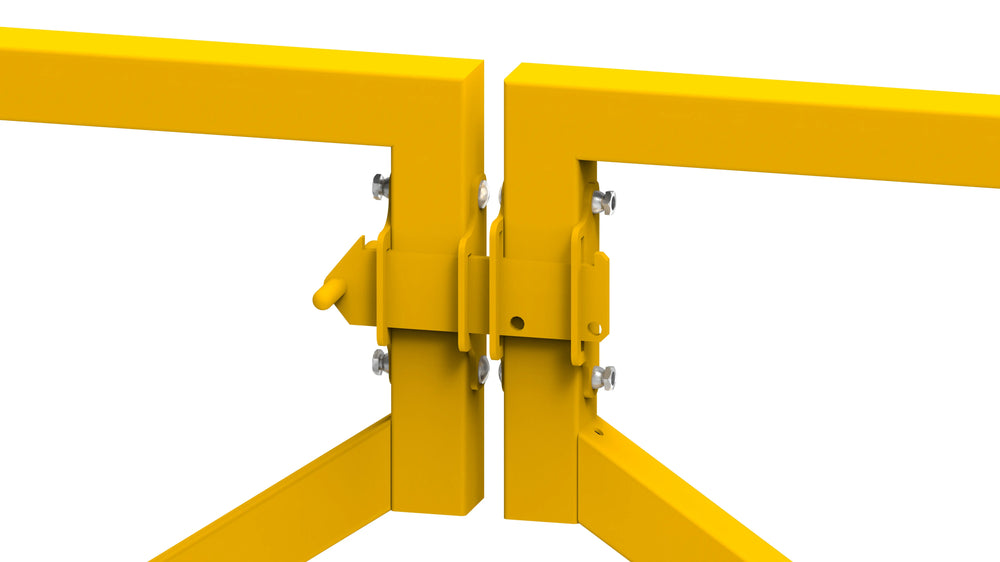

  • The swing car park barrier features a latch to hold it closed. For additional security, consider adding a sturdy padlock (sold separately).

Key Features:

• • Slider Bolt that can be bolted on either side of the gate.
  • Constructed from galvanized steel.
  • Two options for posts: Dig In or Bolt Down Posts.
  • Available in Galvanized or Powder Coated Finish.
  • Made in Canada.

Finish:

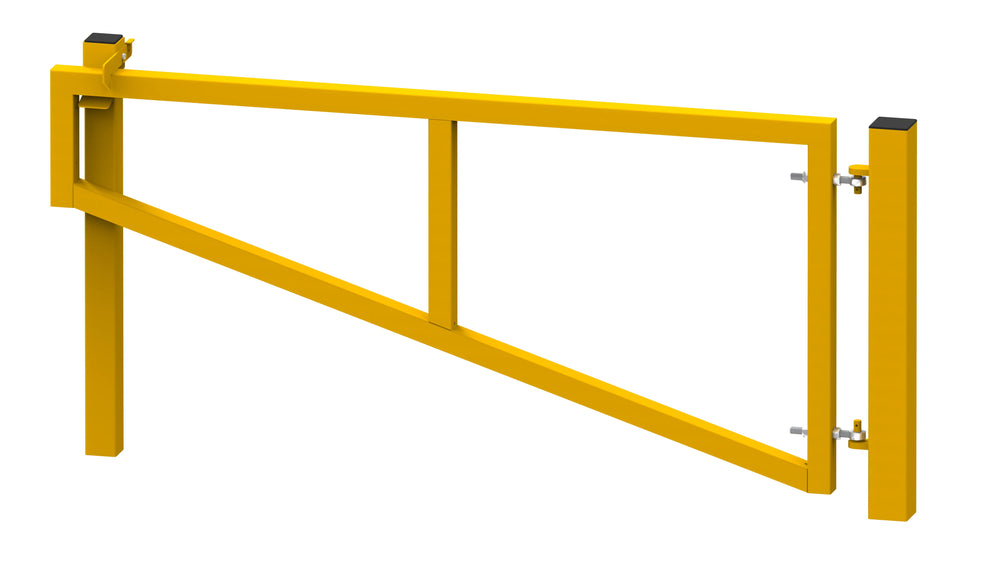

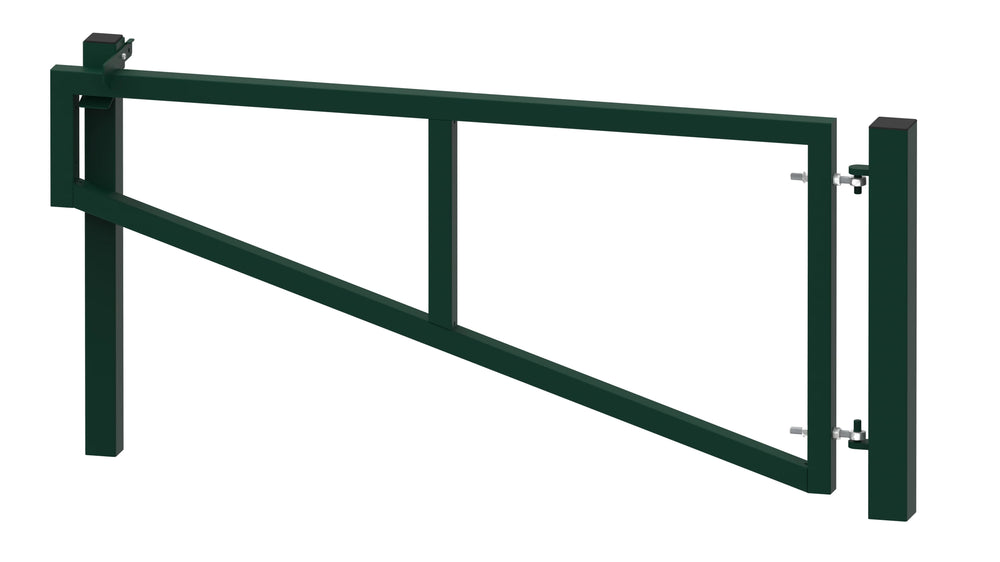

Car park swing barriers are available in galvanized or powder-coated finishes. Our standard PPC finishes include Green, Black, Blue, Red, Grey, Brown, and Yellow. We also offer the option to powder coat in other colours; please get in touch if you require a specialist colour. Our powder-coated finish provides extra protection against corrosion and general wear and tear.

Posts:

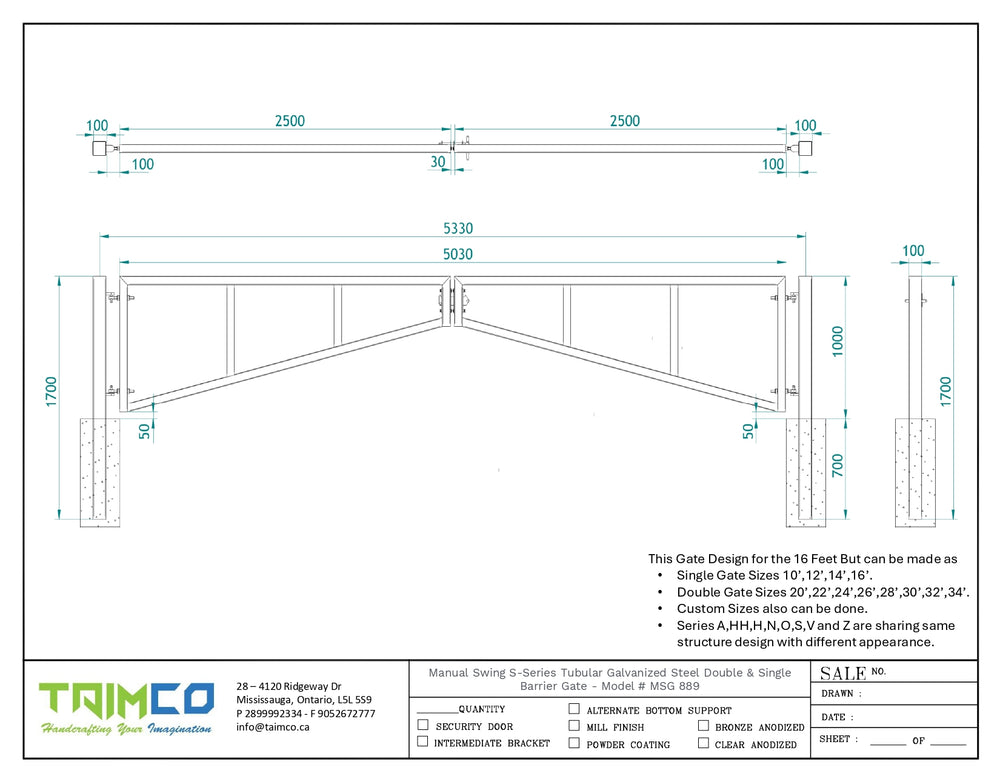

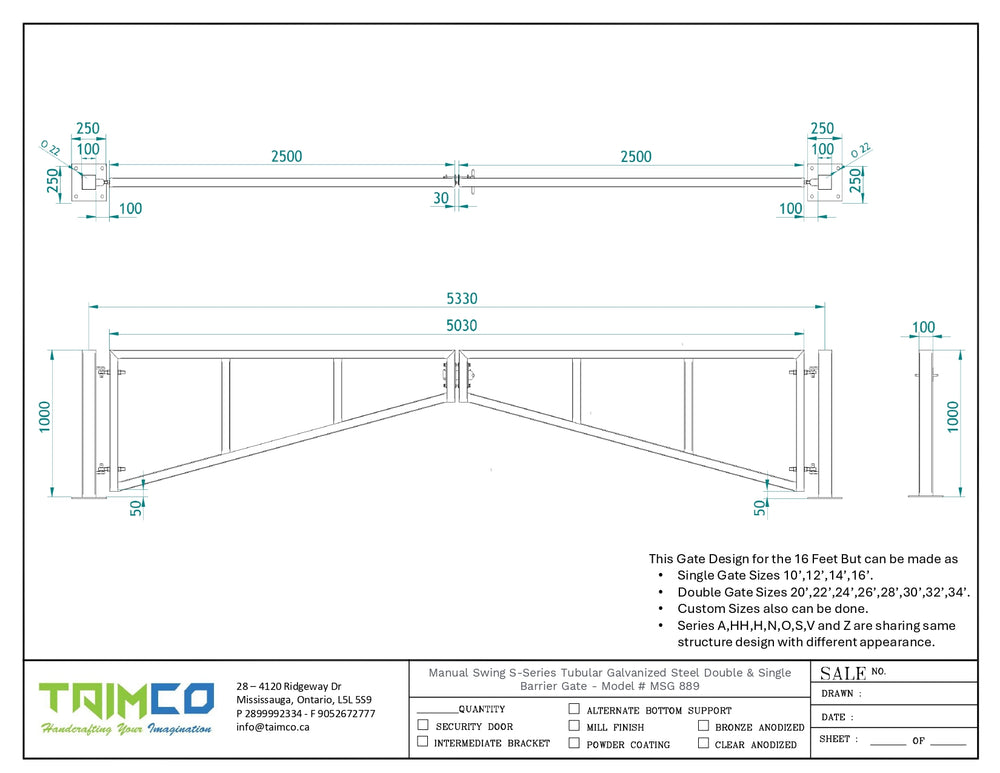

The ground conditions where you plan to install this barrier will determine whether you need to dig or Bolt Down posts. If the ground is soft, you will need Dig In posts; if it is hard (such as concrete), you will need the Bolt Down option. Ground anchor bolts and bags of post cement are also available for your post choice.

Important Note on Sizing and Design:

• • Our gates are meticulously crafted to fit the opening size, whether it’s the space between hinge posts or the hinge and latch post.
  • If you require a specific “finish size,” we can tailor the gate accordingly.
  • Please note that actual designs may vary based on the gate’s dimensions.

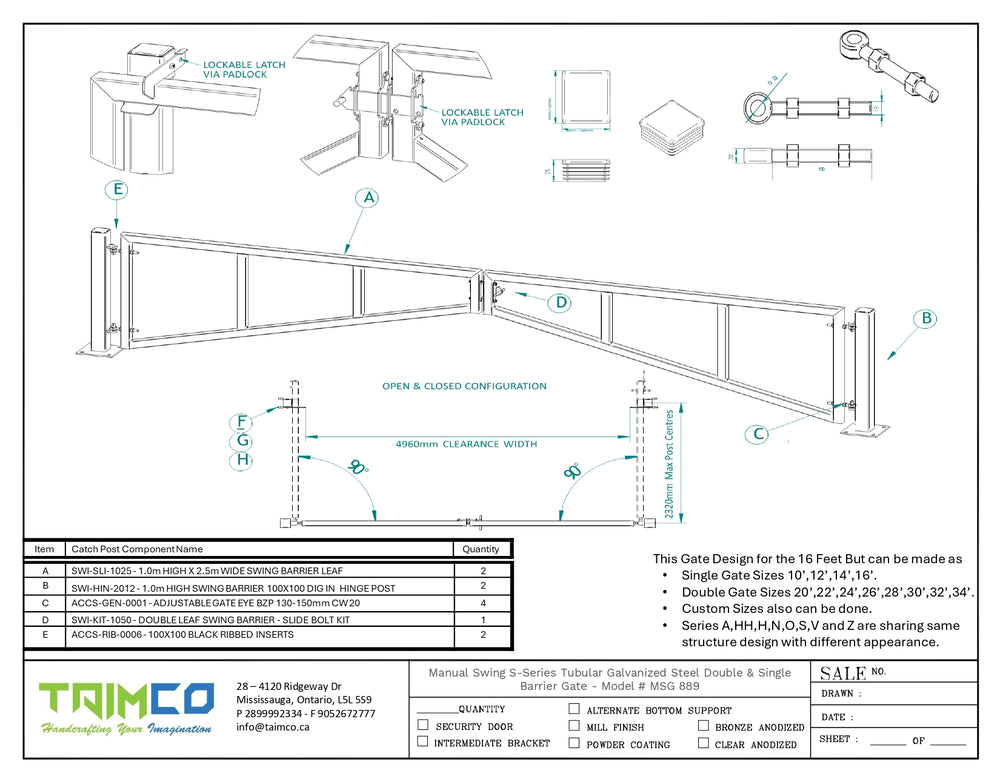

Specification

• • The Gate Wing Height is 4 Feet at the Post Side and less than 1 foot at the opposite wing side.

  • Two Galvanized Hinge Posts
  • Post Caps for Posts.
  • Hinges and Gate Latch.
  • 4' High Singe or Double H-Series Tubular Galvanized Barrier Gate.
  • Rigid construction of premium 2" x 2"  0.234" ( 15/64" ) Wall thickness  Galvanized Steel.

  • 4" Malleable Butt Hinges & Gate Latch
  • Download Specifications for in-floor and surface mount posts.

Notice:

• • Different colours than Galvanized Finish are available for an extra $399.
  • The lock and unlock box can be added for $399.
  • This product is recommended to be installed by a professional team.
  • Custom orders cannot be cancelled, returned, or refunded after purchase.
  • The lead time for this product is 6-8 weeks.
  • Gates may need minor touch-up paint due to the nature of shipping.
