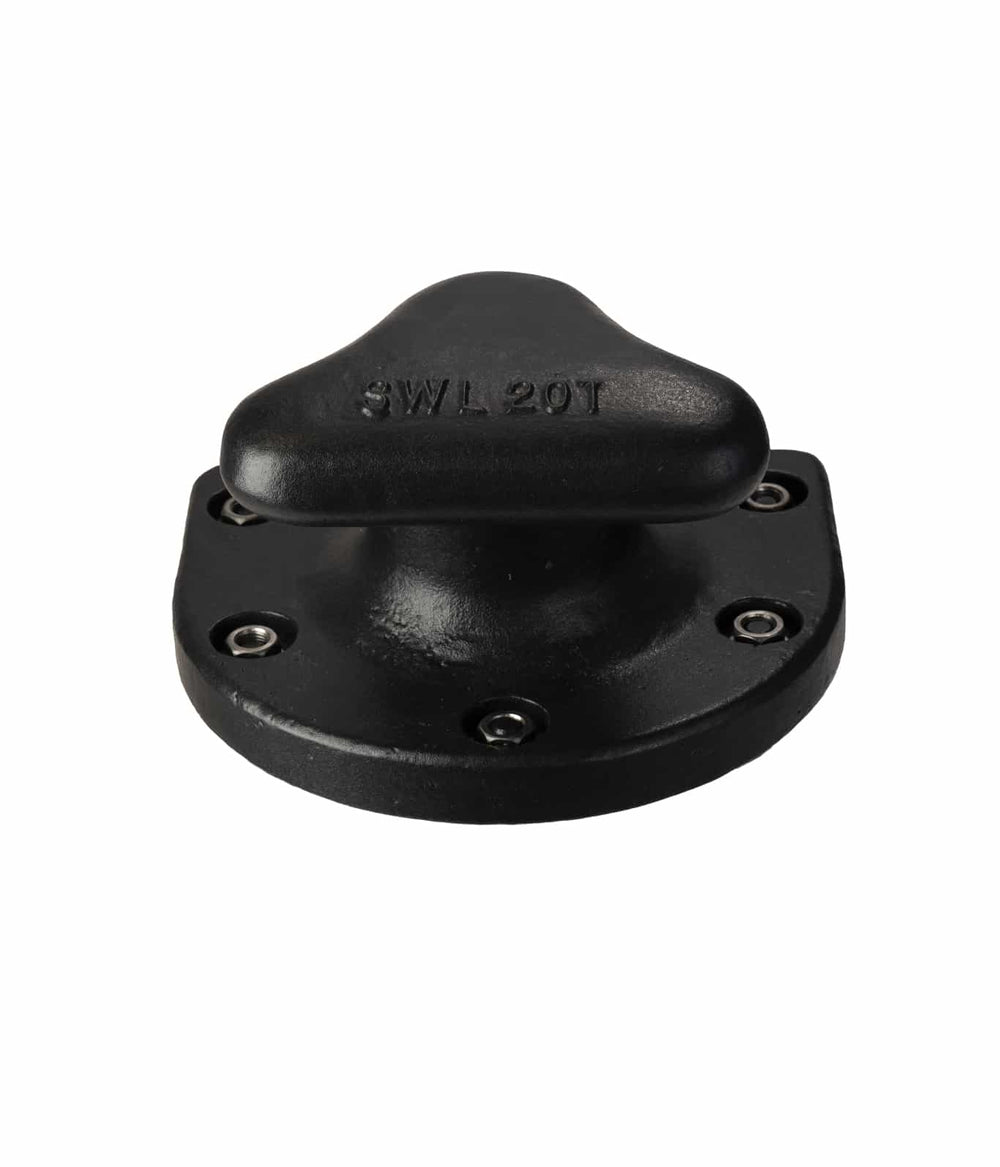

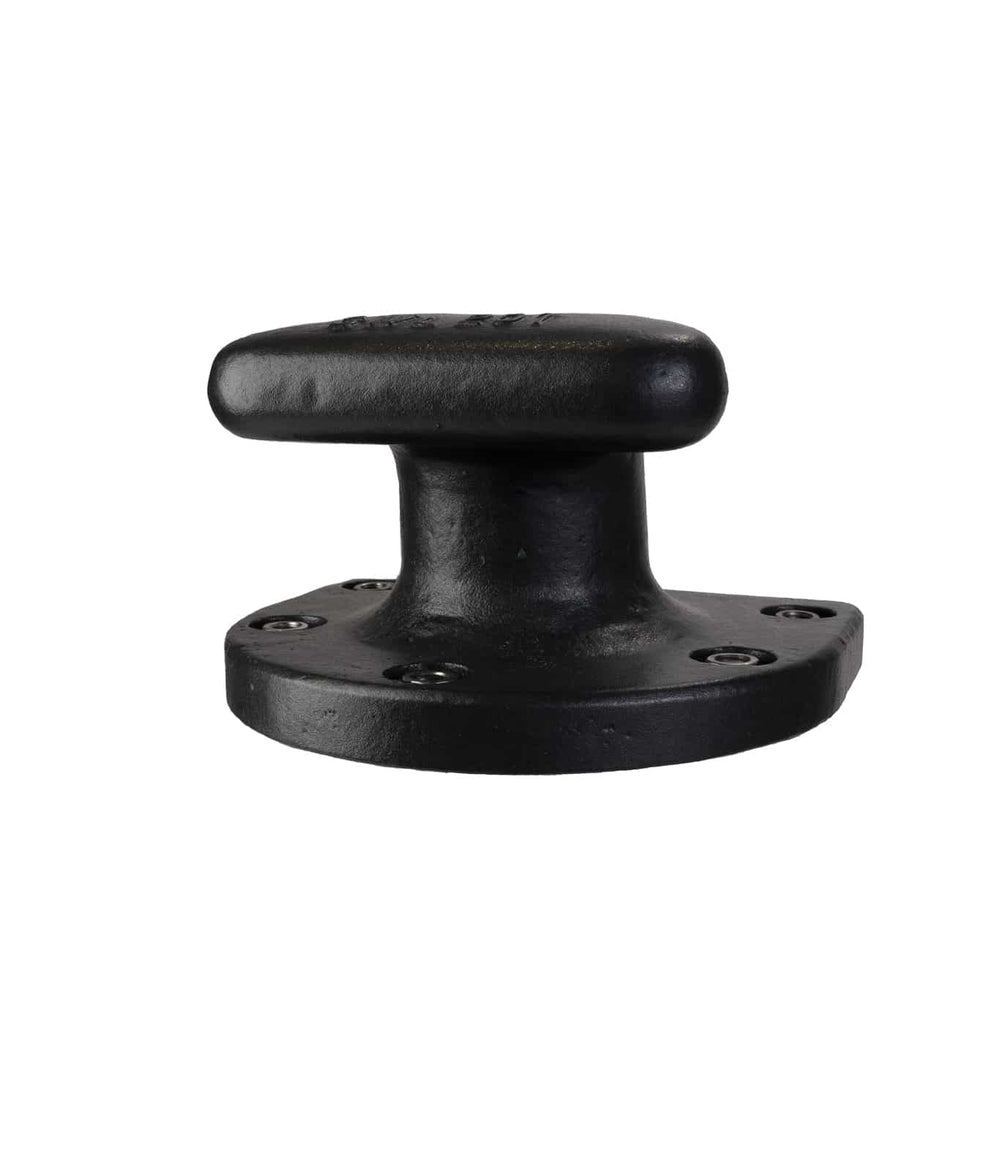

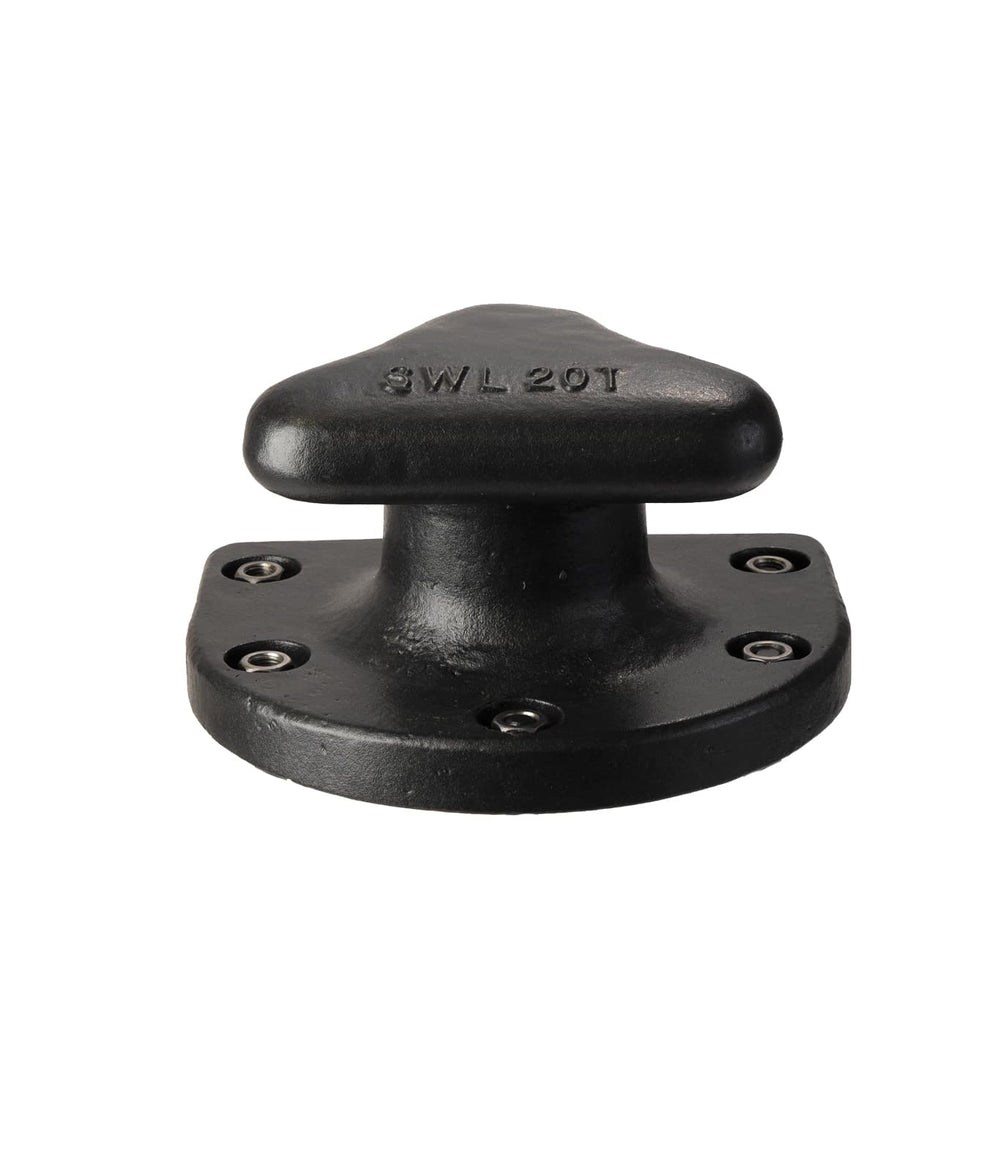

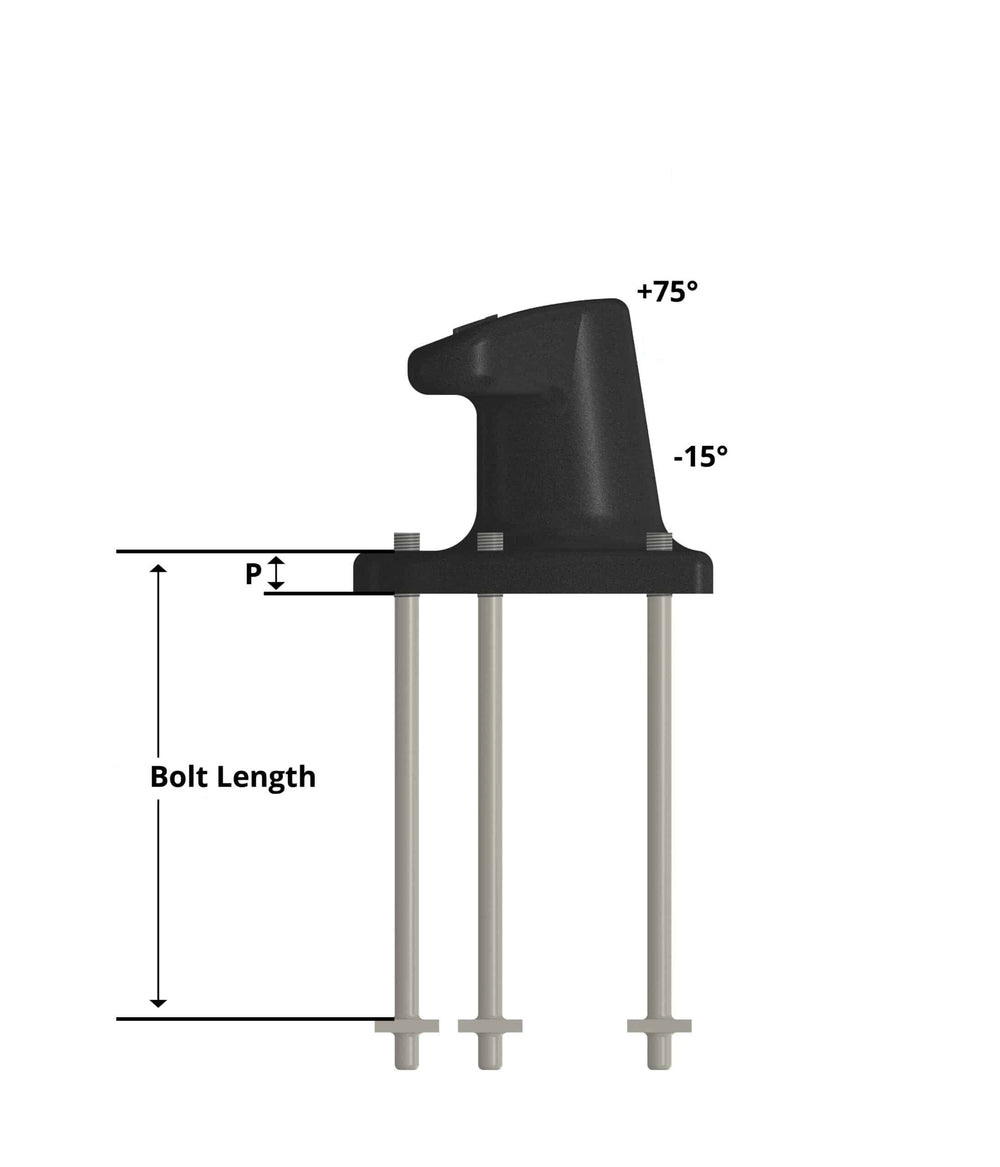

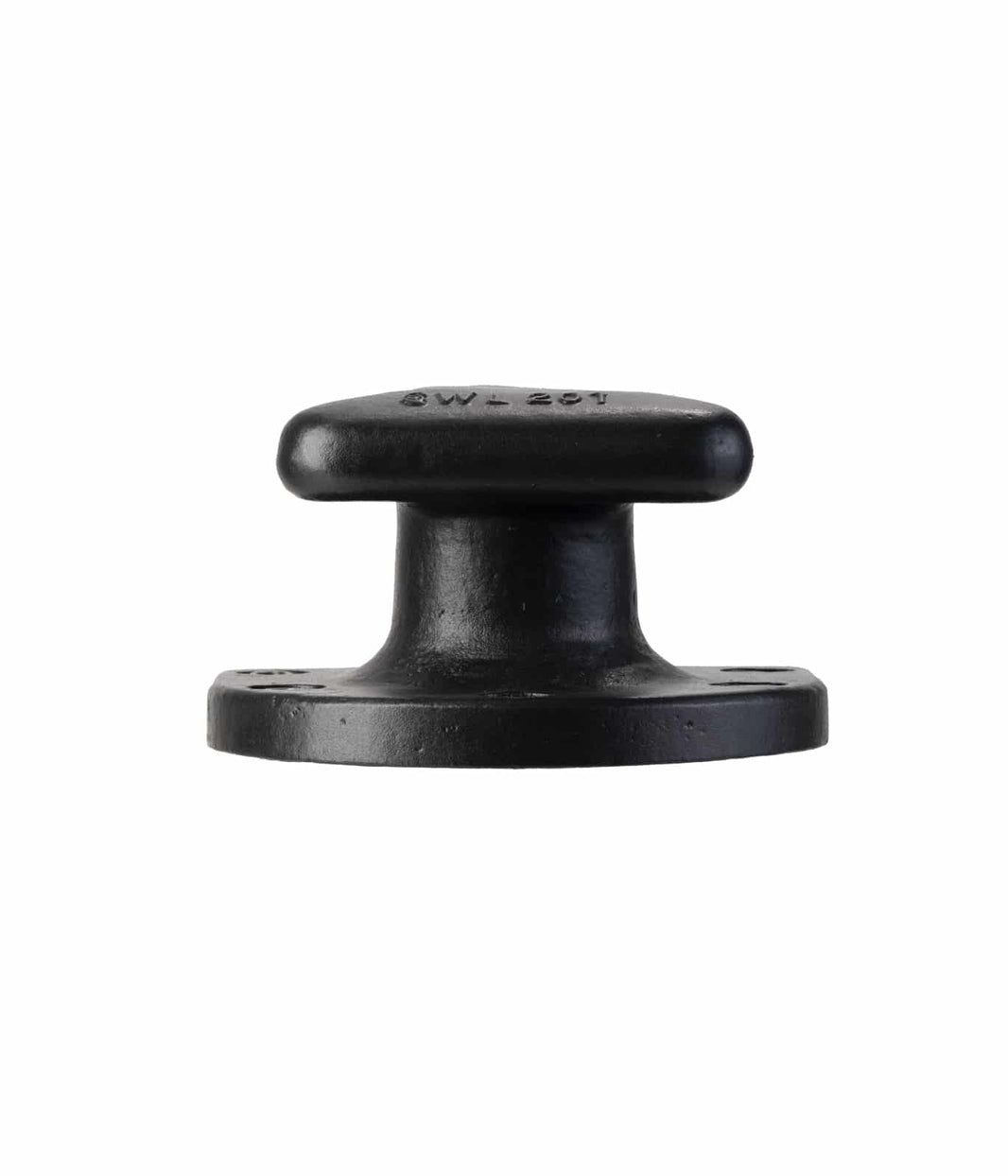

The TAIMCO BOLL2593 Marine Shield Bollard, also known as a Tee bollard or Tee-Head Dock bollard, is a specially designed marine bollard for carrying wire ropes. The bollard has a “T” shaped top, a simple and efficient shape for securing marine vessels to a wharf, and is suitable for steeper rope angles (recommended line angle is +75º to -15º). TAIMCO’s Marine Shield bollard has a semi-circle base and is made of ZG230-450 cast steel.

Marine bollards come coated with IronArmor for added weathering and corrosion resistance. This bollard is engineered for 20 metric tonnes. M24*500mm nuts and bolts, installation instructions, and bolt pattern are provided.

Key Features:

• • Superior Design: The “T” shaped top provides a simple and efficient shape for securing marine vessels.
  • Durable Construction: Made from ZG230-450 cast steel for long-lasting durability.
  • Weather and Corrosion Resistance: Coated with IronArmor for added protection against weathering and corrosion.
  • High Load Capacity: Engineered to handle up to 20 metric tonnes.
  • Easy Installation: Includes M24*500mm nuts and bolts, installation instructions, and bolt pattern.

Specifications:

• • Material: ZG230-450 cast steel
  • Bollard Model: BOLL2593
  • Base Shape: Semi-circle
  • Load Capacity: 20 metric tonnes
  • Coating: IronArmor for weathering and corrosion resistance

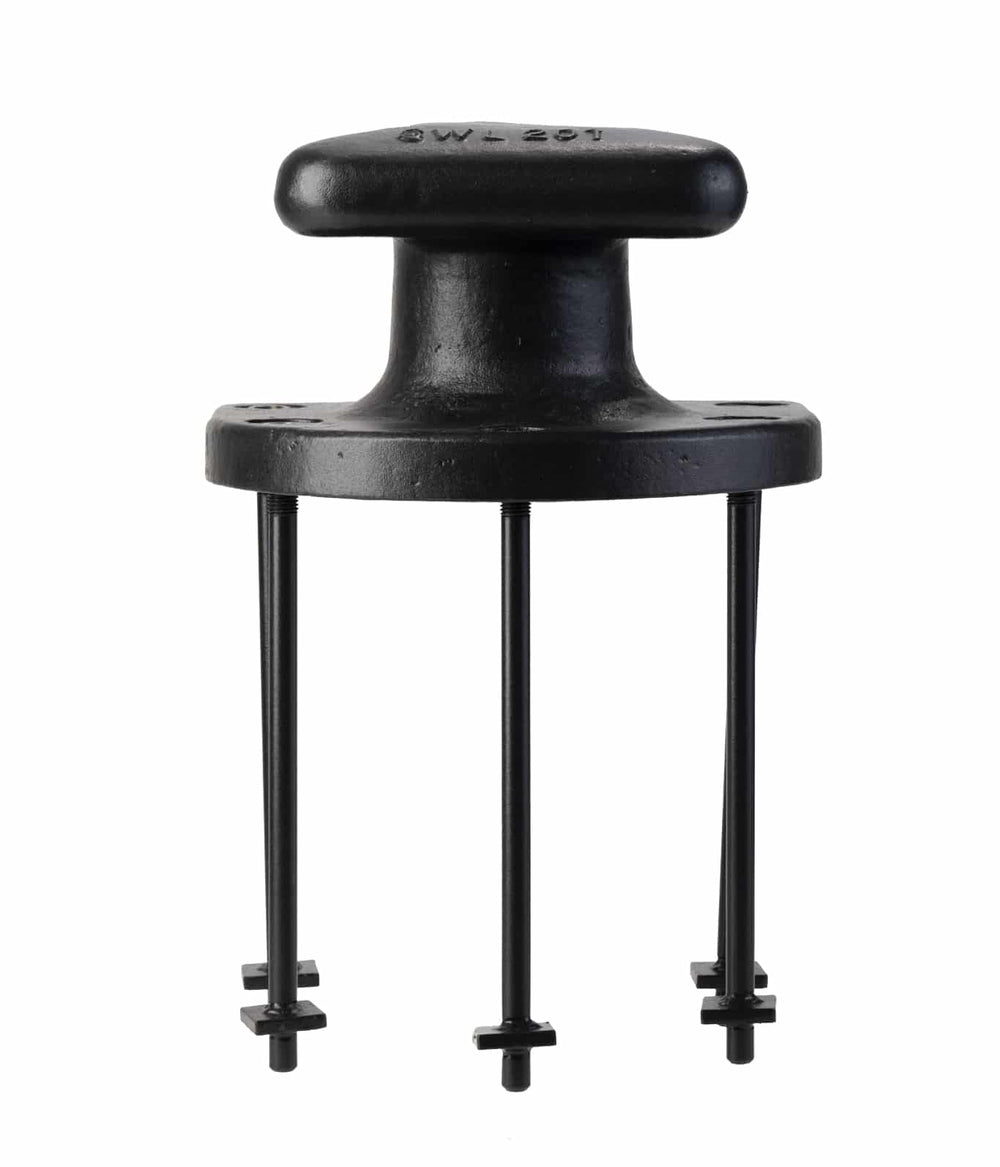

  • Nuts and Bolts: M24*500mm

  • Weight 205 lbs.

  • Rating 20T

  • Height 10.8"

  • Length 13”

  • Width 16”

  • Material Steel

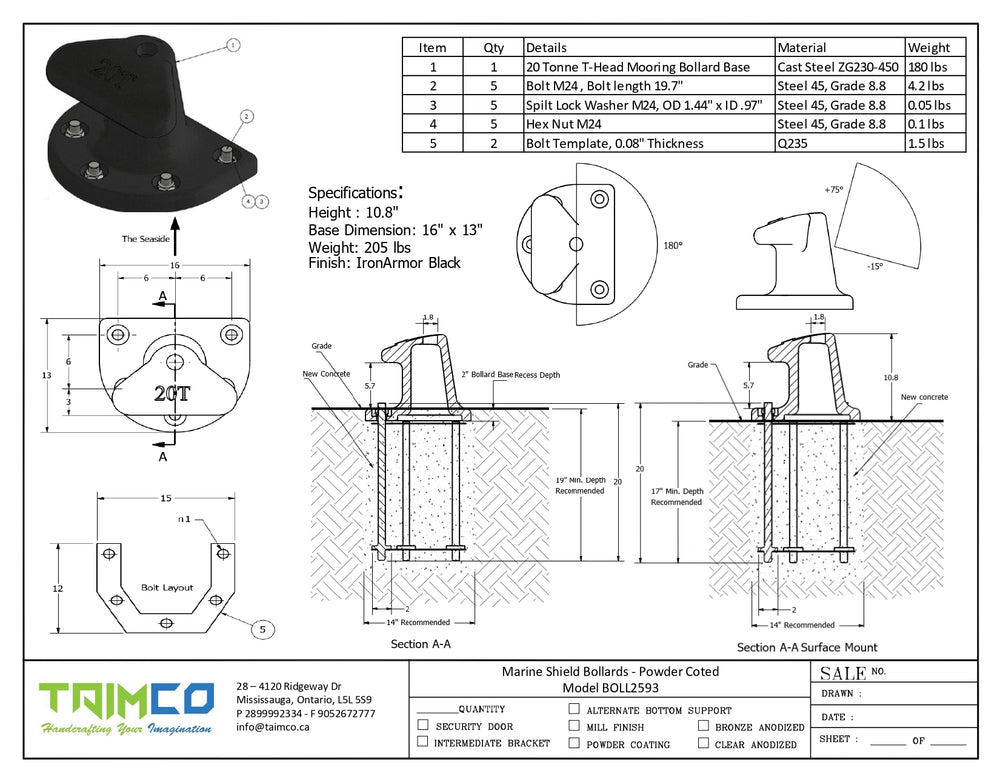

  • Installation: Includes installation instructions and bolt pattern
  • MOQ 10
  • Download Specs & Details.
  • Lead Time 8-10 Weeks.

Applications:

• • Marine Docks: Ideal for securing vessels at wharves and docks.
  • Ports and Harbors: Provides reliable mooring for ships and boats.
  • Industrial Facilities: Suitable for use in industrial marine environments.
  • Coastal Areas: Perfect for coastal and water-oriented locations.

Marine Shield bollard, BOLL2593, Marine bollard, Tee bollard, Dock bollard, Cast steel bollard, Weather-resistant bollard, Corrosion-resistant bollard, High load capacity bollard, Marine vessel mooring.
