Key Features:

• • Double Foot Planks: The bleachers are equipped with double foot planks, providing wider walkways and enhanced comfort for spectators.

  • Non-Marring Rubber Foot Pads: Standard rubber foot pads prevent damage to floors and surfaces during deployment.

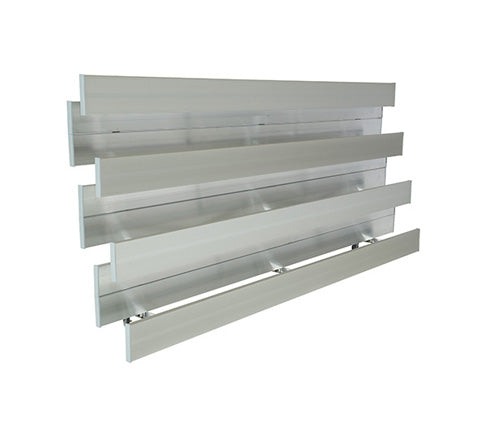

  • Swivel Casters: The bleachers can be effortlessly tipped up onto their swivel casters, allowing smooth movement and repositioning as needed.

  • Caster Brakes: When not in use, the caster brakes securely hold the bleachers in place, preventing unintended rolling or shifting during storage.

  • Lead time 6-8 Weeks.
  • MOQ 5 Per Size.

Specifications:

1. 1. Seating Planks:

      • The seating planks are designed to accommodate a uniform load of 120 pounds per linear foot (plf) across a 6-foot span.
      • The maximum deflection allowed is 9/16 inch.

   2. Live Load Support:

      • In addition to supporting their weight, the bleachers are designed to handle a uniformly distributed live load of at least 100 pounds per square foot (psf) based on the gross horizontal projection of the seating area.

   3. Wind Resistance:

      • The bleachers are engineered to resist horizontal wind loads. These loads can be 30 psf (pounds per square foot) of the gross vertical projection, whether or not there is a live load present.

   4. Sway Forces:

      • Apart from the live load and wind forces, the bleachers are also constructed to withstand sway forces.
      • Specifically, they can resist 24 plf of seat plank force in a direction parallel to the length of the seat, and 10 plf of seat plank force in a direction perpendicular to the seat’s length.

Not Included:

• • Shop drawings (sold separately).
  • Anchor kits (sold separately).
