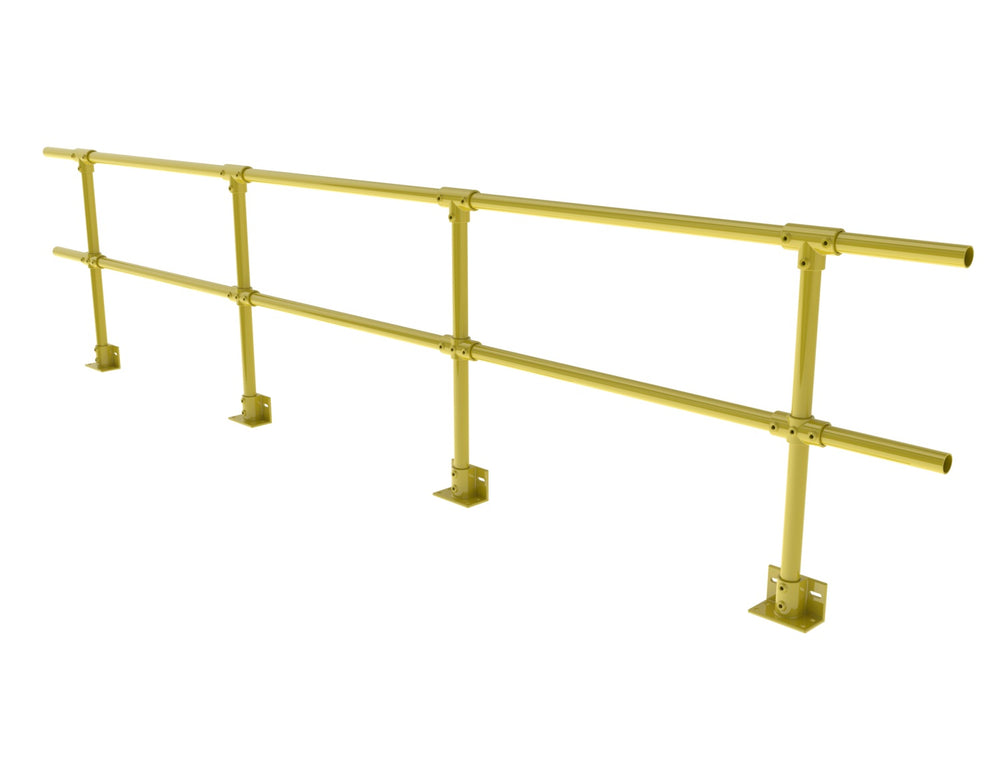

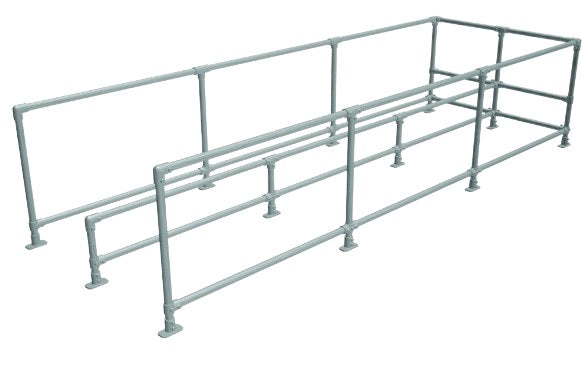

TAIMCO Railing Guard - The Ultimate Freestanding Guard Railing System

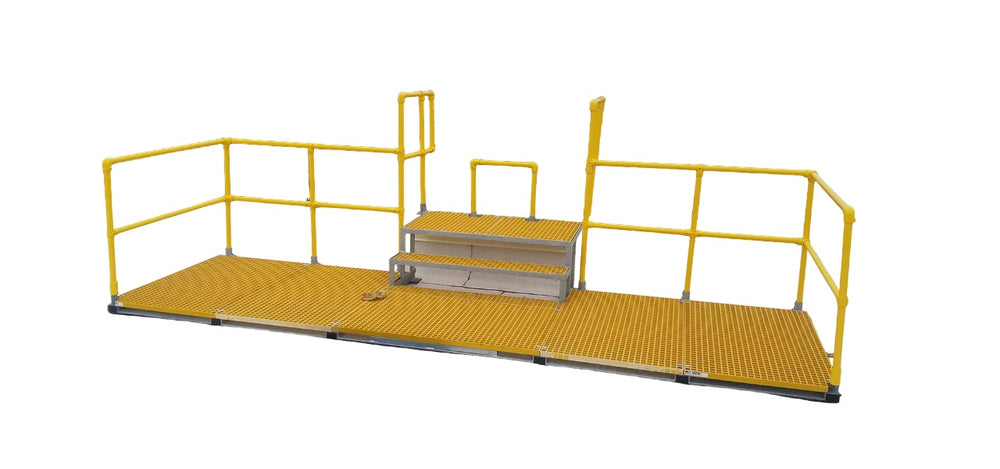

Introducing the TAIMCO Railing Guard, a revolutionary freestanding guard railing system designed to provide cost-effective, safe, and secure roof access. Paired with the Ladder Port, this system allows workers to use extension ladders for rooftop access, eliminating the need for permanent wall-mounted vertical ladders.

Key Benefits:

• • Non-Penetrating Design: Prevents roof damage and leakage, ensuring the integrity of your roof.
  • Minimal Surface Contact: Allows for continuous water drainage, maintaining roof health.
  • Versatile Application: Suitable for roofs with up to a 5-degree slope and customizable to various shapes and designs based on rooftop conditions.
  • High-Quality Construction: Comes standard with hot-dipped galvanized components, ensuring durability and longevity.
  • Lead Time 6-8 Weeks.
  • MOQ 50 Feet Long.

The TAIMCO Railing Guard meets and exceeds OHSA, NBC regulations, and applicable CSA standards, making it the ideal choice for safe and efficient roof access.

Features:

• • Safe Roof Access/Egress: Ensures secure access when using temporary ladders.
  • Customizable Options: Available in various sizes and shapes to fit a broad range of roofs, with powder coating options in any colour.
  • Non-Penetrating Design: Prevents roof damage and leakage, ensuring the integrity of your roof.
  • Soft Rubber Base: Provides a non-penetrating solution that maintains roof health with minimal surface contact for continuous water drainage.
  • Versatile Application: Suitable for roofs with up to a 5-degree slope and customizable to various shapes and designs based on rooftop conditions.
  • High-Quality Construction: Comes standard with hot-dipped galvanized components, ensuring durability and longevity.

Specification:

• • High-Quality Construction: Comes standard with hot-dipped galvanized components, ensuring durability and longevity.
  • Engineered Excellence: All materials conform to CSA G40.21-13 300W (44W) standards.
  • Certified Welding: All welding is completed by a CWB-certified shop to CSA W47.1 standards.
  • Hot-Dipped Galvanized: Meets CSA G164 and ASTM A123 standards for superior corrosion resistance.
  • Neoprene Rubber Base: Features neoprene rubber on the underside of the frame for added protection and stability.
  • Diameter: 1 7/8"
  • Material: Steel
  • Finish: Corrosion-resistant, OSHA yellow powder-coated
  • Fittings: Cast iron, attachable with a hex key
  • Post: Supports and secures rails at 42" high
  • Base Plate: Secures post in the socket and anchors to the floor
  • Rail: Horizontally connects to posts, cut to desired length
  • 90° Elbow End Fitting: Connects top rail to post
  • Through Tee End Fitting: Connects mid-rail to post
  • Joining Tee In-Line Fitting: Connects two top rails to post
  • E-Cross In-Line Fitting: Connects two mid-rails to post
  • Side Outlet Elbow Corner Fitting: Connects two top rails to post
  • Side Outlet Tee Corner Fitting: Connects two mid-rails to post

Access Control Railing, Freestanding Guard Railing, Roof Access System, Ladder Port, Non-Penetrating Railing, Roof Safety Solutions, Temporary Ladder Access, Roof Guard Rail, OSHA Compliant Railing, CSA Standard Railing, Hot-Dipped Galvanized Railing, Customizable Roof Railing, Durable Metal Railing, Neoprene Rubber Base Railing, Roof Egress Solutions

Contact us to help design your project needs and create the best price possible.
