Single Ball bearing Hinge without Plate for Swing Door | Model # BWH ( Pack of 100 )

Regular price $950.00
Quantity
Quantity
SKU: BWH
Category:Gates & Doors, Swinging Door Accessories

Free Delivery

US & Canada

*Additional handling charges may apply*

Description Shipping & Handling Contact

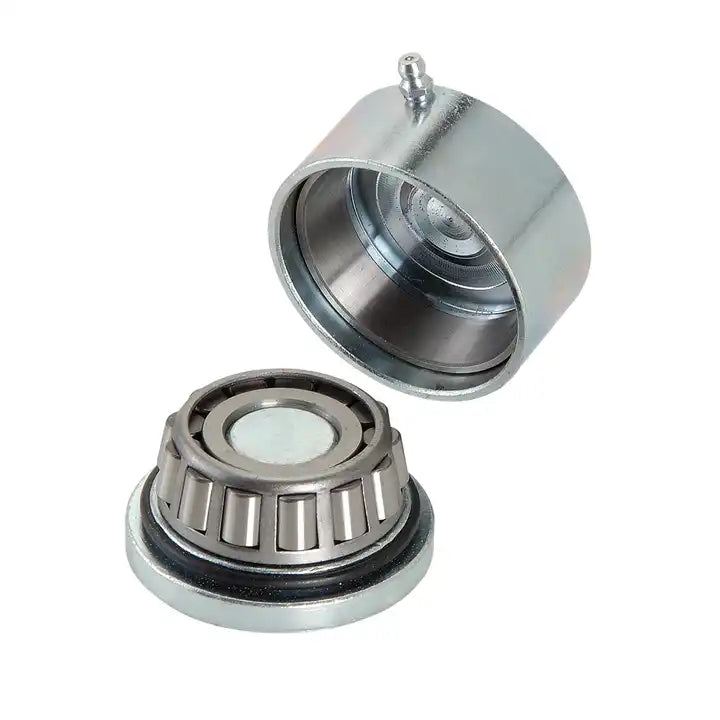

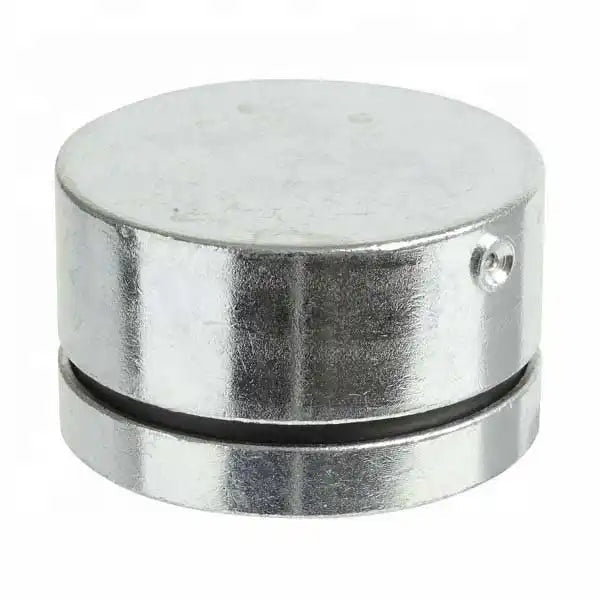

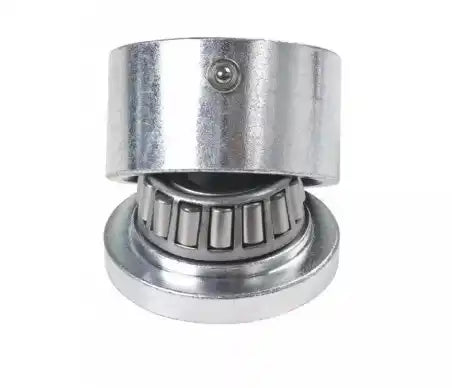

      • Lower turntable For industrial swing gates.
      • Fixing: weld-on.
      • Diameter: 40 mm TO 120 MM.
      • Height range  30 mm to 40 mm.
      • 90° opening.
      • 1000 kg vertical load take-off.
      • With sealed needle bearing 30203.
      • Material: S235JRG2C steel (A37).
      • Finish: 13.2μm de-chromed.
      • Tested to 0.5 million cycles.
      • Grease the bearing thoroughly during installation.
      • Get All Specifications And Dimensions.
      • Minimum Order Quantity for each size: 100

    Documents

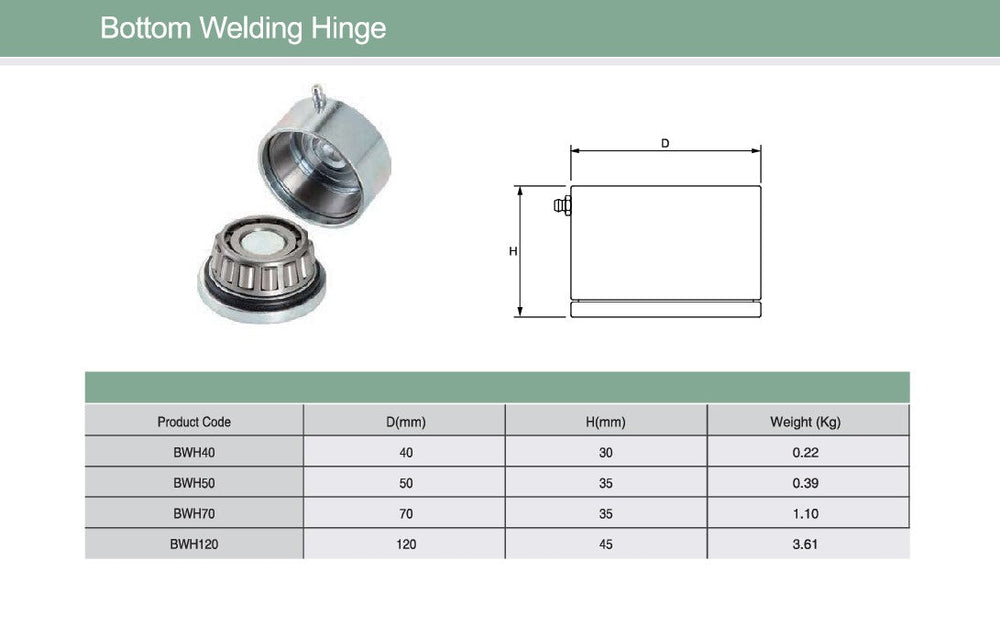

    You Can Download specs and dimensions

    Lower pivot with a diameter of 40 mm TO 120 MM, made of steel, for swing gates, with sealed needle bearings, with a height of 30 mm and a vertical load bearing capacity of 1000 kg.


    • Lower turntable For industrial swing gates.
    • Fixing: weld-on.
    • Diameter: 40 mm TO 120 MM.
    • Height ranges from 30 mm to 40 mm.
    • 90° opening.
    • 1000 kg vertical load take-off.
    • With sealed needle bearing 30203.
    • Material: S235JRG2C steel (A37).
    • Finish: 13.2μm de-chromed.
    • Tested to 0.5 million cycles.
    • Grease the bearing thoroughly during installation.
    • Get AllSpecifications And Dimensions.
    • Minimum Order Quantity for each size: 100
