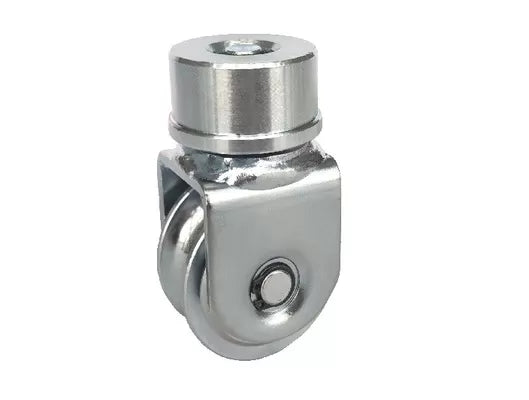

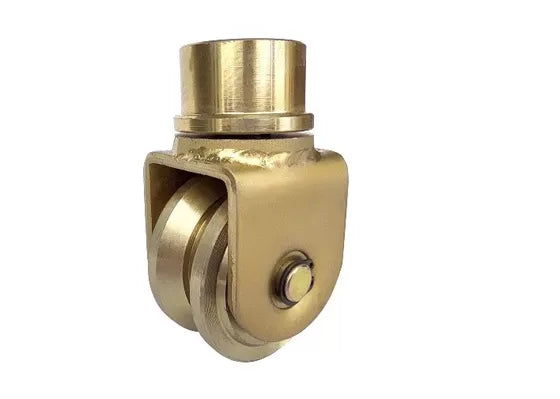

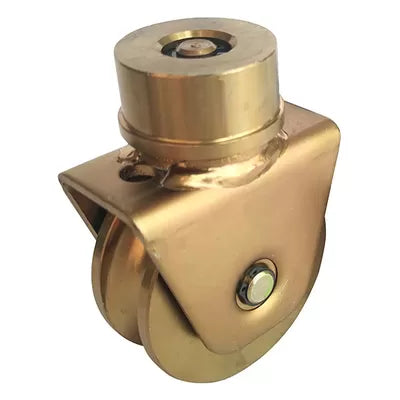

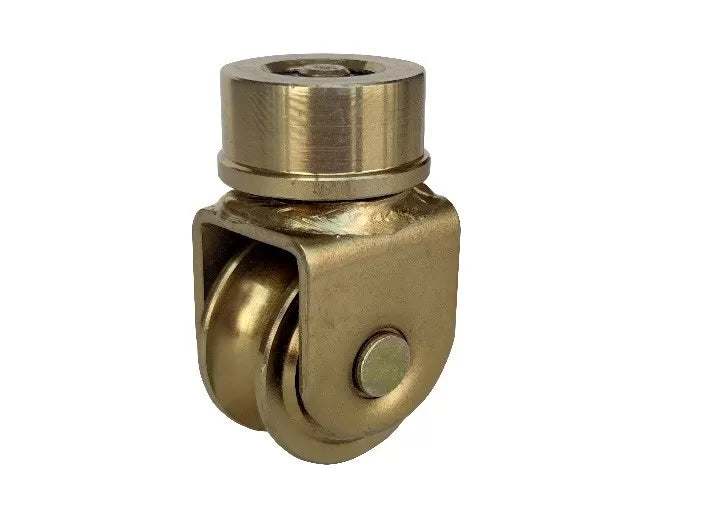

Sliding Gate 360 Degree Wheel | Model # H360U ( Pack of 25 )

Sliding Gate 360 Degree Wheel | Model # H360U ( Pack of 25 )

Regular price $1,250.00
by Taimco
Add to wishlist Add to Compare
Quantity
Quantity
Description Specification Contact

      • Single Bearings or Double Bearing Sliding Gate Wheel.
      • The double bearings have a higher load-bearing capacity than the single bearings.
      • Wheels are galvanized.
      • Galvanized Finishing, Yellow Zinc Finishing, and wheels can be produced as color requested.
      • A semi-circular trough wheel with an external support bracket for rolling along a slide.

    Documents
    You Can Download specs and dimensions for the different channels

    TAIMCO line of durable Sliding gate accessories and hardware, Sliding Gate 360 Degree Wheel with two bearing to drive the gate on a metal rail,  these wheel is Galvanized / zinc plated and mounted with a strong Bolt and bearing.


    • It's made of Q235 steel. The surface is zinc-plated.
    • It's an accessory for the Sliding gates installation kit.
    • We also supply all Sliding wheel styles and types.
    • Grooves Shape U.
    • Normally works with RAIL / Channel Guide Wheel, End Stop, and Channel End Cap.

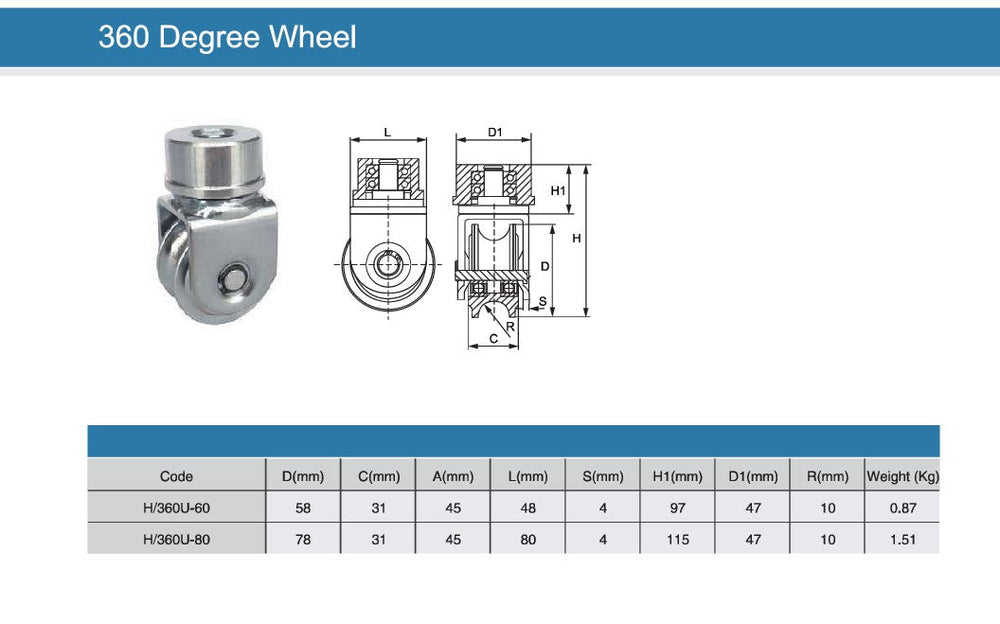

    • Get All Specifications and Dimensions.
    • Minimum Order Quantity for each size: 25
