Sliding Gate Wheel with External Bracket Groove V | Model # HG ( Pack of 25 )

Sliding Gate Wheel with External Bracket Groove V | Model # HG ( Pack of 25 )

Regular price $2,500.00
by Taimco
Add to wishlist Add to Compare
Quantity
Quantity
Description Specification Contact
      • Single Bearings or Double Bearing Sliding Gate Wheel.
      • The double bearings have a higher load-bearing capacity than the single bearings.
      • Wheels are galvanized.
      • Galvanized Finishing, Yellow Zinc Finishing, and wheels can be produced as the color requested.
      • A semi-circular trough wheel with an external support bracket for rolling along a slide.
    Documents

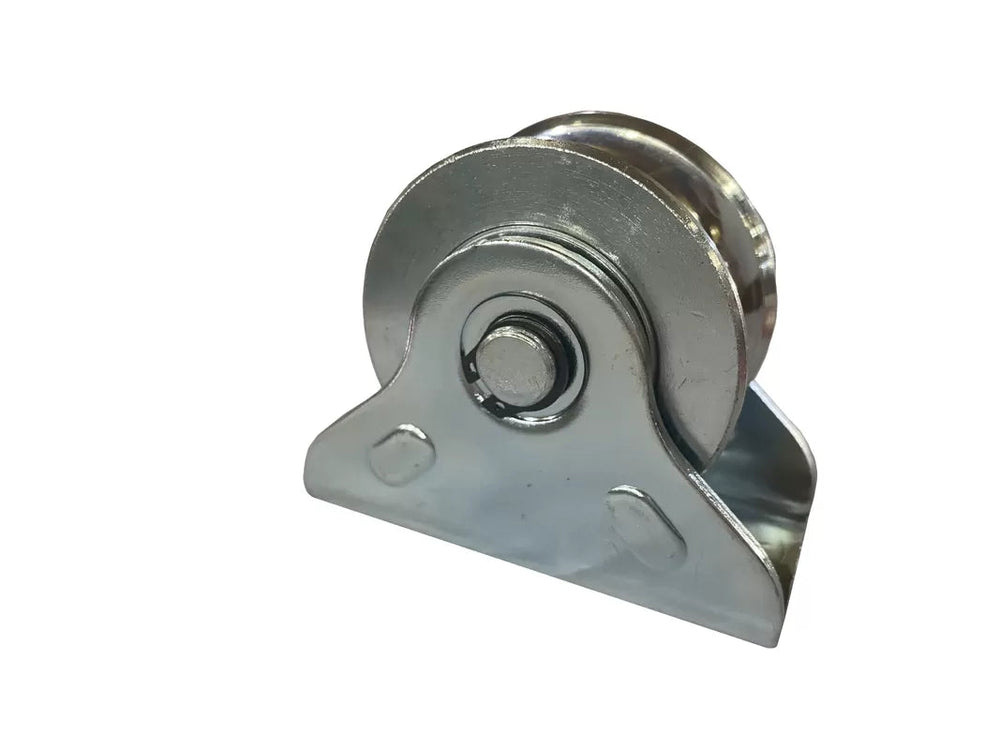

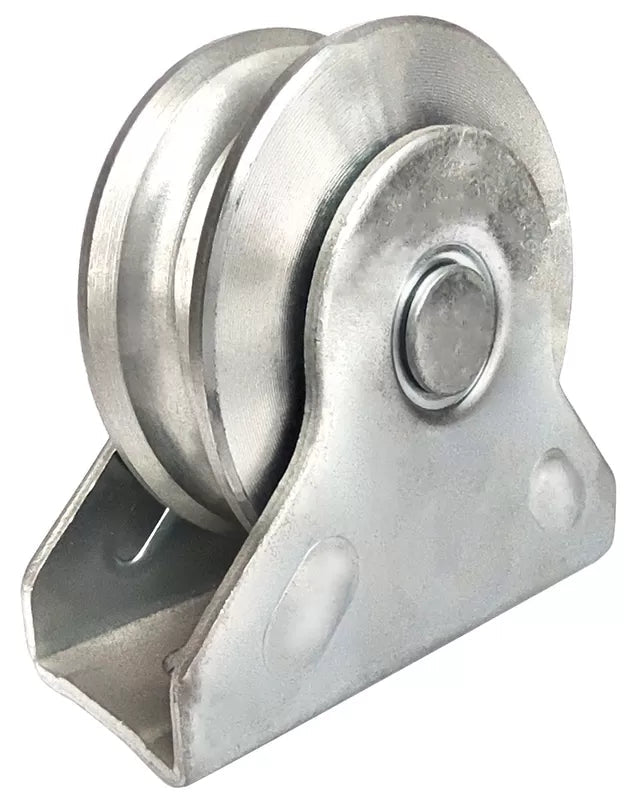

    TAIMCO line of durable Sliding gate accessories and hardware, Sliding Gate Wheel with External Bracket Used to drive the gate on a metal rail,  these wheel is Galvanized / zinc plated and mounted with a strong Bolt and bearing.


      • It's made of Q235 steel. The surface is zinc-plated.
      • It's an accessory for the Sliding gates installation kit.
      • We also supply all Sliding wheel styles and types.
      • Grooves Y, V and U.
      • Normally works with RAIL / Channel Guide Wheel, End Stop, and Channel End Cap.

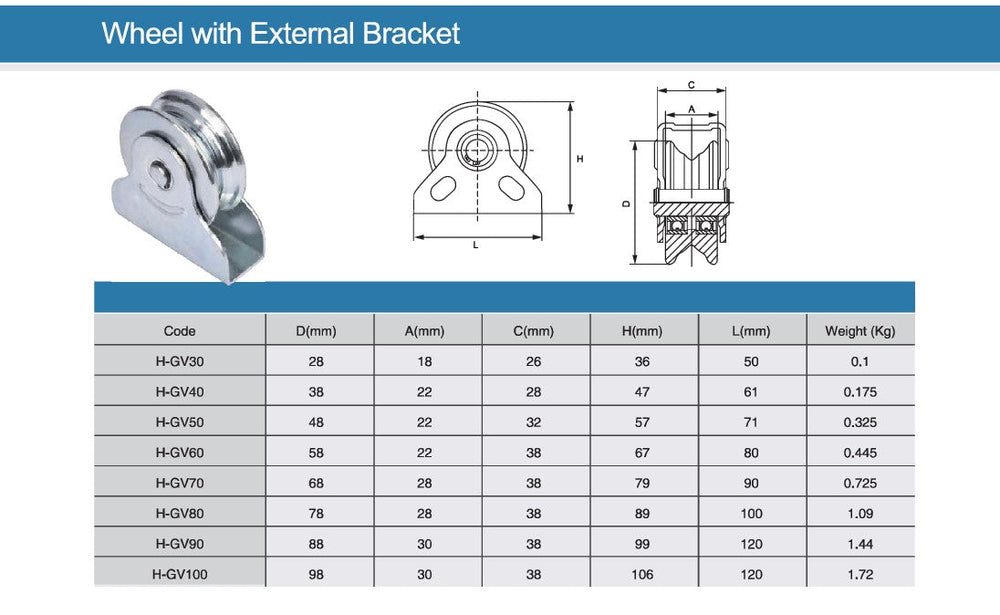

      • Get All Specifications and Dimensions.
      • Minimum Order Quantity for each size: 25
