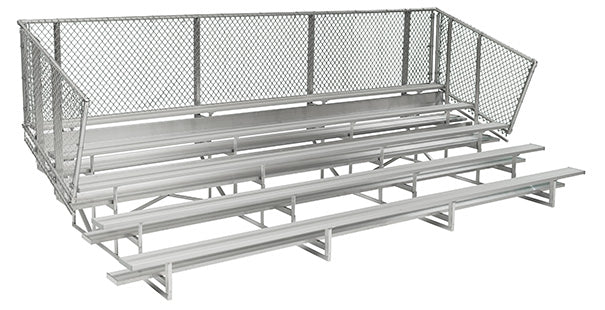

Standard 5 Row Bleachers System - Model BLEC5

Standard 5 Row Bleachers System - Model BLEC5

Regular price $6,320.00
by Taimco
Add to wishlist Add to Compare
Quantity
Quantity
SKU: BLEC5CL
Category:Bleachers

Free Delivery

US & Canada

Description Specification Contact

    Durable and Versatile: Midfielder 5-Row Aluminum Bleachers

    The 5-row Aluminum Bleachers are meticulously engineered for longevity and reliability. Compliant with the International Building Code (IBC), this industrial-grade bleacher system features high-quality anodized aluminum structures, complemented by a sturdy chain-link fence and guardrail.

    These Standard Series bleachers feature aluminum angle frame under structure making them ideal for level sites. Install in-ground, earth anchors or tie-in to a concrete foundation for outdoor use. Perfect for indoor use too!

    Key Features:

    • Seating Configuration: The 5-row aluminum bleacher unit accommodates up to 100 fans, depending on the chosen length.
    • Safety and Accessibility: With double foot planking, navigating the bleachers is safe and effortless.
    • Materials: The structure boasts anodized aluminum components and galvanized chain links, ensuring durability and resistance to environmental factors.
    • Versatility: Whether for indoor or outdoor use, these bleachers adapt seamlessly to various settings.
    • Ground Requirements: Please be aware that these structures are designed for use on hard, flat grounds.

    Length Options: We manufacture 5-row bleachers in the following lengths:


    Length     Seating Capacity      Weight       Dimensions
    15’L 50 714 LB 15’L x 9' D
    21’L 70 940 LB 21’L x 9' D
    24'L 80 1075 LB 24’L x 9' D
    27’L 90 1166 LB 27’L x 9' D
    30'L 100 1380 LB 30’L x 9' D




    1. Bleacher Units: We manufacture bleachers with varying row units, including 2, 3, 4*, 5*, 8*, and 10* rows.
    2. Front Row Seat Height: The front row seats are positioned at a height of 7 inches.
    3. Seat Planks: The seat planks are 2 inches x 10 inches (nominal dimensions).
    4. Length Options: Our bleachers are available in the following lengths: 7.5’, 9’, 12’, 15’, 21’, 24’, 27’, and 30’.
    5. Under Structure: The bleachers feature an aluminum angle frame under the structure for stability.
    6. Footboards:
      • Single Wide: The footboards are 10 inches wide.
      • Double Wide: Rows 4 and above have 20-inch-wide footboards, along with a riser plank.
    7. Guardrails:
      • Models with 4 rows or more come with either a chain-link or picket guardrail.
    8. Material Details:
      • The footboards are made from 6061-T6 aluminum alloy, known for its high strength-to-weight ratio.
      • The walking surface has a standard mill finish.
      • The aluminum welds are chemically cleaned.
      • Galvanized hardware ensures durability without rusting, unlike zinc-plated hardware.


    Not Included:

    • Shop drawings (sold separately).
    • Anchor kits (sold separately).
