Swing Gate Hinge With Long Bolt | Model # EHU ( Pack of 100 )

Regular price $1,450.00
Quantity
Quantity
SKU: EHU
Category:Gates & Doors, Swinging Door Accessories

Free Delivery

US & Canada

*Additional handling charges may apply*

Description Shipping & Handling Contact
      • Gond For industrial swing gates.
      • Fixing: weld-on.
      • Adjustment between 135 and 138 mm.
      • Thread diameter of 16 mm to 24 mm.
      • Open to 90 Degrees.
      • Material: S235JRG2C steel (A37).
      • Finish: 13.2μm dichlone.
      • Tested to 1.5 million cycles.
      • Check operating clearances every 6 months.
      • Get All Specifications And Dimensions.
      • Minimum Order Quantity for each size: 100

    Documents

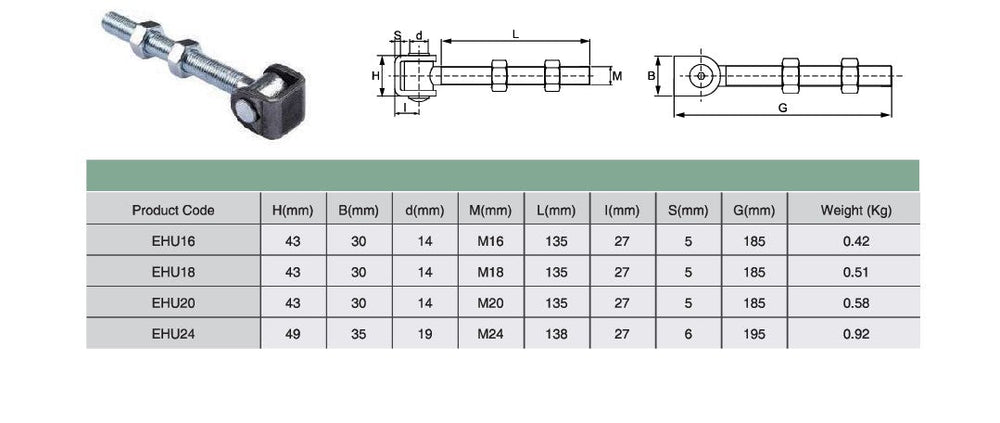

    You Can Download specs and dimensions

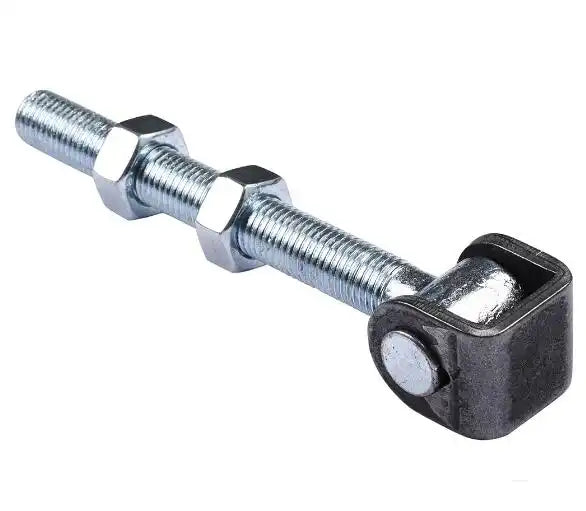

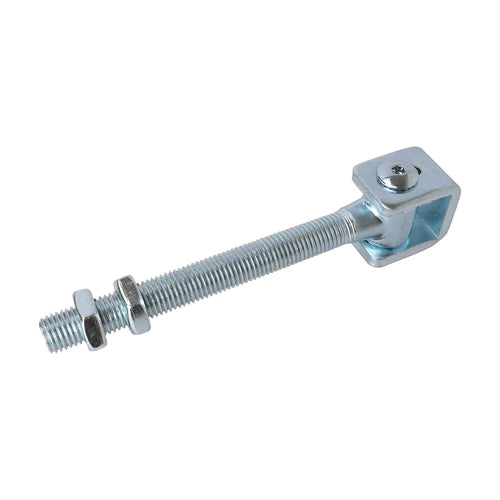

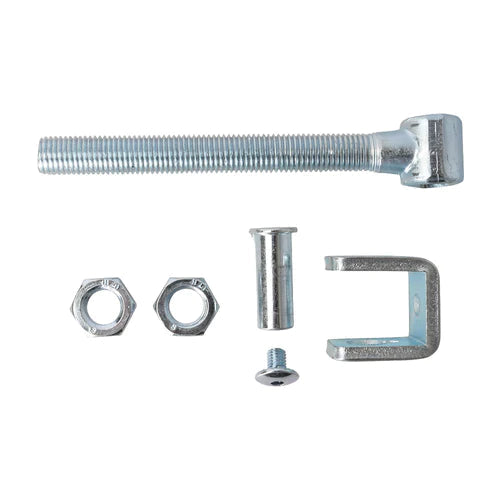

    Adjustable hinge with Long Bolt, made of steel, industrial type for swing gates offering an adjustment possibility between 135 and 138 mm and a load bearing capacity of 220 kg per hinge. M16, 18, 20,  and 24 threaded bar. This hinge allows the gate to be opened at 90°



    • Gond For industrial swing gates.
    • Fixing: weld-on.
    • Adjustment between 135 and 138 mm.
    • Thread diameter of 18 mm to 24 mm.
    • Open to 90 Degrees.
    • Material: S235JRG2C steel (A37).
    • Finish: 13.2μm dichlone.
    • Tested to 1.5 million cycles.
    • Check operating clearances every 6 months.
    • Minimum Order Quantity for each size: 100
