Swing Gate Hinge With Square Mounting Plate | Model # EHS ( Pack of 100 )

Regular price $583.00
Quantity
Quantity

Free Delivery

US & Canada

*Additional handling charges may apply*

Description Shipping & Handling Contact
      • Gond For industrial swing gates.
      • Fixing: weld-on.
      • Adjustment between 14 and 19 mm.
      • Thread diameter of 18 mm to 24 mm.
      • Open to 90 Degrees.
      • Material: S235JRG2C steel (A37).
      • Finish: 13.2μm dichlone.
      • Tested to 1.5 million cycles.
      • Check operating clearances every 6 months.

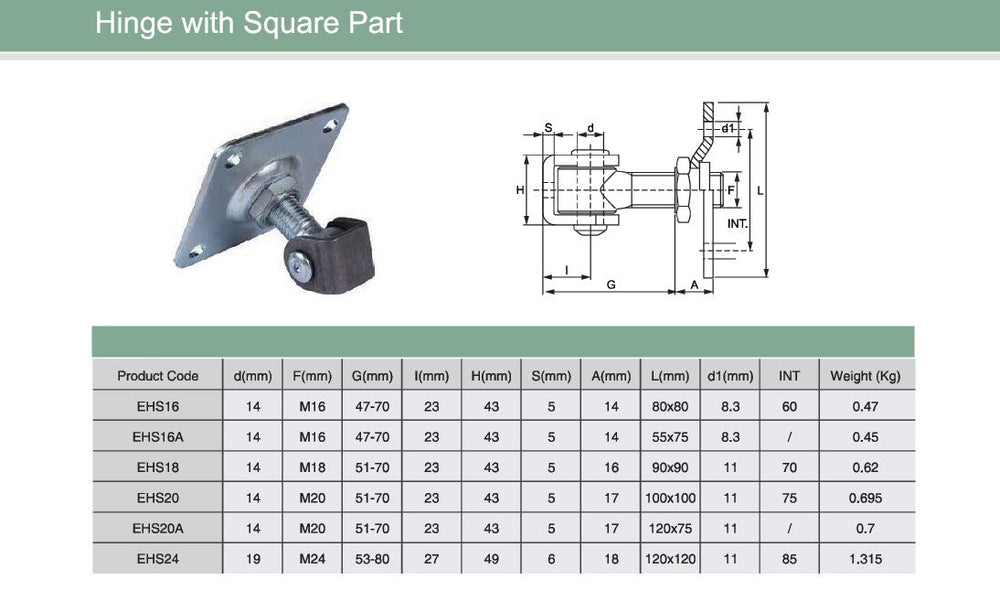

      • Get All specifications and Dimensions.
      • Minimum Order Quantity for each size : 100

    Documents
    You Can Download specs and dimensions

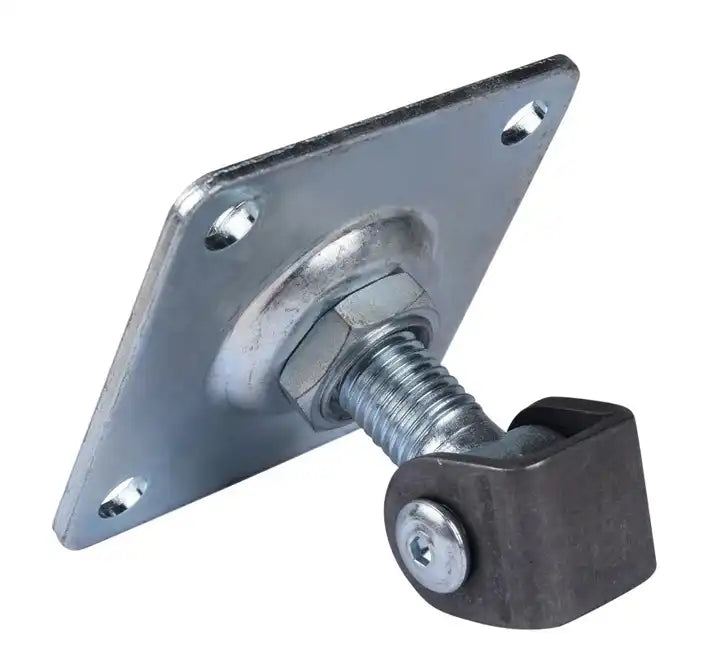

    Adjustable hinge with plate, made of steel, industrial type for swing gates offering an adjustment possibility between 14 and 19 mm and a load bearing capacity of 210 kg per hinge. M16, 18, 20 and 24 threaded bar. This hinge allows the gate to be opened at 90°



      • Gond For industrial swing gates.
      • Fixing: weld-on.
      • Adjustment between 14 and 19 mm.
      • Thread diameter of 18 mm to 24 mm.
      • Open to 90 Degrees.
      • Material: S235JRG2C steel (A37).
      • Finish: 13.2μm dichlone.
      • Tested to 1.5 million cycles.
      • Check operating clearances every 6 months.
      • Get All Specifications And Dimensions.
      • Minimum Order Quantity for each size: 100
