Swing Gate Rotating Hinge With Tube | Model # EHT ( Pack of 100 )

Swing Gate Rotating Hinge With Tube | Model # EHT ( Pack of 100 )

Regular price $650.00
by Taimco
Add to wishlist Add to Compare
Quantity
Quantity
Description Specification Contact
      • Gond For industrial swing gates.
      • Fixing: weld-on.
      • Adjustment between 45 and 80 mm.
      • Thread diameter of 18 mm to 28 mm.
      • Open to 90 Degrees.
      • Material: S235JRG2C steel (A37).
      • Finish: 13.2μm dichlone.
      • Tested to 1.5 million cycles.
      • Check operating clearances every 6 months.
      • Get All Specifications And Dimensions.
      • Minimum Order Quantity for each size: 100

    Documents

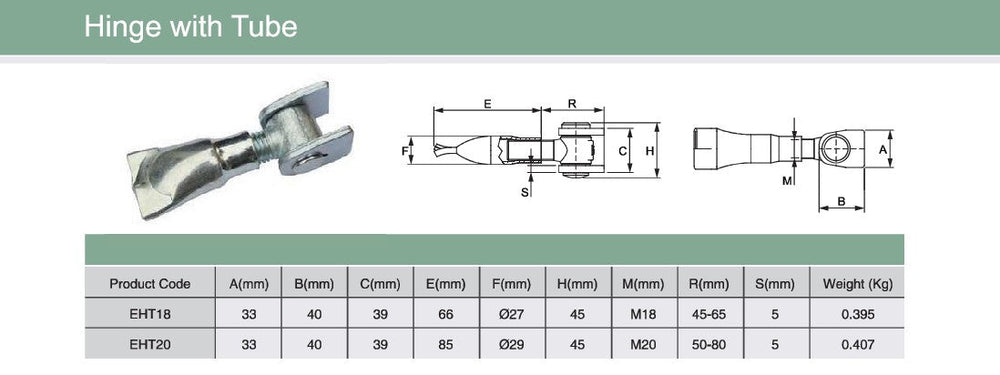

    You Can Download specs and dimensions

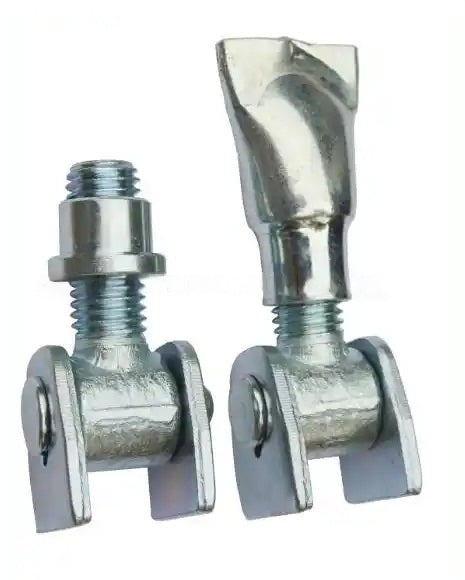

    Adjustable hinge with a tube, made of steel, industrial type for swing gates offering an adjustment possibility between 14 and 19 mm and a load bearing capacity of 180 kg per hinge. M16, 18, 20, and 24 threaded bars. This hinge allows the gate to be opened at 90°


      • Gond For industrial swing gates.
      • Fixing: weld-on.
      • Adjustment between 14 and 19 mm.
      • Thread diameter of 18 mm to 24 mm.
      • Open to 90 Degrees.
      • Material: S235JRG2C steel (A37).
      • Finish: 13.2μm dichlone.
      • Tested to 1.5 million cycles.
      • Check operating clearances every 6 months.
      • Get All Specifications And Dimensions.
      • Minimum Order Quantity for each size: 100
