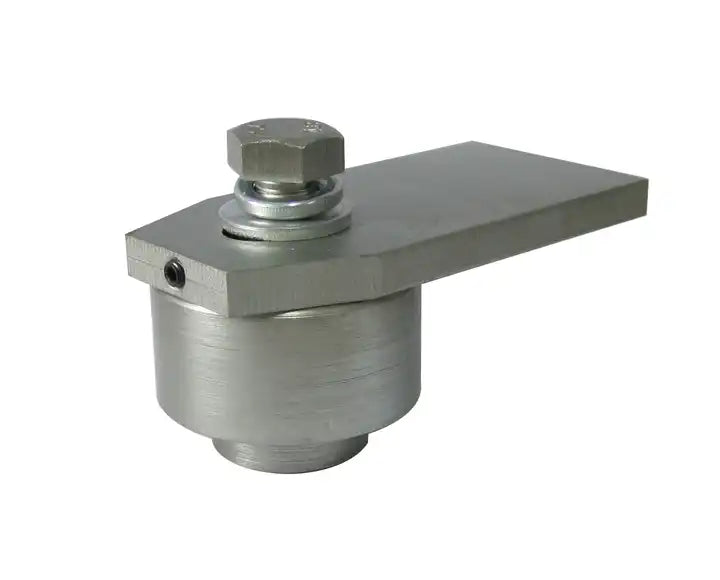

Top Welding Hinge Tunable  | Model # TWH ( Pack of 100 )

Top Welding Hinge Tunable | Model # TWH ( Pack of 100 )

Regular price $1,667.00
by Taimco
Add to wishlist Add to Compare
Quantity
Quantity
Description Specification Contact
      • Upper turntable For industrial swing gates.
      • weld-on Plate length range of length 80 mm to 250 mm.
      • Diameter range sizes are 25 mm to 45 mm.
      • Adjustment from 48 to 60 mm.
      • 90° opening.
      • 450 kg side load.
      • With sealed ball bearing 6203 2 RS.
      • Material: S235JRG2C steel (A37).
      • Finish: 13.2μm de-chromed.
      • Tested to 1 million cycles.
      • Check the running games every 6 months.

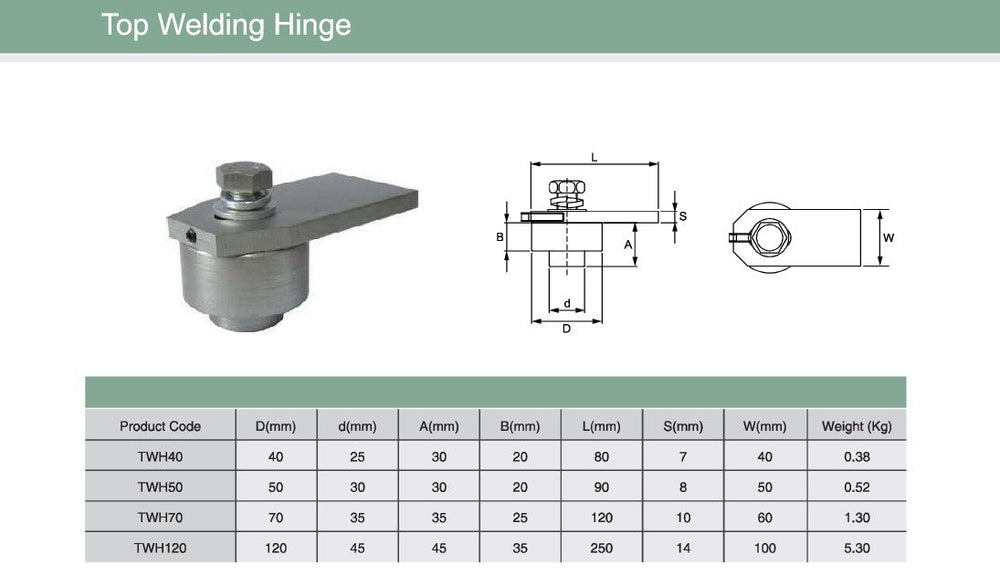

      • Get All Specifications And Dimensions.
      • Minimum Order Quantity for each size: 100

    Documents
    You Can Download specs and dimensions

    Details and Specs.



    Upper pivot with Range of sizes of diameters 25 mm to 45 mm, made of steel, for swing gates, with sealed ball bearings. Mounted with a weld plate,  Adjustable between 48 and 60 mm. Side load capacity of 450 kg.


      • Upper turntable For industrial swing gates.
      • weld-on Plate length range of length 80 mm to 250 mm.
      • Diameter range sizes are 25 mm to 45 mm.
      • Adjustment from 48 to 60 mm.
      • 90° opening.
      • 450 kg side load.
      • With sealed ball bearing 6203 2 RS.
      • Material: S235JRG2C steel (A37).
      • Finish: 13.2μm de-chromed.
      • Tested to 1 million cycles.
      • Check the running games every 6 months
      • Get All Specifications And Dimensions.
      • Minimum Order Quantity for each size: 100
