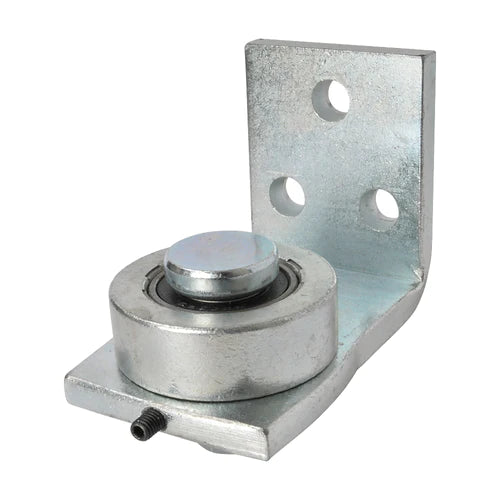

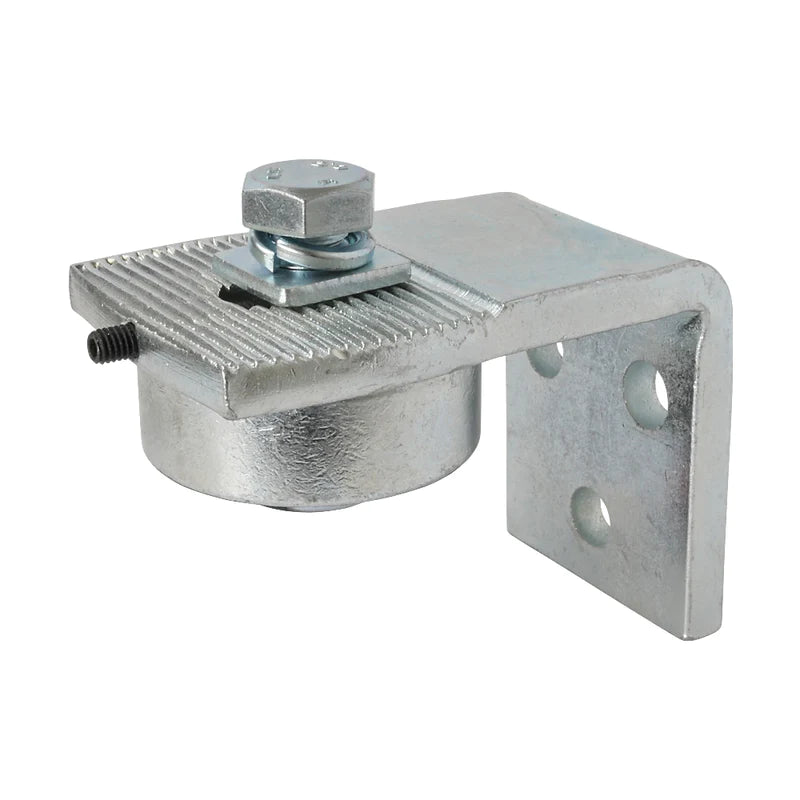

Top Welding Hinge Tunable with L Shape Steel Bracket | Model # TWHL ( Pack of 100 )
Free Delivery
US & Canada
*Additional handling charges may apply*
- Upper turntable For industrial swing gates.
- weld-on Plate length range of length 80 mm to 250 mm.
- Diameter range sizes are 25 mm to 45 mm.
- Adjustment from 48 to 60 mm.
- 90° opening.
- 450 kg side load.
- With sealed ball bearing 6203 2 RS.
- Material: S235JRG2C steel (A37).
- Finish: 13.2μm de-chromed.
- Tested to 1 million cycles.
- Check the running games every 6 months.
- Get All Specifications And Dimensions.
- Minimum Order Quantity for each size: 100
- Upper turntable For industrial swing gates.
- weld-on Angel Plate.
- Diameter range sizes are 50 mm to 70 mm.
- Adjustment from 48 to 60 mm.
- 90° opening.
- 550 kg side load.
- With sealed ball bearing 6203 2 RS.
- Material: S235JRG2C steel (A37).
- Finish: 13.2μm de-chromed.
- Tested to 1 million cycles.
- Check the running games every 6 months
- Get All Specifications And Dimensions.
- Minimum Order Quantity for each size: 100
Documents

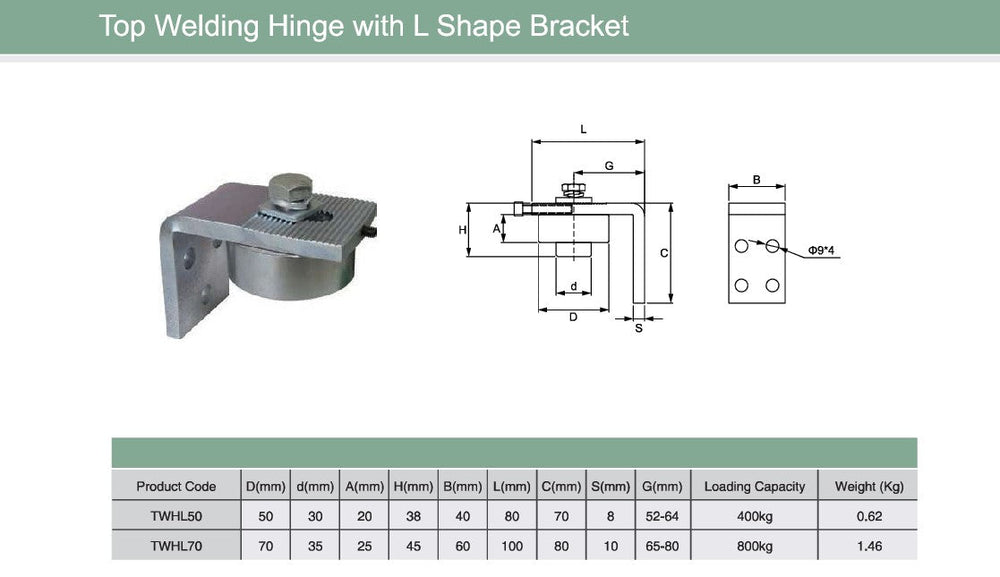

Details and Specs.
Upper pivot with Range of sizes of diameters 50 mm to 70 mm, made of steel, for swing gates, with sealed ball bearings. Mounted with a weld plate, Adjustable between 48 and 60 mm. Side load capacity of 550 kg.
