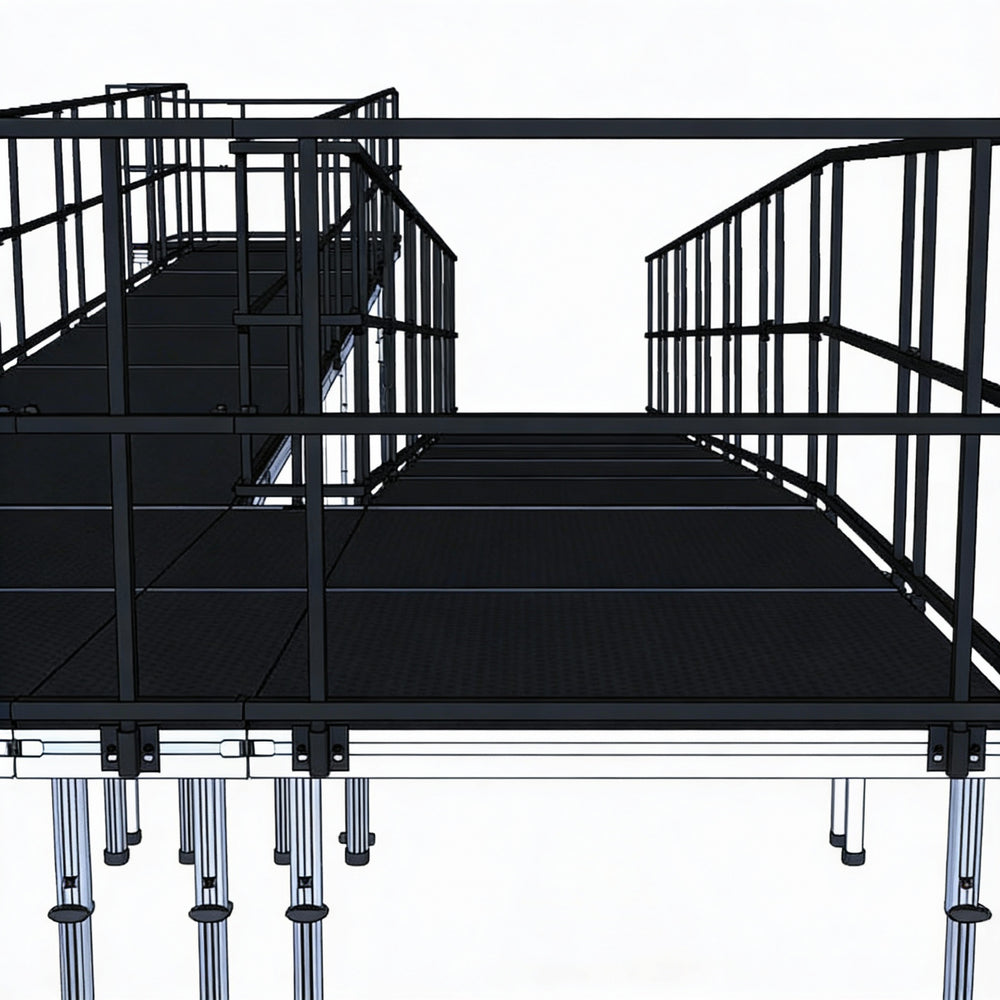

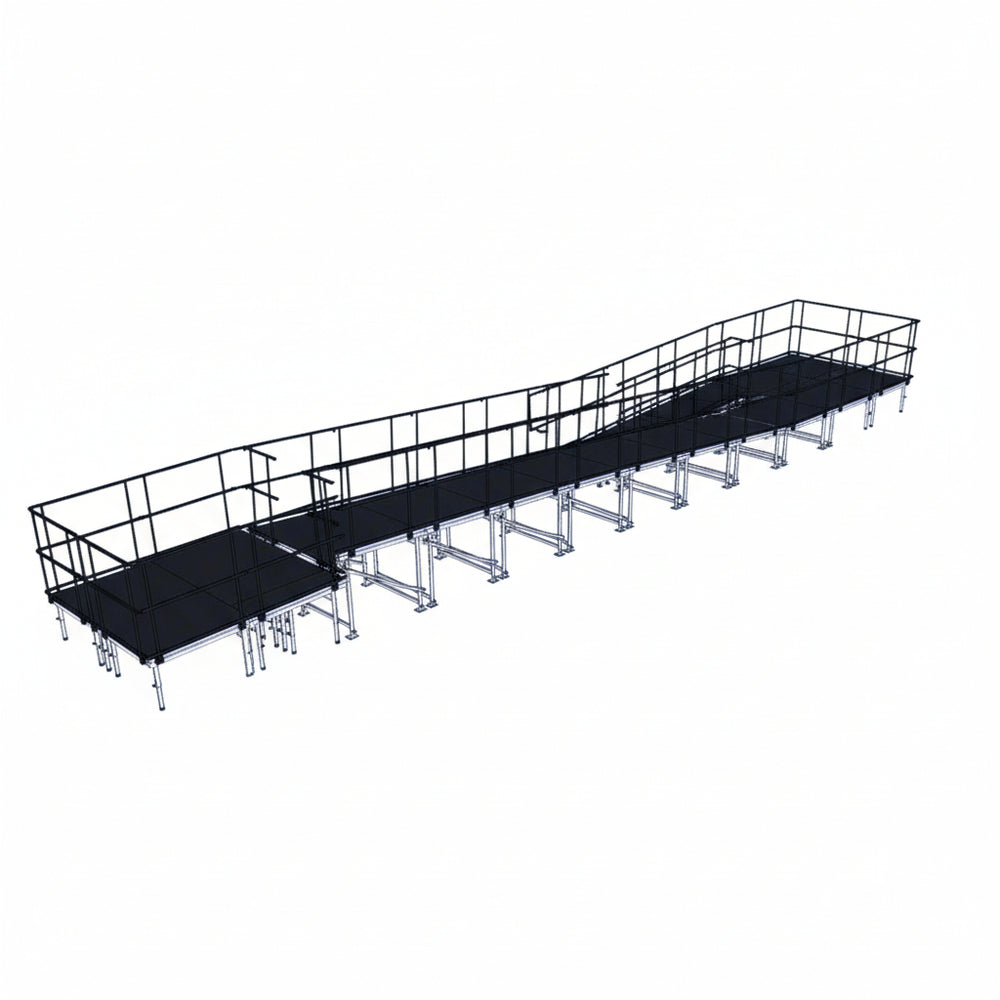

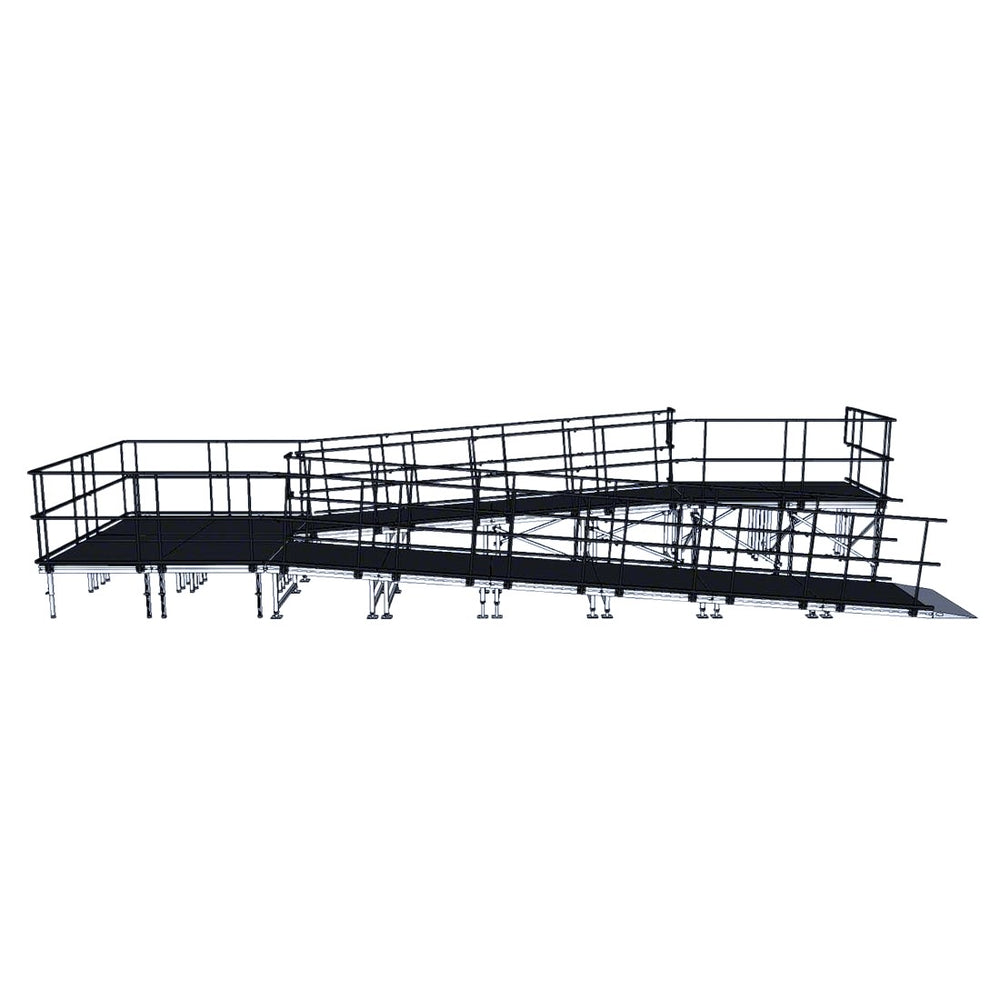

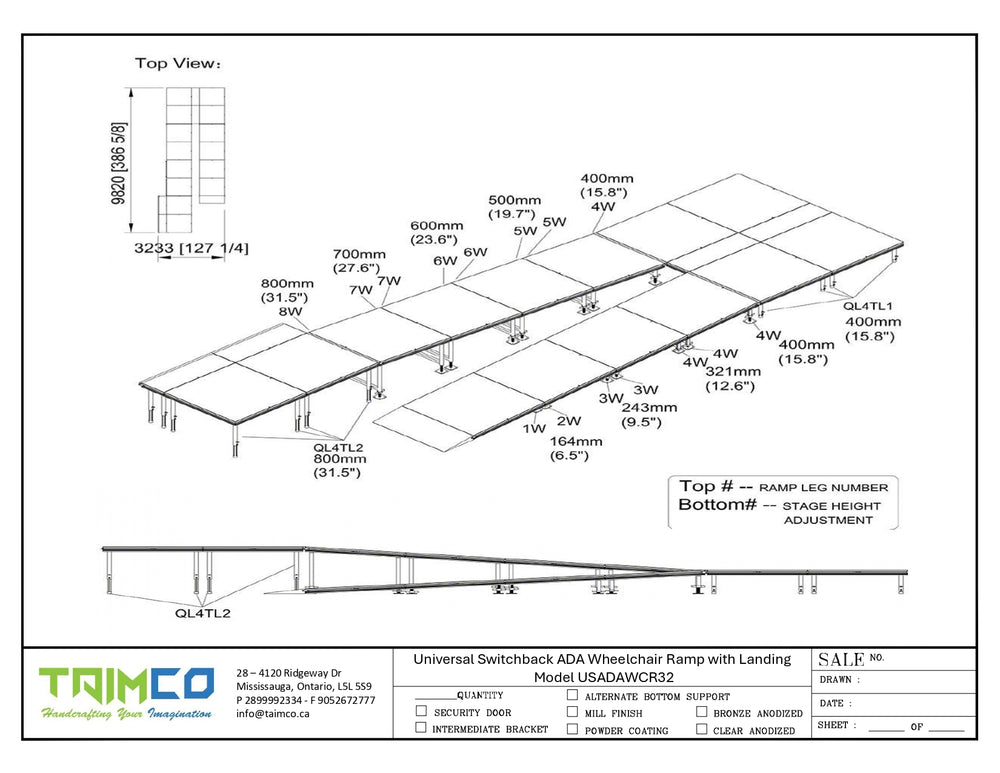

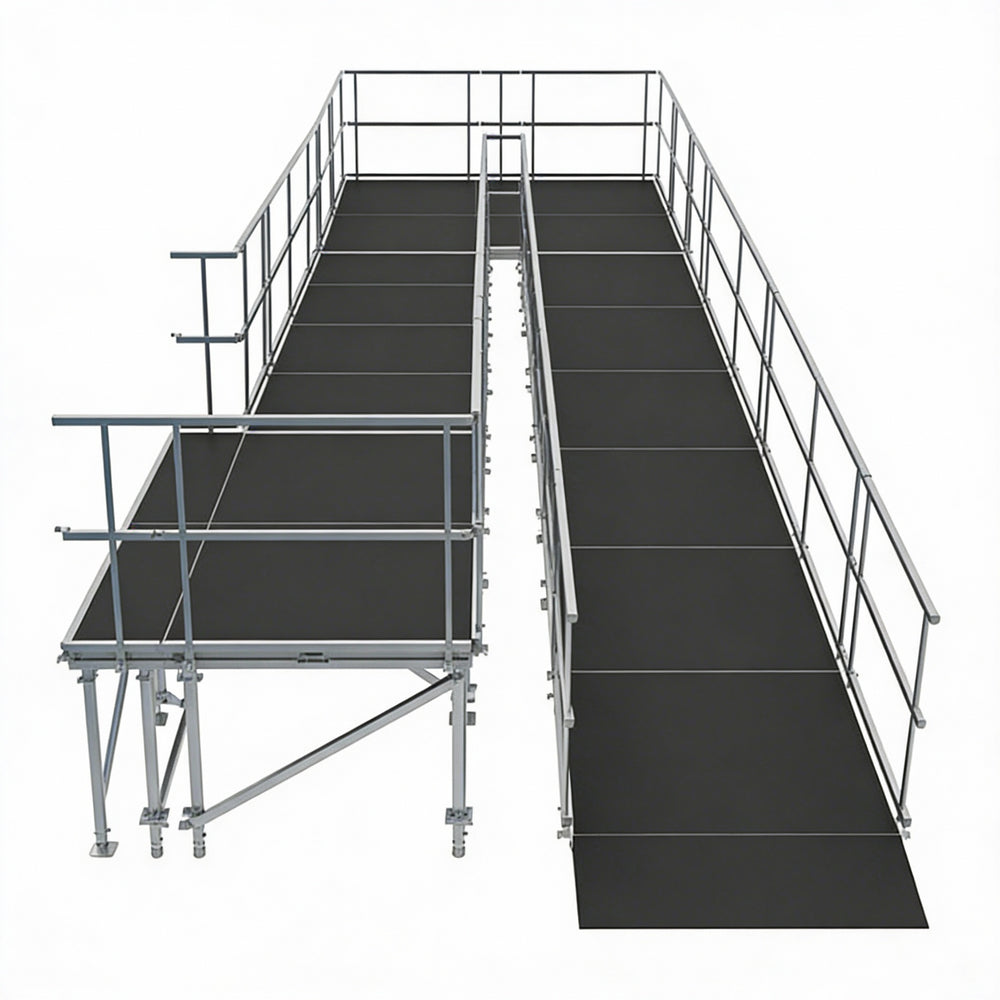

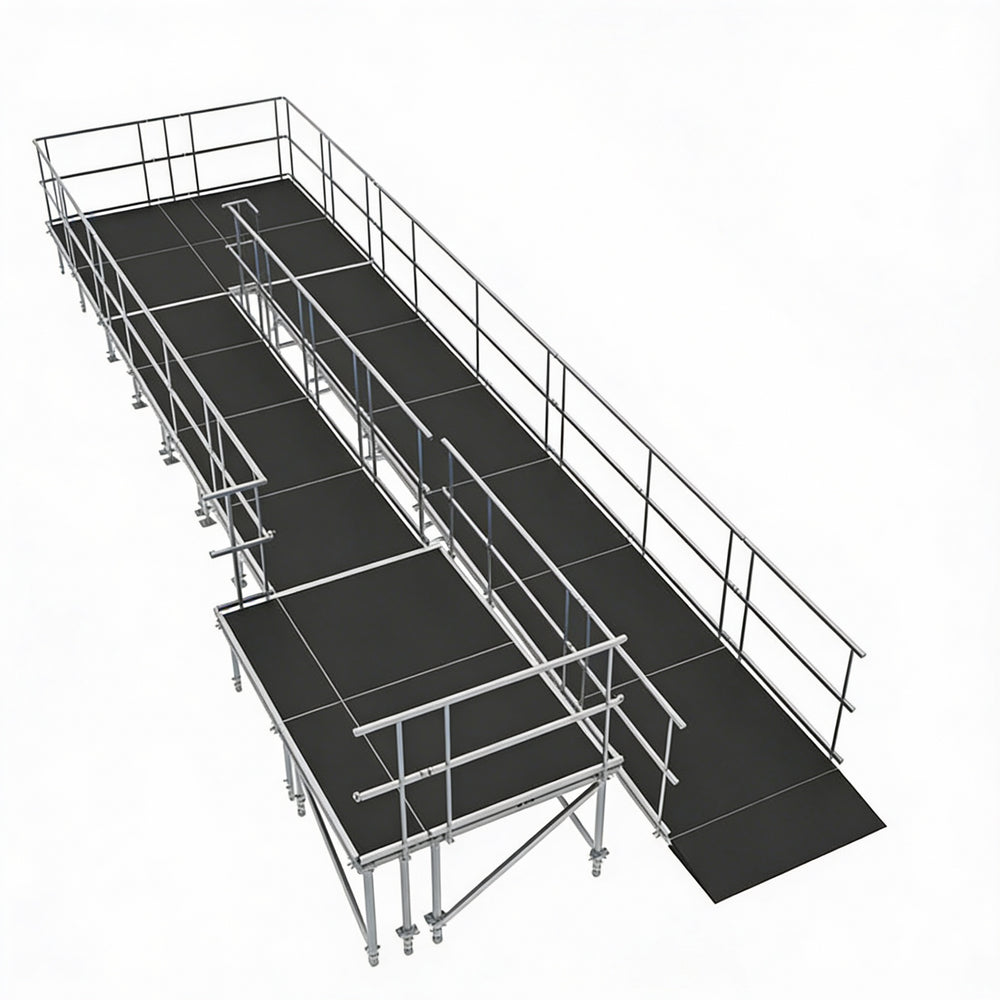

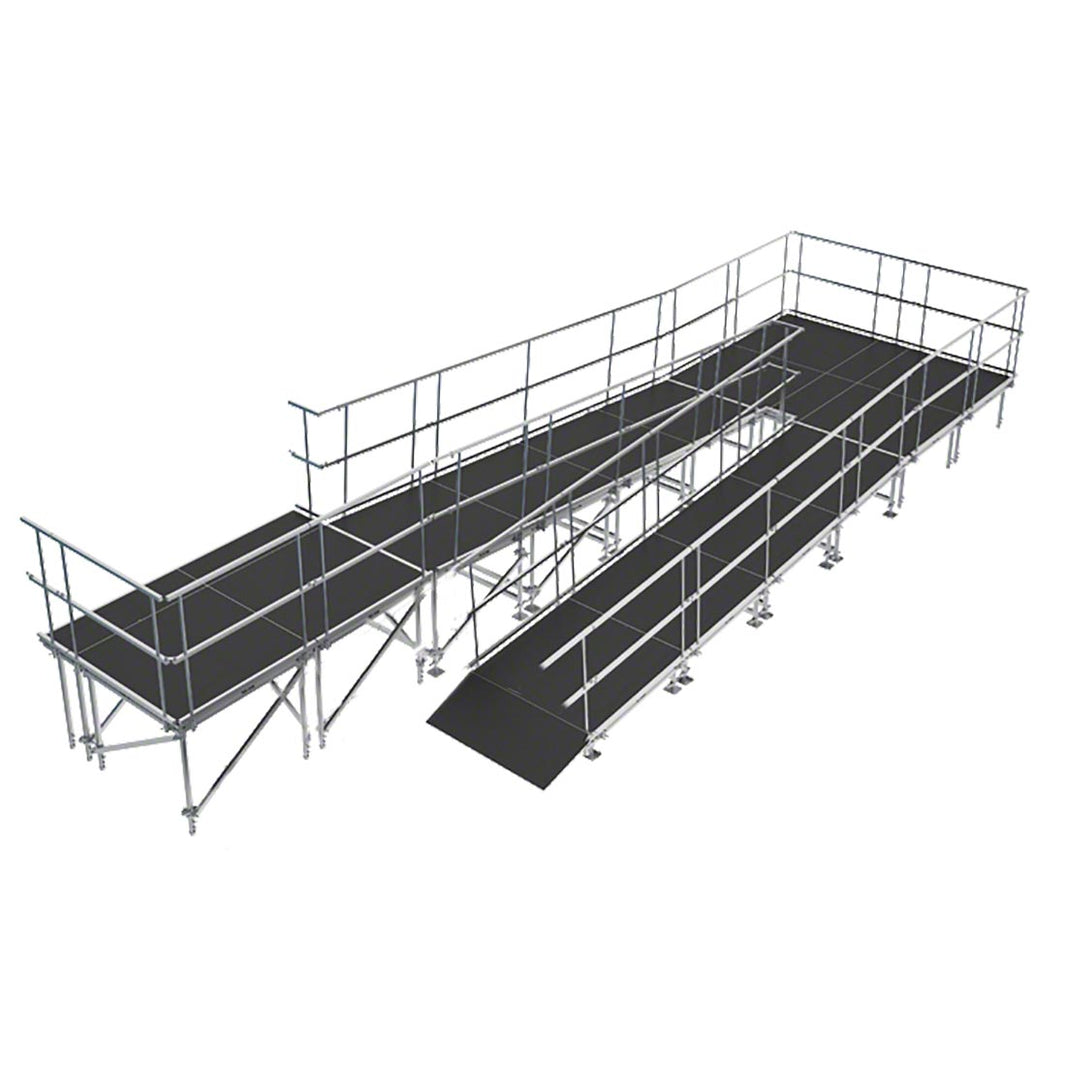

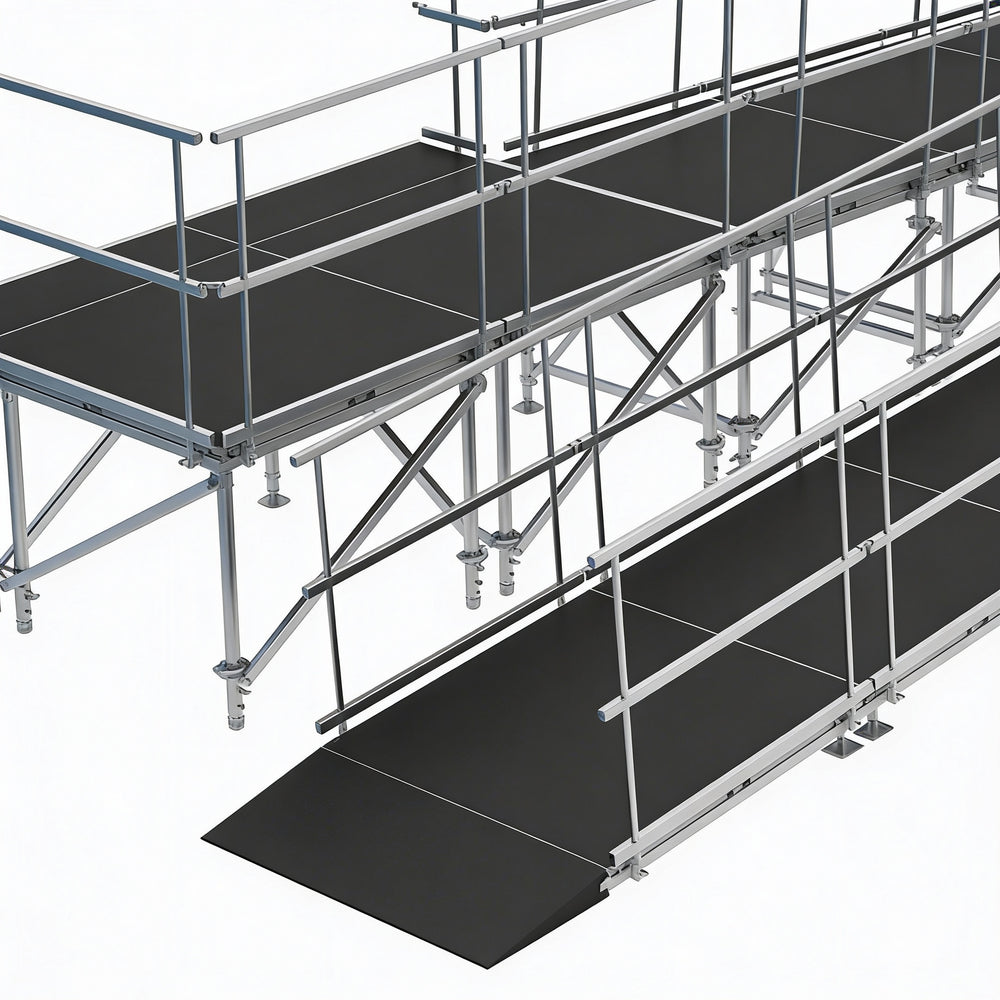

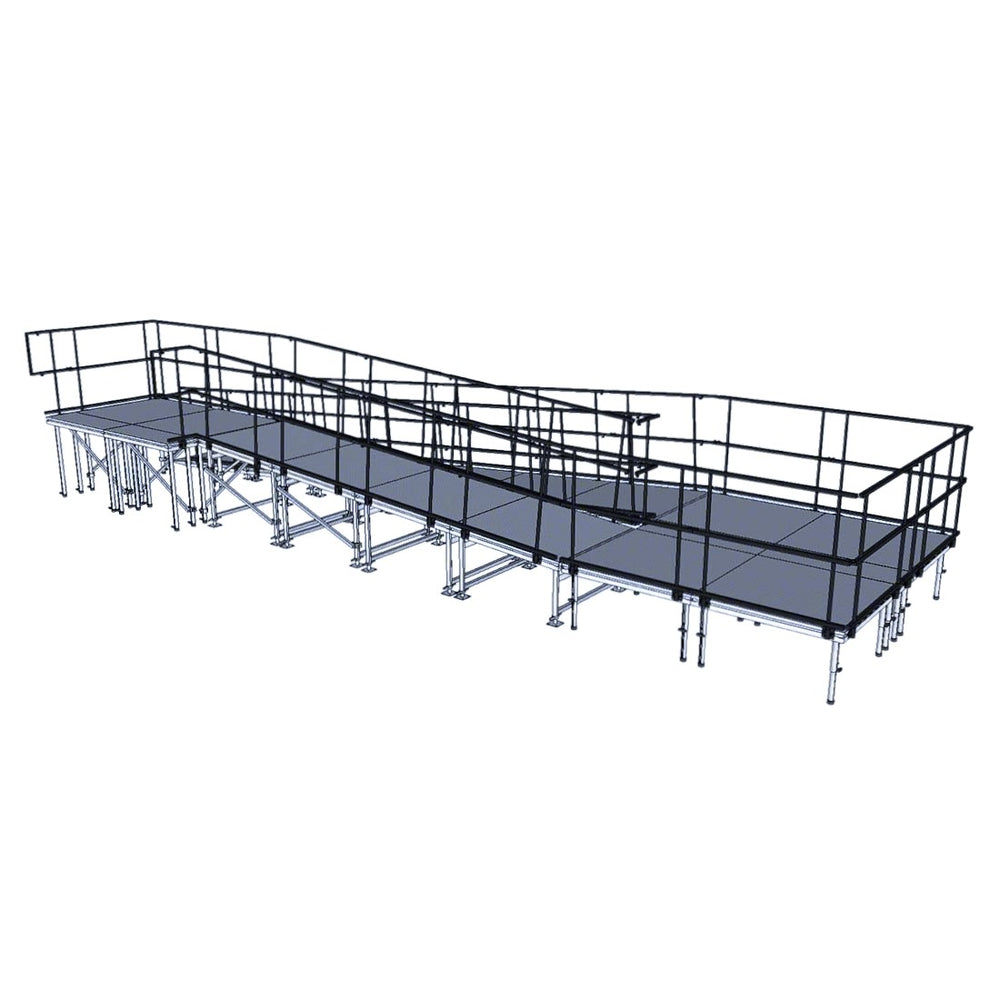

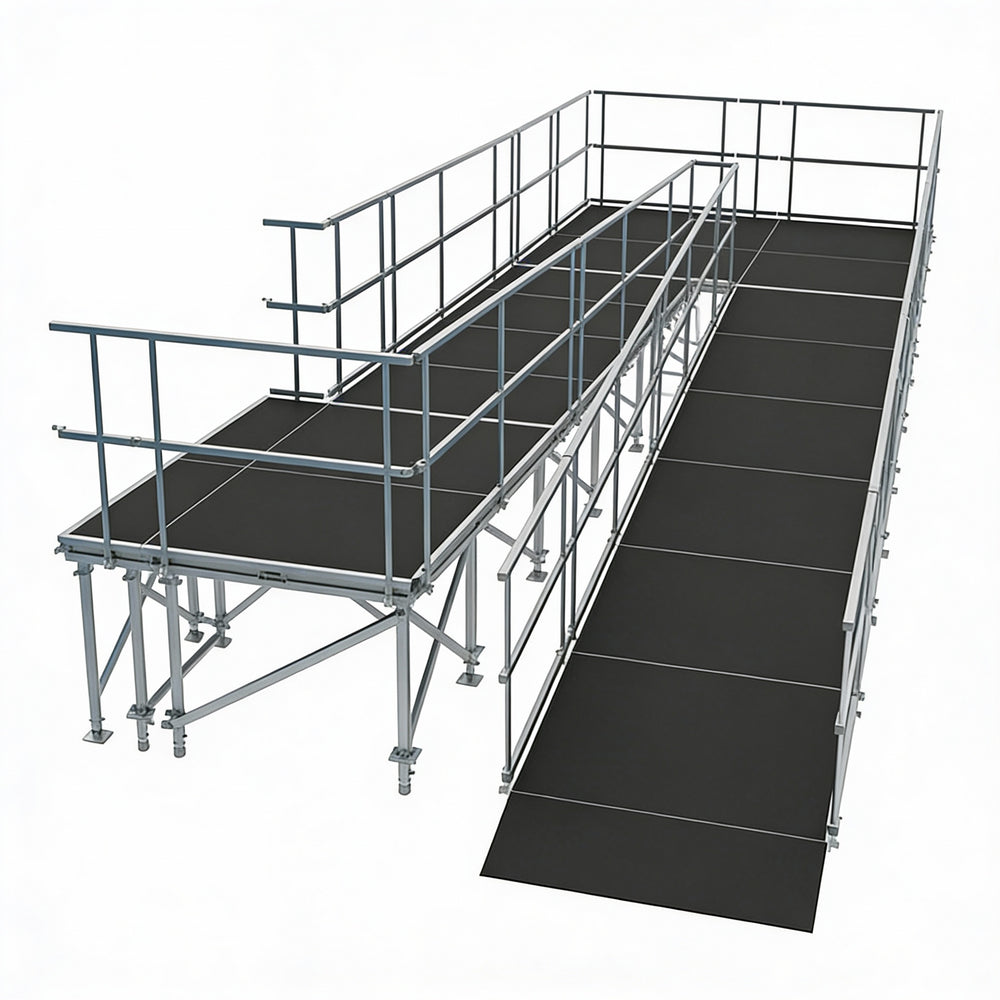

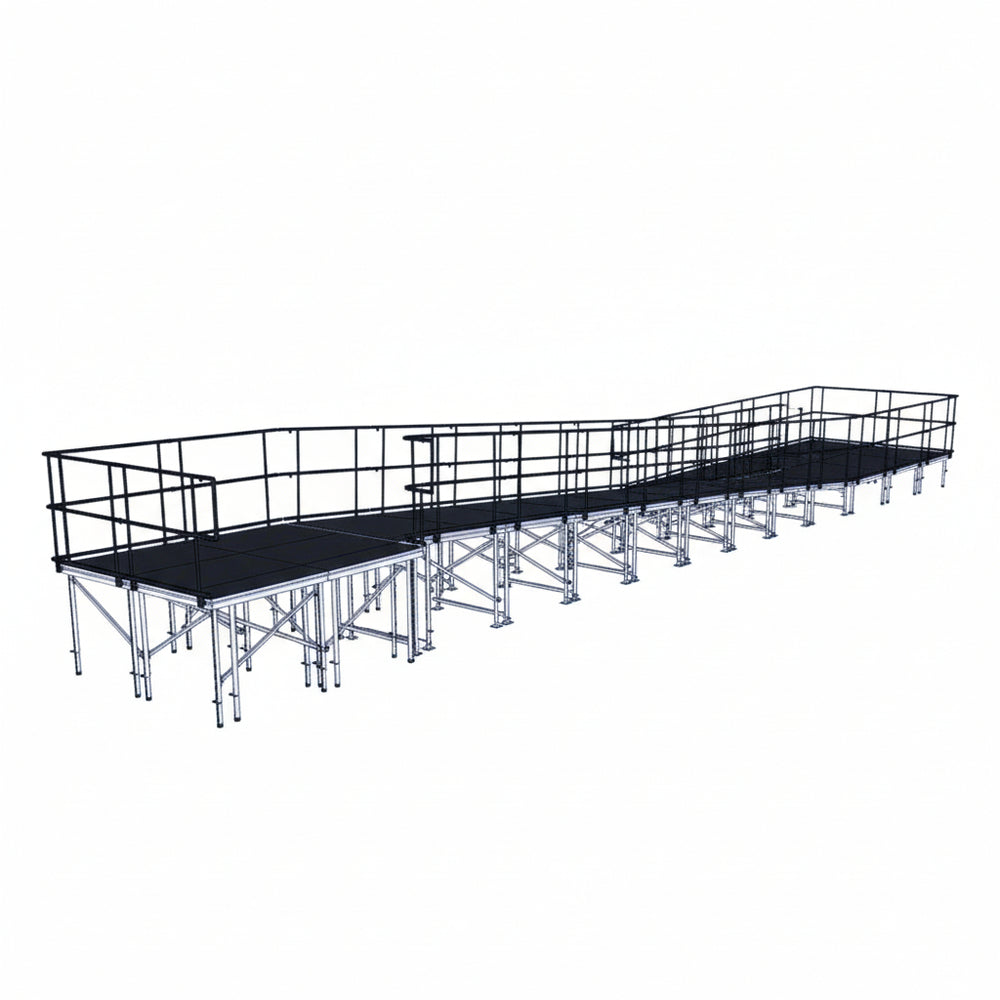

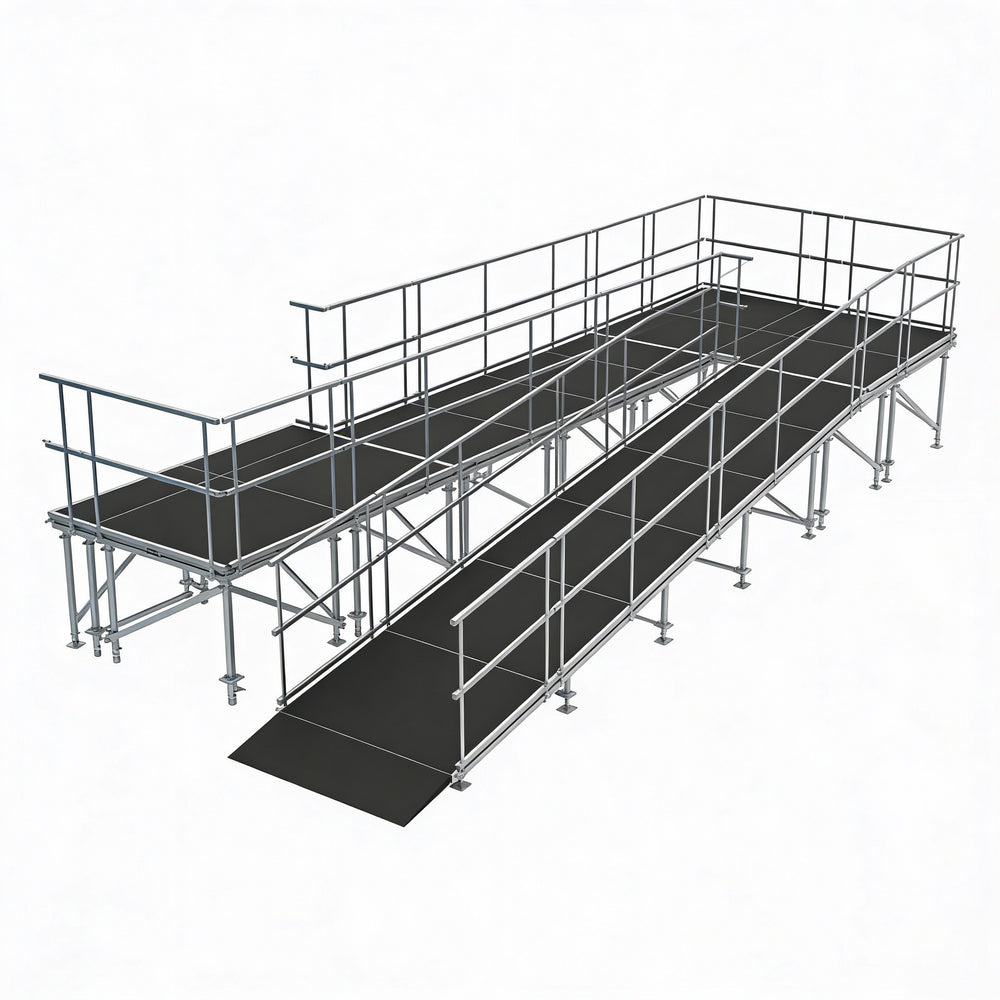

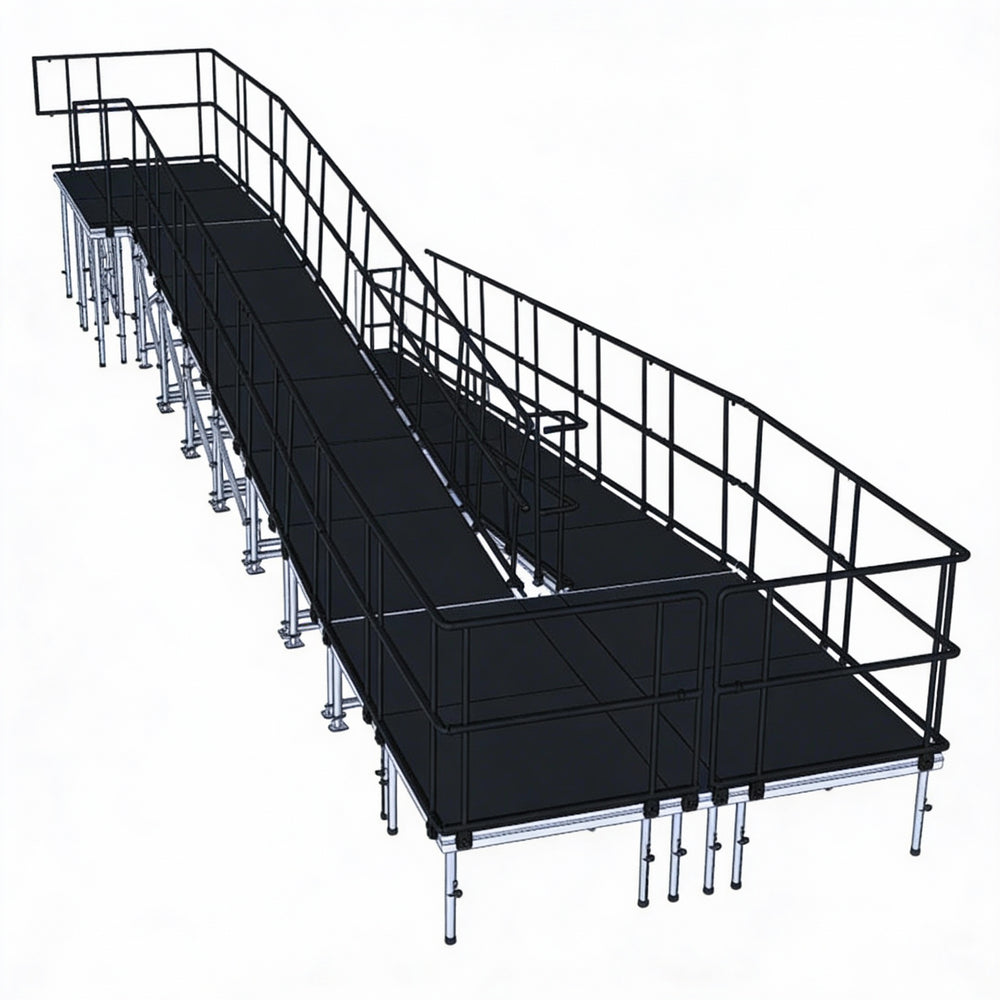

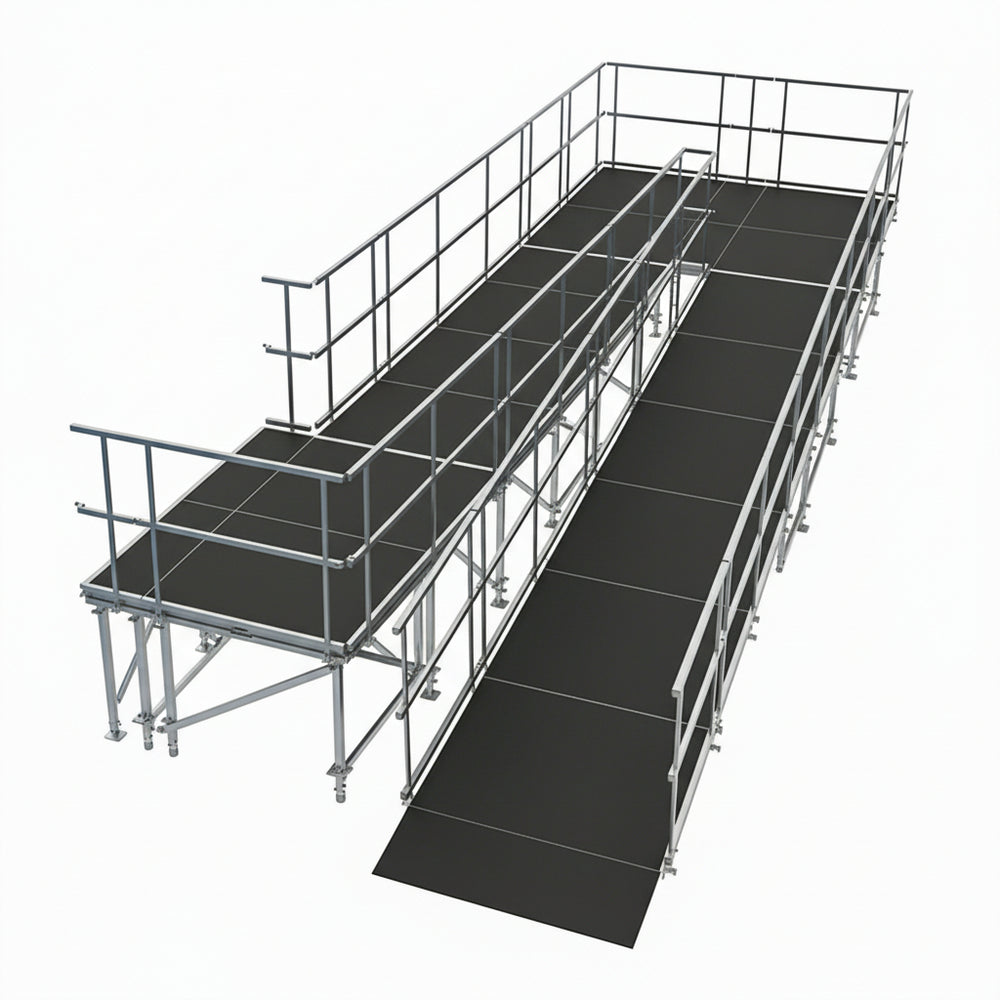

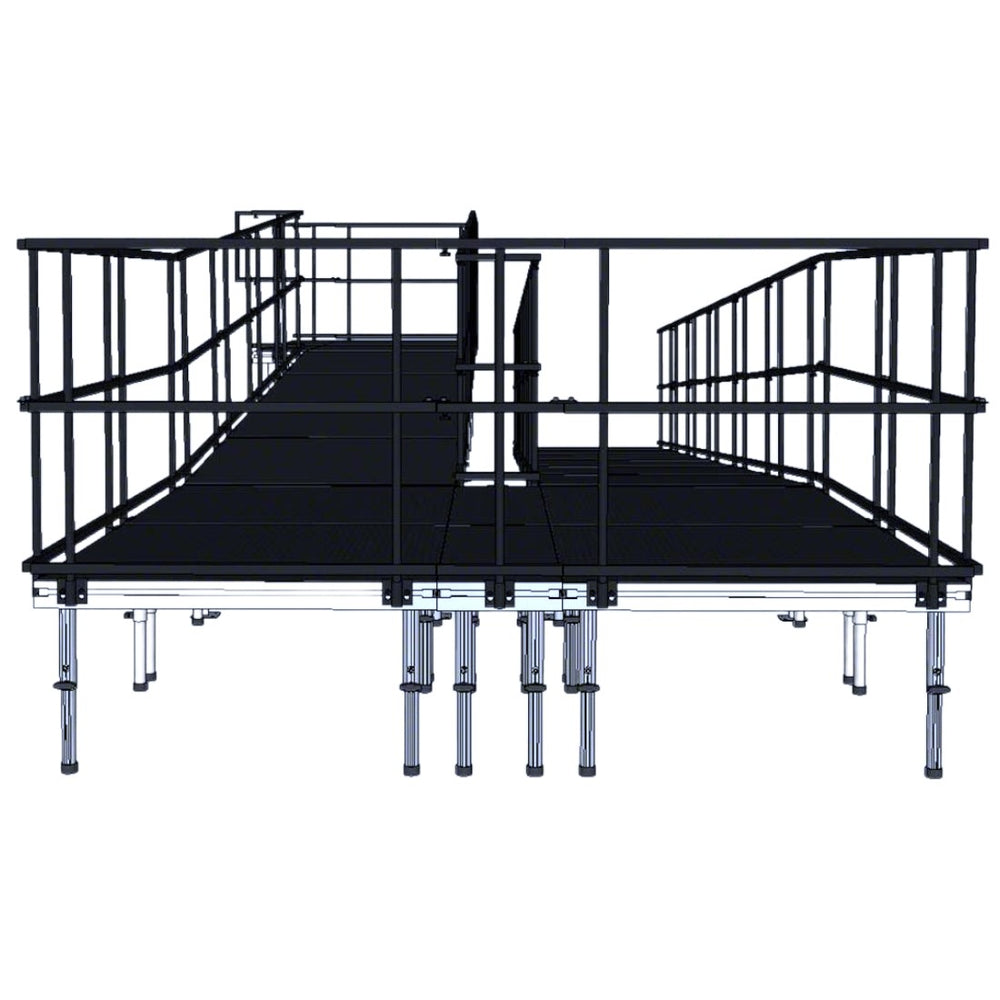

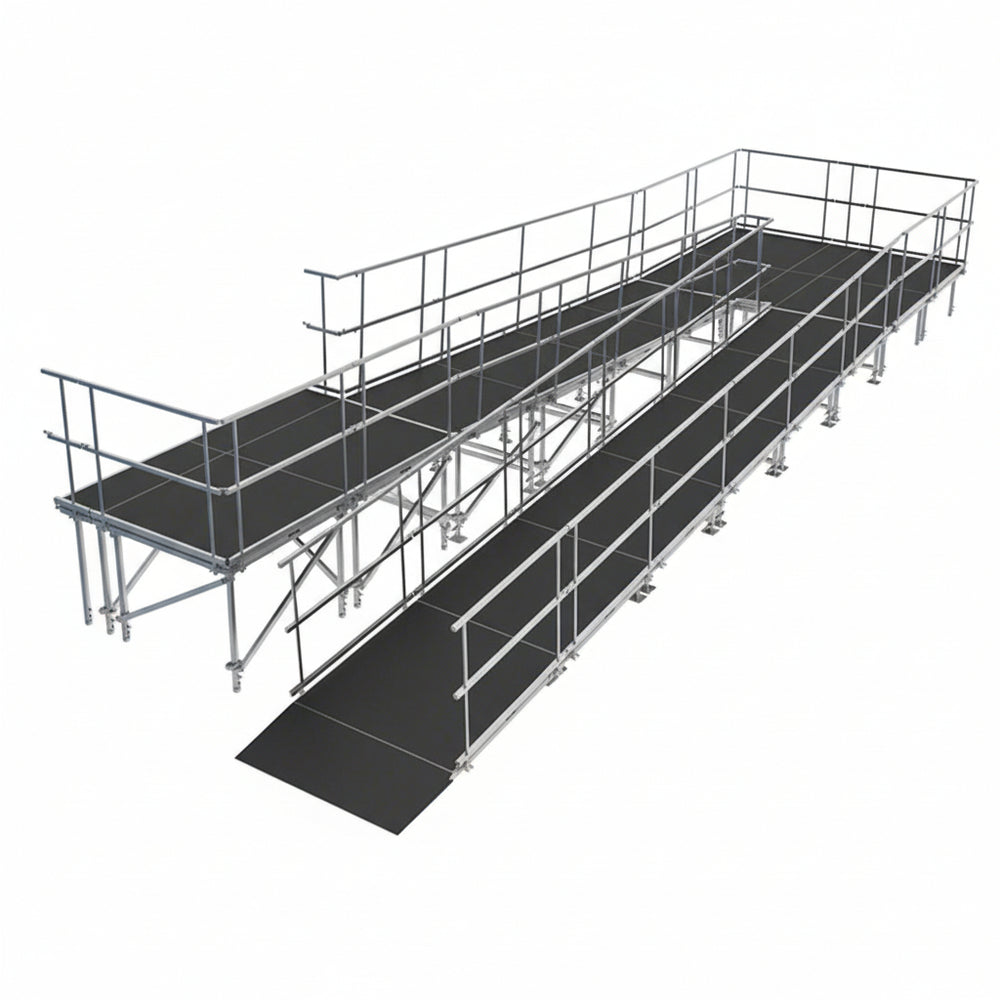

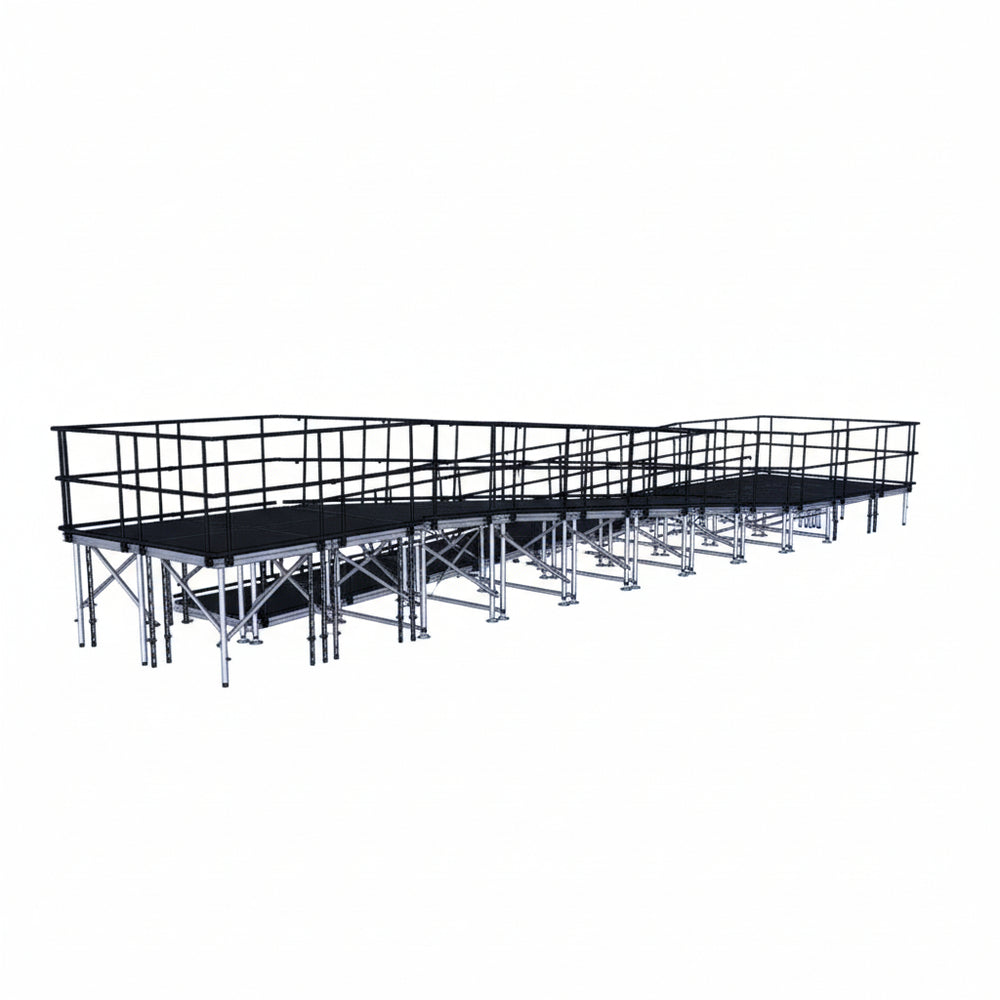

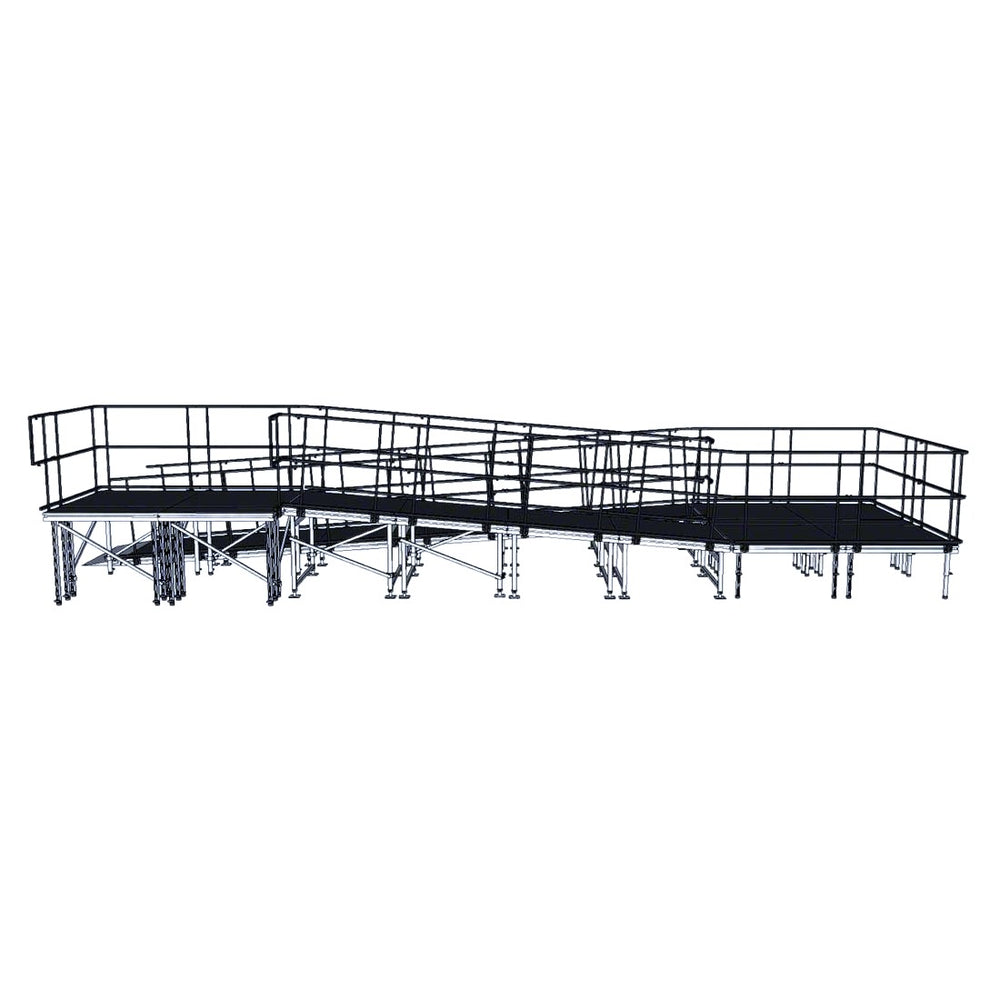

Universal Switchback ADA Wheelchair Ramp with Landing for 32" High Stages

This meticulously designed universal wheelchair ramp system is tailored to meet your specific requirements. It seamlessly integrates with various stage platforms, The primary objective of this fully ADA-compliant ramp is to facilitate easy stage access for individuals with mobility challenges.

Key Features:

Platform Compatibility: The universal ramps are centered around Quick Lock Staging’s lightweight yet robust modular platforms. These platforms interlock seamlessly and can accommodate industrial or aluminum finish platforms of matching dimensions.

1. Weather-Resistant Options:

   • Industrial Finish Ramps: These ramps are water-resistant, rendering them suitable for temporary outdoor use during favourable weather conditions.
   • Aluminum Finish Ramps: Fully waterproof, these ramps are ideal for permanent outdoor installation.

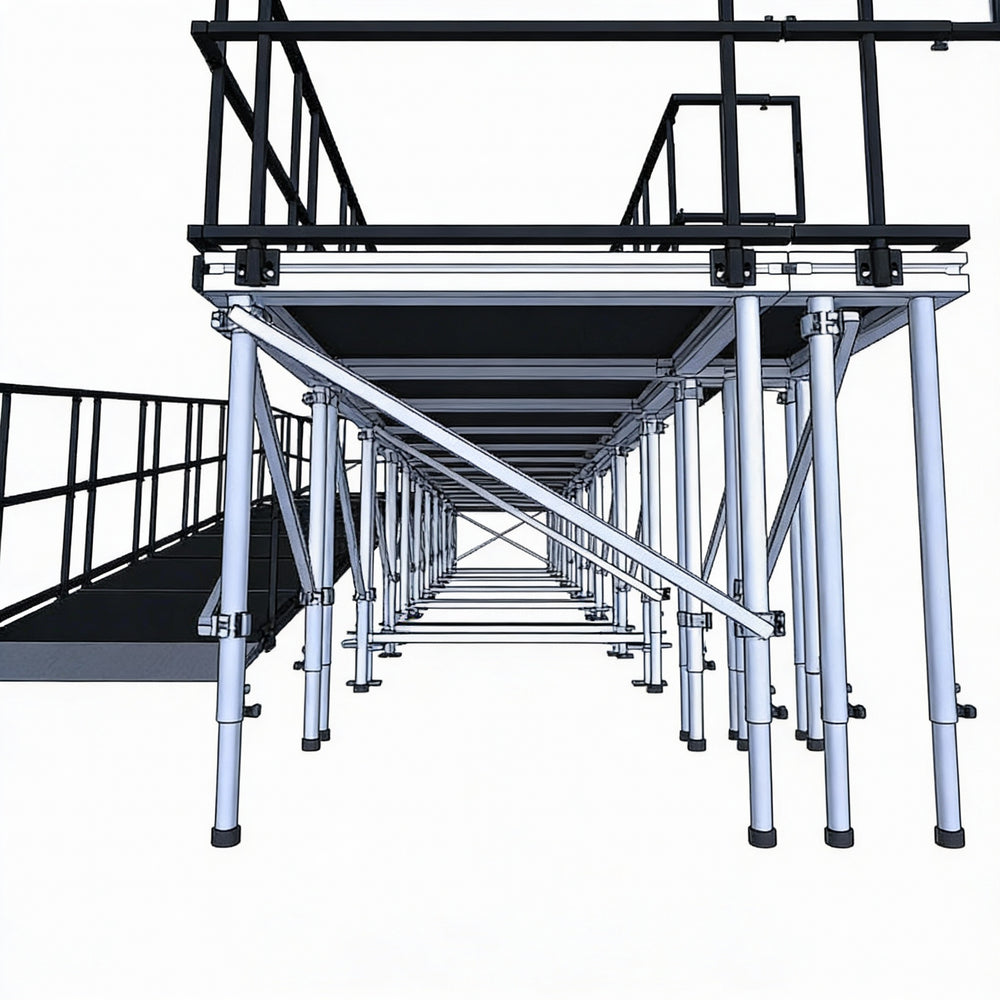

2. Height-Adjustable Ramp Legs: Ensuring a consistent 12:1 ramp slope, the adjustable legs guarantee uniformity and precise alignment. Whether installed on level, flat ground surfaces or uneven terrain, the ramp maintains its integrity.

3. Flexible Configuration:

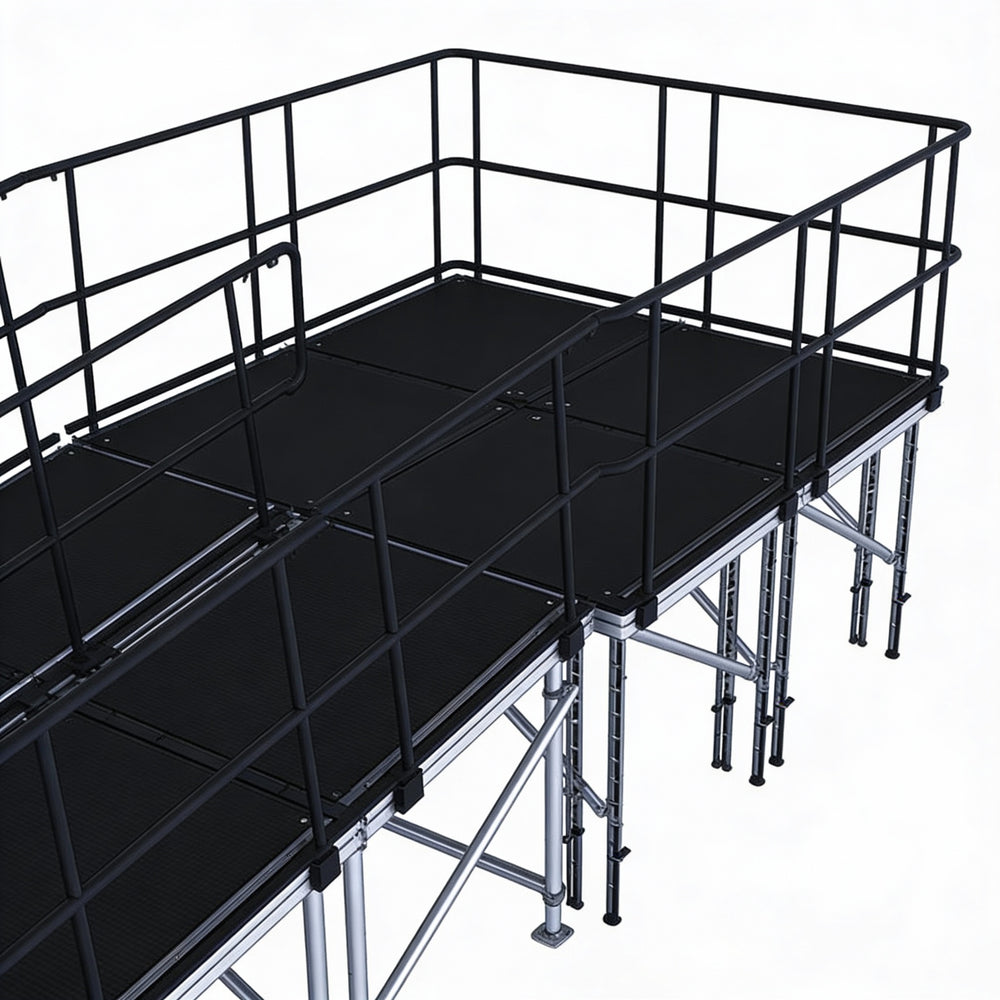

   • Landings: Strategically placed landings allow for smooth turns and transitions.

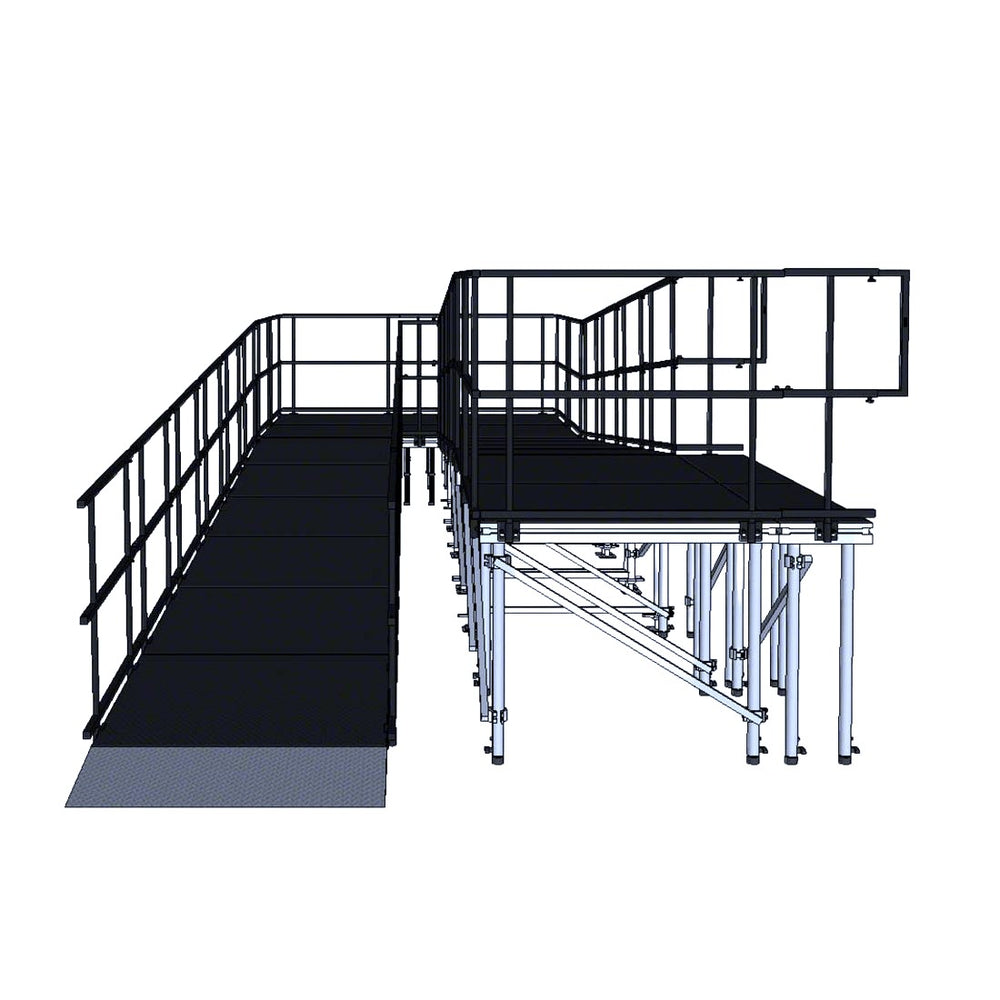

   • Switchback Configurations: These configurations minimize the overall ramp footprint while maximizing functionality.

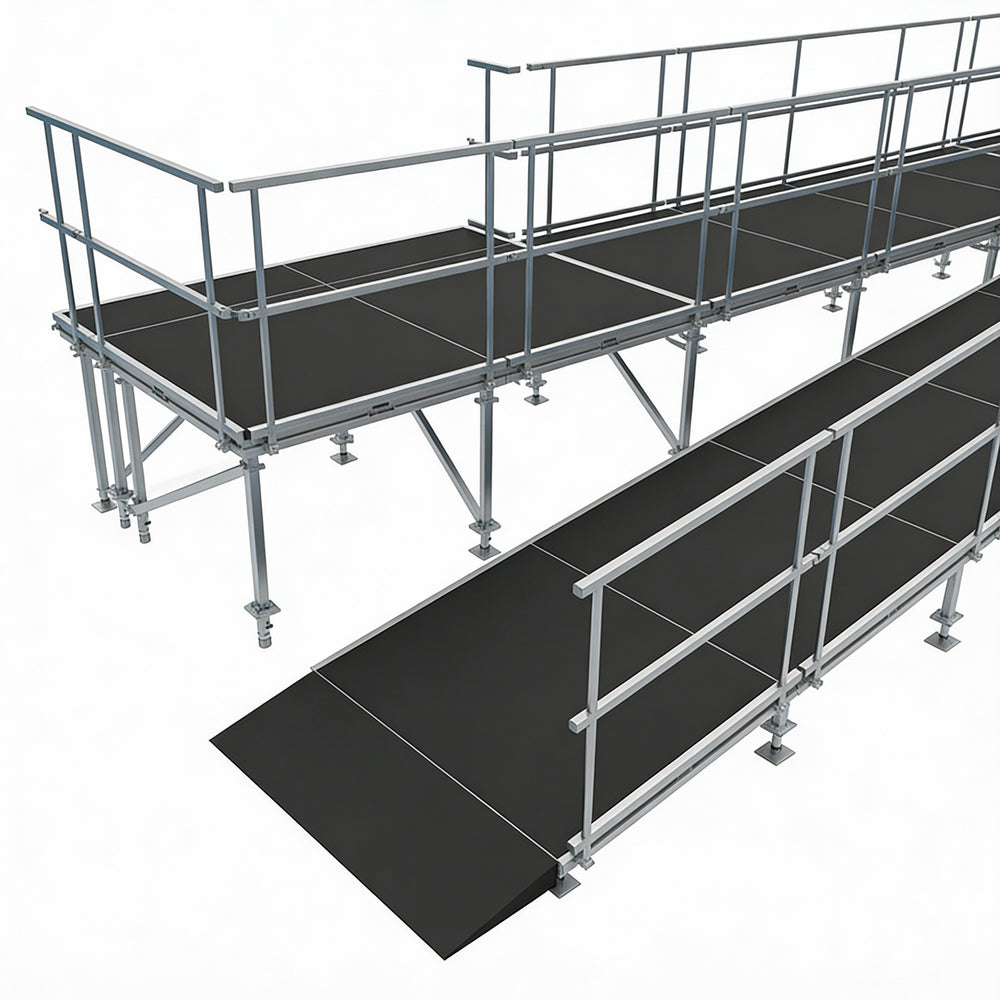

4. Guardrails Included: Safety is paramount. Each ramp comes equipped with guardrails to ensure compliance and protect users.

5. Standard Uniform Load Rating: 153 lbs per square foot.

Whether for a concert stage, conference platform, or any other elevated setting, this Universal Switchback ADA Wheelchair Ramp provides reliable accessibility while adhering to the highest standards of safety and convenience.

Features:

• Universal wheelchair ramp for 32" high stages.
• Includes handrails and 12:1 slope for ADA compliance.
• Can be set up on uneven ground; legs allow for height adjustment.
• Features QuickLock Staging modular, lightweight platforms.
• Water-resistant industrial finish or weatherproof aluminum finish.
• Can be connected to any other brand stage or fixed permanent structure with the use of ramp adaptors.
• One-Year Limited Warranty.
• Lead Time 6-8 weeks.

What is in the box:

• Qty (14) QuickLock Staging 4'x4' Platforms.
• Qty (4) 4'x15" Platforms.
• Qty (1) Bottom ramp plate with mounting hardware.
• Qty (5) Plattform-to-stage connecting plate with mounting hardware.
• Qty (1) Wheelchair ramp leg #1 w/ leg base.
• Qty (1) Wheelchair ramp leg #2 w/ leg base.
• Qty (2) Wheelchair ramp leg #3 w/ leg base.
• Qty (4) Wheelchair ramp leg #4.
• Qty (2) Wheelchair ramp leg #5.
• Qty (2) Wheelchair ramp leg #6.
• Qty (3) Wheelchair ramp leg #7.
• Qty (2) Wheelchair ramp leg #8.
• Qty (22) Leg Base.
• Qty (24) QuickLock Staging telescoping leg, adjustable 16"-24"h.
• Qty (16) QuickLock Staging telescoping leg, adjustable 24"-32"h.
• Qty (19) 4' Guardrails with mounting hardware.
• Qty (6) Adjustable 4' ramp guardrails with mounting hardware.
• Qty (2) Adjustable 4'x15" ramp guardrails with mounting hardware.
