TAIMCO Universal Ramp System

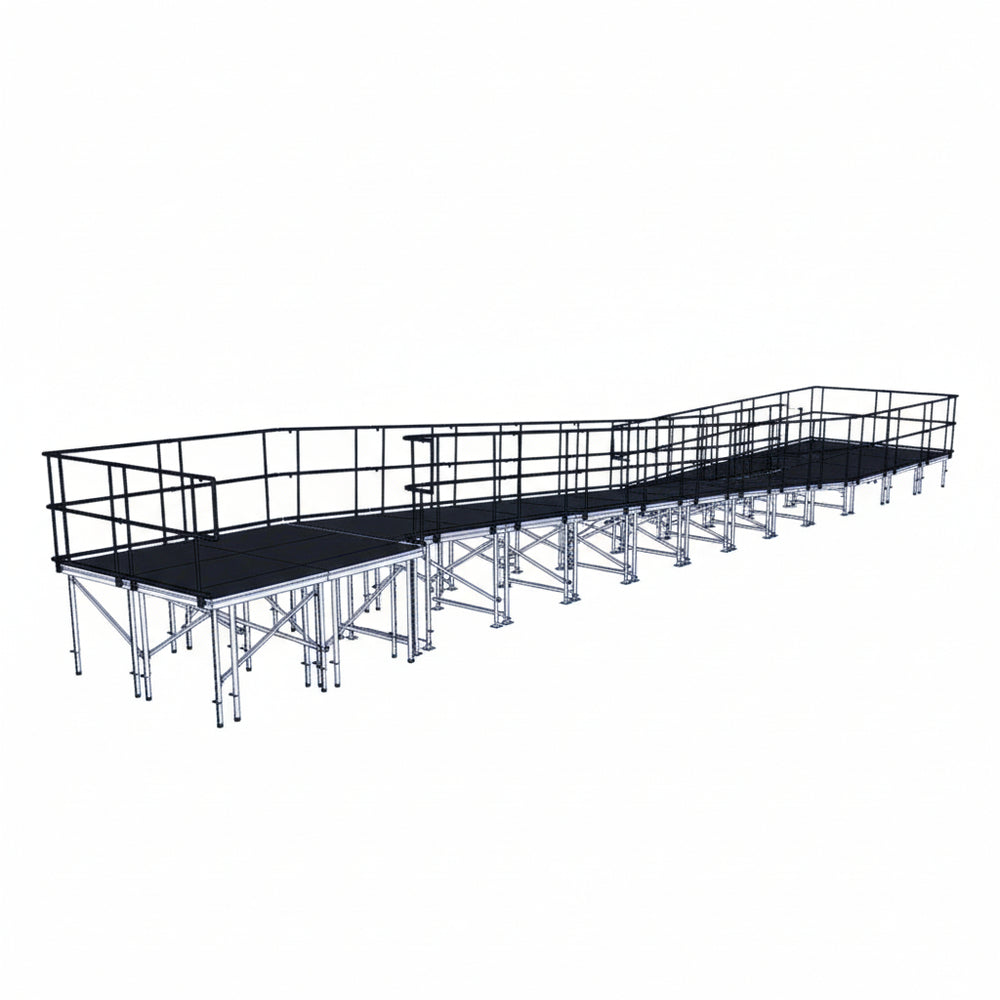

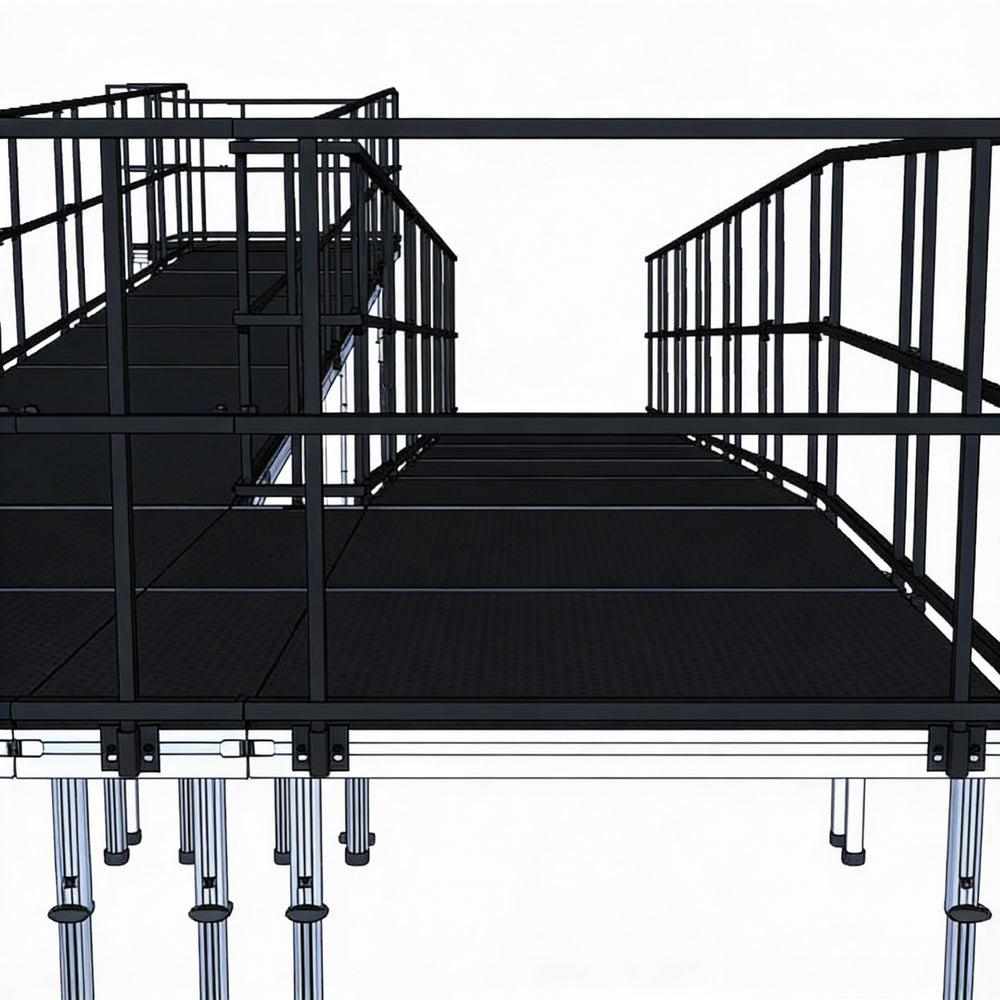

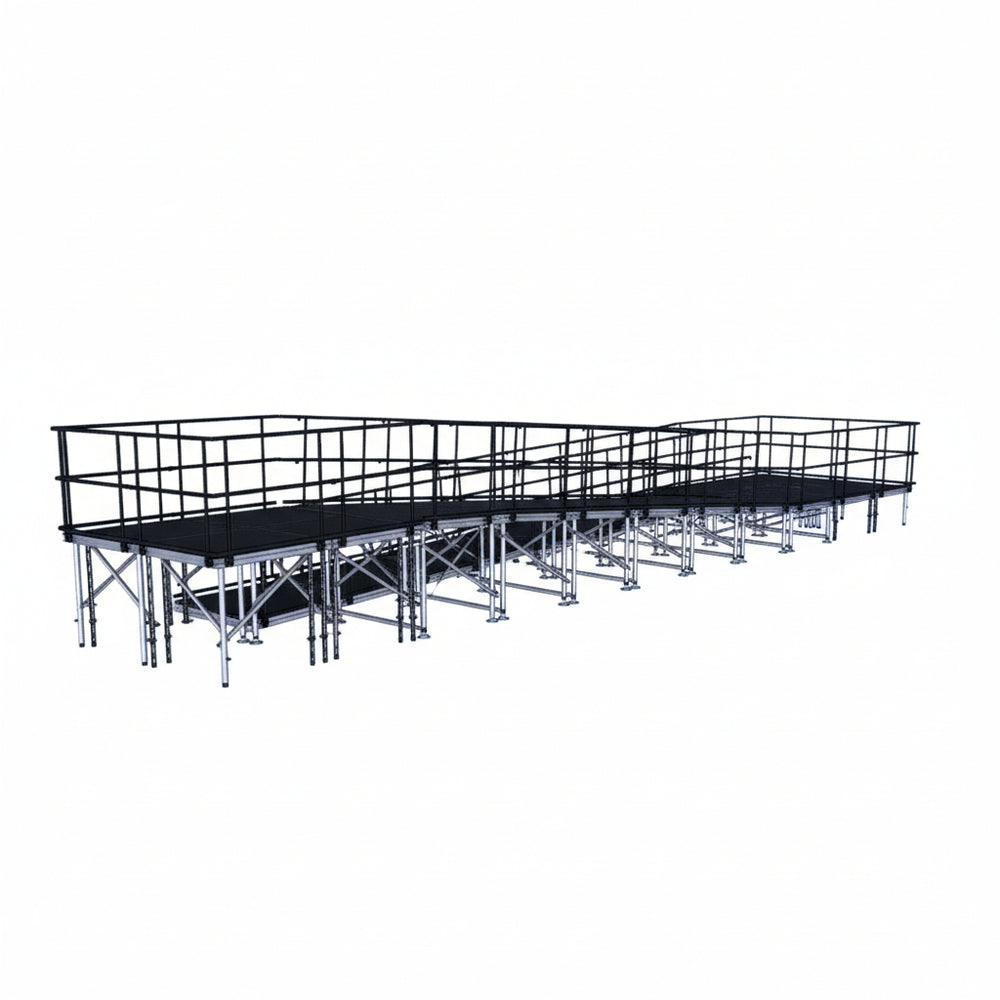

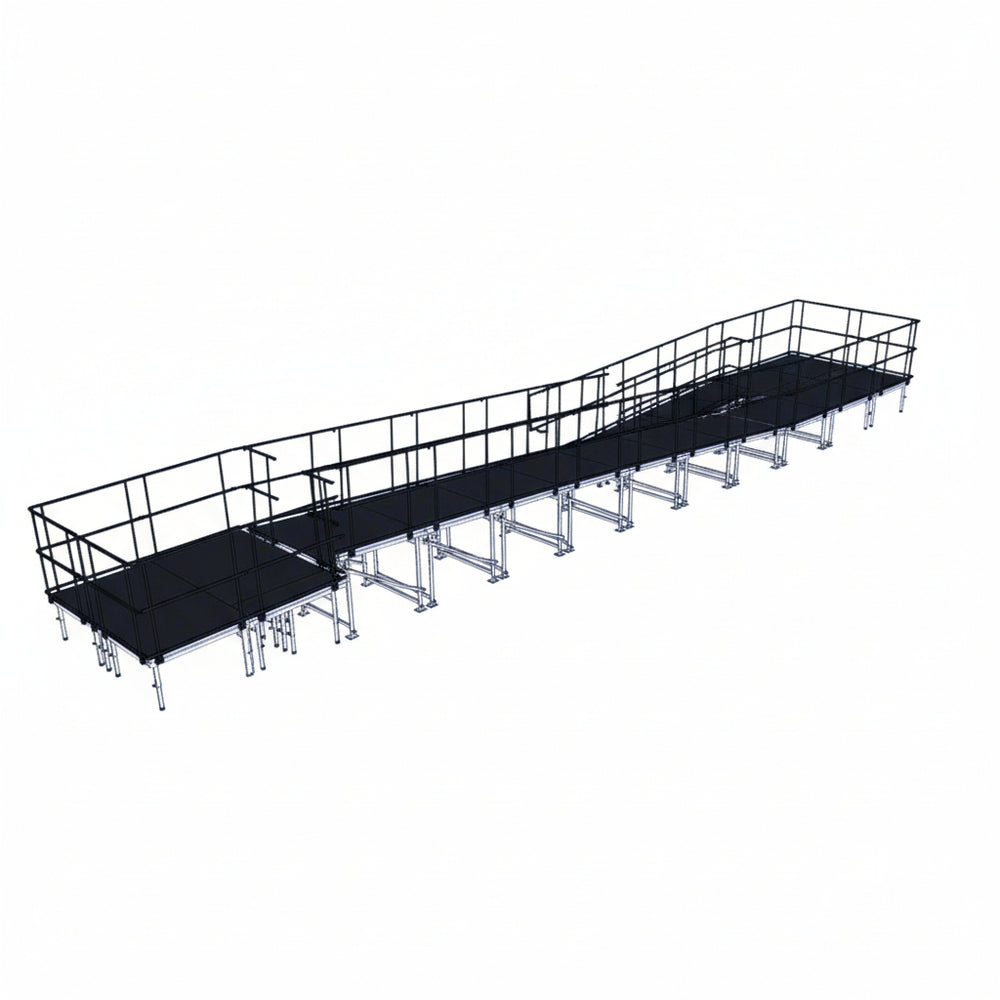

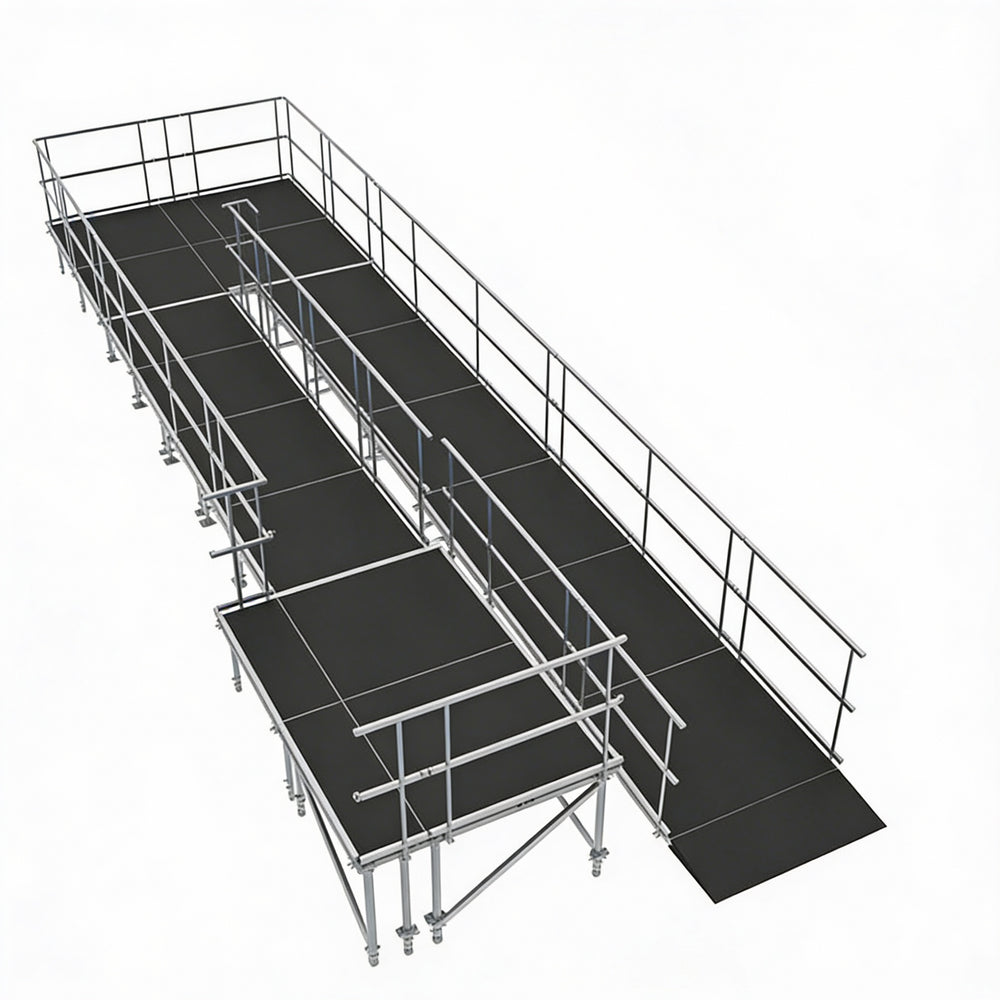

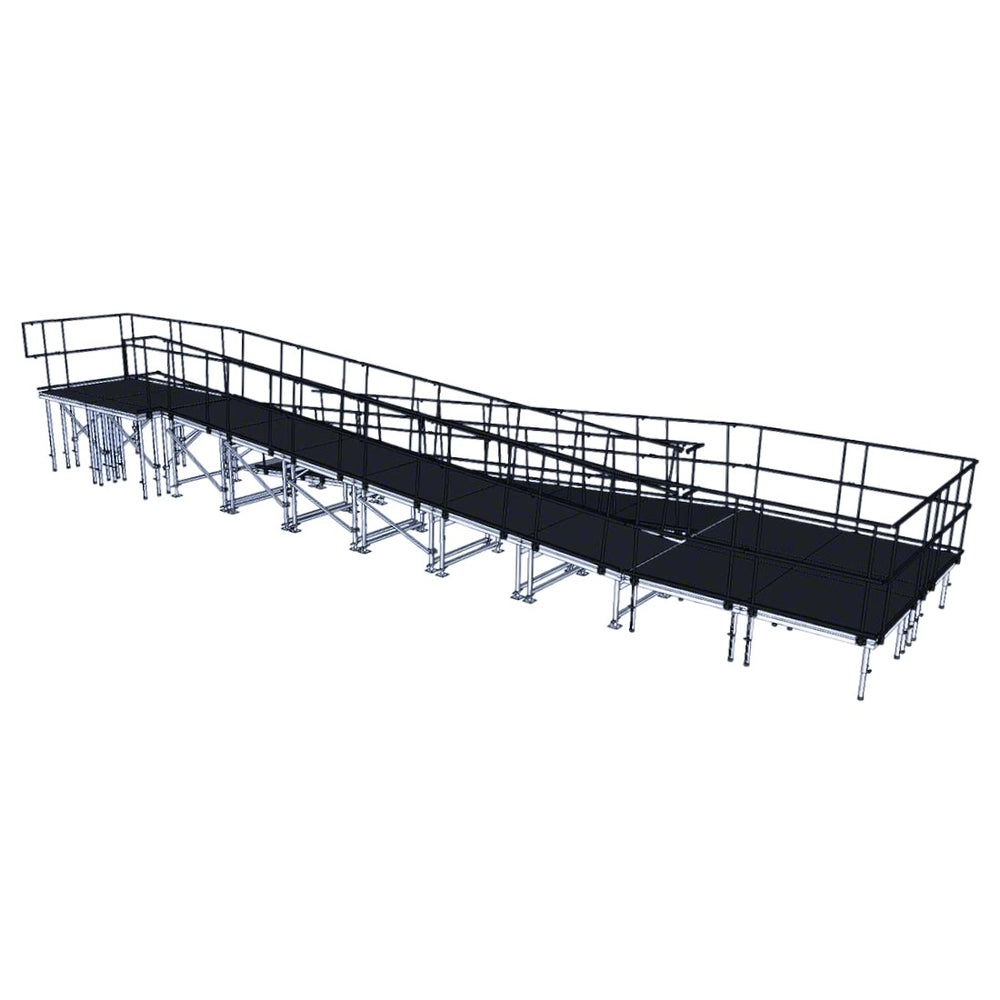

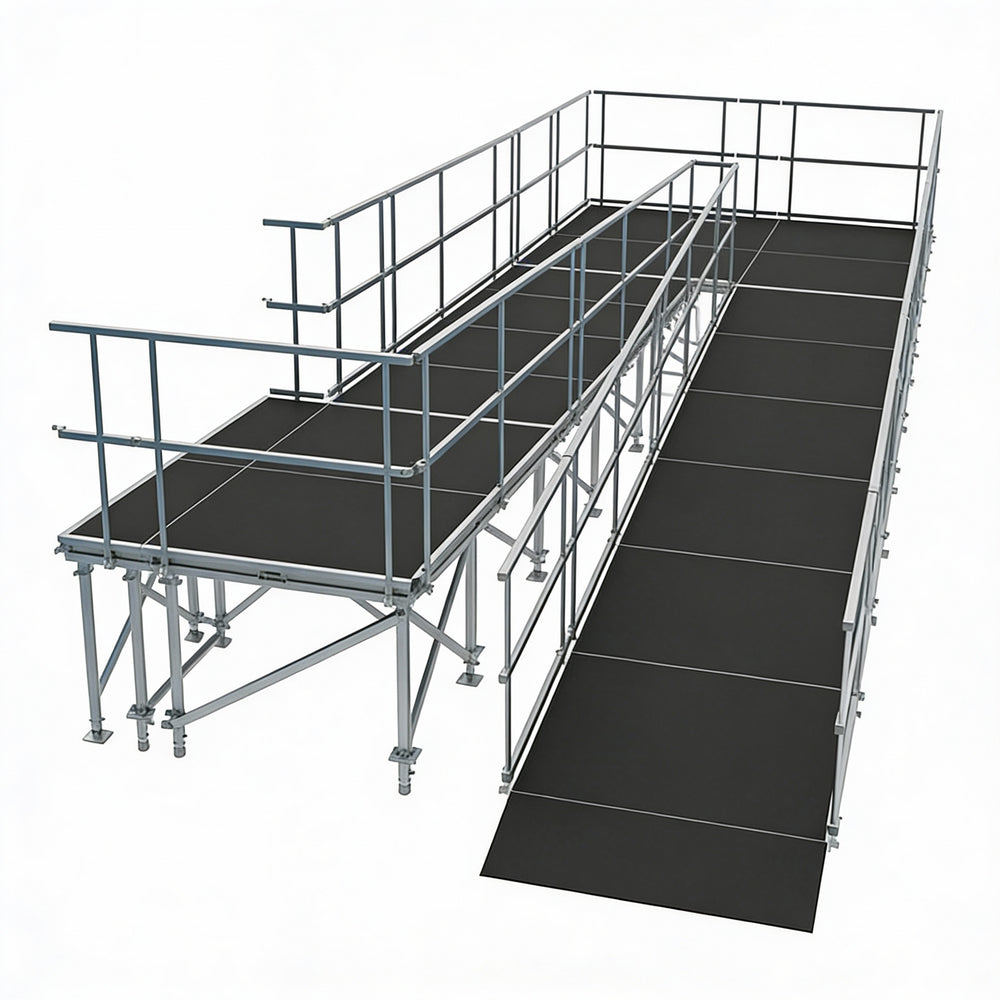

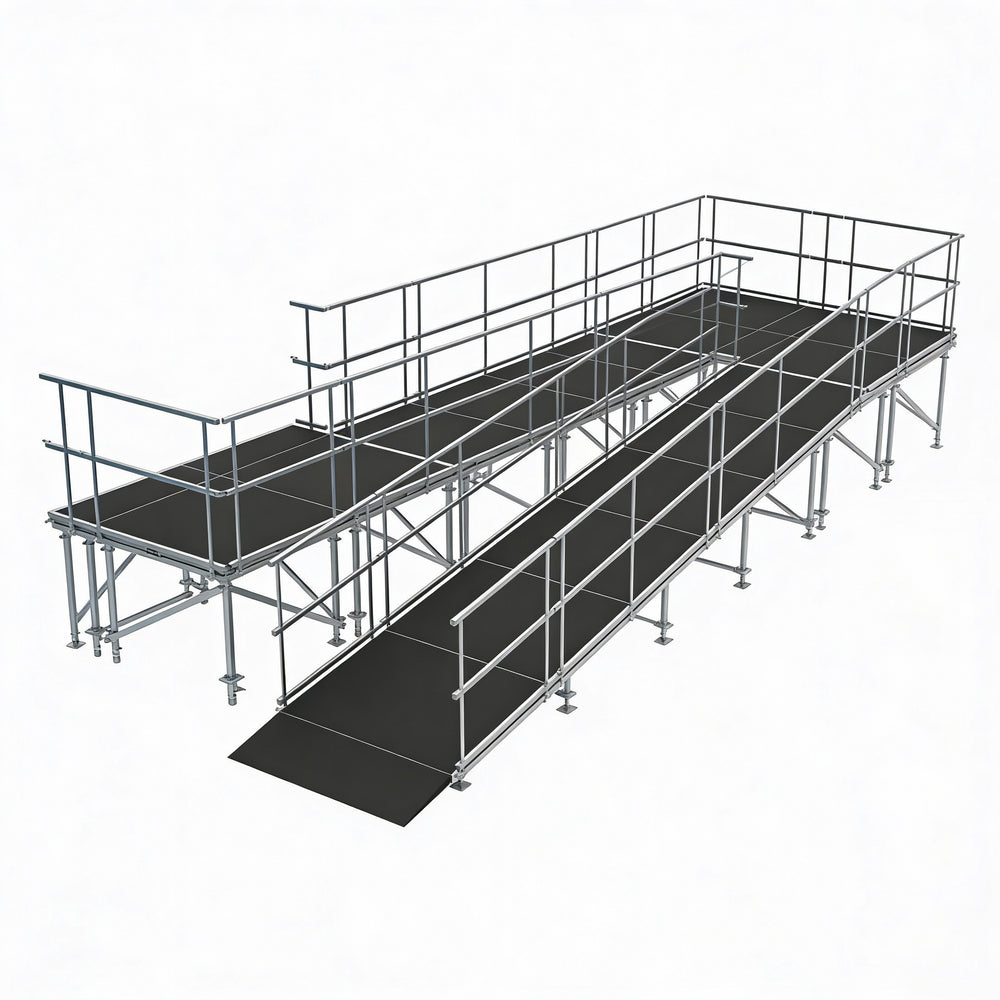

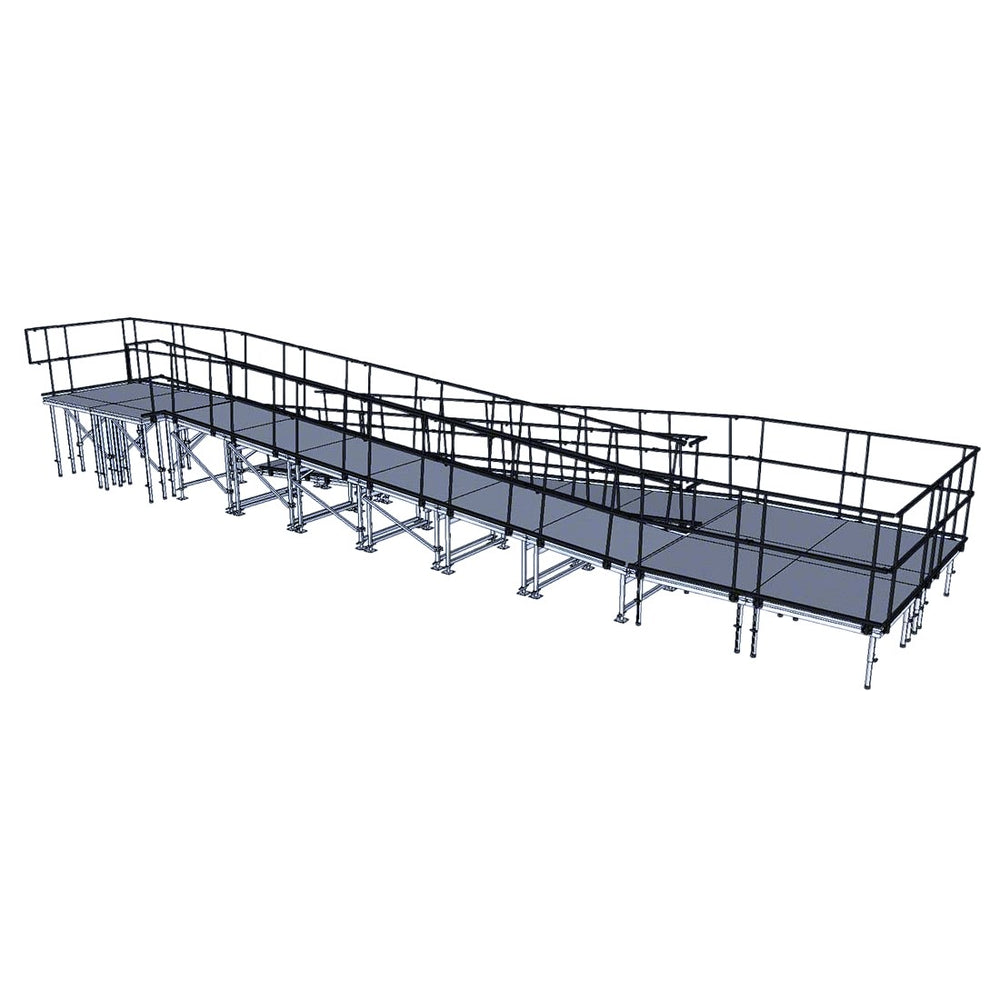

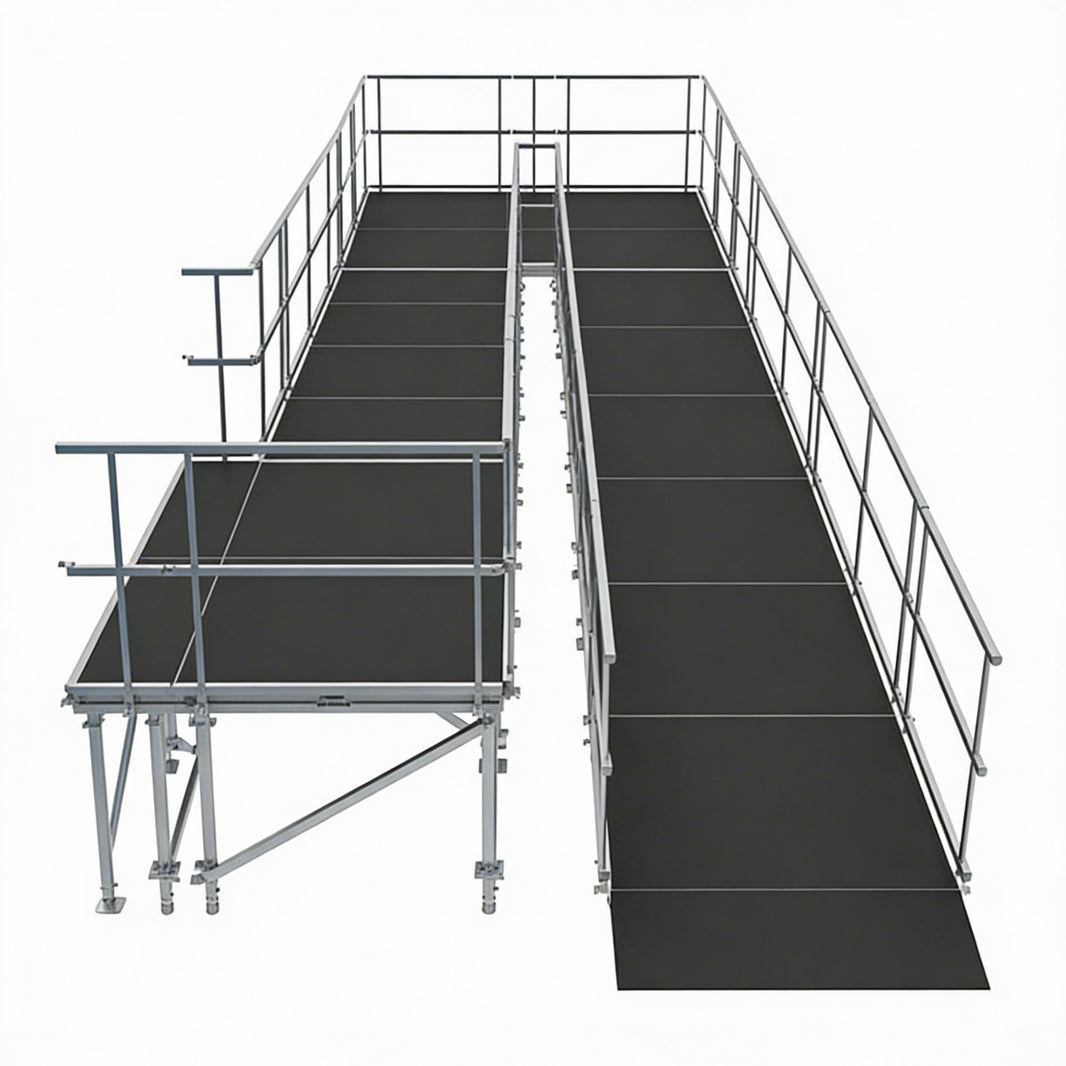

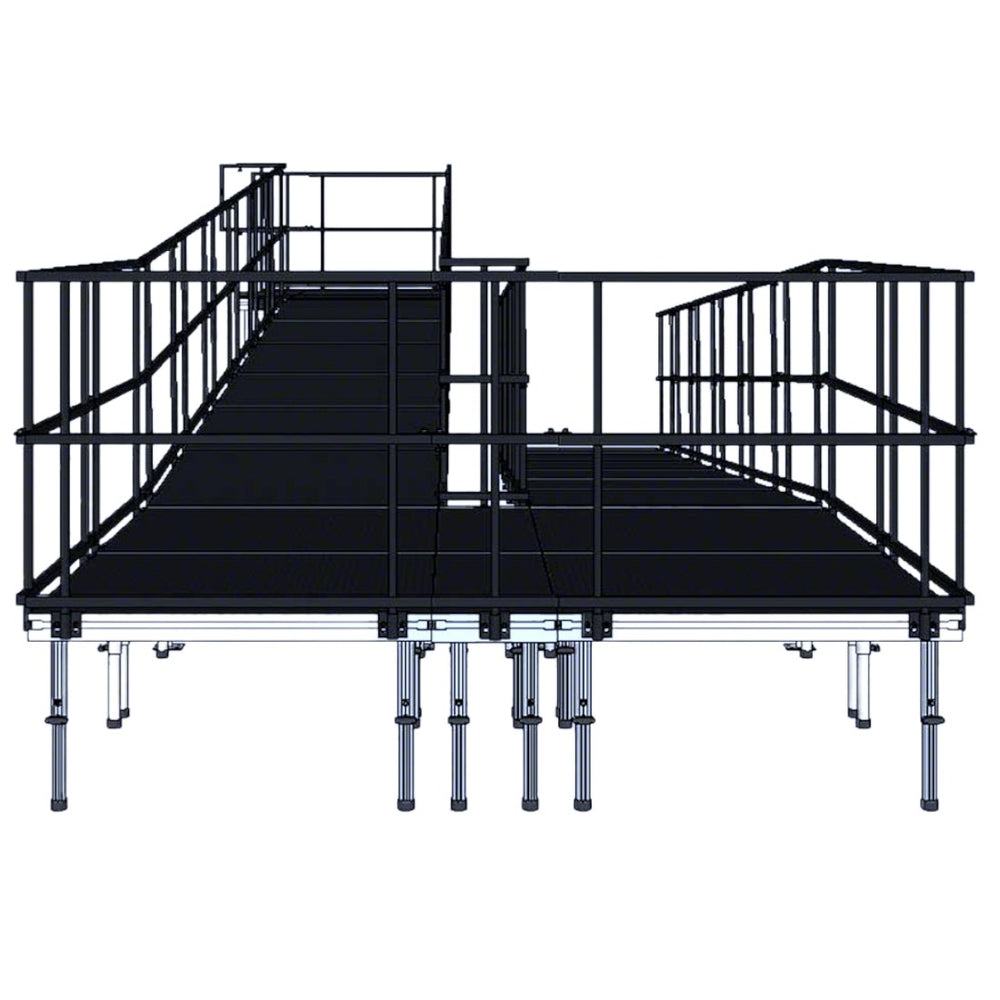

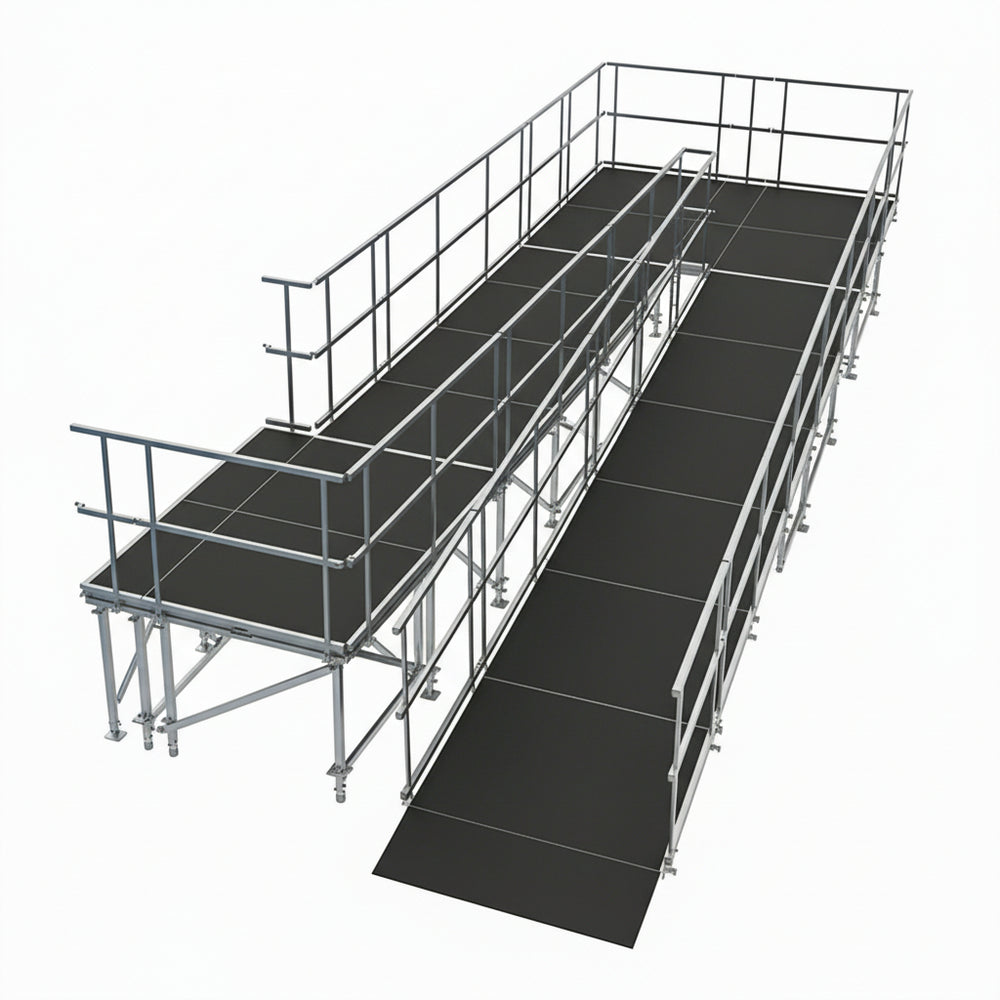

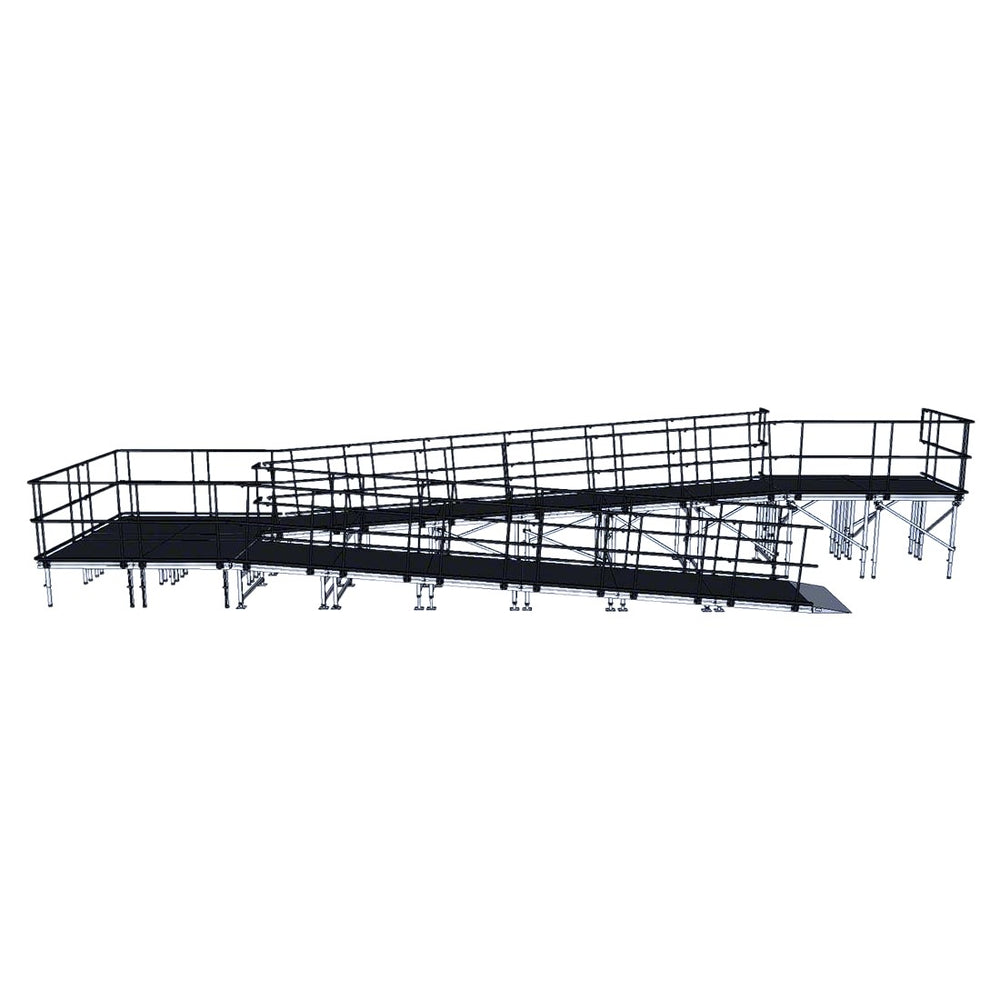

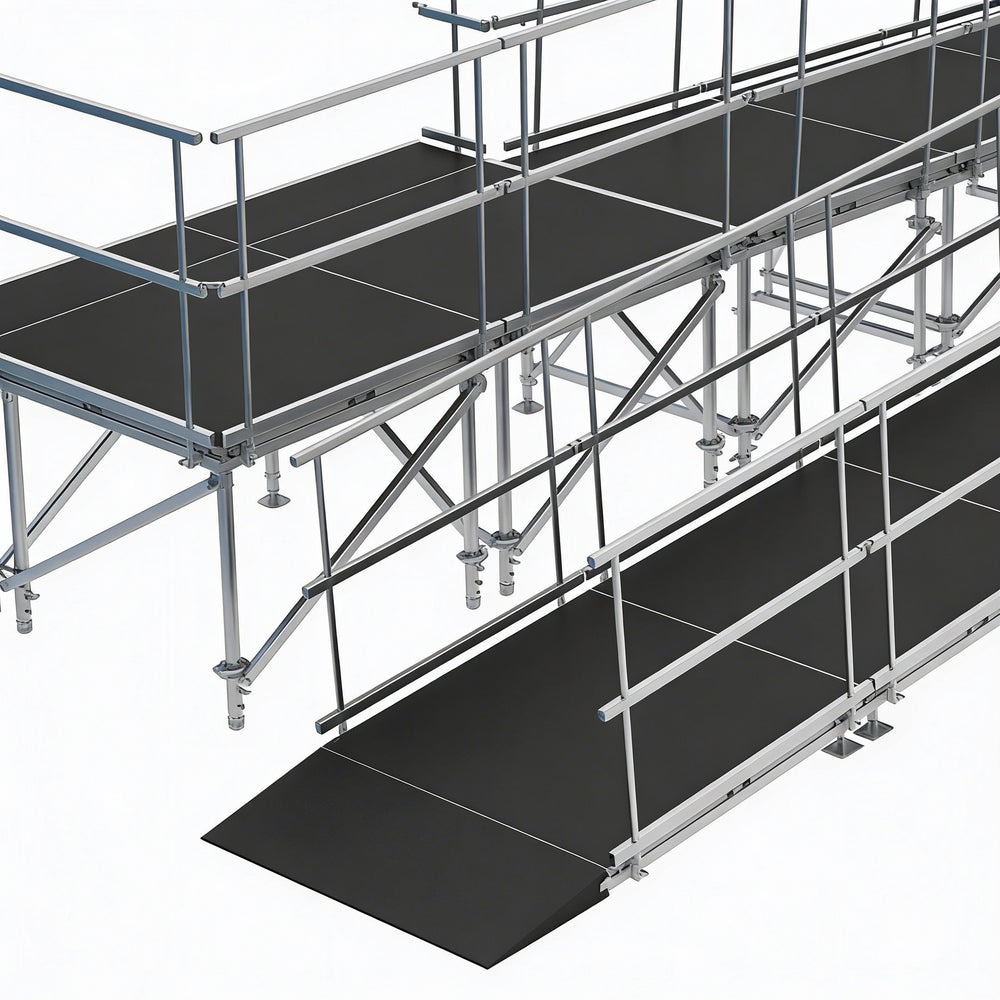

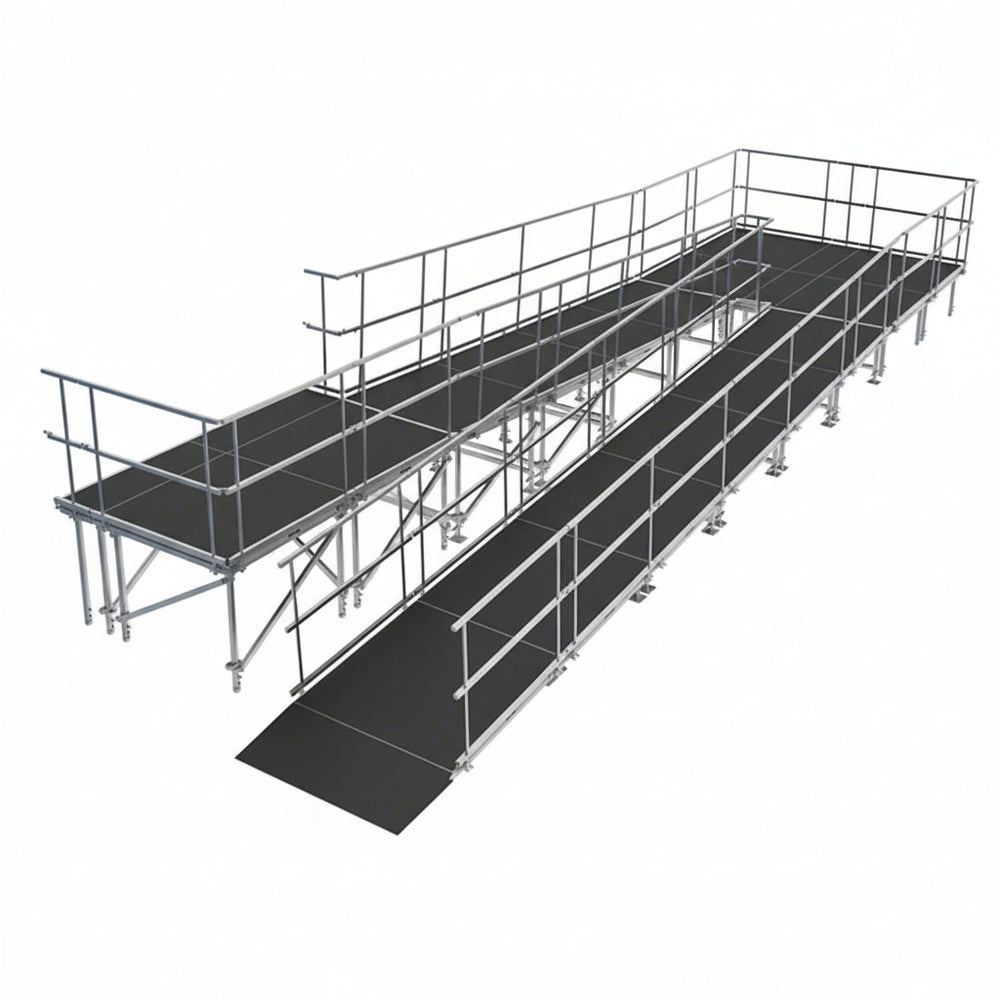

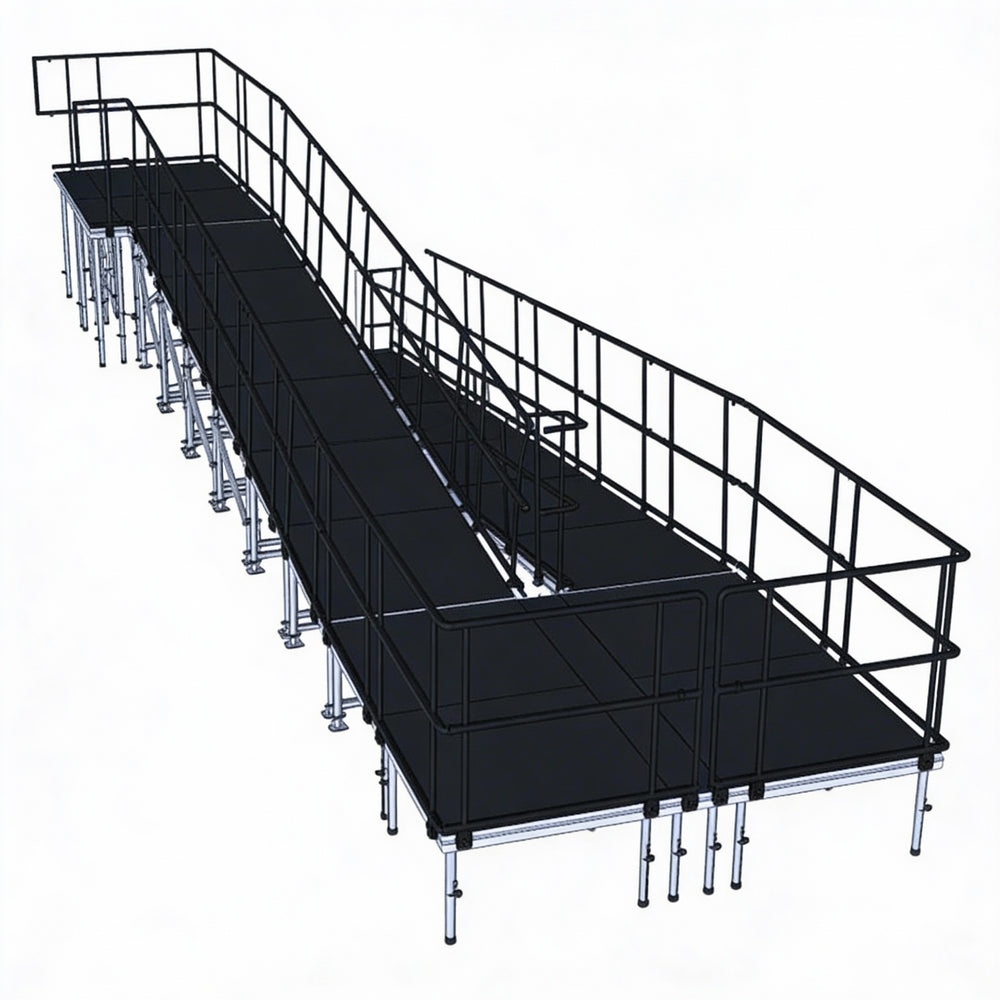

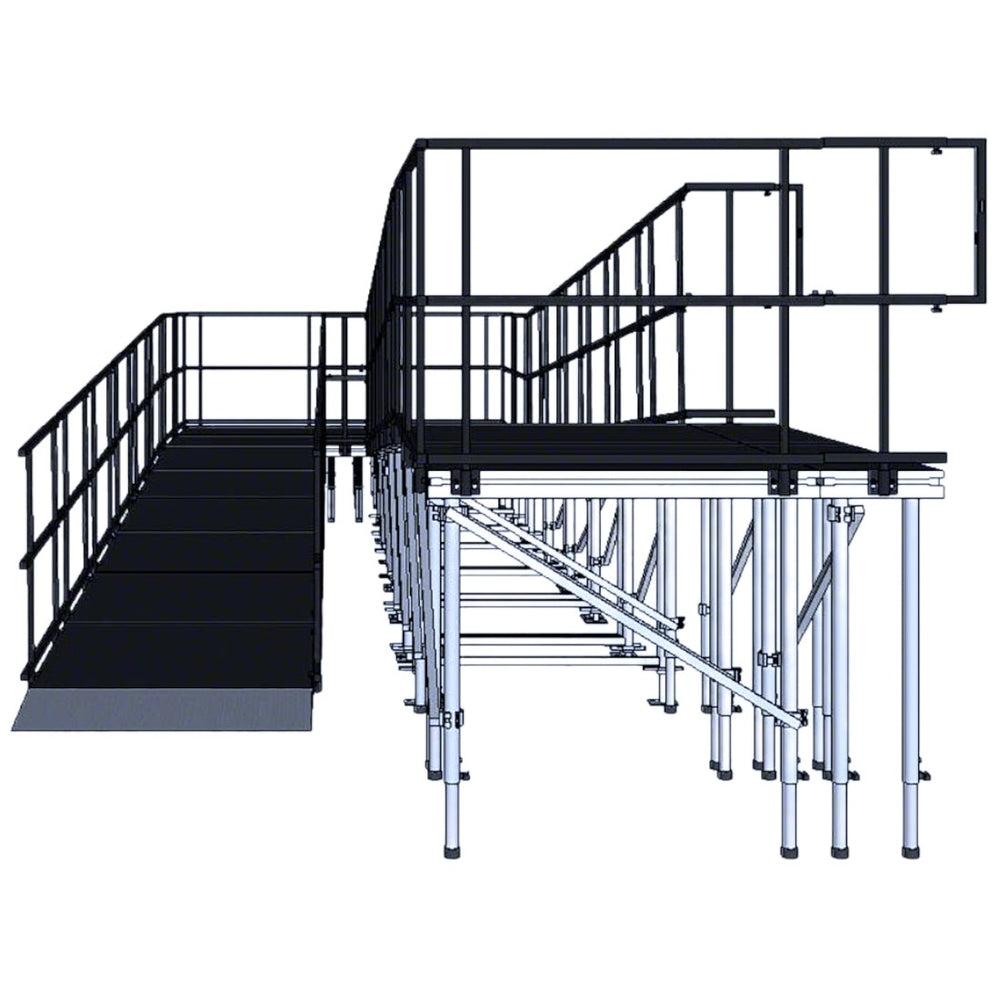

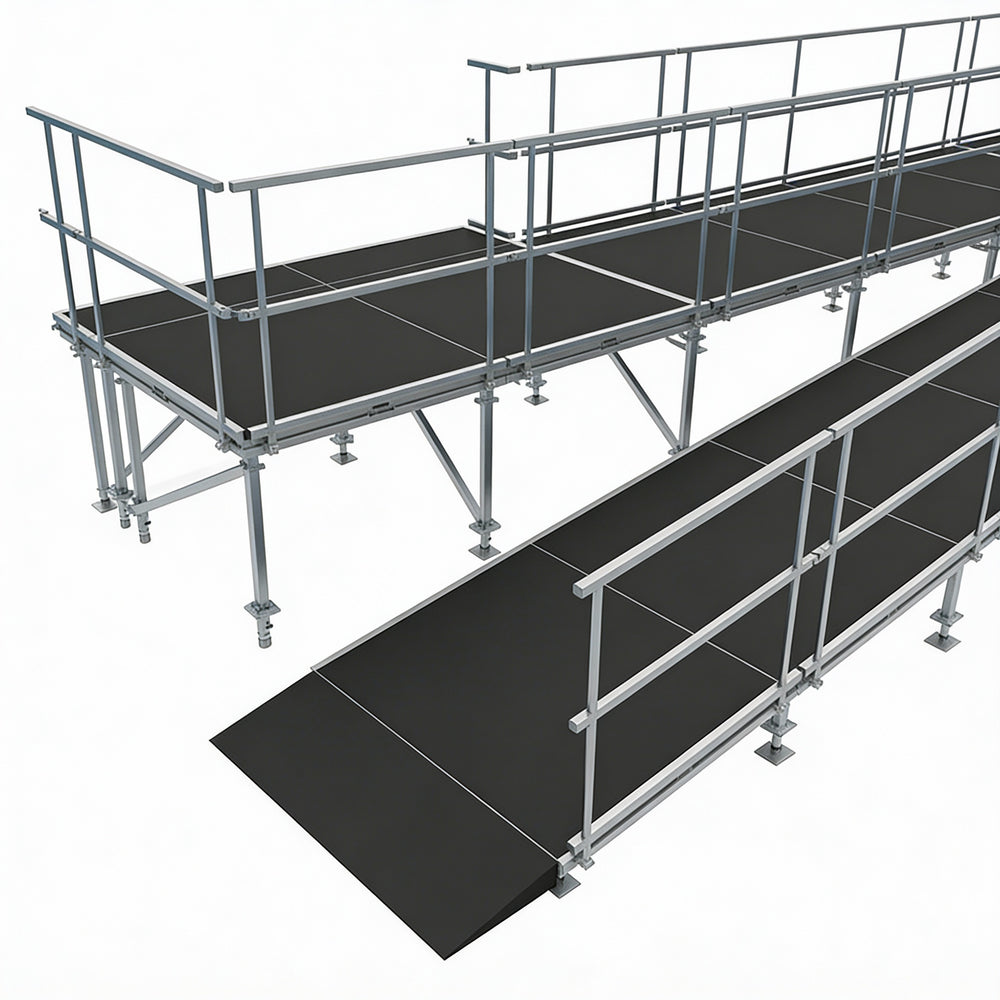

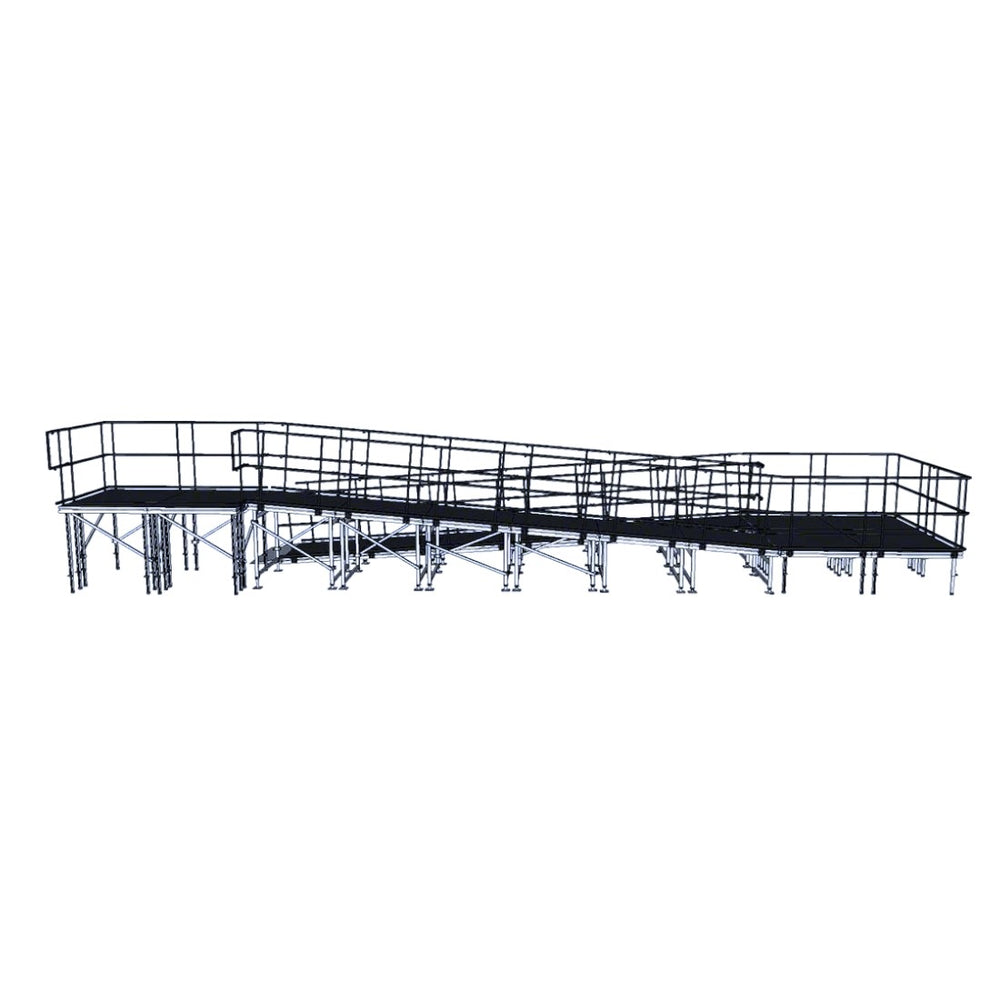

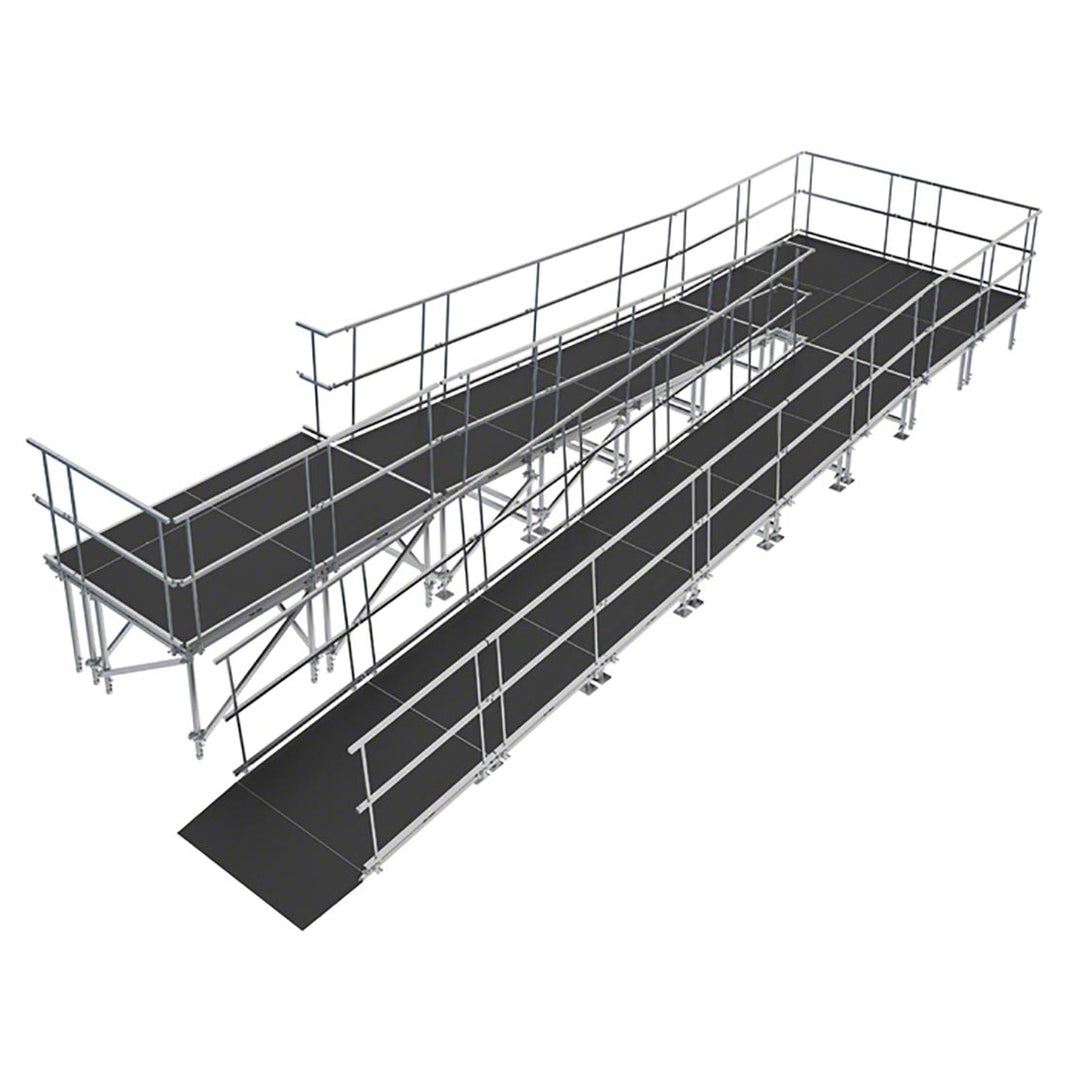

Universal Switchback ADA Wheelchair Ramp with Landing for 48" High Stages

This meticulously designed universal wheelchair ramp system is tailored to meet your specific requirements. It seamlessly integrates with various stage platforms, The primary objective of this fully ADA-compliant ramp is to facilitate easy stage access for individuals with mobility challenges.

Designed to fit your needs, the TAIMCO Universal Ramp System connects seamlessly to various staging systems.

This fully ADA-compliant wheelchair ramp ensures easy access to any stage setup.

All TAIMCO universal ramps are built around lightweight yet strong modular platforms with interlocking frames. These platforms can accommodate matching-sized industrial or aluminum finish surfaces. The industrial finish ramps are water-resistant, making them ideal for temporary outdoor use in good weather, while the aluminum finish ramps are fully waterproof and suitable for permanent outdoor installations.

Key Features:

Platform Compatibility: The universal ramps are centred around Quick Lock Staging’s lightweight yet robust modular platforms. These platforms interlock seamlessly and can accommodate industrial or aluminum finish platforms of matching dimensions.

1. 1. Weather-Resistant Options:

      • Industrial Finish Ramps: These ramps are water-resistant, rendering them suitable for temporary outdoor use during favourable weather conditions.
      • Aluminum Finish Ramps: Fully waterproof, these ramps are ideal for permanent outdoor installation.

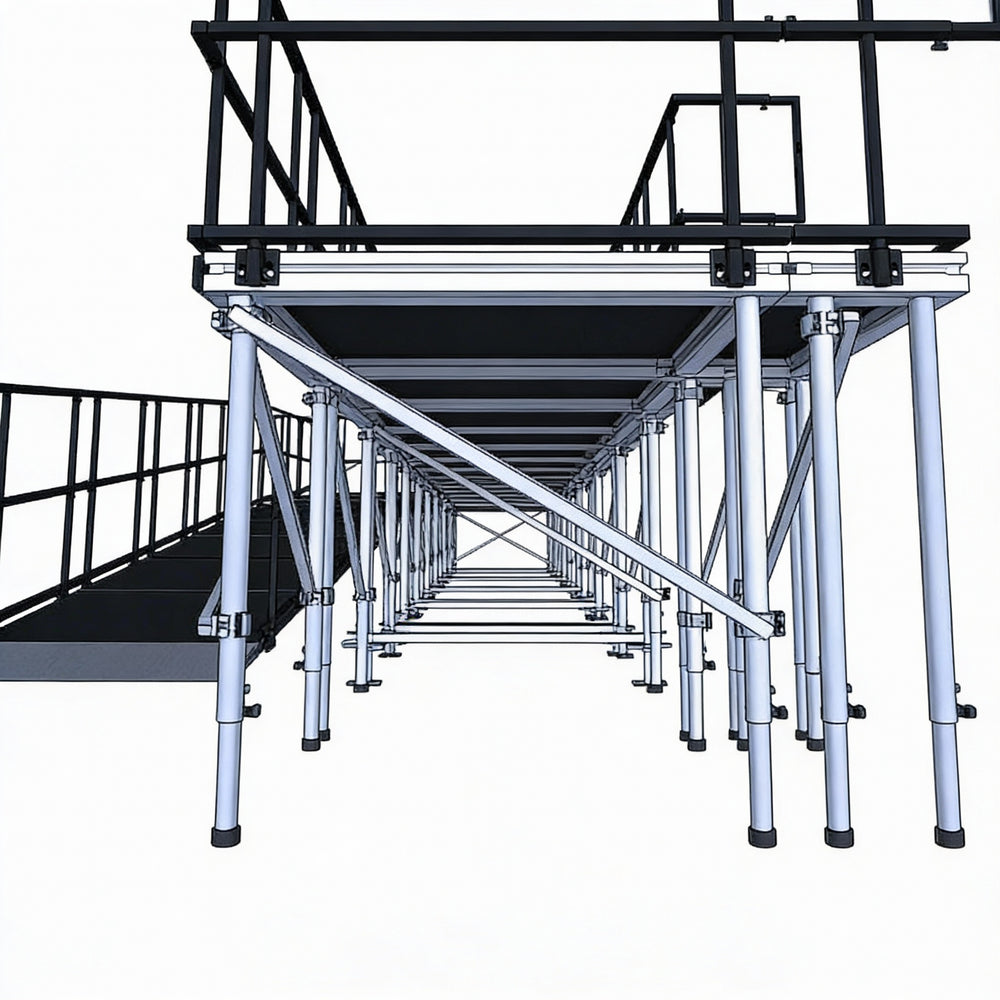

   2. Height-Adjustable Ramp Legs: Ensuring a consistent 12:1 ramp slope, the adjustable legs guarantee uniformity and precise alignment. Whether installed on a level, flat ground surface or uneven terrain, the ramp maintains its integrity.

   3. Flexible Configuration:

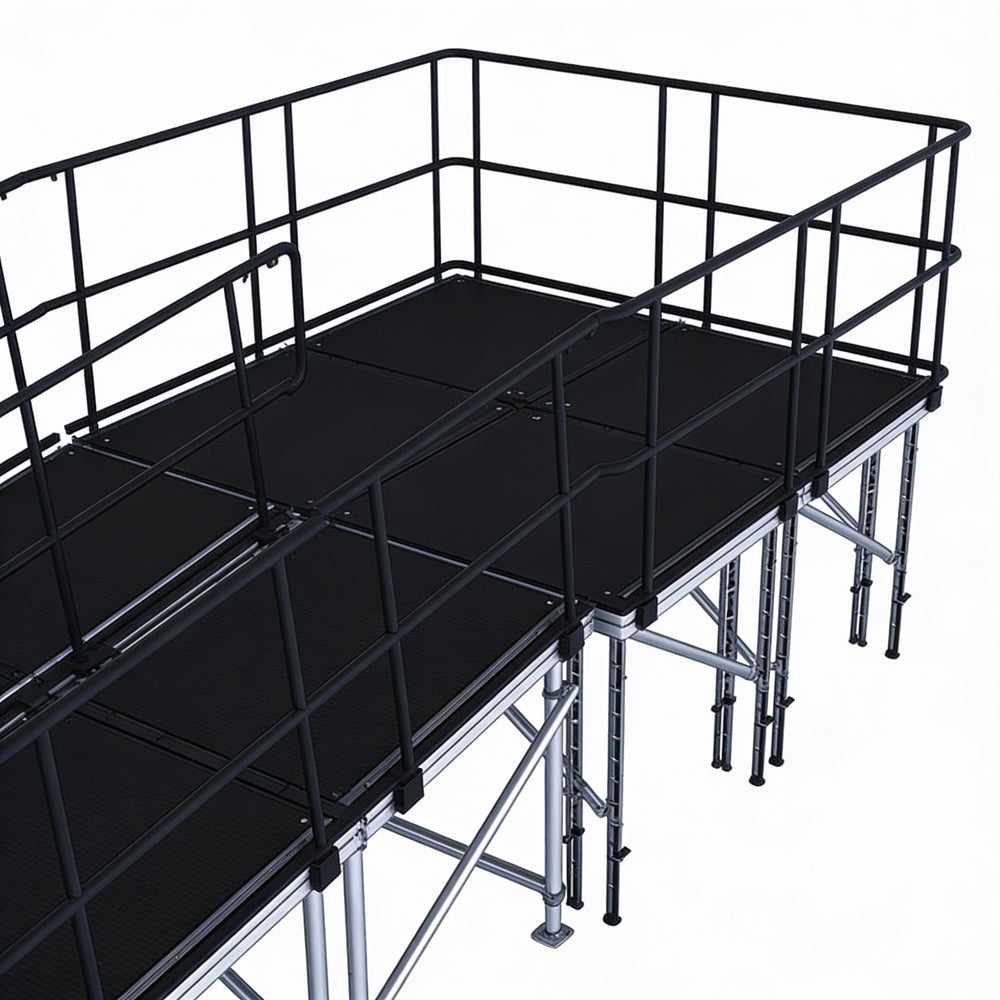

      • Landings: Strategically placed landings allow for smooth turns and transitions.
      • Switchback Configurations: These configurations minimize the overall ramp footprint while maximizing functionality.

   4. Guardrails Included: Safety is paramount. Each ramp comes equipped with guardrails to ensure compliance and protect users.

Whether for a concert stage, conference platform, or any other elevated setting, this Universal Switchback ADA Wheelchair Ramp provides reliable accessibility while adhering to the highest standards of safety and convenience.

Features:

Universal Wheelchair Ramp for 48" High Stages

• • • ADA-Compliant Design: Features handrails and a 12:1 slope to ensure full ADA compliance.
    • Versatile Setup: Adjustable legs allow for easy setup on uneven ground.
    • Modular & Lightweight: Incorporates Quick Lock Staging platforms for effortless assembly and transport.
    • Durable Finishes: Available in a water-resistant industrial finish or a weatherproof aluminum finish.
    • Universal Compatibility: Connects seamlessly to any brand stage or fixed permanent structure with ramp adaptors.
    • High Load Capacity: Standard Uniform Load Rating of 153 lbs per square foot.
    • Reliable Warranty: Comes with a One-Year Limited Warranty for peace of mind.
    • Prompt Delivery: Lead time of just 6-8 weeks.

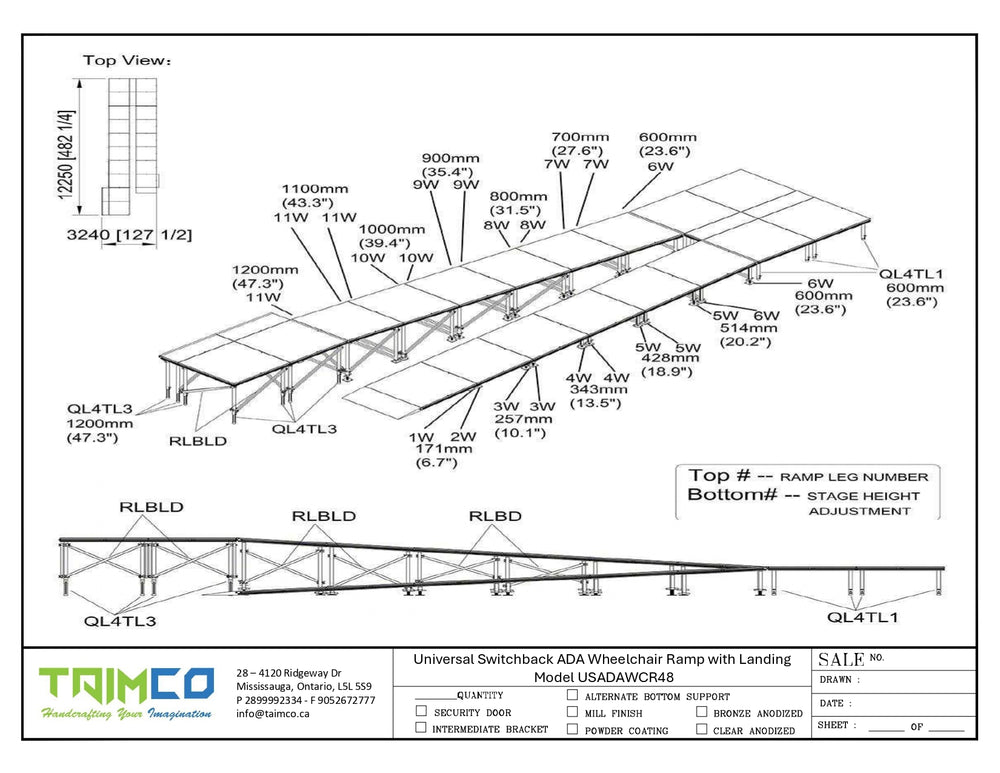

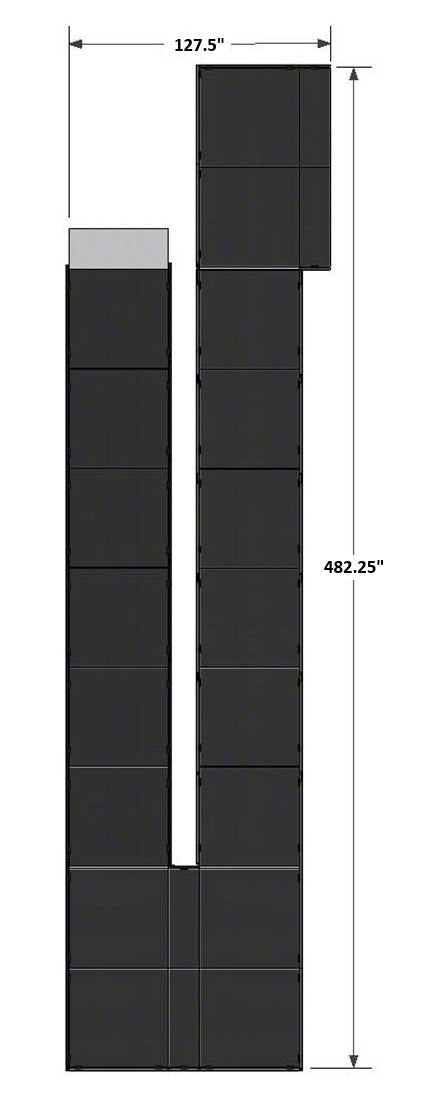

Design and dimensions :

• • • Download Drawings, details and dimensions.

Universal Ramp System, ADA-Compliant Wheelchair Ramp, Modular Ramp Platforms, Industrial Finish Ramps, Aluminum Finish Ramps, Height-Adjustable Ramp Legs, Outdoor Wheelchair Ramp, Temporary Outdoor Ramp, Permanent Outdoor Ramp, Stage Access Ramp, Quick Lock Staging, Interlocking Ramp Frames, Water-Resistant Ramps, Waterproof Ramps, Safety Guardrails, Ramp Configurations, Turn and Switchback Ramps, Event Venue Ramp, Commercial Property Ramp, Residential Community Ramp

What is in the box:

• • Qty (18) Quick Lock Staging 4'x4' Platforms.
  • Qty (4) 4'x15" Platforms.
  • Qty (1) Bottom ramp plate with mounting hardware.
  • Qty (5) Platform-to-stage connecting plate with mounting hardware.
  • Qty (4) 4' Ramp legs sidebars.
  • Qty (16) 4' Ramp legs side longer bars.
  • Qty (1) Wheelchair ramp leg #1 w/ leg base
  • Qty (1) Wheelchair ramp leg #2 w/ leg base
  • Qty (2) Wheelchair ramp leg #3 w/ leg base
  • Qty (2) Wheelchair ramp leg #4
  • Qty (3) Wheelchair ramp leg #5
  • Qty (3) Wheelchair ramp leg #6
  • Qty (2) Wheelchair ramp leg #7
  • Qty (2) Wheelchair ramp leg #8
  • Qty (2) Wheelchair ramp leg #9
  • Qty (2) Wheelchair ramp leg #10
  • Qty (3) Wheelchair ramp leg #11
  • Qty (38) Leg Base.
  • Qty (24) Quick Lock Staging telescoping leg, adjustable 16"-24"h.
  • Qty (16) Quick Lock Staging telescoping leg, adjustable 40"- 48"h.
  • Qty (27) 4' Guardrails with mounting hardware.
  • Qty (6) Adjustable 4' ramp guardrails with mounting hardware.
  • Qty (4) Adjustable 4'x15" ramp guardrails with mounting hardware.
