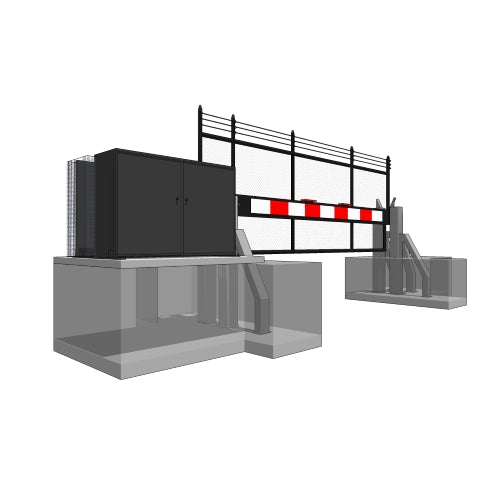

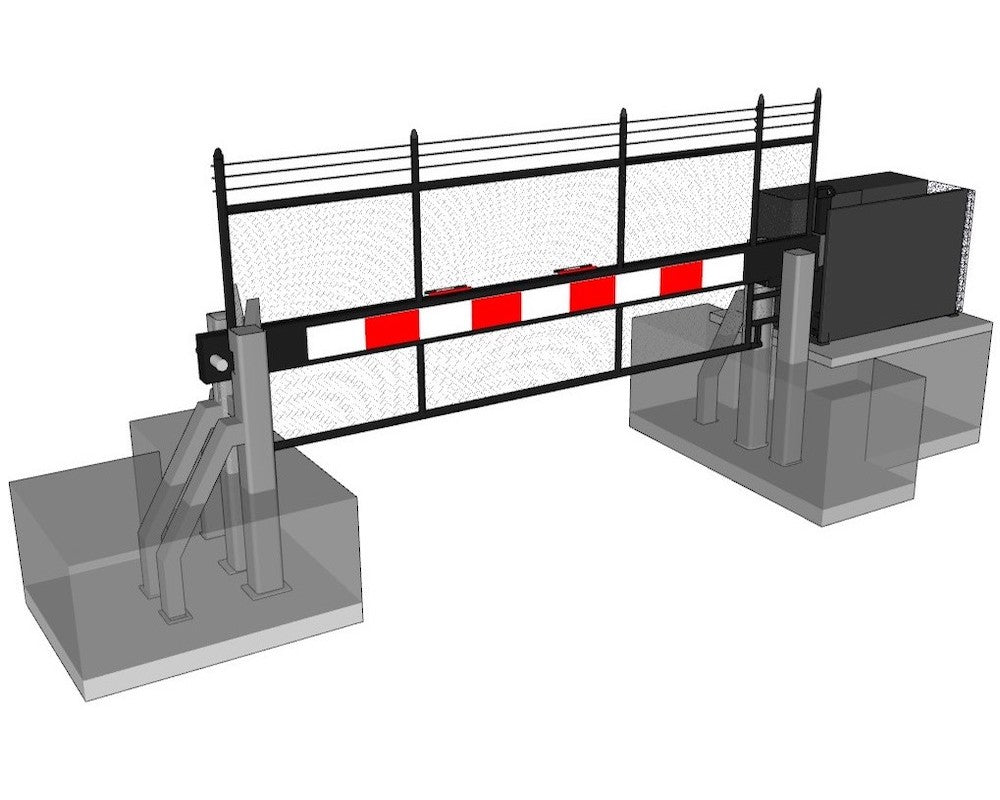

Taimco Vertical Pivot  Impact Barrier Gate

The systems are available either as a barrier arm designed for forced vehicular entry prevention or with a full gate panel attached to the barrier arm for anti-personnel protection.

Discover the efficiency and reliability of Taimco Vertical Pivot Gates. These space-saving gates are a testament to our innovation and engineering prowess. Powered by a robust 1-HP continuous-duty motor, driven by our ultra-heavy-duty compression spring, and complemented by a continuously charged battery backup system, these gates redefine convenience and security.

Key Features:

• • Minimal footprint required
  • Clear openings up to 26 feet
  • Chain link, picket, and custom infill options
  • Fully charged battery backup allows for 50+ cycles
  • UL 325 Listed and Certified for operator usage classes I, II, III, and IV
  • Built-in photo eye and inherent sensing.
  • Prices is not including the Electrical motors.

With the assurance of a 3-year warranty and the backing of Taimco’s engineering and technical support team, our Vertical Pivot Gates are the superior choice for your perimeter security needs.

• • Durable Factory fabricated by CWB Certified Welders uses Taimco’s proprietary aluminum extrusions to build a gate frame to outlast the competition.
  • Tested Thoroughly engineered gate panels and built-in operators continuously undergo rigorous cycle testing for seamless performance across all environmental conditions.
  • Support Taimco associates deliver comprehensive assistance starting from the initial design stage, extending through installation and beyond, guaranteeing steadfast backing for our products.
  • Easy Install Gate systems are shipped pre-balanced and assembled. Simply set the operator on the foundation and mount the gate panel to the cradle.

Specifications:

• • Motor: 1-HP continuous-duty motor
  • Spring: Ultra-heavy-duty compression spring
  • Battery Backup: Continuously charged battery backup system allowing for 50+ cycles
  • Infill Options: Chain link, picket, and custom infill options
  • Certification: UL 325 Listed and Certified for operator usage classes I, II, III, and IV
  • Safety Features: Built-in photo eye and inherent sensing
  • Durability: Factory fabricated by CWB Certified Welders using Taimco’s proprietary aluminum extrusions
  • Testing: Thoroughly engineered gate panels and built-in operators undergo rigorous cycle testing for seamless performance across all environmental conditions
  • Support: Comprehensive assistance from the initial design stage through installation and beyond
  • Installation: Shipped pre-balanced and assembled for easy installation.
  • Download Specifications and details.

Clear opening lengths:

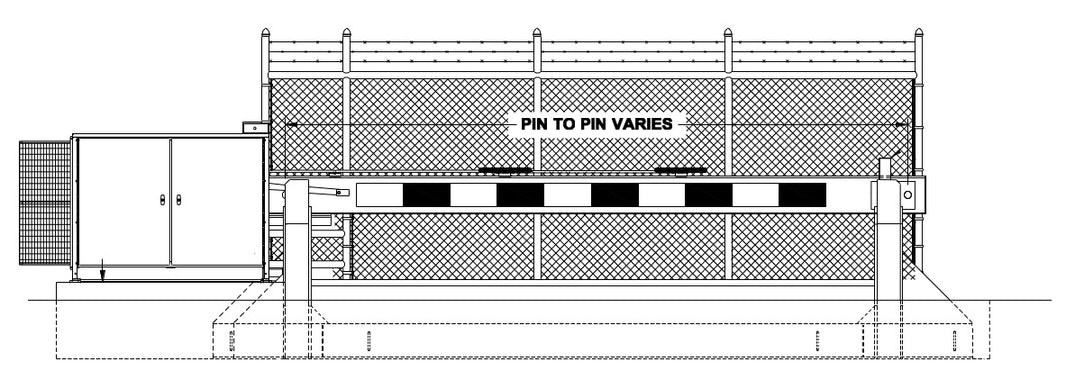

• • 19’ with the barrier arm only and 17’ when equipped with a fabricated gate panel attached to the drop arm/gate.
  • 17’ with the barrier arm only and 15’ when equipped with a fabricated gate panel attached to the drop arm/gate.

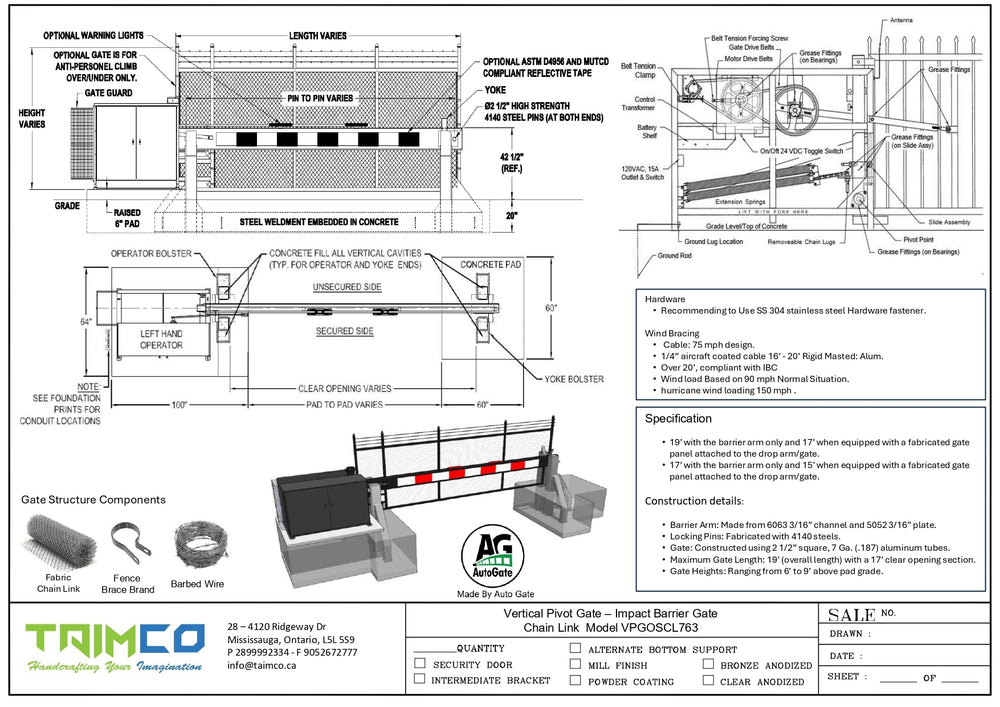

Construction details:

• • Barrier Arm: Made from 6063 3/16” channel and 5052 3/16” plate.
  • Locking Pins: Fabricated with 4140 steels.
  • Gate: Constructed using 2 1/2” square, 7 Ga. (.187) aluminum tubing.
  • Maximum Gate Length: 19’ (overall length) with a 17’ clear opening section.
  • Gate Heights: Ranging from 6’ to 9’ above pad grade. For gates exceeding 8’ in height, consult the factory as special crating and freight arrangements are required.

Additional details:

• • Pickets: Standard picket construction features aluminum 3/4” square tubing with a 1/8” wall. For customized sizes, spacing, or materials, contact the factory.
  • Chain Link Fabric: Standard is 9 Ga. steel with aluminum fabric for larger gates. Vinyl-coated fabric is also available.
  • Finish and Paint: Drop arms and gates are finished with spray-applied, 2-part high solids polyurethane commercial coatings. The standard color is black, while custom colors include white, brown, green, and gray. Specialty colors can be discussed with the factory. Powder coating is available for gates with a maximum length of 22’ and a maximum height of 7’.
