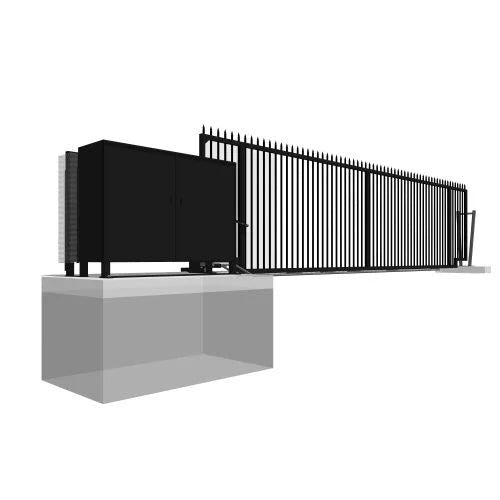

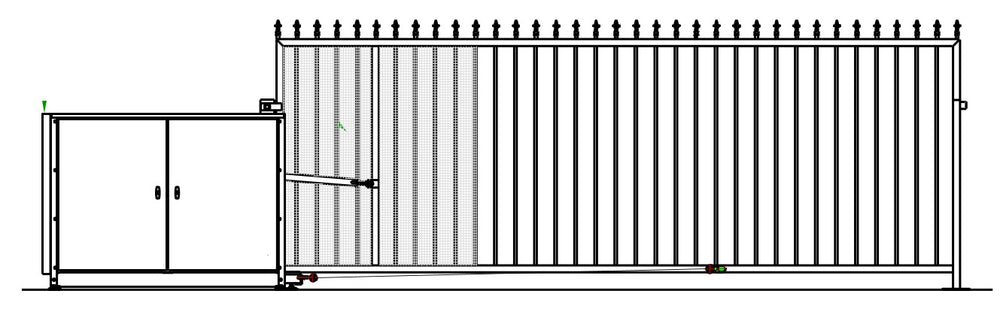

Taimco Vertical Pivot Gates

Discover the efficiency and reliability of Taimco Vertical Pivot Gates. These space-saving gates are a testament to our innovation and engineering prowess. Powered by a robust 1-HP continuous-duty motor, driven by our ultra-heavy-duty compression spring, and complemented by a continuously charged battery backup system, these gates redefine convenience and security.

Key Features:

• • Minimal footprint required
  • Clear openings up to 26 feet
  • Chain link, picket, and custom infill options
  • Fully charged battery backup allows for 50+ cycles
  • UL 325 Listed and Certified for operator usage classes I, II, III, and IV
  • Built-in photo eye and inherent sensing

With the assurance of a 3-year warranty and the backing of Taimco’s engineering and technical support team, our Vertical Pivot Gates are the superior choice for your perimeter security needs.

• • Durable Factory fabricated by AWS Certified Welders uses Taimco’s proprietary aluminum extrusions to build a gate frame to outlast the competition.
  • Tested Thoroughly engineered gate panels and built-in operators continuously undergo rigorous cycle testing for seamless performance across all environmental conditions.
  • Support Taimco associates deliver comprehensive assistance starting from the initial design stage, extending through installation and beyond, guaranteeing steadfast backing for our products.
  • Easy Install Gate systems are shipped pre-balanced and assembled. Simply set the operator on the foundation and mount the gate panel to the cradle.

Specifications:

• • Motor: 1-HP continuous-duty motor
  • Spring: Ultra-heavy-duty compression spring
  • Battery Backup: Continuously charged battery backup system allowing for 50+ cycles
  • Clear Openings: Up to 26 feet
  • Infill Options: Chain link, picket, and custom infill options
  • Certification: UL 325 Listed and Certified for operator usage classes I, II, III, and IV
  • Safety Features: Built-in photo eye and inherent sensing
  • Durability: Factory fabricated by AWS Certified Welders using Taimco’s proprietary aluminum extrusions
  • Testing: Thoroughly engineered gate panels and built-in operators undergo rigorous cycle testing for seamless performance across all environmental conditions
  • Support: Comprehensive assistance from the initial design stage through installation and beyond
  • Installation: Shipped pre-balanced and assembled for easy installation.

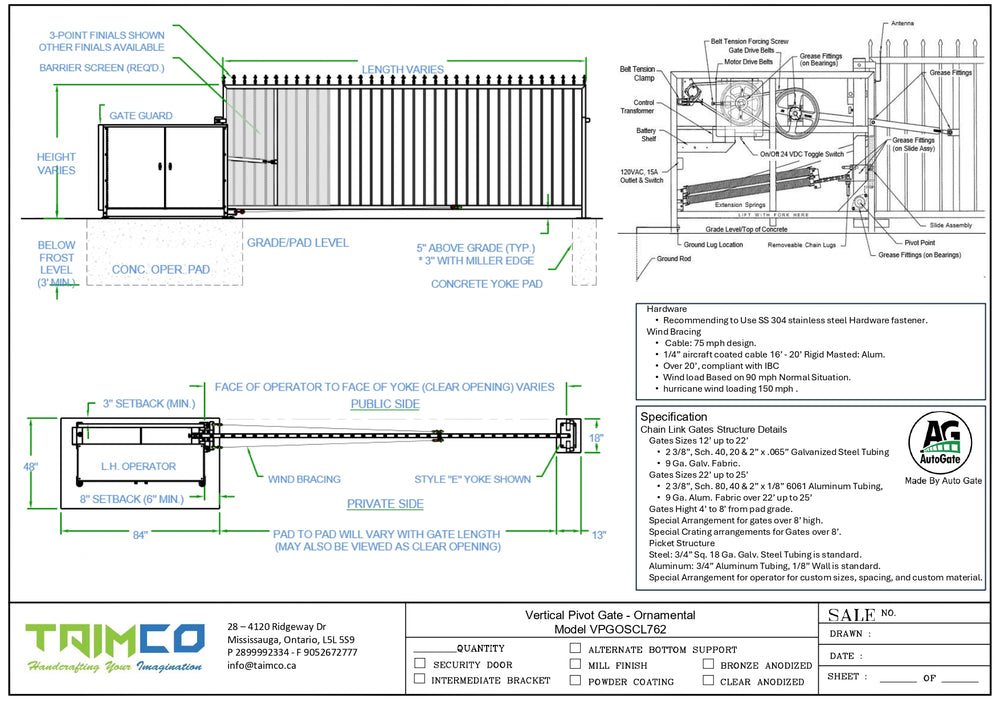

  • Download Specifications and details.
