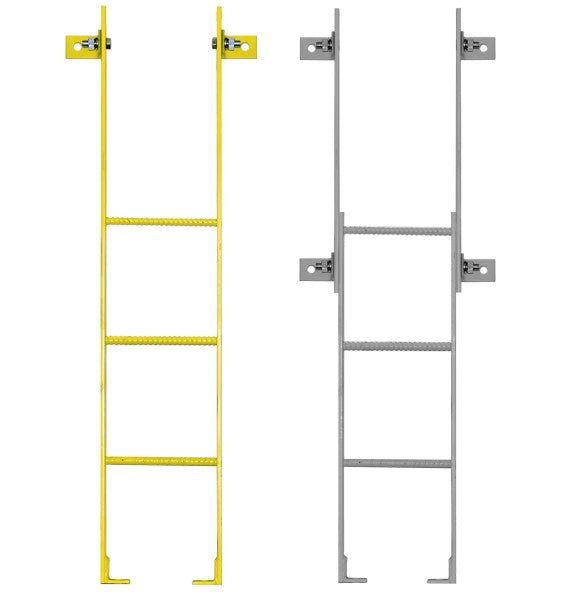

Fixed Aluminum Elevated Pit Access Ladder

TAIMCO Model SL1482 fixed wall, and side exit ladders provide permanent elevator pit maintenance access. They are ideal for tanks, water treatment plants, refineries, and other industrial or marine applications. This ladder has a narrower wall offset to allow for elevator clearance in the elevator pit.

CONSTRUCTION & MATERIALS:

TAIMCO aluminum ladders and their components are fabricated from 6061-T6 aluminum alloy for added safety, strength, and long-lasting durability, with no painting required. Model SL1482 fixed wall elevator pit ladders include side rails with 1-1/8" (29 mm) round rungs that are serrated and secured with cast aluminum connectors, 4 solid rivets, and 3/8" (9.5 mm) thick brackets mounted to the walls.

SIZES:

• • Height: Maximum 20' (6.1 m) pit floor to floor level.
  • Width: 20-1/4" (514 mm).

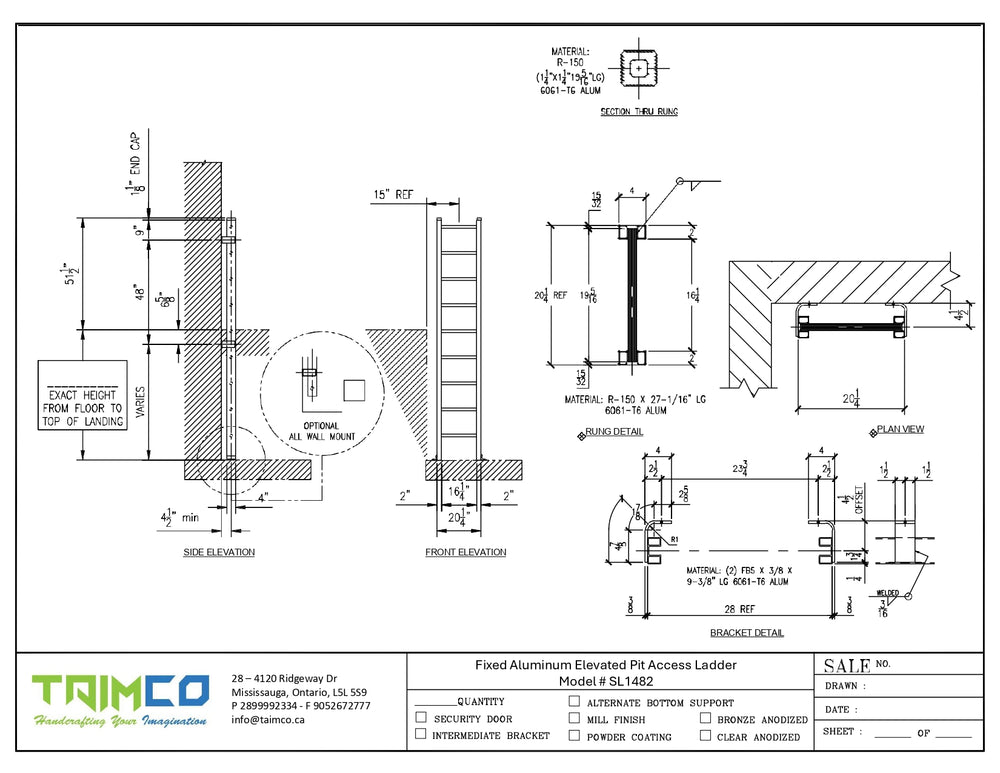

  • Download Specs and Details.

FINISHES & COATINGS:

Mill finish is standard on aluminum ladders. Factory-applied paint coatings and chem-film treatment for field-applied primers are available upon request. Custom coatings and surface treatments are also offered.

Technical Data:

APPLICABLE STANDARDS: American National Standards Institute (ANSI) - ANSI A14.3 American National Standard for Ladders - Fixed - Safety Requirements
