This Square-top double iron door integrates Ornamental Cast iron detailing, featuring a graceful array of cast flowers, leaves, and vine elements. Each botanical piece is formed using traditional sand casting methods, offering dimensional depth and organic artistry that enhances both curb appeal and structural refinement.

The TAIMCO IWD 1102 is a square-top wrought iron entry door featuring an ornate grapevine scrollwork design and integrated kickplate for added durability and visual appeal. Crafted from hot-dipped, powder-coated galvanized steel, this door is engineered for long-term performance, offering exceptional resistance to corrosion, weather, and wear.

The frame is constructed with 2" x 6" x 1/8" insulated jambs, filled with high-density polyurethane foam for enhanced thermal insulation and energy efficiency. The door includes 5/8" thick double-pane tempered glass, available in various finishes, with optional operability for ventilation and cleaning.

Equipped with heavy-duty ball-bearing hinges rated up to 1500 lbs, the unit is pre-hung and pre-drilled for standard locking systems (2-3/8" backset, 2-1/8" bore, 5-1/2" center-to-center). Flush bolts are included for double-door configurations to secure the inactive panel.

Construction & Design Features:

• • Primary Material: Mainframe and slab constructed from premium-grade wrought iron

  • Ornamentation: Floral and leaf motifs produced via sand casting, then welded and blended into the door’s surface

  • Visual Style: Nature-inspired theme with climbing branches, detailed flower buds, and delicately veined leaves

  • Finish: Triple-stage anti-corrosive finish—hot-dip galvanizing, zinc-rich primer, and architectural powder coating (colour options available)

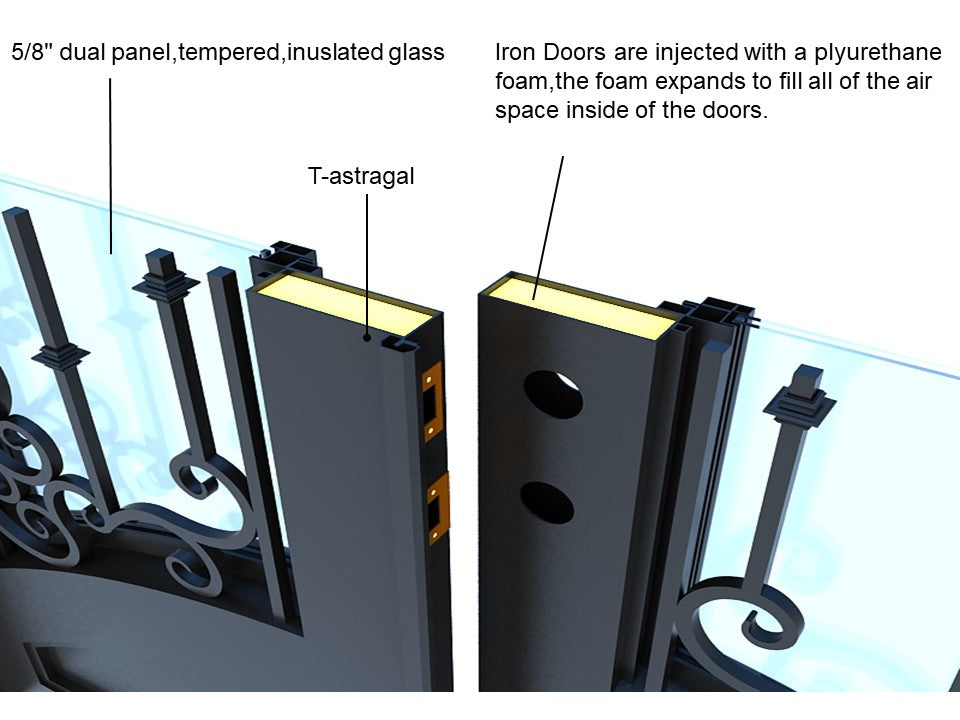

• • Main Door Frames: The wrought iron entry doors feature standard 2" x 6" x 1/8” Jambs that are insulated with high-density foam for energy efficiency.

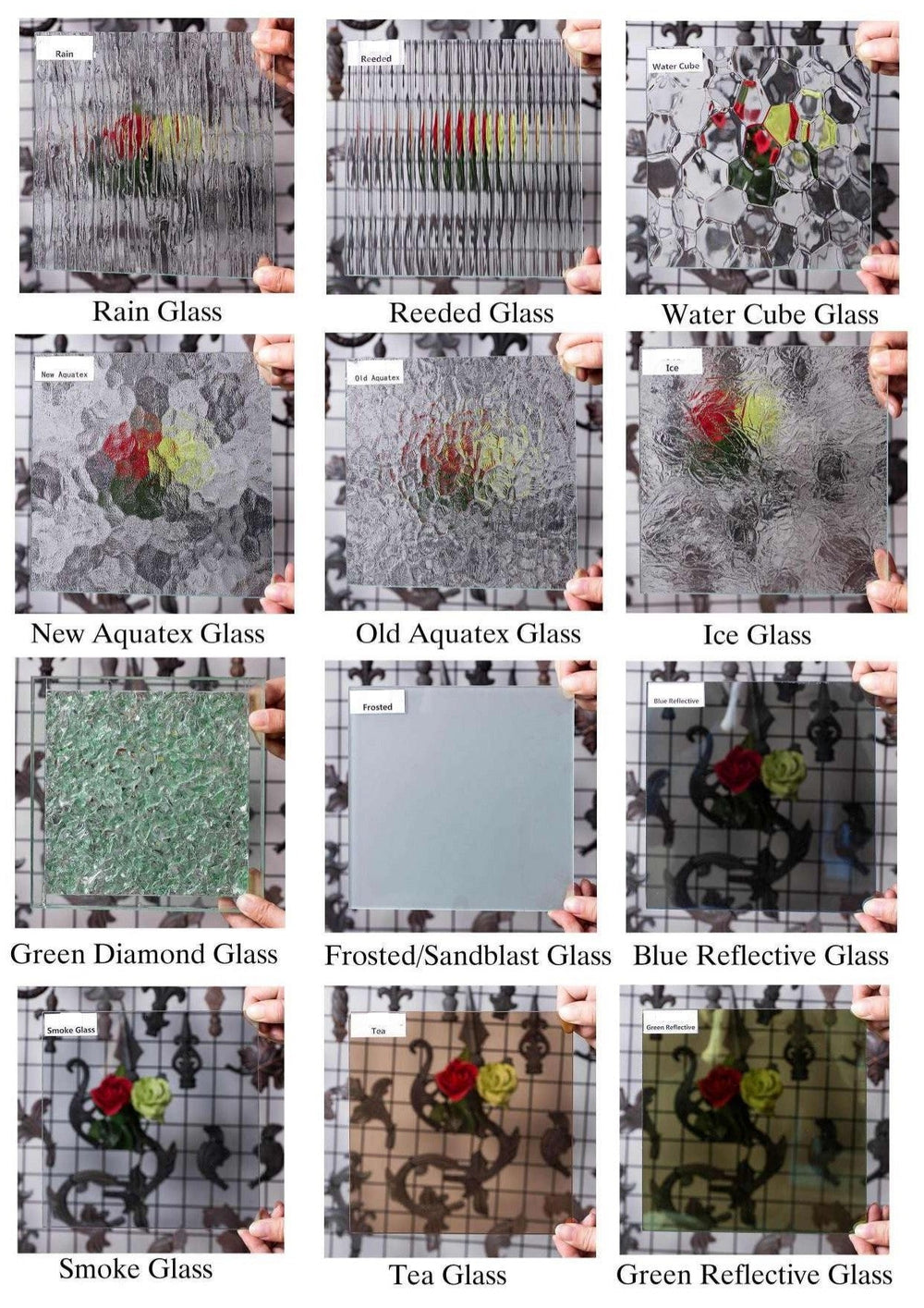

  • Glass: Double glass 5/8" thick, can be made to be opened separately for an additional cost. Multiple glass finishes are available

  • Decorative Scroll-Work: Standard iron entry doors come with decorative 5/8" square solid steel scrollwork.

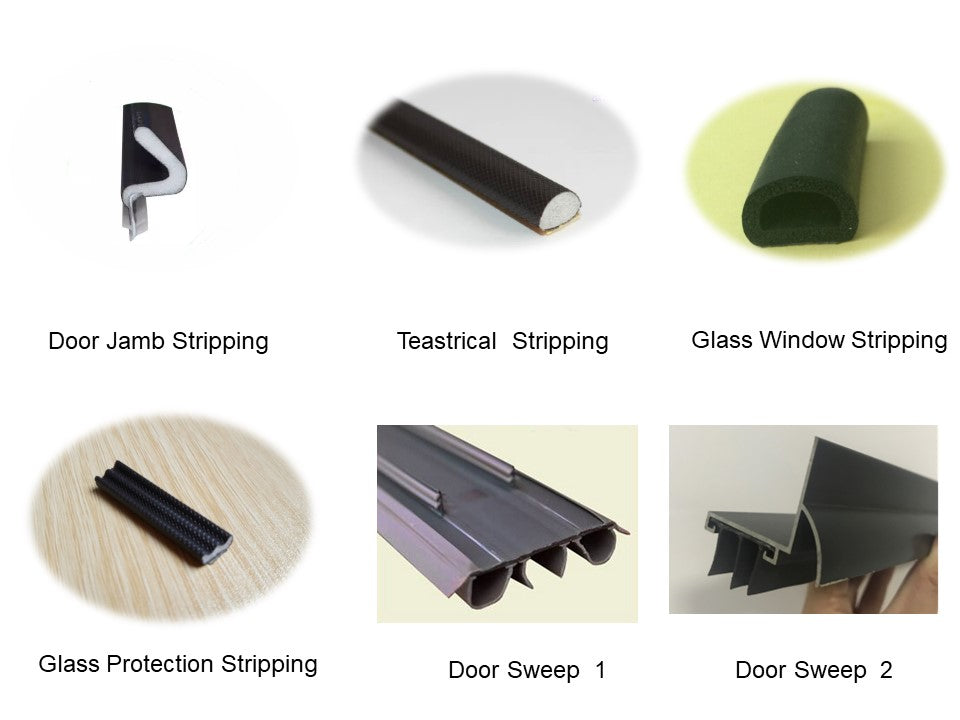

  • Weatherstrip: Tight-fitting weather stripping is pre-installed around the door to prevent air leaks.

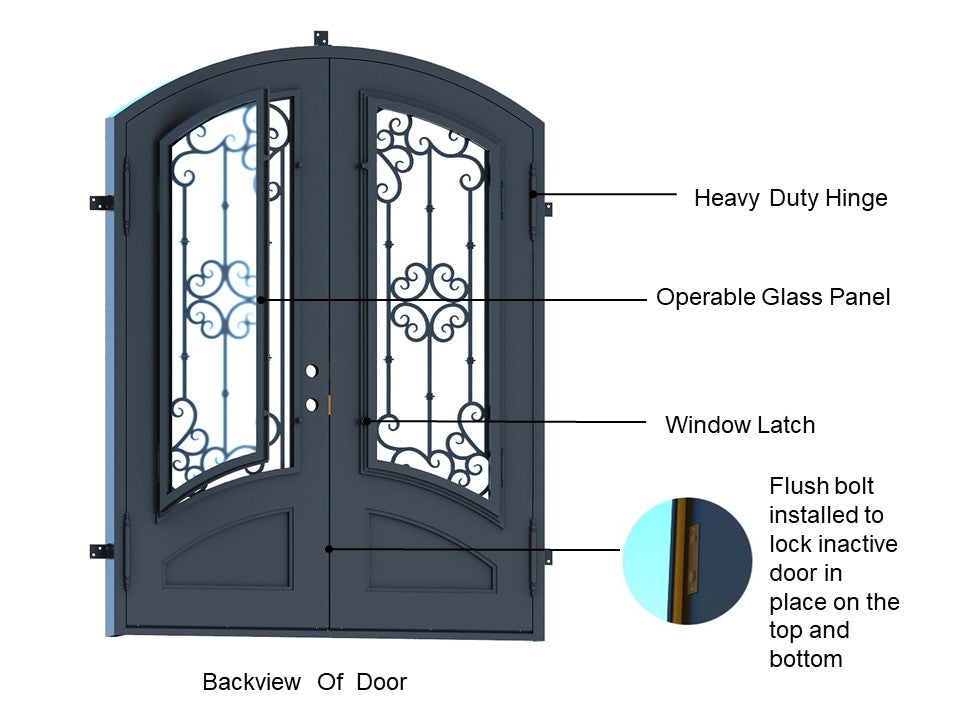

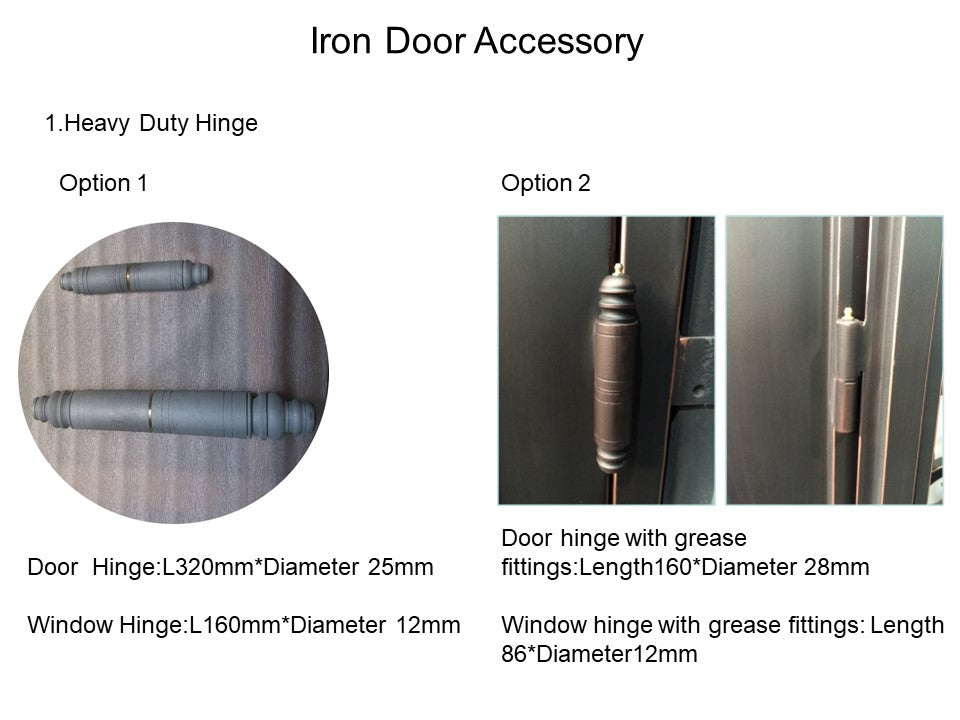

  • Hinges: Heavy-duty ball-bearing hinges that can support up to 1500 pounds.

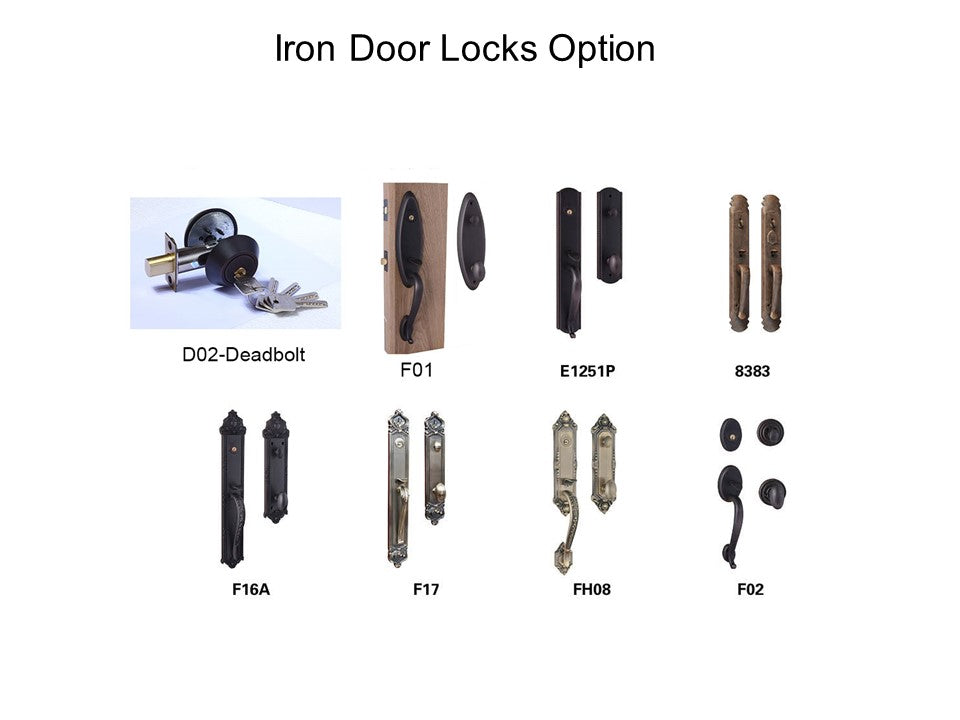

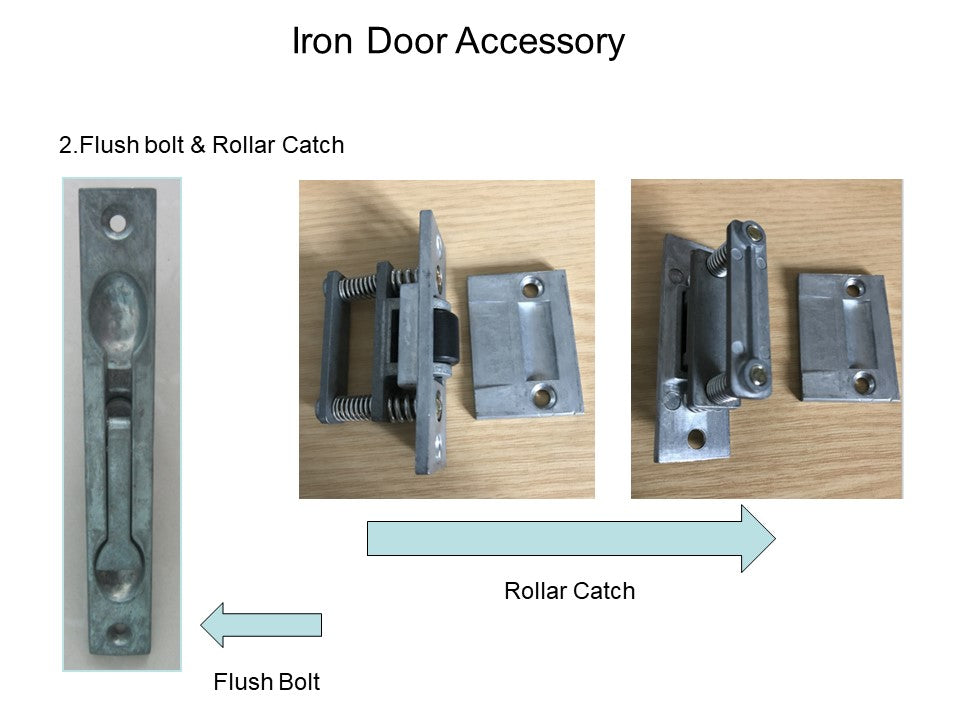

  • Hardware: Doors are pre-bored for standard locking systems or 2-3/8″ backset, 2-1/8″ diameter, 5-1/2″ center to center. Flush Bolts are used to hold the inactive leaf of the double doors and add extra security to the door.

  • Finishes: All iron doors are galvanized and powder-coated to protect them from rust & corrosion.

  • What comes inside the Box:  Door Panels, Double Pane Glass, Frame, roller catch, door sweep, mounting tabs, threshold, Door handles and deadbolt locksets, weatherstrip

• • Installation: This door is a pre-hung and pre-drilled unit, making it easy to install.

  • Customization: We offer opportunities for a fully customizable design line to match your needs. If you find that the size and design you want are not listed on our website, feel free to contact us.

  • Lead time for fabrication is 7-9 weeks.

  • Side Panels and top panel are extra. Any single one of those pieces and any combination is available at an additional cost

  • Download specs and details.

Note:

• • This product is recommended to be installed by a professional team.
  • Orders cannot be cancelled, returned, or refunded after purchase, as these are custom-made to order, and we don't stock the product.
  • All custom metal product orders are final sale.
  • Doors may need minor touch-up paint due to the nature of shipping.
  • For more information, please email us at info@taimco.ca
  • Each unit ships with a complete installation kit, including:

• • Door panels and frame
  • Threshold and roller catch
  • Door sweep and weatherstripping
  • Mounting tabs

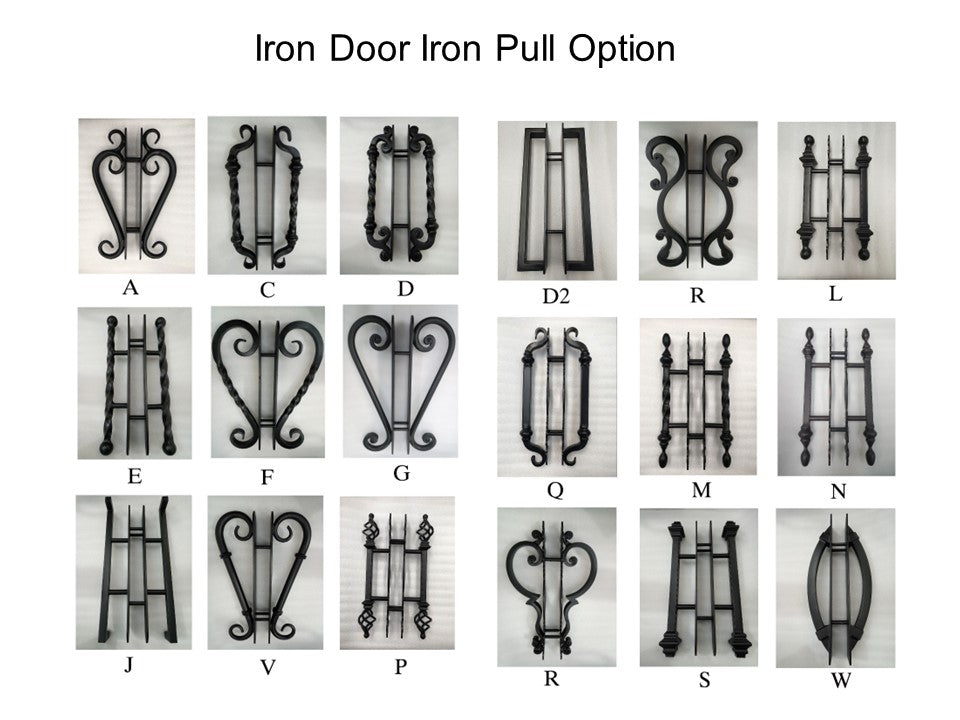

  • Handles and deadbolt locksets
